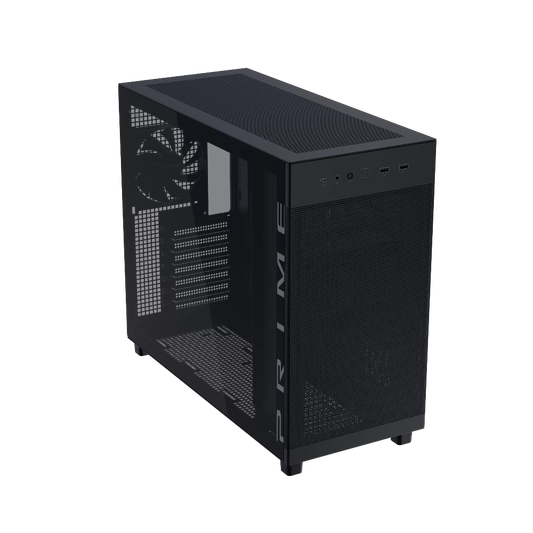

- ASUS Prime AP303 ATX Mid Tower Cabinet ( Black )
Description
Features of ASUS Prime AP303 ATX Mid Tower Cabinet ( Black )
- Compact Size with Maximal Capacity: 44-liter footprint supports up to 360mm graphics cards, up to 360mm radiators (60mm max thickness), up to 180mm ATX PSUs
- Enhanced Rigidity for Graphics Cards: Added bracket supports GeForce RTX™ 50 Series graphics cards from 310mm to 360mm long, reducing sagging and movement
- Power Cable for High-End Systems: UL-certified power cable delivers 15 amps to ensure stable operation
- Optimized for Cooling: Support for up to 360mm radiators and up to seven fans handles any thermal scenario
- Front Panel USB Type-C® Support: A 20Gbps USB Type-C port enables high-speed data transfer speeds
Compact Frame. Massive Potential.
The ASUS Prime AP303 is a compact 44-liter ATX chassis that accommodates 360mm radiators up to 60mm thick and graphics cards up to 360mm long. It features a graphics card bracket and holder to keep cards firmly mounted, plus an internal power cable that delivers 15 amperes to maintain stable power delivery for high-end PC builds.
Exceptional Space Efficiency
The AP303 is designed to maximize internal space, enabling installation of graphics cards up to 360mm long, radiators up to 360mm long and ATX power supplies up to 180mm long.
Superior Stability Under Heavy Loads
Alongside the graphics card holder is a graphics card bracket that supports GeForce RTX 50 Series graphics cards from 310mm to 360mm long. It securely mounts the graphics card with screws, reducing sagging and movement.
Efficient Cooling
With support for up to 360mm radiators and up to seven fans, the AP303 is primed to deal with the thermal scenarios of high-performance hardware.
Quasi-Filter Mesh Panels
Metallic quasi-filter mesh panels are designed to enhance airflow and minimize dust ingress, delivering both performance and protection in a sleek style.
Pioneering Cable for High-End Systems
The UL-certified internal power cable delivers 15 amperes of current to ensure stable operation for high-end systems with a 1200W power supply.

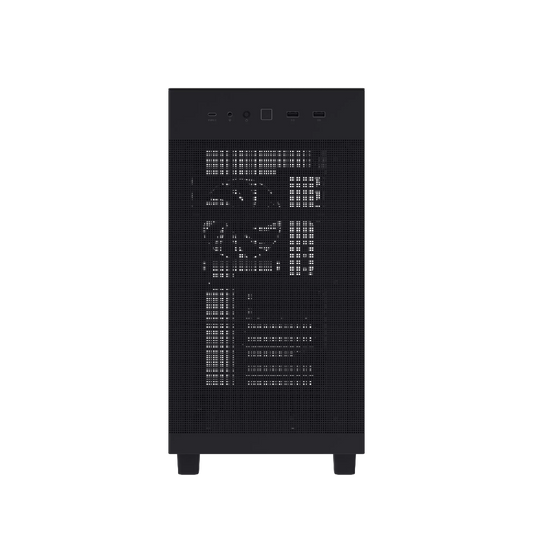

USB Type-C® Support
AP303 includes one 20Gbps Type-C port and two USB 3.0 ports for future-ready and backward-compatible connectivity.
Unified Front I/O Header
A thoughtful header design makes connecting Front Input/Output (FIO) components to the motherboard easy.

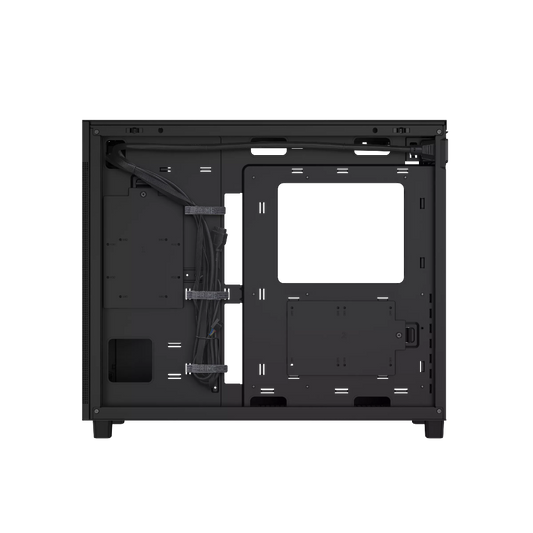

Organized Cabling
A 34mm-wide compartment behind the motherboard provides ample space to neatly organize cables, despite the relatively compact dimensions of the chassis.
Tool-Free Side Panels
The side panels of the AP303 use a simple but secure clip mechanism to attach to the case. This makes them easy to remove, providing easy access to the interior of the chassis.

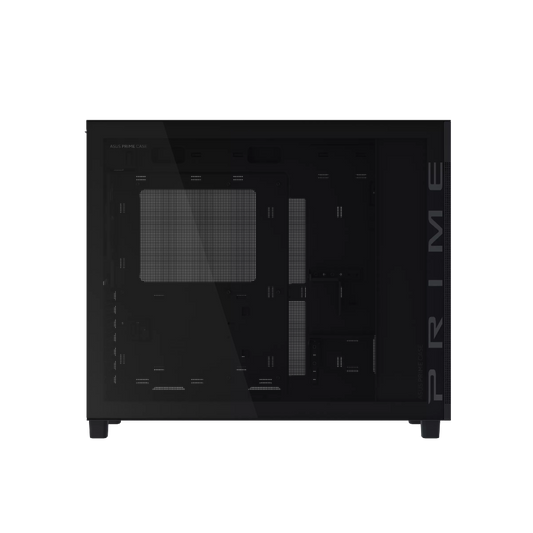

Multiple Colors and Styles
The AP303 is available in either black or white, giving you options to create a rig that blends in or stands out. In addition, the tempered glass side panel version provides an elegant appearance, whereas the mesh side panel version boosts airflow efficiency and thermal performance.
Specifications of ASUS Prime AP303 ATX Mid Tower Cabinet ( Black )
| Model | ASUS Prime AP303 - Tempered Glass Panel |
| Motherboard Support | ATX Micro-ATX Mini-ITX |
| Drive Bays | 2 x 2.5" Bay 1 x 2.5"/3.5" Combo Bay |
| Expansion Slots | 7 |
| Front I/O Port | 1 x headphone / Microphone 2 x USB 3.2 Gen1 1 x USB 3.2 Gen 2x2 Type C |
| Radiator Support (Top) |
120 mm 140 mm 240 mm 280 mm 360 mm |
| Radiator Support (Rear) | 120 mm |
| Cooling Support (Top) | 3 x 120 mm 3 x 140 mm |
| Cooling Support (Rear) | 1 x 120 mm |
| Pre-installed Fans (Rear) | 1 x 120 mm (vary by model) |
| Maximum CPU Cooler Height | 165 mm |
| Maximum GPU Length | 360 mm |
| Maximum PSU Length | 180 mm |
| Removable Dust Filters | Bottom |
| Maximum Cable Management Space | 34 mm |
| Dimensions | 215*425*485 (W*H*D) mm |
| Weight | Mesh Edition: 6.8 Kg Tempered Glass Edition: 7.8 Kg |
