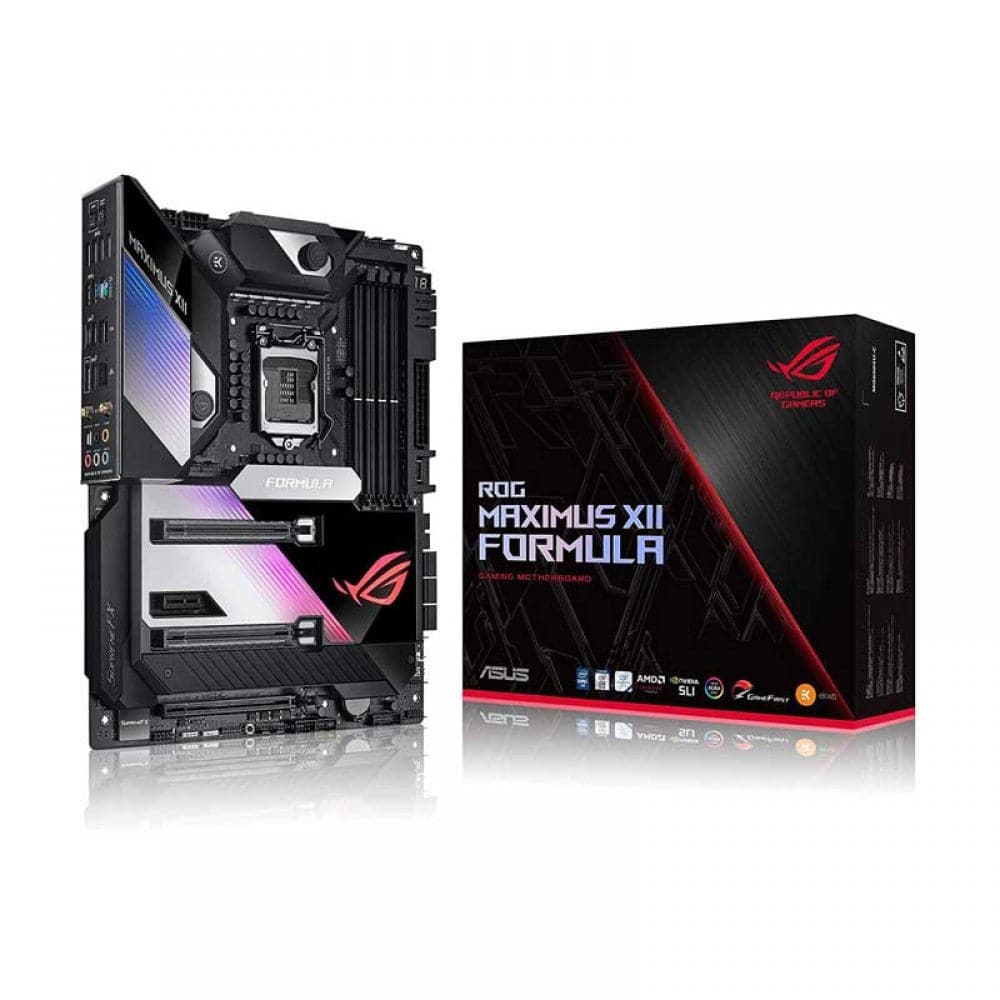

ASUS Z490 Maximus XII Formula DDR4 Intel Motherboard

Rs. 43,719.00 Rs. 52,490.00

Discount: Rs. 8,771.00 (17%)

33 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: 13 December,2024 - 17 December,2024

Availability: In Stock Unavailable

Description
Reviews ( 0 )

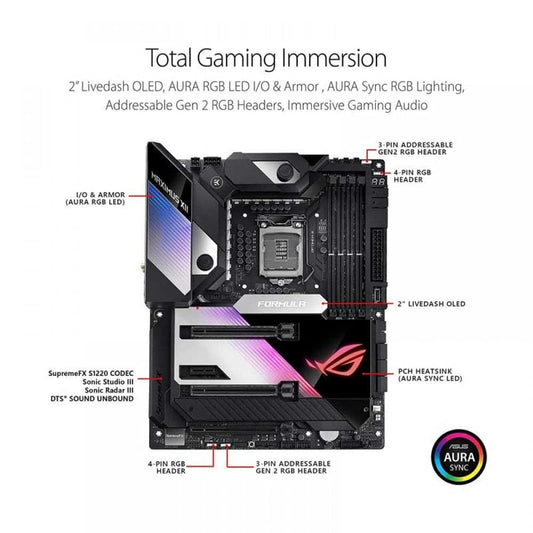

Feature of ASUS Z490 Maximus XII Formula

LGA1151 socket: Ready for 9th/8th Generation Intel® Core™ desktop processors
Crosschill EK III and Water Cooling Zone: Keep your system cool when the action heats up
ROG Eco-System: ASUS-exclusive Aura Sync RGB lighting, including headers for both standard and addressable RGB strips
Gaming connectivity: Aquantia 5G LAN and Intel Gigabit Ethernet onboard, dual M.2, USB 3.1 Gen 2, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, LANGuard and GameFirst
5-way Optimization: Automated system-wide tuning, providing AI Overclocking and cooling profiles tailor-made for your rig
Gaming Audio: SupremeFX and Sonic Studio III – High fidelity audio that draws you deeper into the action
Gaming durability: ROG RGB Armor,ROG patented pre-mounted I/O shield, ASUS SafeSlot, and premium components for maximum durability

THE FORMULA

ROG Maximus XI Formula exhibits the sleek, refined and functional design that has become iconic in the Maximus motherboard series. With its distinctive integrated CrossChill EK III cooling block, intelligent overclocking software and a stunning polished-mirror finish, the latest-generation Formula is all set to make your showcase rig shine.

THRILLING PERFORMANCE

Building on over a decade of ROG engineering and refinement, Formula is the motherboard that lets you push the boundaries while keeping the thermals in check and under careful control.

BUILT FOR OVERCLOCKING

By default, all of Coffee Lake's major bus frequencies are derived from the same reference clock, limiting the control and flexibility needed to harness the full overclocking potential of the platform. Maximus XI Formula features a dedicated onboard clock generator that supplies dynamic reference clocks to the CPU cores and major subdomains, giving you the freedom to coax every MHz of headroom from the system.

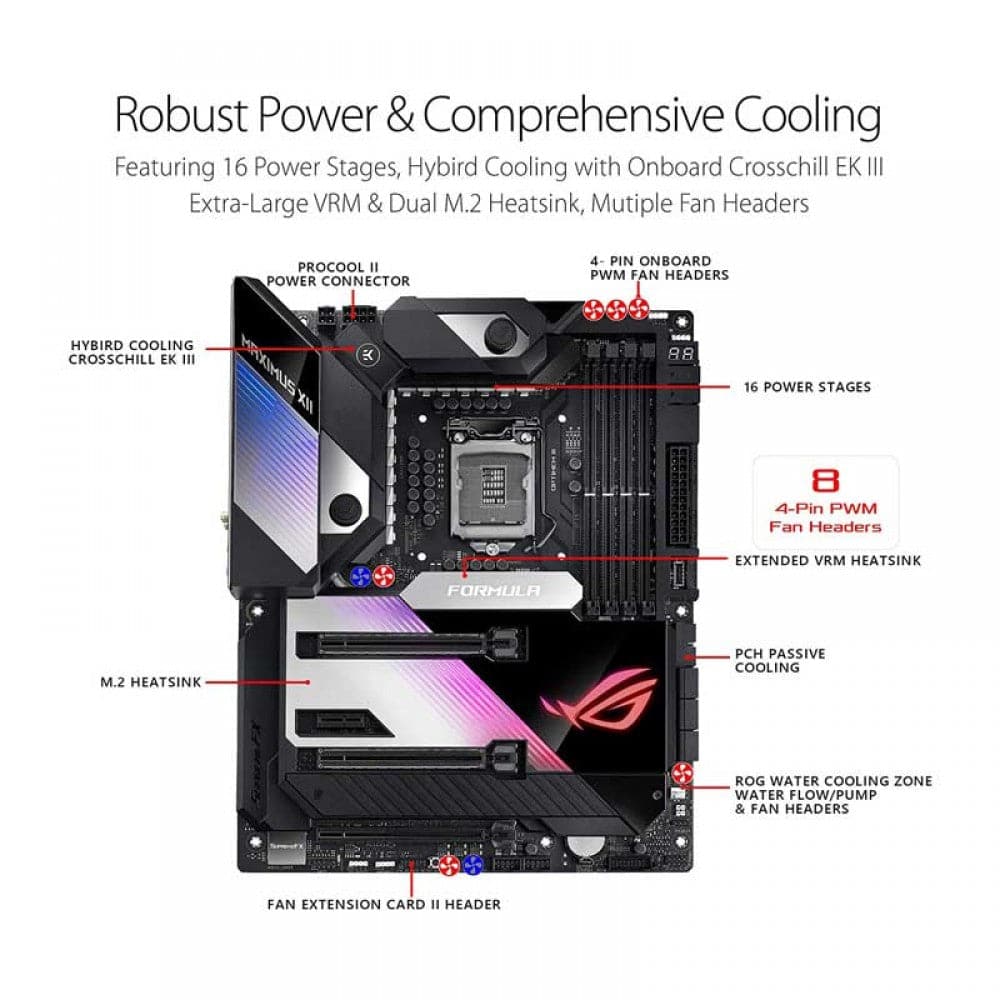

EXPERTLY TOOLED TOTALLY COOLED

CROSSCHILL EK III

CrossChill EK III lets you cool with air and water. The redesigned cooling channels provide wider copper, delivering up to 37.2°C-lower MOSFET temperatures on water, and the standard G1/4" threaded fittings mean CrossChill EK III easily fits existing setups — so you can enjoy efficient, quiet cooling with the minimum effort.

COOLER BY DESIGN

COMPREHENSIVE COOLING ZONE

ASUS Z490 Maximus XII Formula features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.

CONTROL YOUR RIG

Fast, intuitive control is vital for effective command of your rig, so we've loaded ROG Maximus XI Formula with simple, flexible tools that let you tweak almost every system aspect. Enjoy intelligent automated tuning with 5-Way Optimization technology, or dive deep into the revered ROG UEFI BIOS to take full manual control. Formula also makes short work of fine-tuning everything from sonics to storage, so it's easy to get every part of your system up to speed.

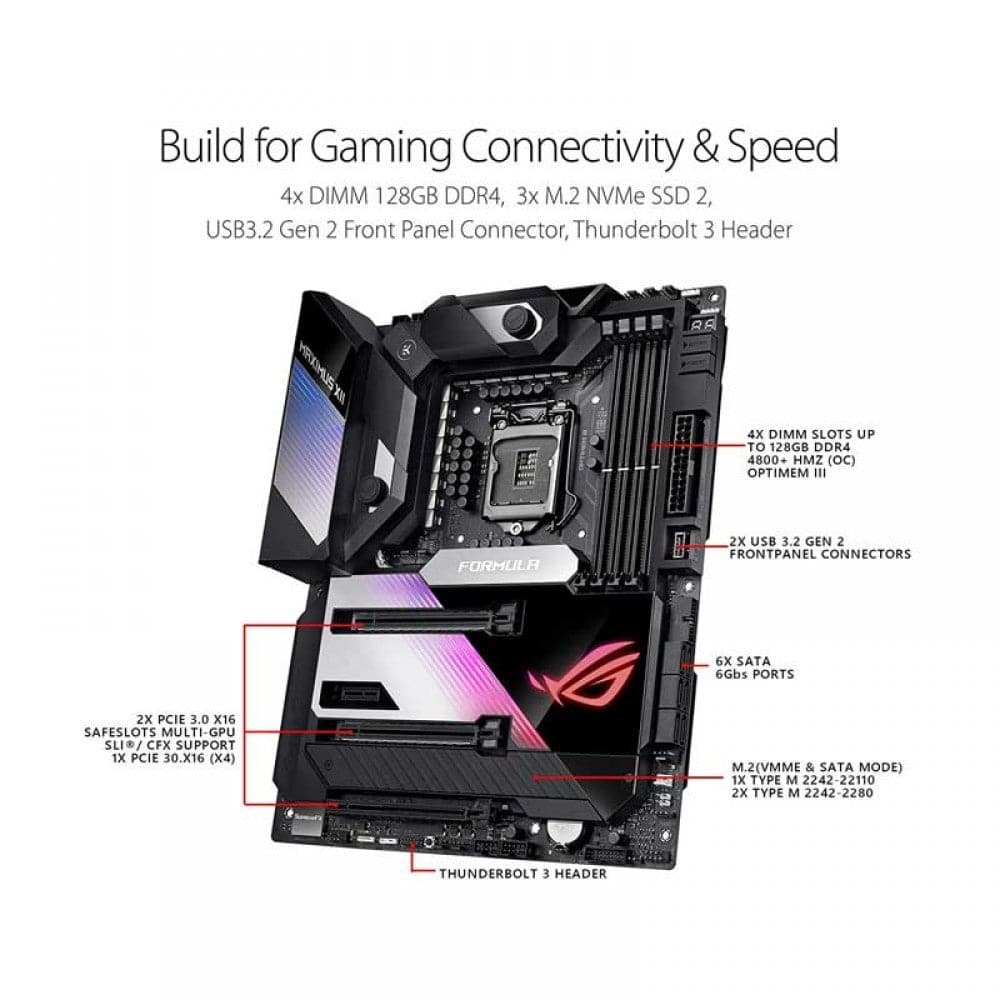

Specifications of ASUS Z490 Maximus XII Formula

CPU	Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset	Build in Intel® Z390
Memory	4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/ 4000(O.C.)/3866(O.C.)/3733(O.C.)/ 3600(O.C.)/3466(O.C.)/3400(O.C.)/ 3333(O.C.)/3300(O.C.)/3200(O.C.)/ 3000(O.C.)/2800(O.C.)/2666(O.C.)/ 2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Graphic	Integrated Graphics Processor- Intel® UHD Graphics support VGA output support : HDMI port - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz
Multi-GPU Support	Supports NVIDIA® 2-Way SLI™ Technology Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots	Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors 2 x PCIe 3.0 x16 (x16, x8/x8, or x8/x4+x4) Intel® Z390 Chipset 1 x PCIe 3.0 x16 (max at x4 mode) * 1 x PCIe 3.0 x1
Storage	Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Intel® Optane™ Memory Ready
LAN	Aquantia AQC111C 5G LAN Intel® I219V Anti-surge LANGuard ROG GameFirst V Technology
Wireless Data Network	Intel® Wireless-AC 9560 Wi-Fi 802.11 b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth	Bluetooth® 5.0
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS® ES9023P - Supports up to 32-Bit/192kHz playback *3 Audio Feature : - Optical S/PDIF out port(s) at back panel
USB Ports	Intel® Z390 Chipset : 1 x USB 3.1 Gen 2 front panel connector port(s) Intel® Z390 Chipset : 4 x USB 3.1 Gen 2 port(s) Intel® Z390 Chipset : 8 x USB 3.1 Gen 1 port(s) Intel® Z390 Chipset : 4 x USB 2.0 port(s) ASMedia® USB 3.1 Gen 1 controller : 2 x USB 3.1 Gen 1 port(s)
ROG Exclusive Features	ROG RGB Armor ReTry Button Start Button Extreme Engine Digi+ : - MicroFine Alloy Chokes - 10K Black Metallic Capacitors Extreme Tweaker Crosschill EK III ROG Patented Pre-mounted I/O Shield ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III
Special Features	5-Way Optimization by Dual Intelligent Processors 5 - 5-way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance,and Turbo app 2 ” LiveDash AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - USB BIOS Flashback® - MemOK! II - AI Suite 3 - Ai Charger - ASUS CrashFree BIOS 3 - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - OptiMem II - ASUS EZ Flash 3 - ASUS C.P.R.(CPU Parameter Recall) - BUPDATER - BIOS Flashback® Button - Clear CMOS Button - Reset Button ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector

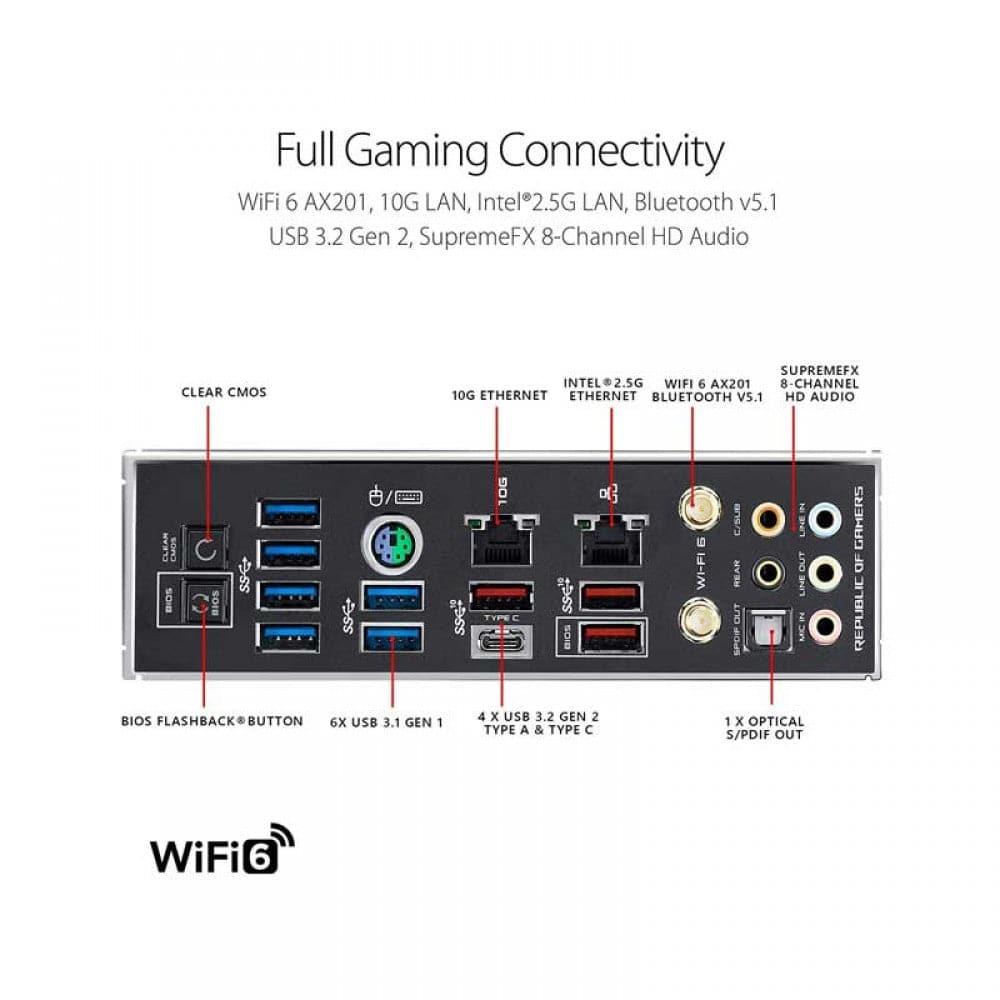

Back I/O Ports	1 x HDMI 4 x USB 3.1 Gen 2 6 x USB 3.1 Gen 1 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback® Button(s) 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks Anti-surge LAN (RJ45) port 1 x AQC-111C 5G LAN port
Internal I/O Ports	2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 1 x Chassis Fan connector(s) 1 x Optional Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 4-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x MemOK! II switch(es) 1 x Thermal sensor connector(s) 1 x Node Connector(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x ReTry button 1 x System panel connector 1 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x USB 3.1 Gen 2 front panel connector 2 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x Start button 1 x Reset button 1 x Q-Code
Accessories	User's manual 1 x ROG logo plate sticker 1 x 2-Way SLI bridge(s) 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s) 1 x USB 3.1 Gen 1 Header to USB 2.0 adapter cable 2 x ROG weave SATA 6G cable 1 x ROG Thank you card
BIOS	1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
Manageability	WOL , PXE
Operating System	Windows® 10 64-bit
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm)
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
