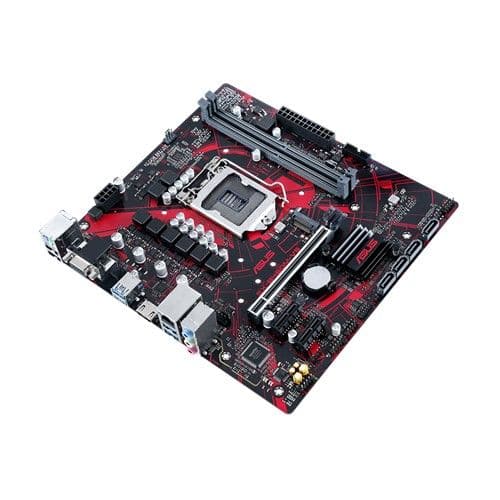

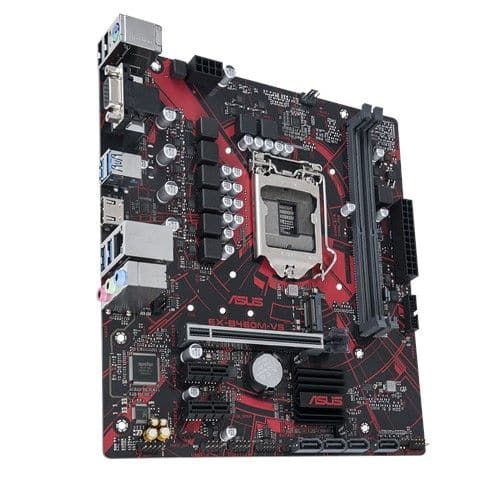

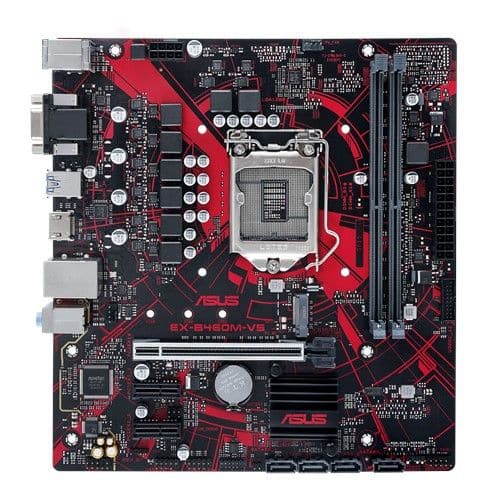

- ASUS EX-B460M-V5 DDR4 Intel Motherboard
Description
Feature of ASUS EX-B460M-V5 DDR4
ASUS EX-B460M-V5 DDR4 1200 mATX motehrboard feature with luminous anti-moisture coating, SafeSlot Core+, USBGuard, LANGuard, DDR4 2933MHz, HDMI, D-Sub, SATA 6Gbps and USB 3.2 Gen 1, and 8-pin power connector
- Supports 10th Gen Intel® Core™ Series Processors
- Non-stop action: The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses
- Non-stop durability: Unbeatable features including luminous anti-moisture coating, LANGuard, SafeSlot Core+, USBGuard, Stainless-steel back I/O and 5X Protection III
- Non-stop gaming: ASUS Beyond VR ready and Epic audio
- Non-stop challenger: ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more
Protects against moisture and corrosion
An innovative moisture-resistant coating provides comprehensive protection to prolong the life of your Expedition motherboard. It combats the negative effects of high humidity often found in crowded environments — such as iCafé , data centers and libraries — and minimizes internal corrosion by preventing the adhesion and migration of moisture. The coating even has a luminous effect when viewed under ultraviolet light, letting you clearly see where it is applied.
120% higher overvoltage protection
Exclusive USBGuard technology detects voltage changes in real time, and has 120%-higher overvoltage tolerances than standard to ensure stable and reliable input voltages — minimizing the risk of damage, and protecting your equipment.
SAFE SLOT CORE+
SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Specifications of ASUS EX-B460M-V5 DDR4
| CPU |
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Supports CPU up to 125 W * Refer to asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® B460 |
| Memory |
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Refer to asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic |
Integrated Graphics Processor Multi-VGA output support : HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz |
| Expansion Slots |
Intel® 10th Gen Processors 1 x PCIe 3.0/2.0 x16 Intel® B460 Chipset 2 x PCIe 3.0 x1 |
| LAN |
Realtek® RTL8111H ASUS LANGuard |
| Audio |
Realtek® ALC887 7.1-Channel High Definition Audio CODEC * * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports |
Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
| Special Features |
ASUS 5X Protection III : - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS SafeSlot Core+ - Prevent graphics card damage - ASUS DIGI+ VRM: Premium components provide better power efficiency Non-stop Durability : - Anti-moisture coating - Outstanding protection against moisture and corrosion - USBGuard- 120% higher voltage tolerance Non-stop Gaming : - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Seperated layers for left and right tracks to ensures both channels delivering the consistent and equal quality - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Non-stop Challenger : - ASUS iCafe Labs Certified - Top games and 100+ peripherals tested |
| Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Ports |
1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x AAFP connector 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel connector(s) 1 x COM Debug header 1 x Clear CMOS jumper(s) 1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) |
| Accessories |
User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Form Factor |
mATX Form Factor 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm ) |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
