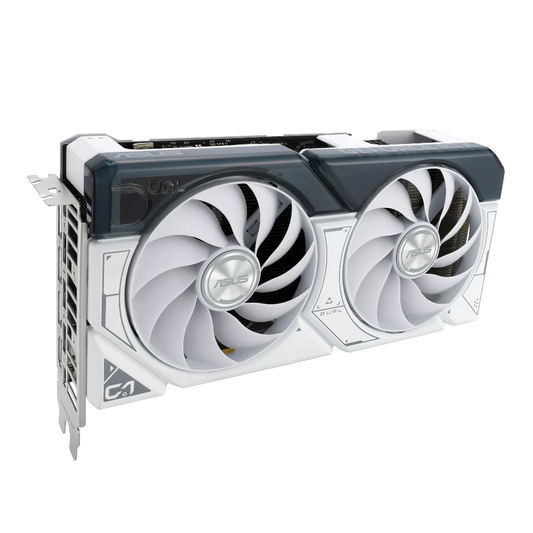

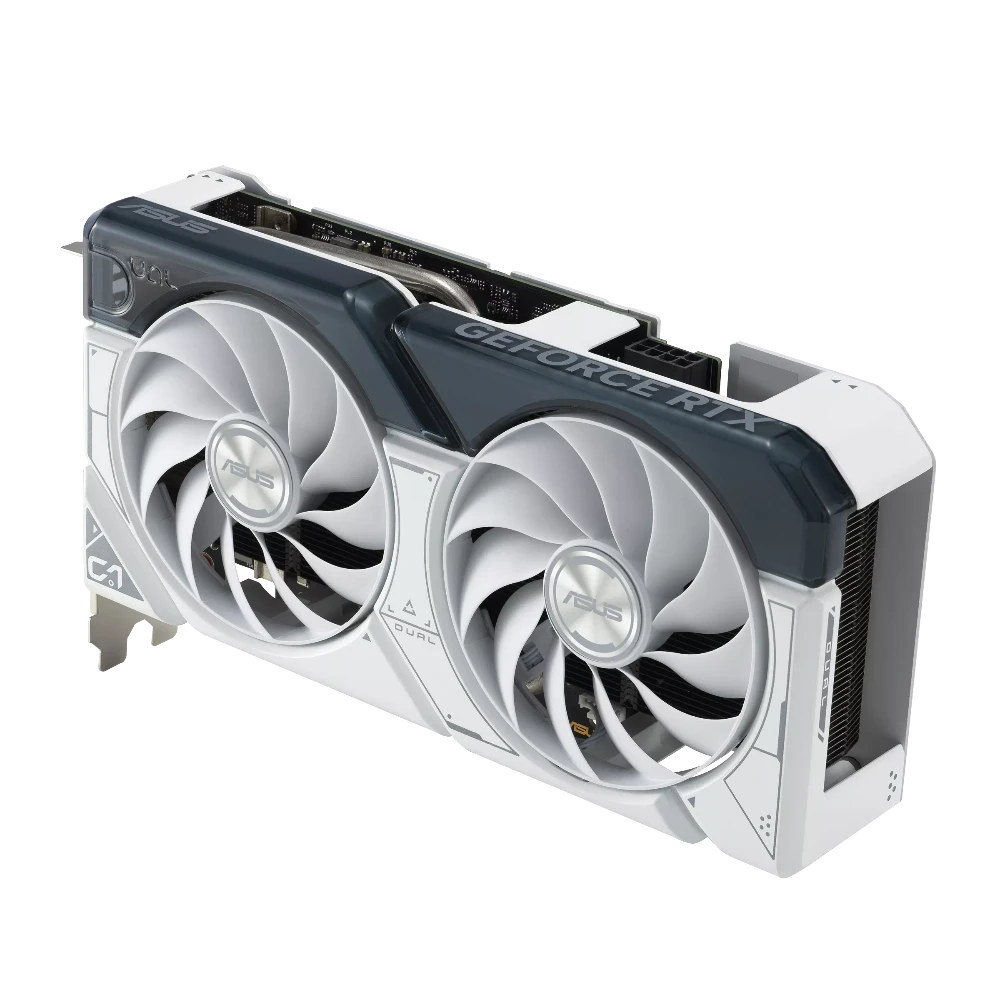

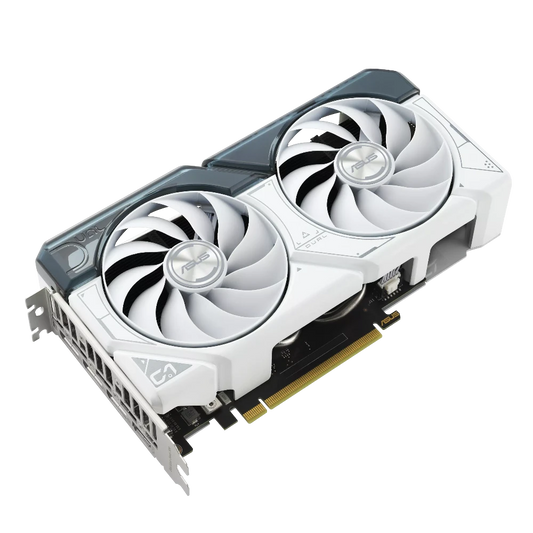

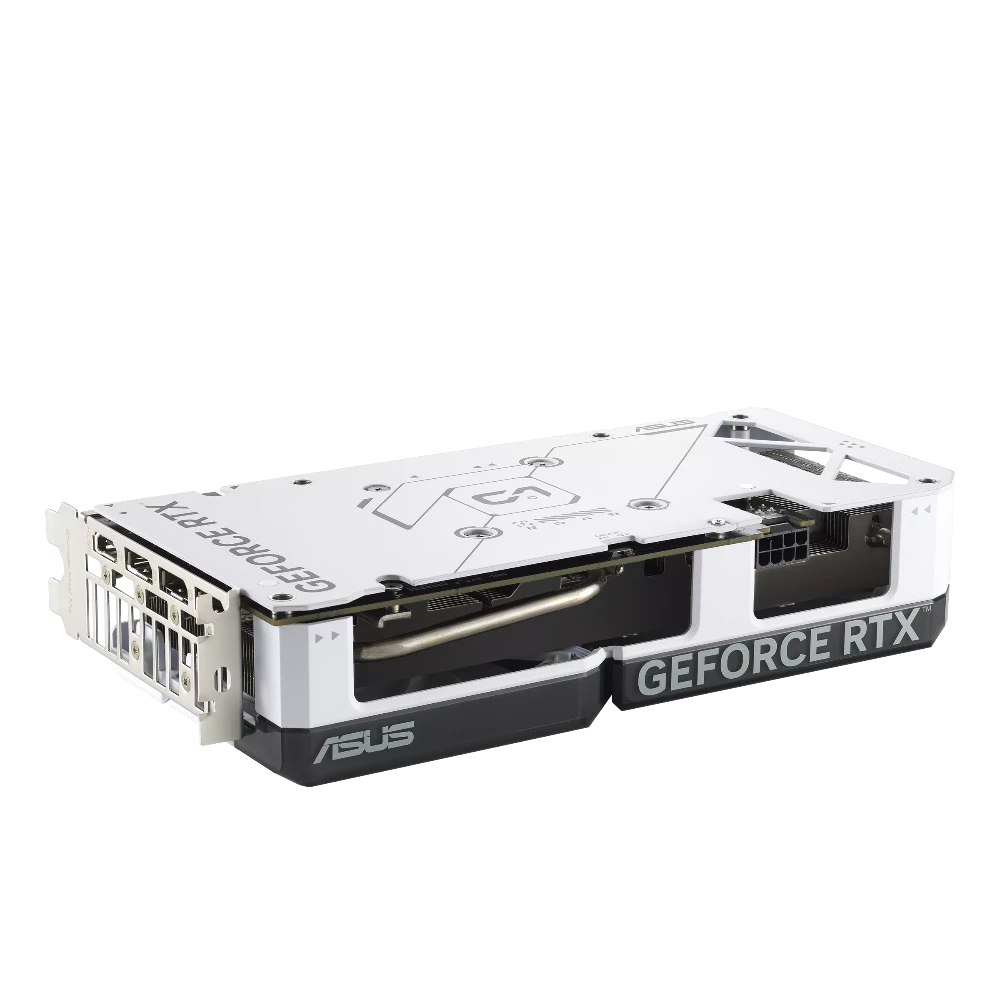

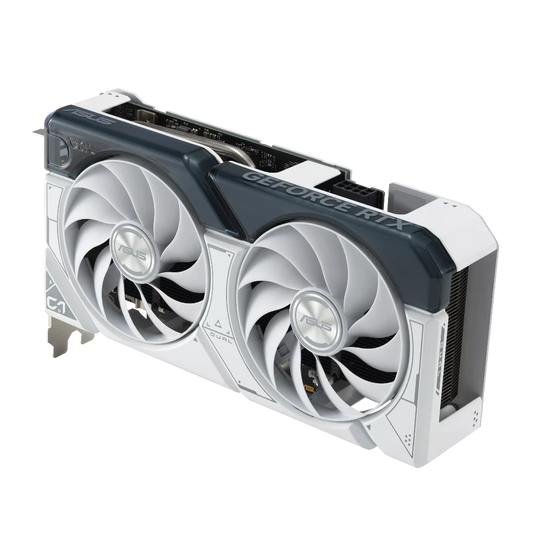

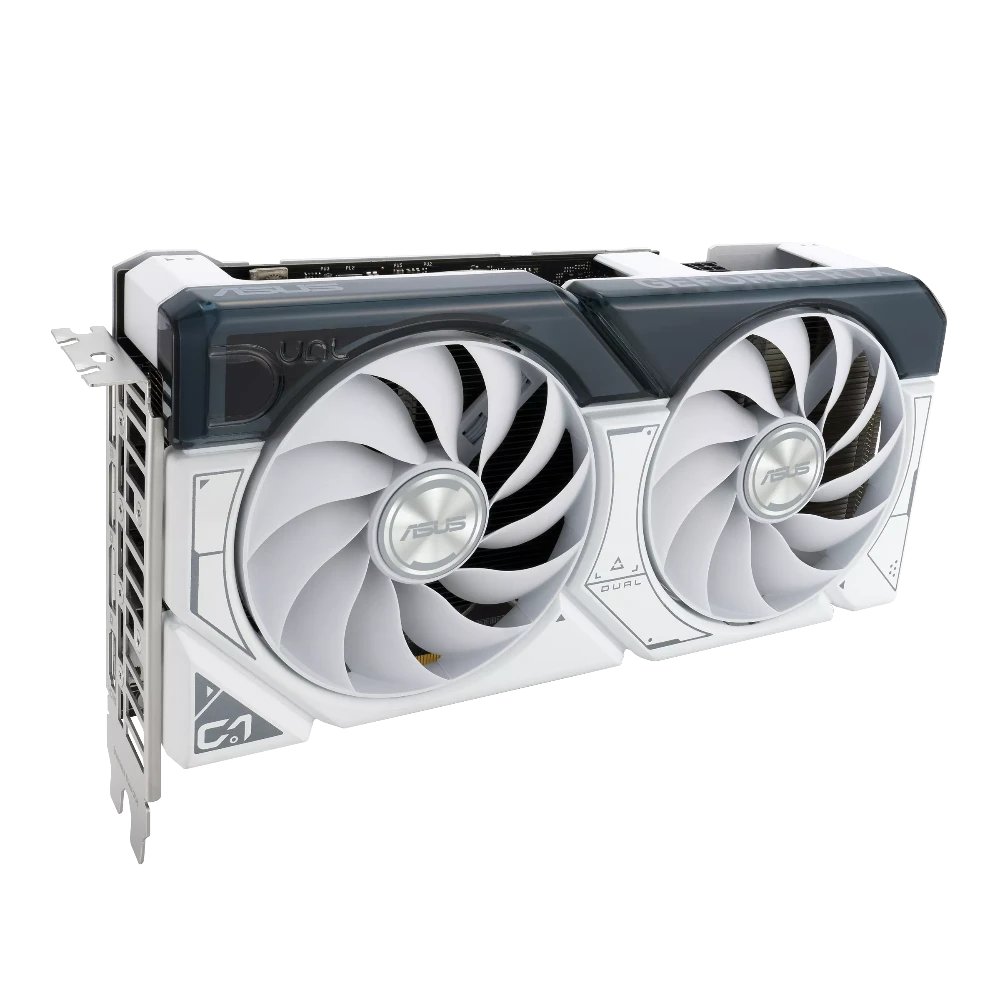

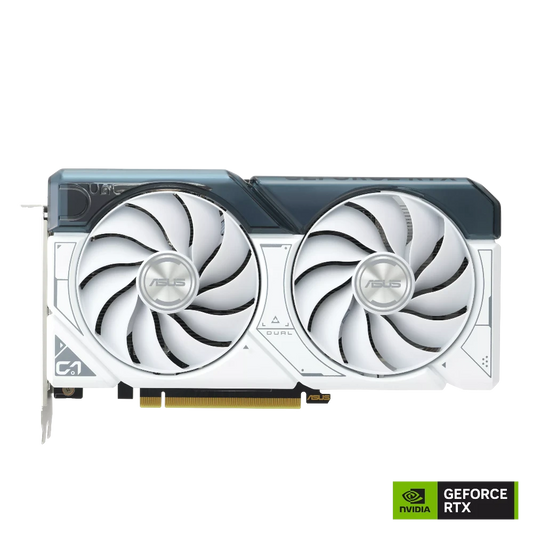

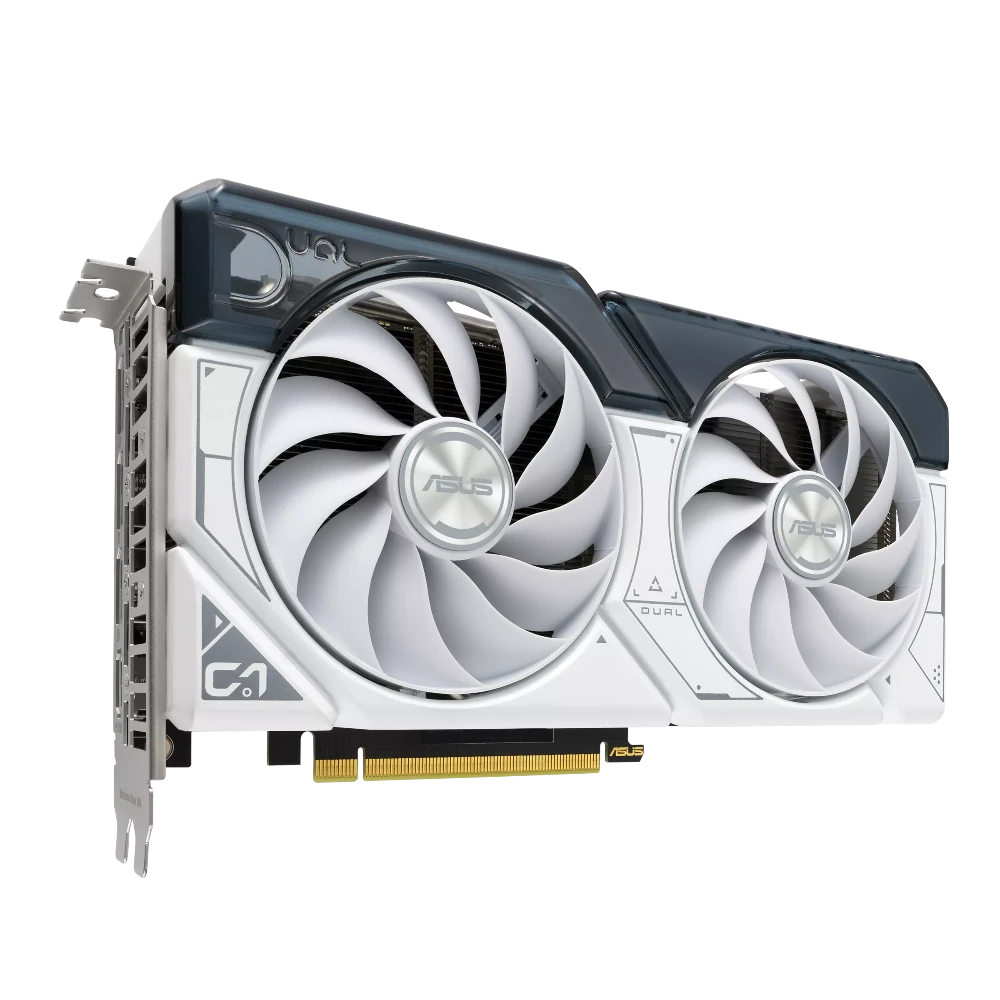

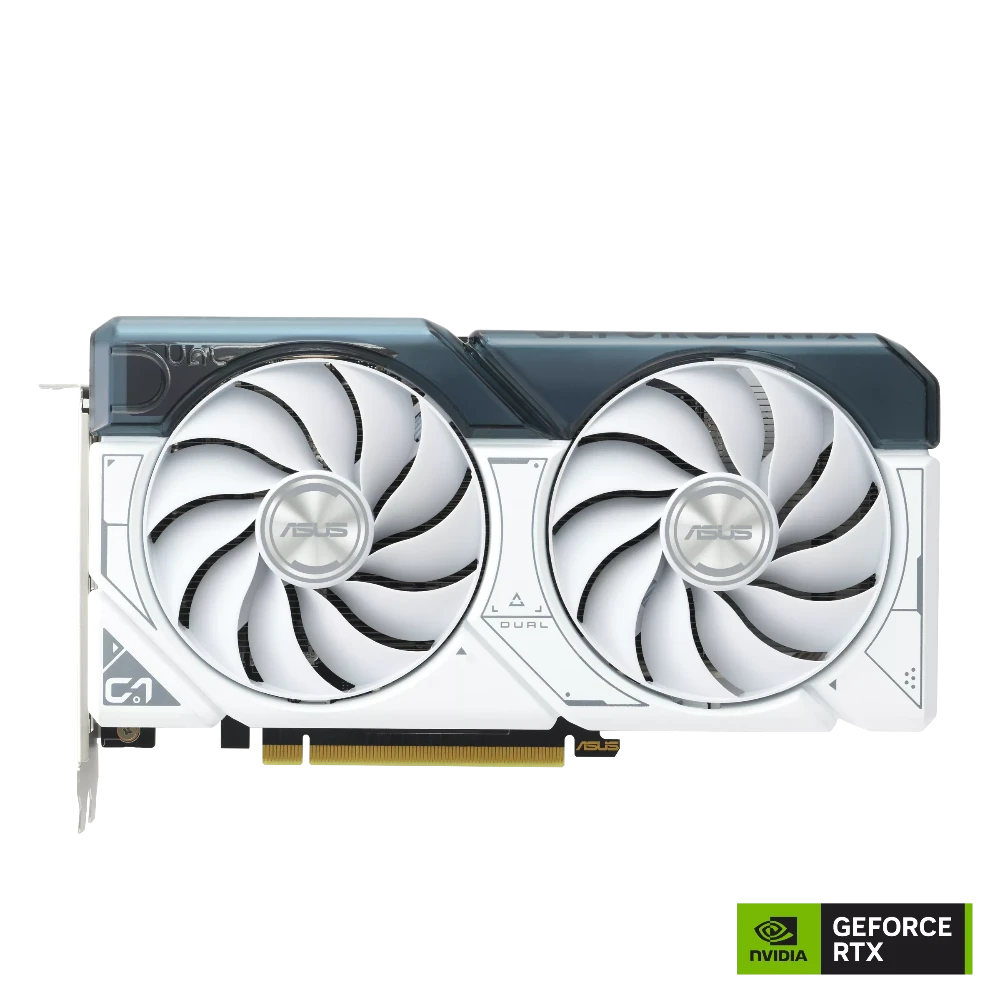

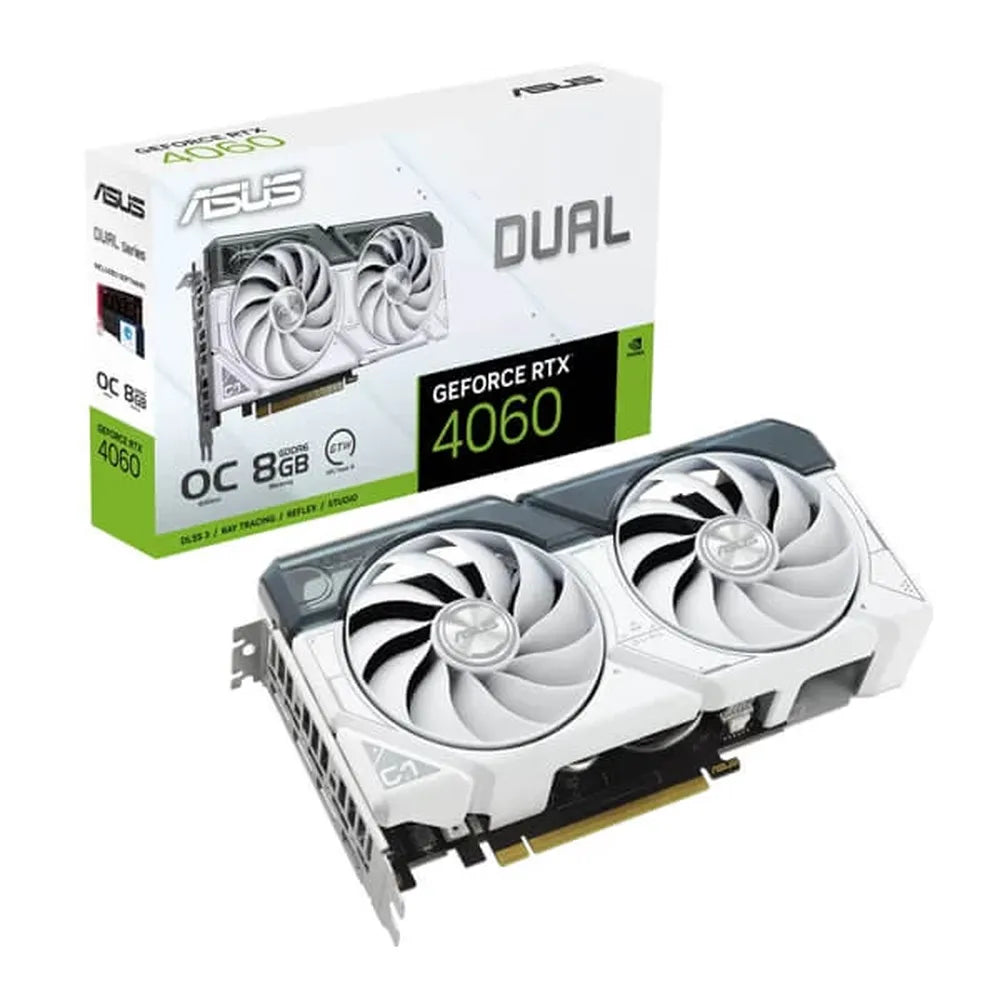

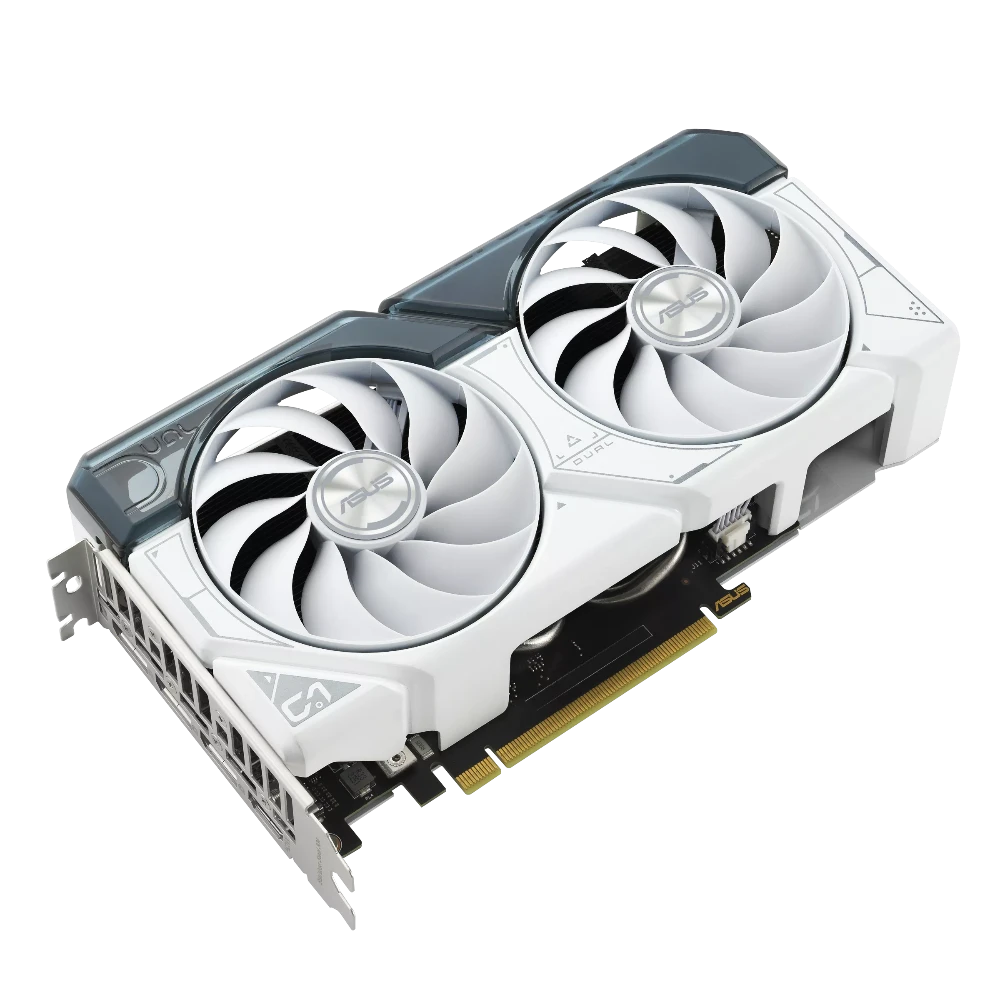

- ASUS Dual GeForce RTX 4060 OC Edition White 8GB Nvidia Graphic Card
Have a question?
Description
Features of ASUS Dual GeForce RTX 4060 OC Edition White 8GB Nvidia Graphic Card
ASUS Dual GeForce RTX™ 4060 fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 22.7 cm long, 2.5-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Axial-tech Fan Design
Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology
Quiet intelligence
To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.
Dual Ball Fan Bearings
2x longer lifespan
Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.
Dual BIOS
Choose wisely
Do you prioritize low core temps or low noise levels? Performance mode will let the fans spin up to keep the card running cool all the time. Quiet mode keeps the same power target and top-end settings, but offers a less aggressive fan curve for quieter operation at medium temps. For even more customization and control, check out our GPU Tweak III software.
2.5-slot Design
Sink your heat into this
A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card’s size.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

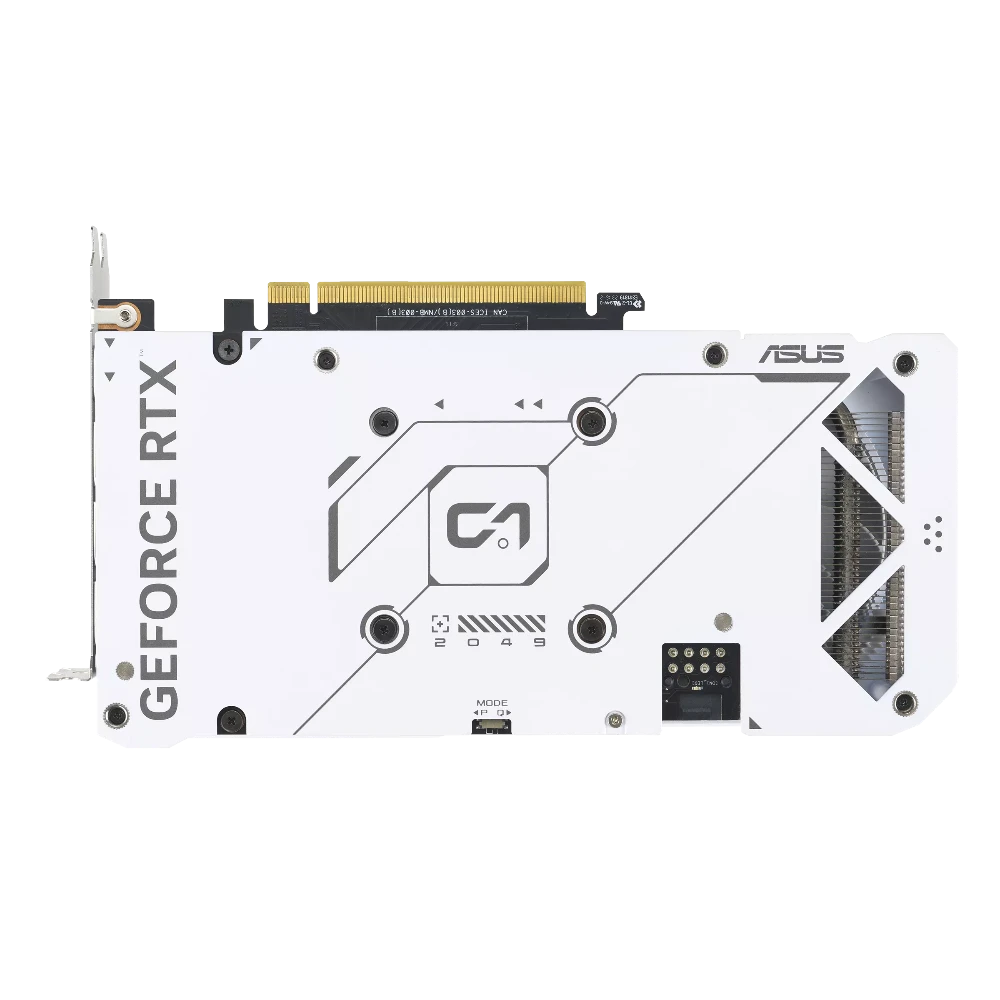

Protective Backplate
That's so metal!

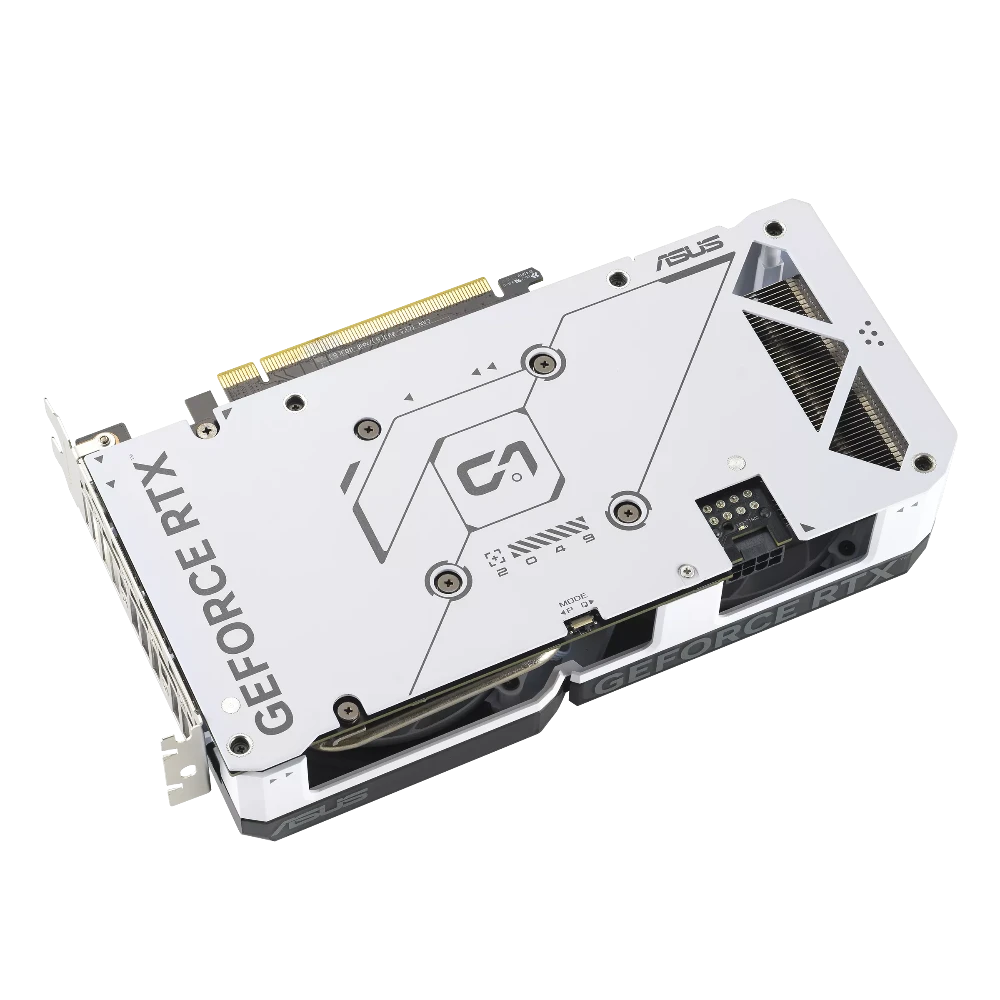

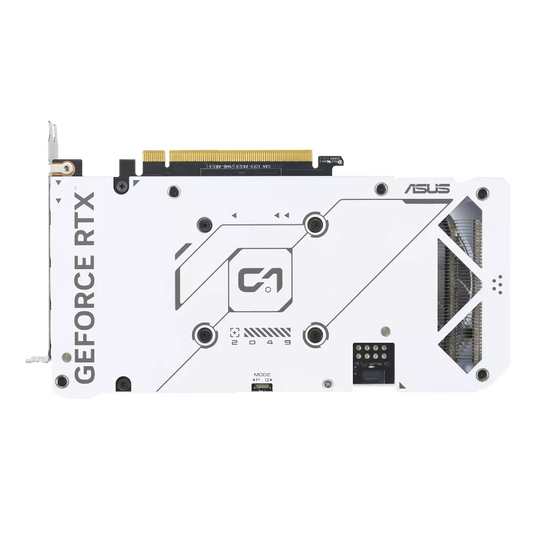

The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage. The rear features a wide vent that allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler.

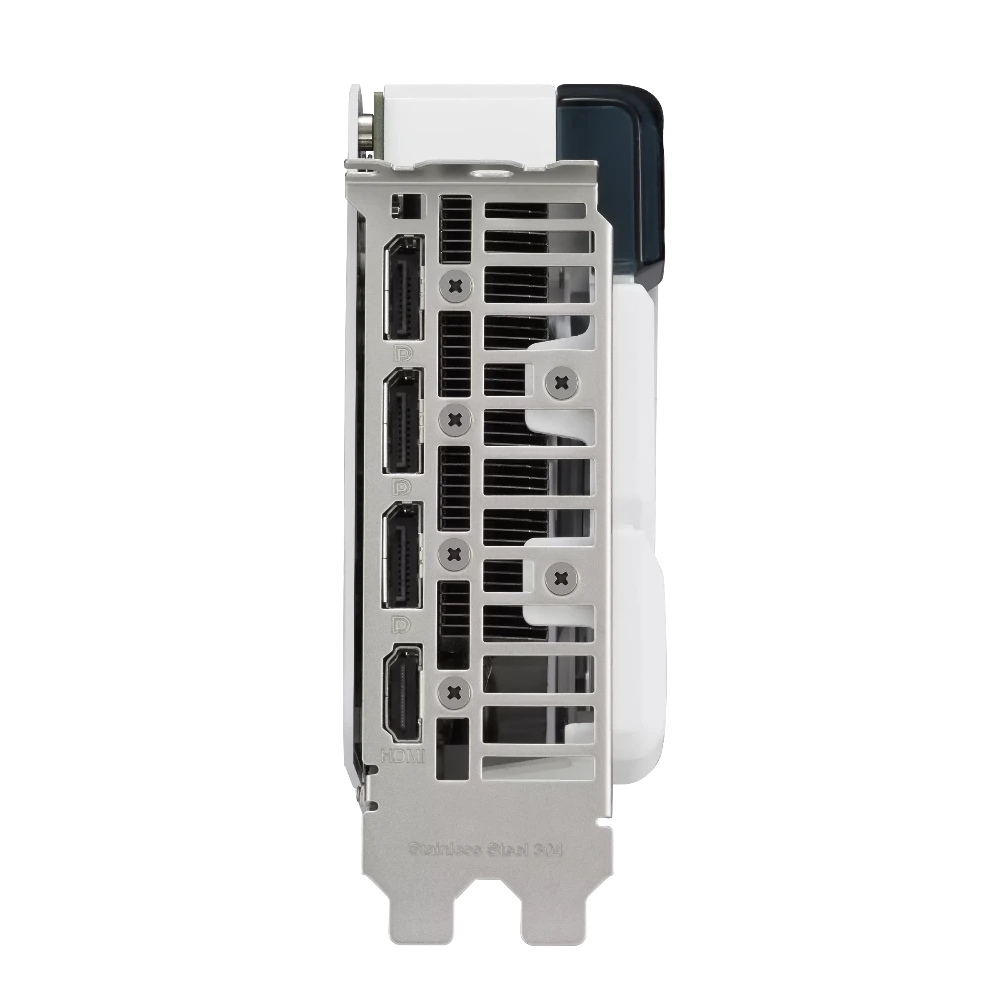

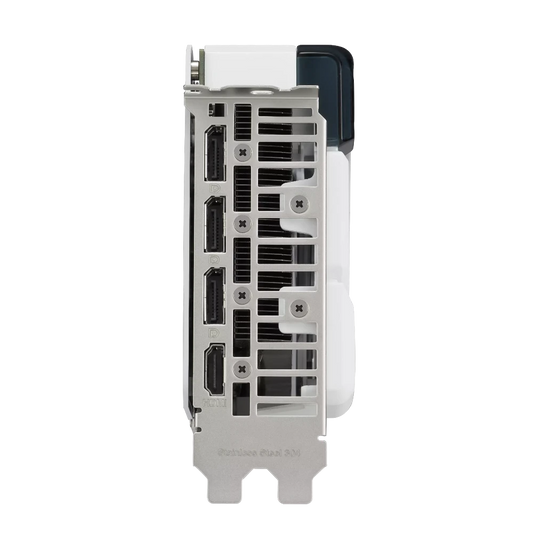

Stainless Steel Bracket
Steel yourself
The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.
GPU TWEAK III
Monitor, tweak, and tune
The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
QuantumCloud
Profit from GPU power
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!
144-hour Validation Program
"Extensive" may be an understatement
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest game
Features :
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2X performance and power efficiency
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- Axial-tech fan design features a smaller fan hub to increase airflow through the cooling array
- A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
- 0dB technology lets you enjoy light gaming in relative silence
Specifications of ASUS Dual GeForce RTX 4060 OC Edition White 8GB Nvidia Graphic Card
Model | ASUS-DUAL-RTX4060-O8G |
Graphic Engine | NVIDIA® GeForce RTX™ 4060 |
Bus Standard | PCI Express 4.0 |
OpenGL | OpenGL®4.6 |
Video Memory | 8GB GDDR6 |
Engine Clock | OC mode : 2535 MHz |
Default mode : 2505 MHz (Boost) | |
CUDA Core | 3072 |
Memory Speed | 17 Gbps |
Memory Interface | 128-bit |
Resolution | Digital Max Resolution 7680 x 4320 |
Interface | Yes x 1 (Native HDMI 2.1a) |
Yes x 3 (Native DisplayPort 1.4a) | |
HDCP Support Yes (2.3) | |
Maximum Display Support | 4 |
NVlink/ Crossfire Support | No |
Accessories | 1 x Collection Card |
1 x Speedsetup Manual | |
1 x Thank you Card | |
Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
Dimensions | 227.2 x 123.24 x 49.6 mm |
Recommended PSU | 550W |
Power Connectors | 1 x 8-pin |
Slot | 2.5 Slot |
Note | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html |
