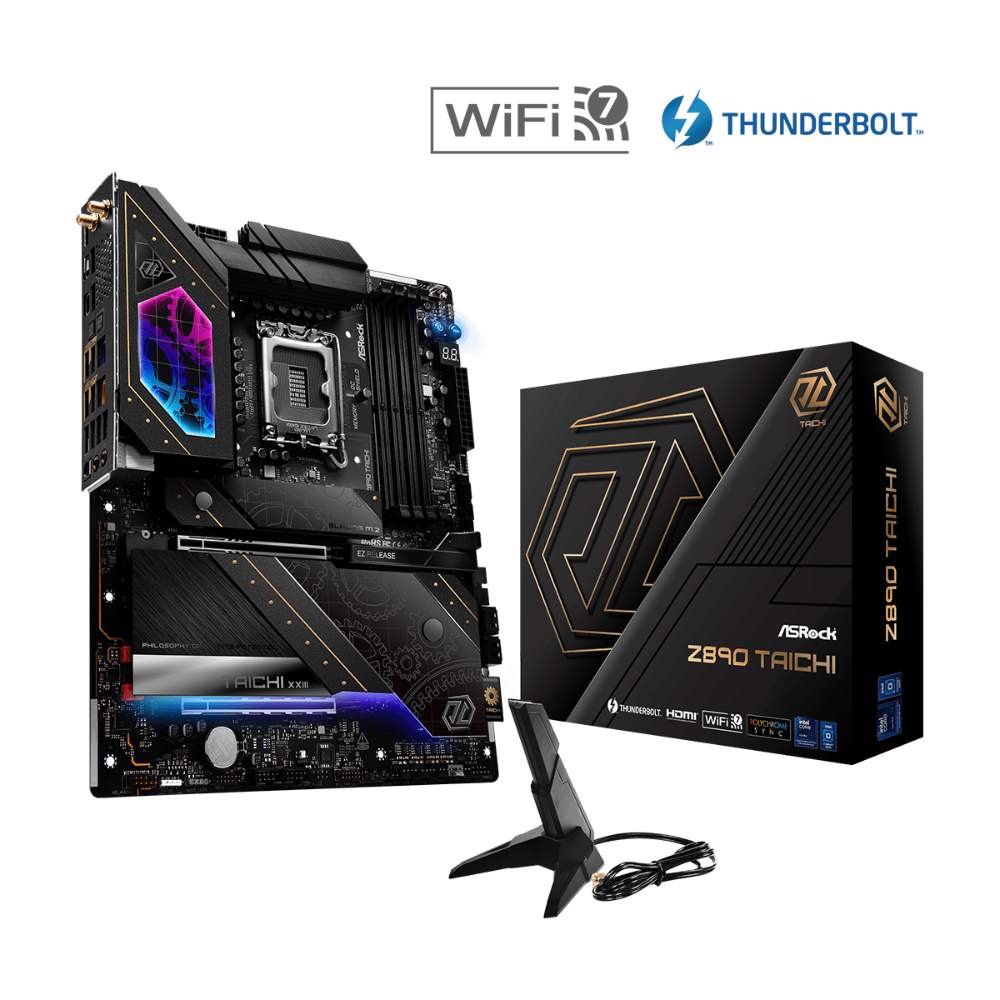

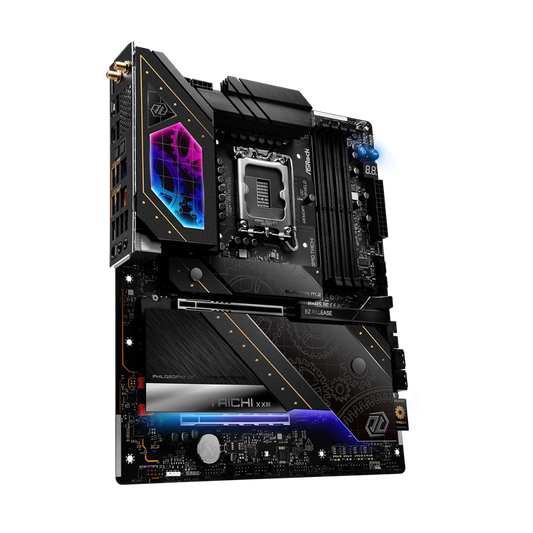

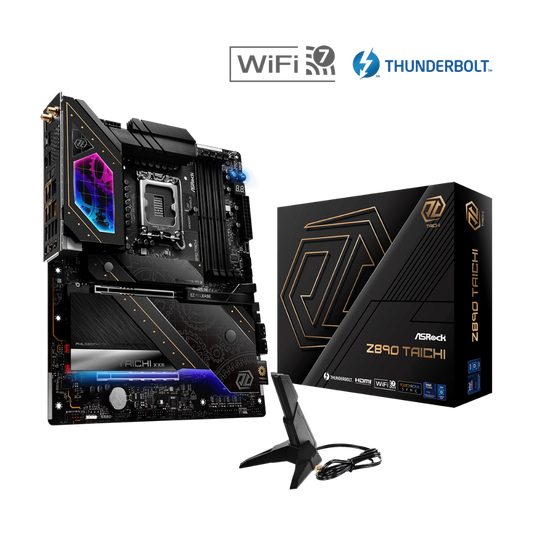

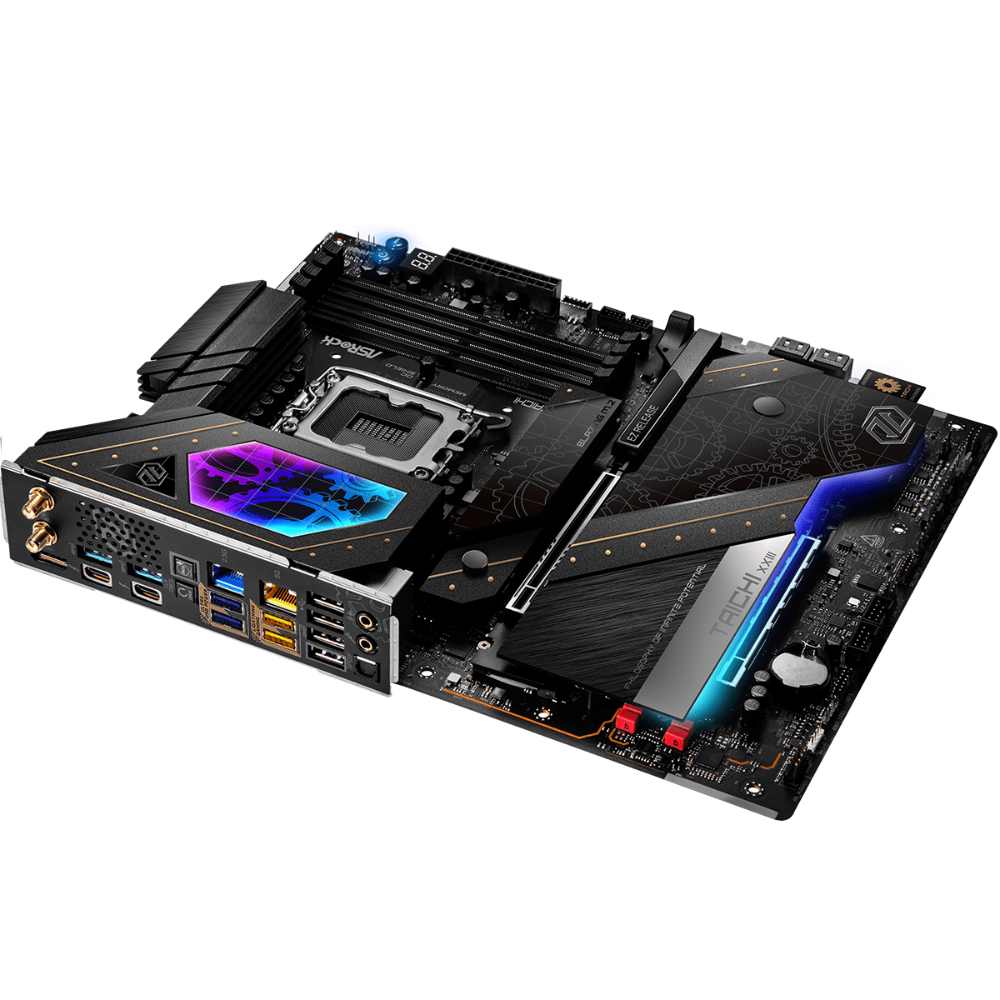

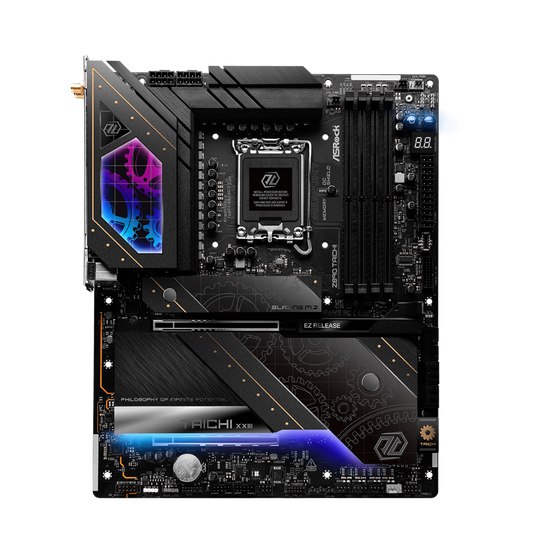

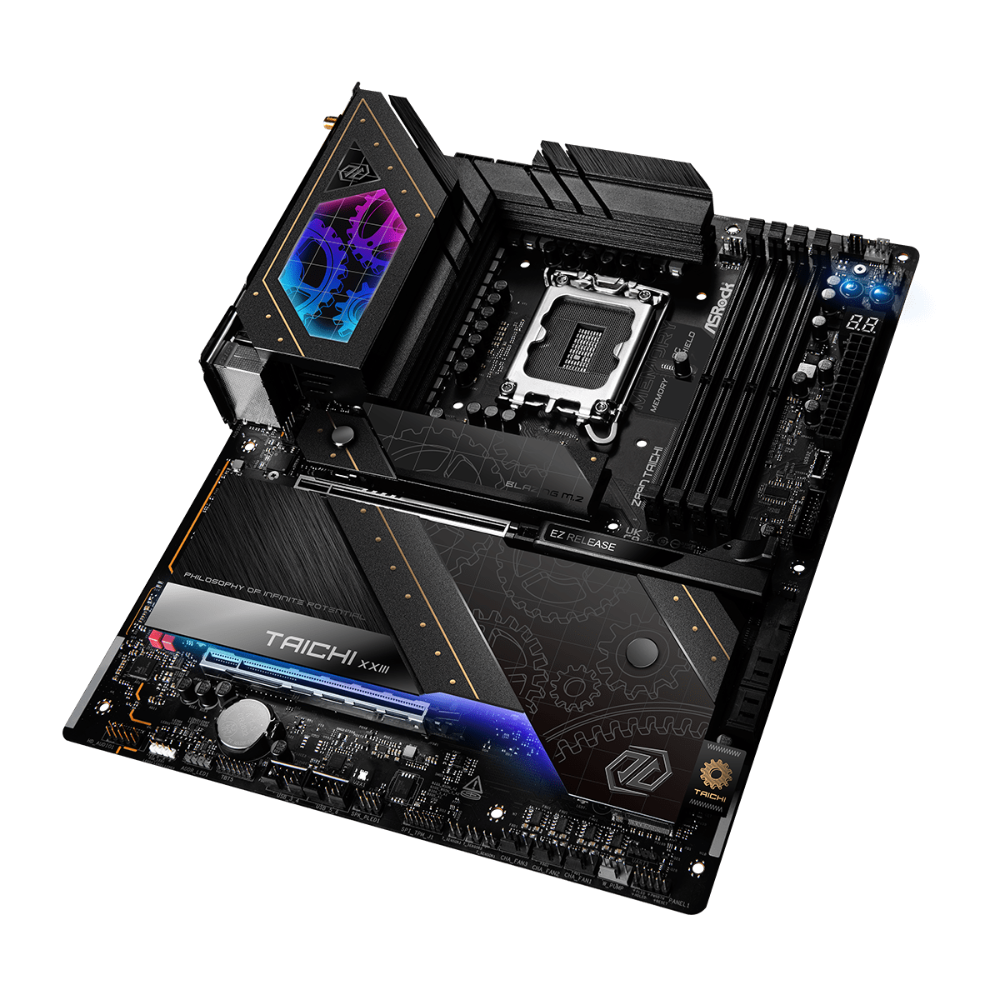

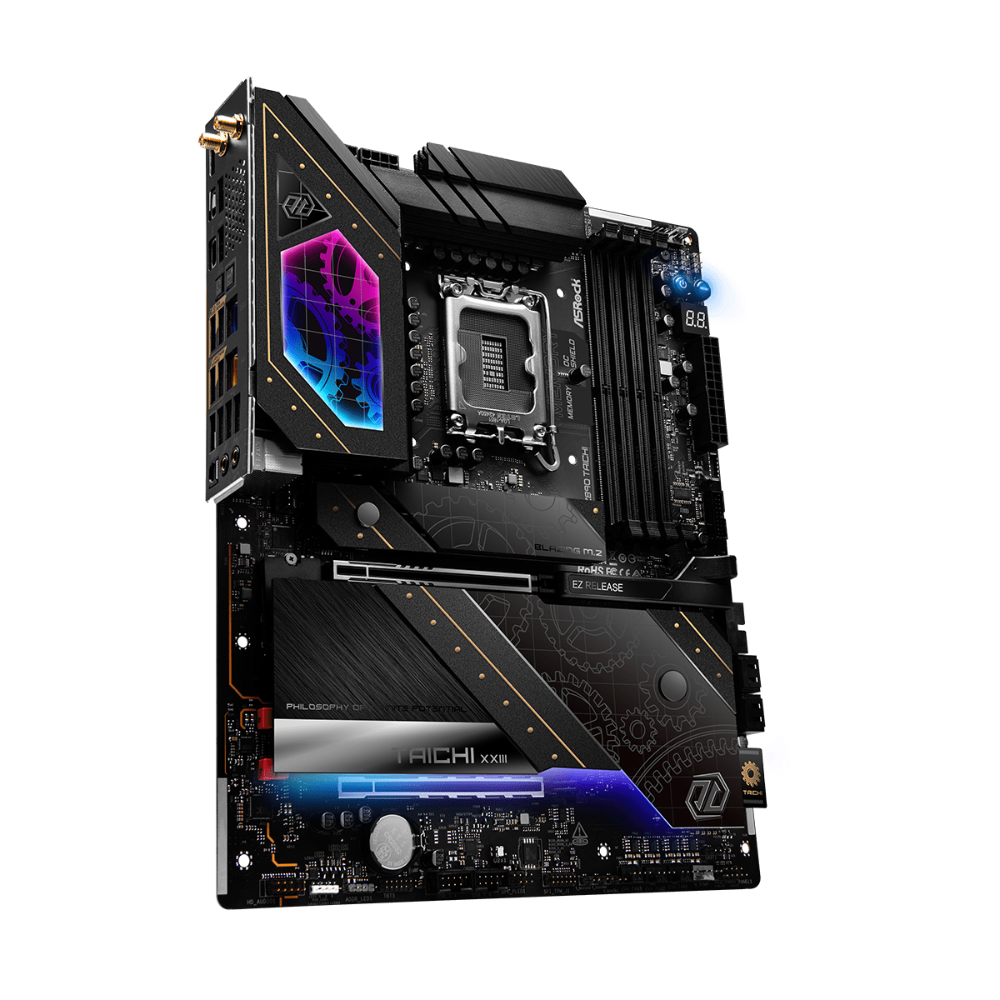

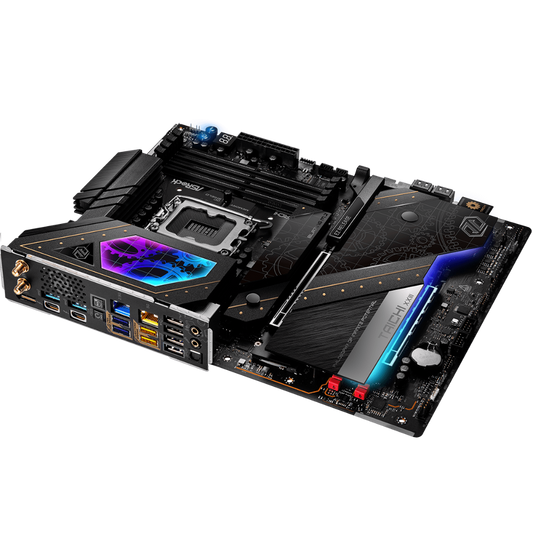

- ASROCK Z890 Taichi Wifi7 DDR5 Intel Motherboard
Description
Features of ASROCK Z890 Taichi Wifi7 DDR5 Intel Motherboard
Exclusive 20K Cap with 1000uF Capacitance
The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:
●Higher Capacitance: Greater charge storage for better support under high loads.
●Lower Ripple: Reduced power output fluctuations, improving quality.
●More Stable Output Current: Stable power supply, minimizing voltage impacts.
●Better Performance & System Stability: Increased reliability and consistent performance.
20+1+2+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
Hi-Density Power Connector
CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking.
The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
Deluxe 6*M.2 Socket
Supports up to 6*NVMe M.2 SSDs and one of which is able to accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed. It is ready to unleash the full potential of future ultrafast SSDs. to give a lightning fast data transferring experience.
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
XXL M.2 Heatsink with Toolless Design
The extra-large aluminum alloy M.2 heatsink with toolless design is a user friendly quick release mechanism that helps installing M.2 SSD super easy & simple.
Composite VRM Heatsink
It is equipped with a composite VRM heatsink combining a cooling fan, bigger aluminum sink and heat pipe for maximum heat dissipation.
Wi-Fi 7
Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
Thunderbolt™ 4 Type-C
Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.
Optimized 5 Gb/s LAN
ASRock’s 5Gb/s LAN Connector features an exclusive, patent-pending design, boasting superior electromagnetic interference resistance, ensuring high-speed stable performance and providing users with a better networking experience.
Front Panel USB 3.2 Gen2x2 Type-C Header
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Specifications of ASROCK Z890 Taichi Wifi7 DDR5 Intel Motherboard
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability - Server-Grade Low-Loss PCB - 20+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor - Memory OC Shield - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - 5G LAN, 2.5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
| CPU | - Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration - Supports ASRock Hyper BCLK Engine |
| Chipset | - Intel® Z890 |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 9600MHz+(OC)* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 256GB - Supports Intel® Extreme Memory Profile (XMP) 3.0x * 1DPC 1R Up to 9600+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - Intel® Xe LPG Graphics Architecture - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Supports two 4K displays or one 8K display Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics. |
| Audio | - 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) - WIMA Audio Capacitors (For Rear Outputs) - ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) - Individual PCB Layers for R/L Audio Channel - Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) - Nahimic Audio |
| LAN | 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126) 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Wireless LAN | - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz frequency band* - Supports 320MHz channel bandwidth with 6GHz frequency band* - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO *The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. |
| Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module *PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. If PCIE2 is occupied, M2_4 will be disabled. Supports NVMe SSD as boot disks |
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks If PCIE2 is occupied, M2_4 will be disabled. |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB | CPU: - 2 x Thunderbolt™ 4 Type-C (Rear) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 4 x USB 3.2 Gen2 Type-A (Rear) - 8 x USB 3.2 Gen1 (4 Rear, 4 Front) - 6 x USB 2.0 (2 Rear, 4 Front) |
| Connector | - 3 x Thermistor Cable Headers - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED |

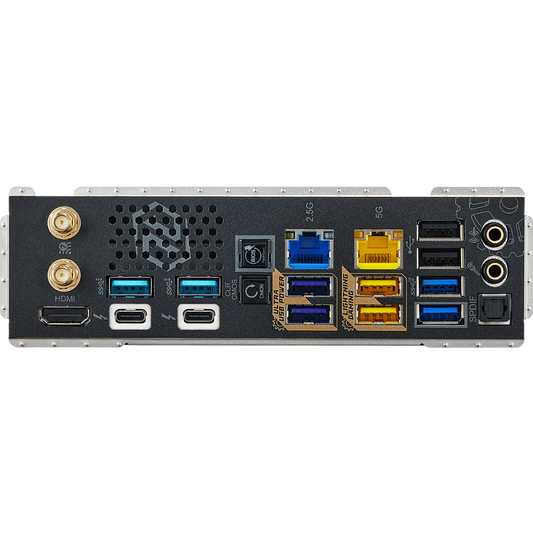

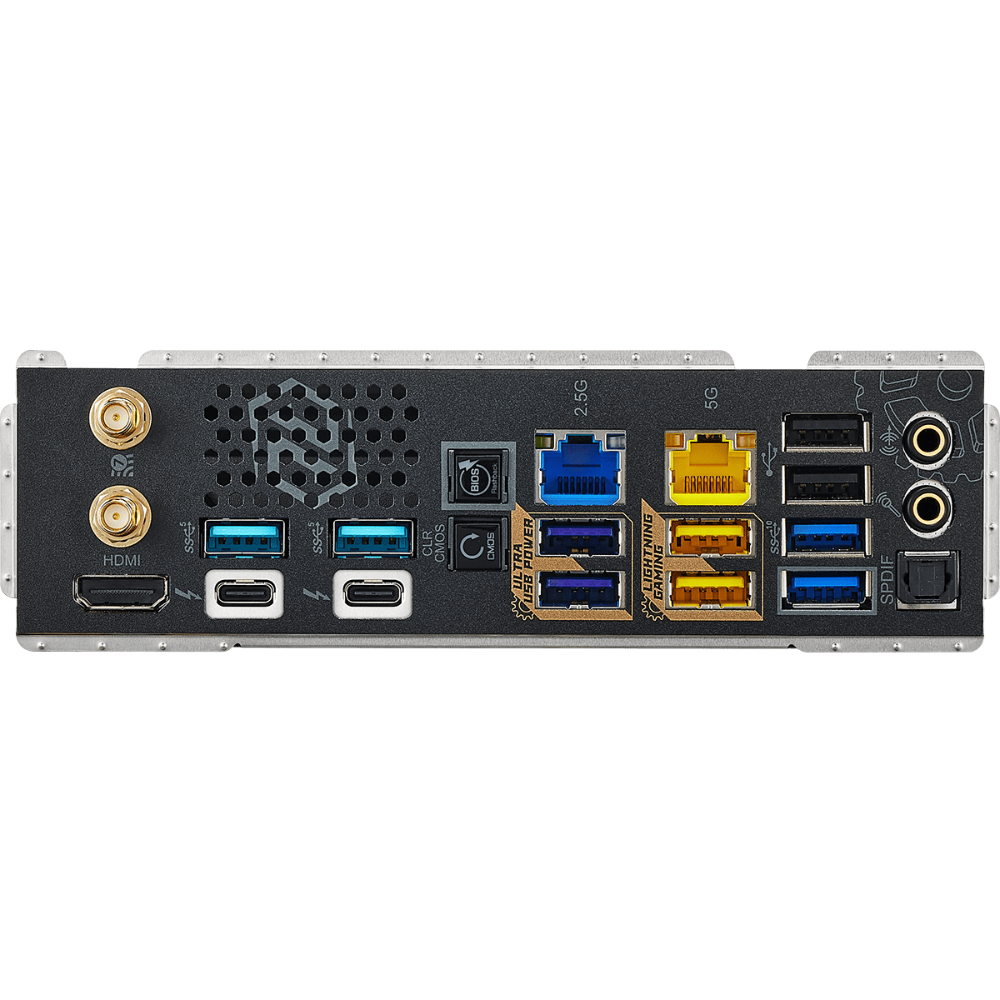

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)** - 4 x USB 3.2 Gen1 Ports** - 2 x USB 2.0 Ports - 2 x RJ-45 LAN Ports - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock Dragon 2.5G LAN Software* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Accessories | - 4 x SATA Data Cables - 1 x M.2 Expansion Card - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 1 x ARGB Splitter Cable - 3 x Thermistor Cables - 1 x Screw for M.2 Socket - 1 x Standoff for M.2 Socket |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB - 2oz Copper PCB |
| OS | - Microsoft Windows® 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) - CEC Tier II ready |
