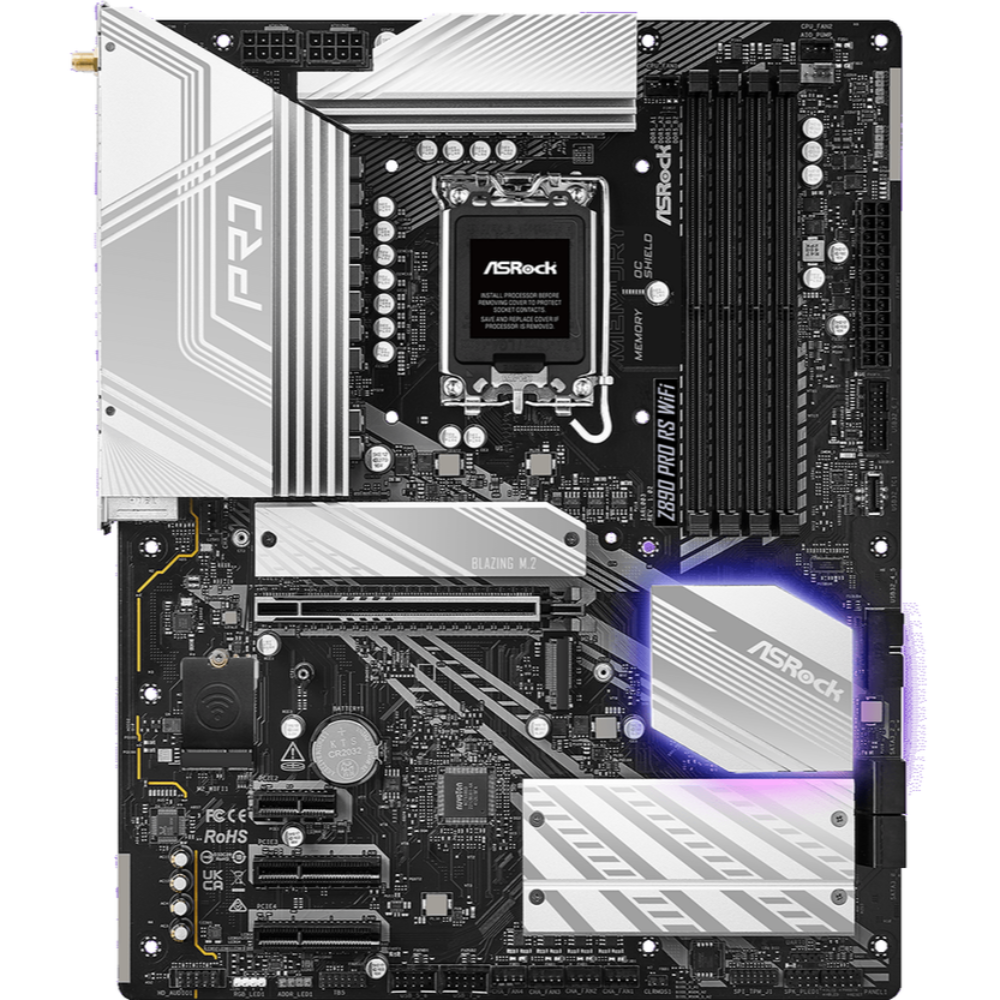

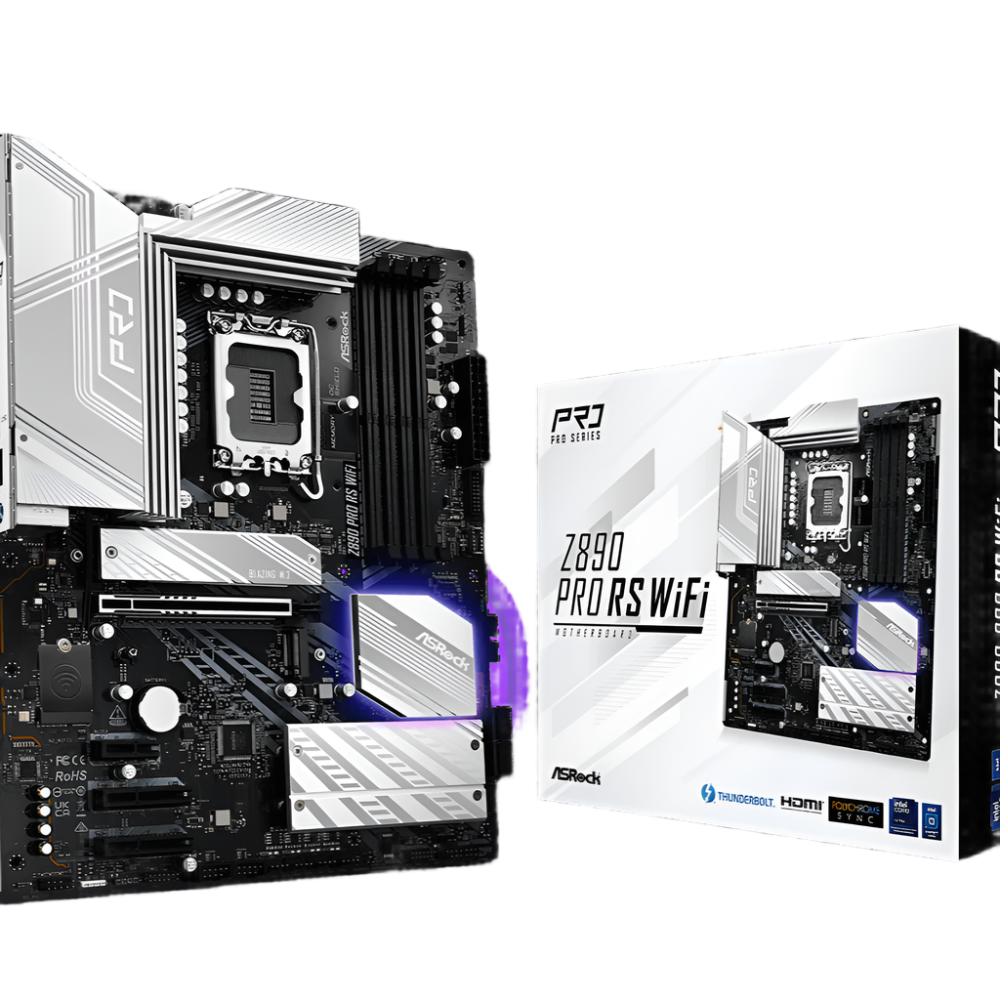

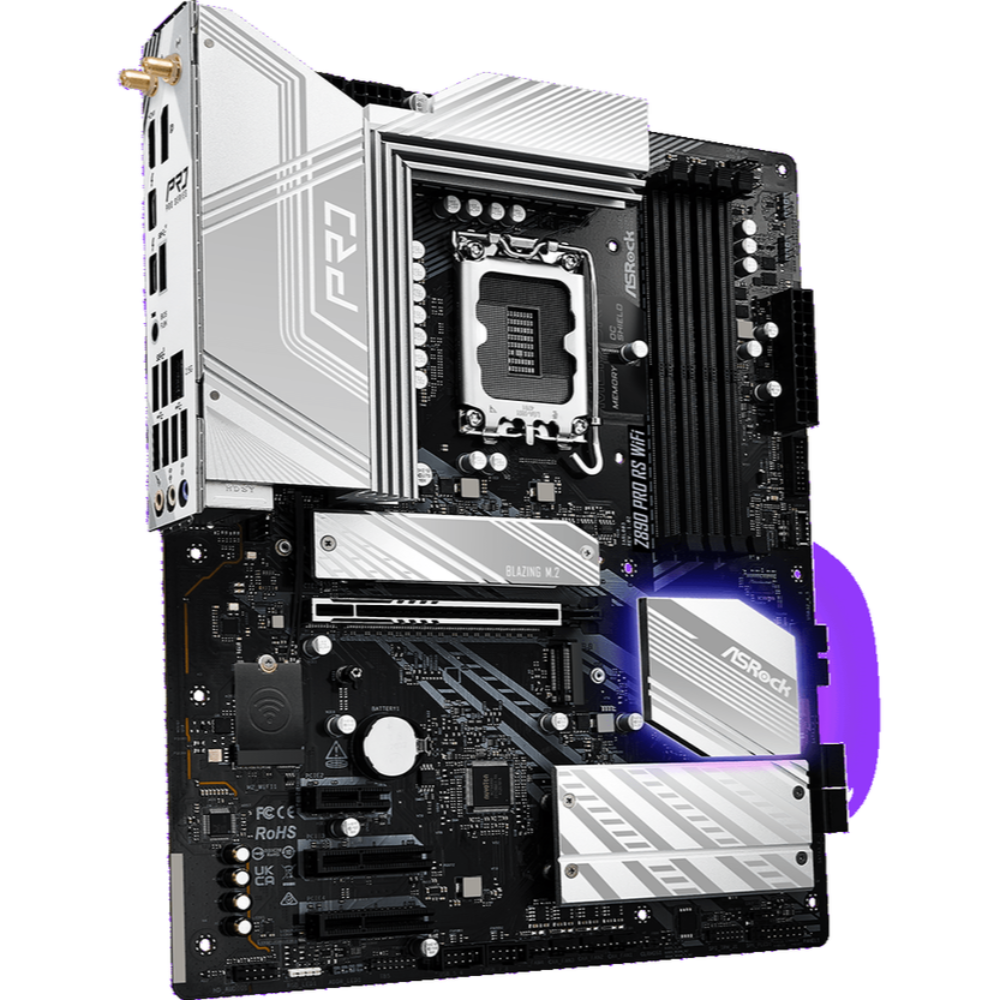

ASROCK Z890 Pro RS WIFI DDR5 Intel Motherboard

ASROCK Z890 Pro RS WIFI DDR5 Intel Motherboard

Rs. 28,492.00 Rs. 32,541.00

Discount: Rs. 4,049.00 (13%)

23 people are viewing this right now

Hurry Up! Only 2 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: 24 November,2024 - 28 November,2024

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Feature of ASROCK Z890 Pro RS WIFI DDR5 Intel Motherboard

Optimized VRM Design

Durable Cap with 1000uF Capacitance

The durable capacitors with 1000uF capacitance offers several benefits:

●Higher Capacitance: Greater charge storage for better support under high loads.
●Lower Ripple: Reduced power output fluctuations, improving quality.
●More Stable Output Current: Stable power supply, minimizing voltage impacts.
●Better Performance & System Stability: Increased reliability and consistent performance.

16+1+1+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Hi-Density Power Connector

CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking.

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

PCIe Gen5 Blazing M.2

The Blazing M.2 of ASROCK Z890 Pro RS WIFI DDR5 Intel Motherboard accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel^® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

ASRock's exclusive Memory OC Shield is a patented feature engineered to reduce electromagnetic interference (EMI) that could affect memory overclocking. By shielding memory modules from EMI noise and optimizing the layout, the Memory OC Shield enhances stability and reliability during high-frequency operations, enabling users to push their systems to the maximum potential.

DIY Friendly Design

The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.

Enlarged M.2 Heatsink

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance

Intelligent Cooling Design

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly

Wi-Fi 6E 802.11axe

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks

Thunderbolt™ 4 Type-C

Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front Panel USB 3.2 Gen2x2 Type-C Header

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Specifications of ASROCK Z890 Pro RS WIFI DDR5 Intel Motherboard

Unique Feature	Superb Productivity
	- PCIe Gen5 (Graphics, M.2)
	- Dual Channel DDR5
	- Thunderbolt™ 4 Type-C Ports (40 Gb/s)
	Rock-Solid Durability
	- 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT with Enlarged Heatsink Armor
	- Memory OC Shield
	- Flexible Integrated I/O Shield
	Ultrafast Connectivity
	- 2.5G LAN, 802.11axe Wi-Fi 6E Module
	EZ Update
	- BIOS Flashback Button
	- ASRock Auto Driver Installer
	EZ Troubleshooter
CPU	- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
	- Supports Intel® Hybrid Technology
	- Supports Intel® Turbo Boost Max 3.0 Technology
	- Supports Intel® Thermal Velocity Boost (TVB)
	- Supports Intel® Adaptive Boost Technology (ABT)
	- Integrated NPU for dedicated AI acceleration
Chipset	- Intel® Z890
Memory	Dual Channel DDR5 Memory Technology
	- 4 x DDR5 DIMM Slots
	- Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*
	- Supports Clocked Unbuffered DIMM (CUDIMM)
	- Max. capacity of system memory: 256GB
	- Supports Intel® Extreme Memory Profile (XMP) 3.0x
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Intel® Xe LPG Graphics Architecture
	- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
	- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
	- Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
	- Dragon RTL8125BG
	- Supports Dragon 2.5G LAN Software
	- Smart Auto Adjust Bandwidth Control
	- Visual User Friendly UI
	- Visual Network Usage Statistics
	- Optimized Default Setting for Game, Browser, and Streaming Modes
	- User Customized Priority Control
Wireless LAN	802.11axe Wi-Fi 6E Module
	- Supports IEEE 802.11a/b/g/n/ac/ax/axe
	- Supports Dual-Band 2x2 with extended 6GHz band* support
	- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
	- Supports Bluetooth 5.3
	- Supports MU-MIMO
Slots	CPU:
	- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
	Chipset:
	- 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode*
	- 1 x PCIe 4.0 x1 Slot (PCIE2)*
	- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage	CPU:
	- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
	- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
	Chipset:
	- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
	- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
	- 4 x SATA3 6.0 Gb/s Connectors
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	CPU:
	- 2 x Thunderbolt™ 4 Type-C (Rear)
	Chipset:
	- 1 x USB 3.2 Gen2x2 Type-C (Front)
	- 1 x USB 3.2 Gen2 Type-A (Rear)
	- 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
	- 8 x USB 2.0 (4 Rear, 4 Front)
Connector	1 x SPI TPM Header
	- 1 x Power LED and Speaker Header
	- 1 x RGB LED Header*
	- 3 x Addressable LED Headers**
	- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
	- 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
	- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
	- 1 x 24 pin ATX Power Connector
	- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
	- 1 x Front Panel Audio Connector
	- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
	- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
	- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

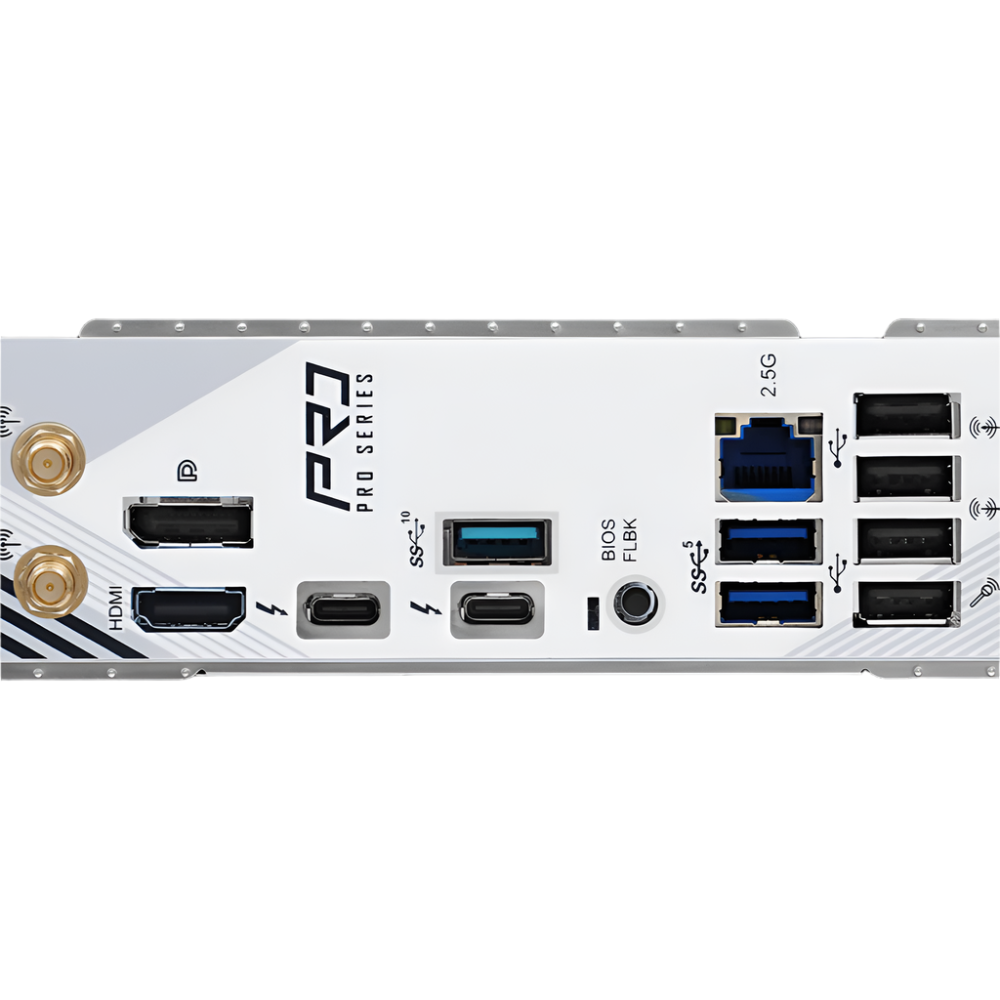

Rear Panel I/O	2 x Antenna Ports
	- 1 x HDMI Port
	- 1 x DisplayPort 1.4
	- 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
	- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
	- 2 x USB 3.2 Gen1 Ports
	- 4 x USB 2.0 Ports
	- 1 x RJ-45 LAN Port
	- 1 x BIOS Flashback Button
	- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software
	- ASRock Motherboard Utility (A-Tuning)
	- ASRock Dragon 2.5G LAN Software
	- ASRock Polychrome SYNC*
	UEFI
	- ASRock EZ Mode
	- ASRock Full HD UEFI
	- ASRock My Favorites in UEFI
	- ASRock Auto Driver Installer
	- ASRock Instant Flash
Accessories	2 x SATA Data Cables
	- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
	- 1 x Screw for M.2 Socket
	- 1 x Standoff for M.2 Socket
Form Factor	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
	- 2oz Copper PCB
