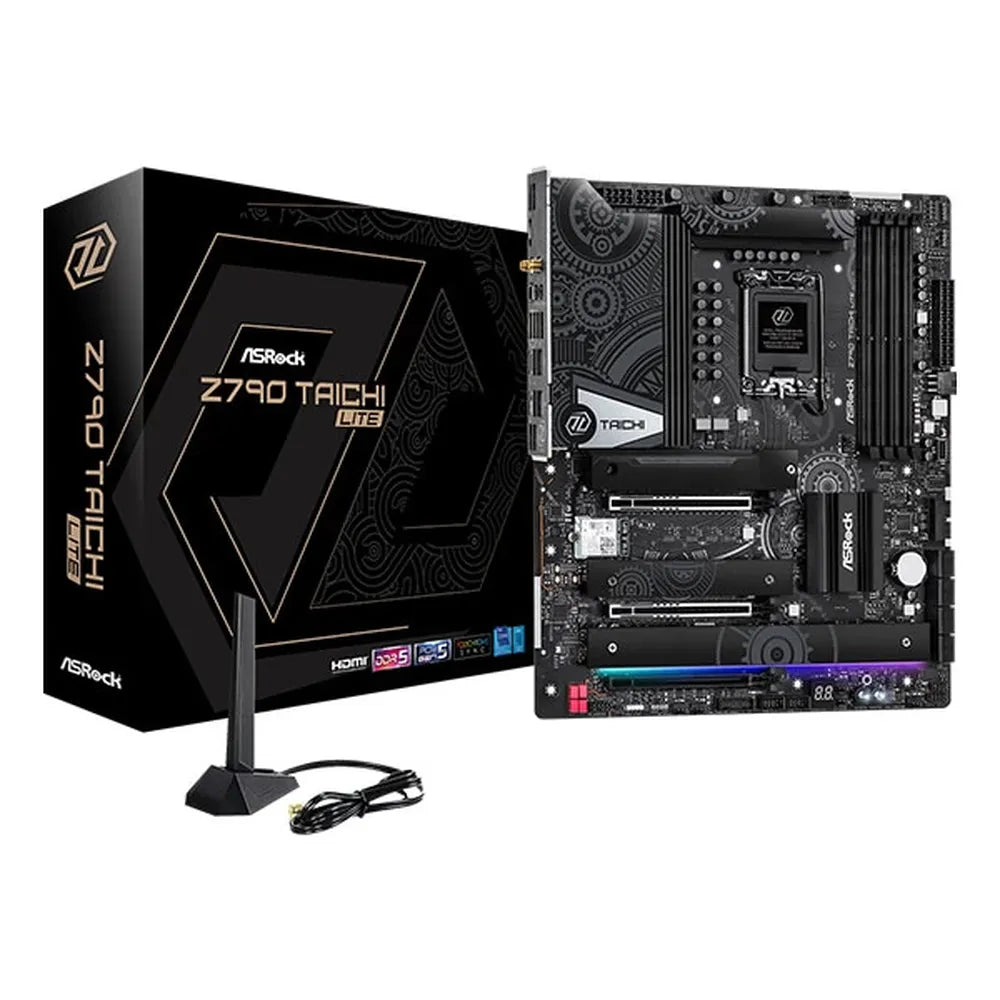

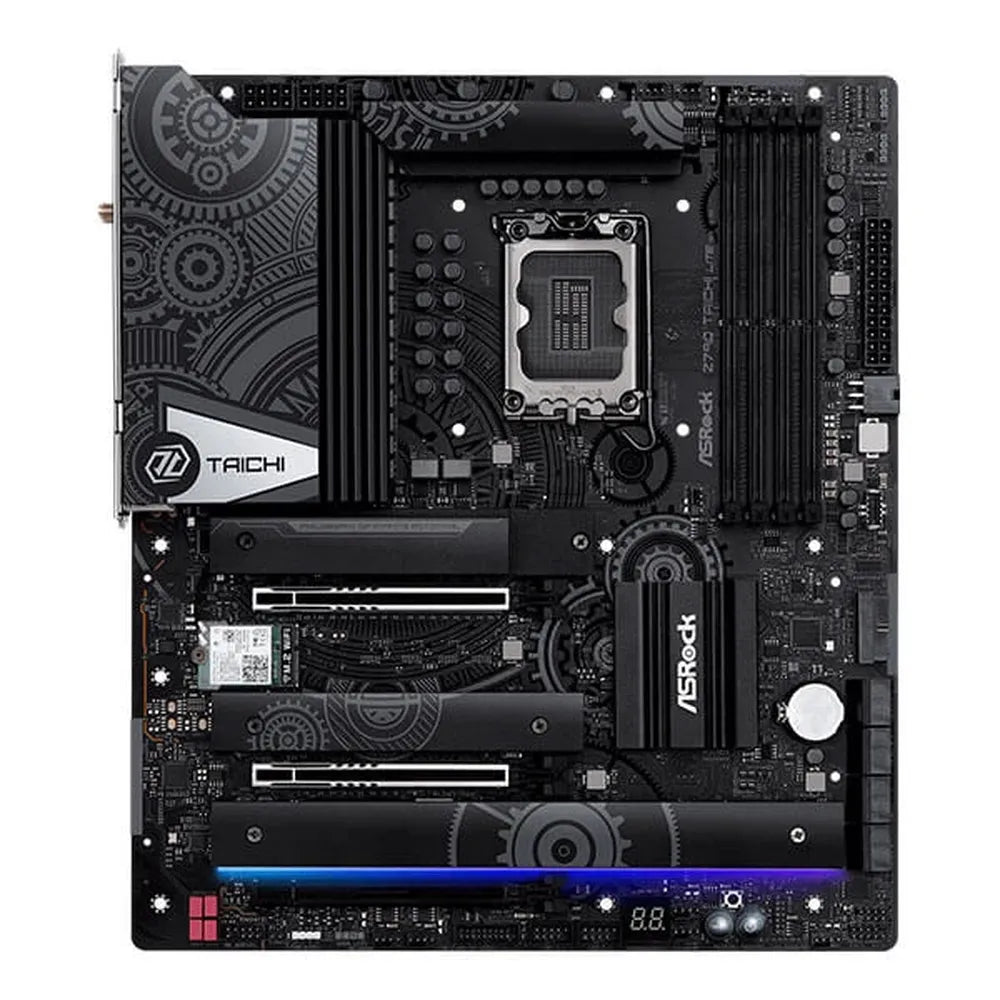

ASROCK Z790 Taichi Lite WiFi DDR5 Intel Motherboard

ASROCK Z790 Taichi Lite WiFi DDR5 Intel Motherboard

Out of stock

Rs. 38,545.00 Rs. 59,899.00

Discount: Rs. 21,354.00 (36%)

21 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: 25 November,2024 - 29 November,2024

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Features of ASROCK Z790 Taichi Lite WiFi DDR5 Motherboard

ASRock Z790 Taichi Lite is an EATX Motherboard that Supports Intel Core 14th/13th/12th processors. It has 4x DDR5 Slots, 24+1+2 Phase Power Design, 2 PCie 5.0 x 16 Slots, 2 USB4 Type-C, and Wi-Fi 6E networking solution

Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
24+1+2 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Armor
4 x DDR5 DIMMs Supports Dual Channel, up to 7200+ (OC)
2 PCIe 5.0 x16, 1 PCIe 4.0 x16
Graphics Output Options: HDMI, 2 Thunderbolt™ Type-C
Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE 9218 DAC, WIMA Audio Caps, Nahimic Audio
8 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 4 Hyper M.2 (PCIe Gen4 x4)
2 Thunderbolt 4/USB4 Type-C, 1 USB 3.2 Gen2x2 Front Type-C
(Supports 60W Fast Charging 20V/3A), 2 Rear USB 3.2 Gen2 Type A, 10 USB 3.2 Gen1 (6 Rear, 4 Front)
Killer E3100G 2.5G LAN, Intel 1G LAN,, Killer 802.11ax (WiFi 6E) + Bluetooth 5.3
Killer DoubleShot Pro
Supports ASRock Auto Driver Installer, Lightning Gaming Ports, Ultra USB Power

Specification of ASROCK Z790 Taichi Lite WiFi DDR5 Motherboard

Model	Z790 Taichi Lite
Unique Feature	Superb Productivity PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 USB4 Thunderbolt 4 Type-C Ports (40 Gb/s) Rock-Solid Durability 24+1+2 Power Phase, 105A SPS for VCore+GT with Enlarged Heatsink Armor Flexible Integrated I/O Shield Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6EModule Killer DoubleShot Pro Front Panel Type-C 60W Fast Charging (20V/3A) ASRock Lightning Gaming Ports EZ Update ASRock Auto Driver Installer
CPU	Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) Supports ASRock Hyper BCLK Engine
Chipset	Intel Z790
Memory	Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* Max. capacity of system memory: 192GB Supports Intel Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 2 x Intel Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz** Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. *Supports two 4K displays or one 8K display Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics. Thunderbolt™ graphics output may not be compatible with certain Type-C monitors. Please use graphics card outputs instead.
Audio	5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Front Outputs) ESS SABRE9218 DAC for Front Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Impedance Sensing on Rear Out port Nahimic Audio
LAN	1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G) Supports Killer LAN Software Supports Killer DoubleShot Pro 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
Wireless LAN	802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2x2 160MHz with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 + High speed class II Supports MU-MIMO Supports Killer LAN Software Supports Killer DoubleShot Pro
Slots	CPU: 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes* Chipset: 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) Supports AMD CrossFire 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2)
Storage	CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode** Chipset: 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 8 x SATA3 6.0 Gb/s Connectors Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks If M2_1 is occupied, PCIE1 will downgrade to x8 mode. If PCIE2 is occupied, M2_1 will be disabled. M2_1 and M2_2 cannot be populated simultaneously. **If PCIE3 is occupied, SATA3_0~3 will be disabled.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB	2 x USB4 Thunderbolt 4 Type-C (Rear) 1 x USB 3.2 Gen2x2 Type-C (Front) 2 x USB 3.2 Gen2 Type-A (Rear) 10 x USB 3.2 Gen1 (6 Rear, 4 Front) 6 x USB 2.0 (2 Rear, 4 Front)
Connector	1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x 12V 6 pin Power Connector for Fast Charging (Hi-Density Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) 1 x Clear CMOS Button 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED

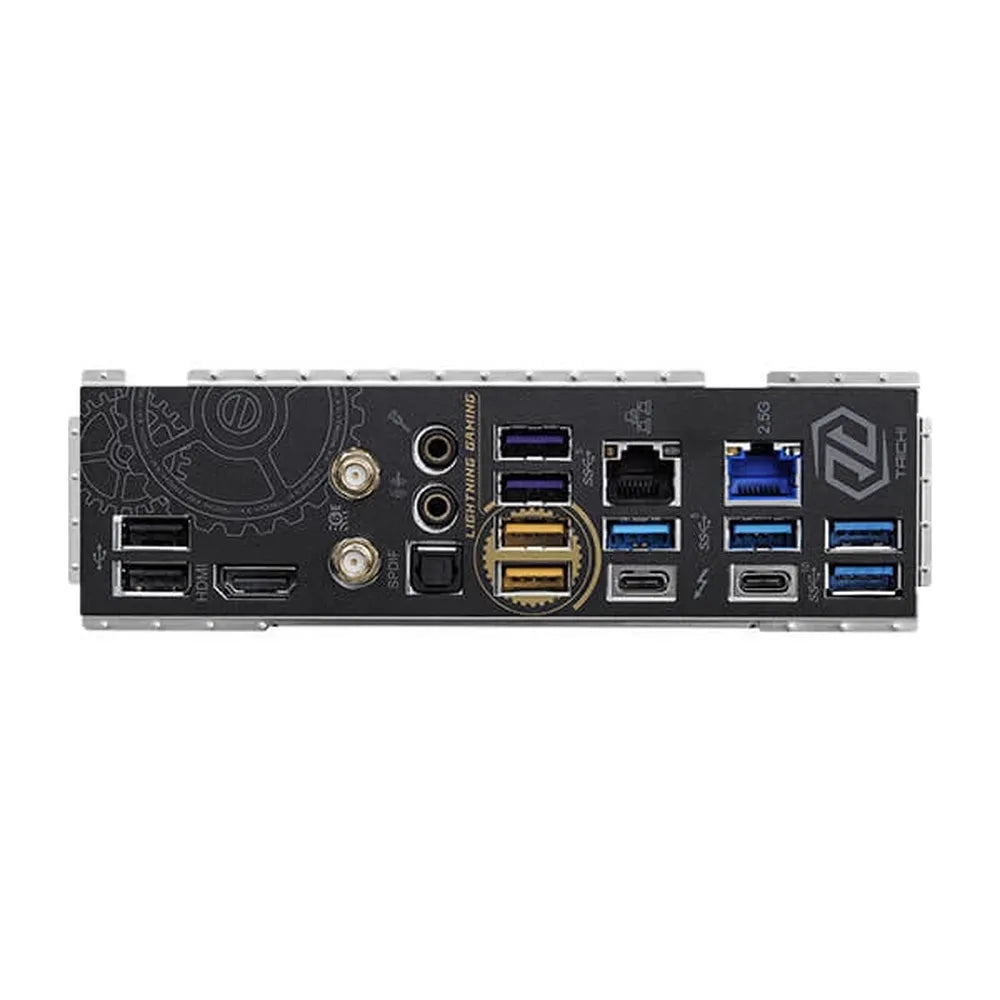

Rear Panel I/O	2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol) 2 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 6 x USB 3.2 Gen1 Ports (USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.) 2 x USB 2.0 Ports 2 x RJ-45 LAN Ports 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI	Software ASRock Motherboard Utility (A-Tuning) Killer Control Center ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
Accessories	1 x User Manual 4 x SATA Data Cables 1 x Wireless Dongle USB Bracket 1 x ASRock WiFi 2.4/5/6 GHz Antenna 4 x Screws for M.2 Sockets
Form Factor	EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm 8 Layer PCB
OS	Microsoft Windows 10 64-bit / 11 64-bit
Certifications	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) CEC Tier II ready
Warranty	3 Years
Note	* Image use for reference only * Features, Price, Specifications are subject to change without notice.
