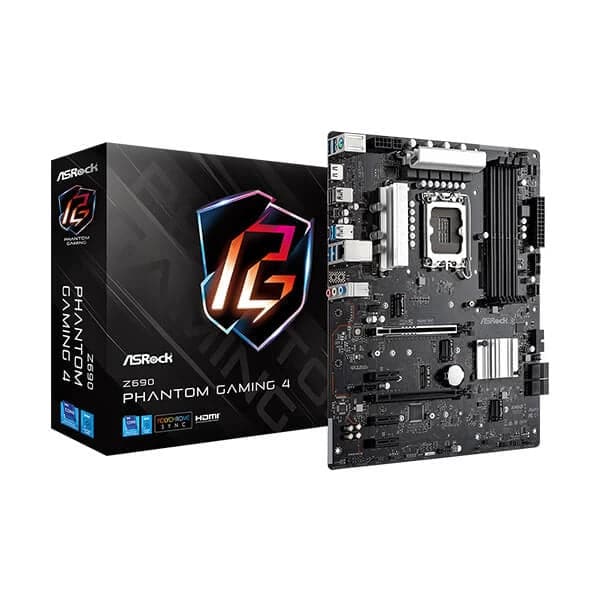

ASROCK Z690 Phantom Gaming 4 DDR4 Intel Motherbaord

Feature of ASRock Z690 Phantom Gaming 4 DDR4

1. Supports 12th Gen Intel® Core™ Processors (LGA1700)
2. 9 Phase Dr.MOS Power Design
3. Supports DDR4 5000MHz (OC)
4. 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1
5. 1 M.2 Key-E for WiFi
6. Graphics Output Options: HDMI
7. Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
8. 4 SATA3
9. 2 Hyper M.2 (PCIe Gen4 x4)
10. 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
11. 1 USB 3.2 Gen2x2 Front Type-C
12. 2 USB 3.2 Gen2 (Rear Type A+C)
13. 8 USB 3.2 Gen1 (4 Rear, 4 Front)
14. Intel® Gigabit LAN

Surface Mount Tech + PCIe 5.0

The SMT-type PCIe slot improves signal flow and maximizes signal stability cinder high speed compared to the DIP-style PCIe slot. Also, this SMT-type PCIe slot is capable of supporting the lightning speed of PCIe 5.0.
The latest PCI Express 5.0 has an incredible bandwidth of 128GBps to offer you a full potential high-end graphics card.

Nahimic Audio

A. Audio That Matters

Enjoy the most engaging listening experience with vibrant and rich details with Nahimic Audio. Whether you are listening through any interior, exterior speaker or headphones and headset using WiFi, HDMI, or analog output Nahimic Audio will offer you the best.

B. Enhance Communication Quality

Enhance the communication quality with Nahimic Audio. The Powerful algorithms of this audio maximize noise-free conversation. It gives a constant voice level even from a distance from your mic. This audio engine dynamically clears the sound and eliminates interference noise as well as lowers the voice variation. This results in a better understanding and less fatigue.

C. Ultimate Gaming Experience

• Sound Tracker – The Sound Tracker is a visual indicator for pointing out the directions from where dominant sounds are coming. Each sound is properly positioned at a 360° angle on the radar for better engagement during the game.
• Works on any device! – Experience the vibrant and high-quality sound on all your favorite audio devices. Whether it’s Jack, USB, Bluetooth, HDMI, or S/PDIF Nahimic is compatible with all of your favorite audio devices. This feature ensures the best sound with every audio device. Nahimic Audio system measures and improve to enhance our technology to provide you with the best experience.

3. High-Speed M.2 Solution

This Phantom Gaming 4 ATX motherboard can accommodate multiple M.2 storage devices. One of the M.2 ports can support a PCI Express 4.0 M.2 SSD. This enables it to perform twice as fast as the previous 3rd generation. It eventually provides a lightning-fast data transfer experience.

4. POLYCHROME RGB

This ASROCK Z690 Phantom Gaming 4  motherboard features onboard RGB and an ARGB header. You can also synchronize RGB LED devices covering the Polychrome RGB Sync-certified accessories.

5. Front USB 3.2 Gen2x2 Type-C

 The latest USB 3.2 Gen2x2 Type-C ports offer up to 20 Gbps data transmission rate. This data transmission rate is 2x as faster as any previous generation. This 2x faster data transfer rate of the USB ports provides a fast data transfer interface along with a reversible USB Type-C design. This reversible design helps to fit the connector either way.

6. BIOS Flashback

Enjoy the most suitable BIOS flashing with just a simple tap. You can easily acquire the latest BIOS support only with a USB and power supply. No CPU, RAM, or other hardware components are required.

7. M.2 (KEY E) For WiFi

Along with the onboard LAN port, you can also choose wireless connections by M.2 (Key E) slot.

Specifications of ASRock Z690 Phantom Gaming 4 DDR4
