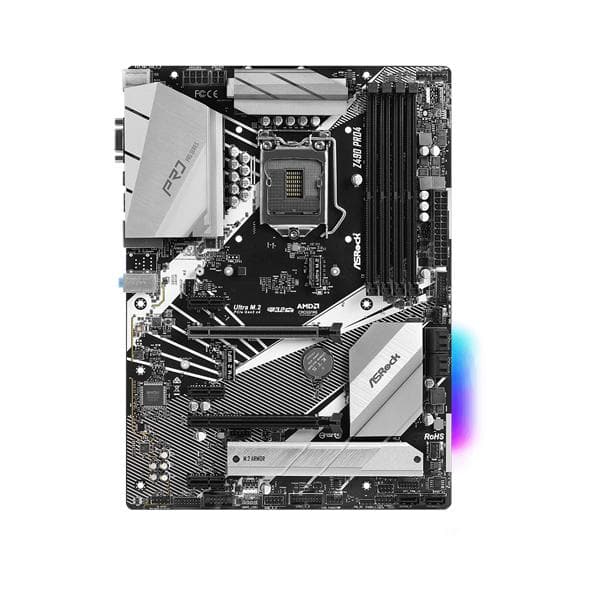

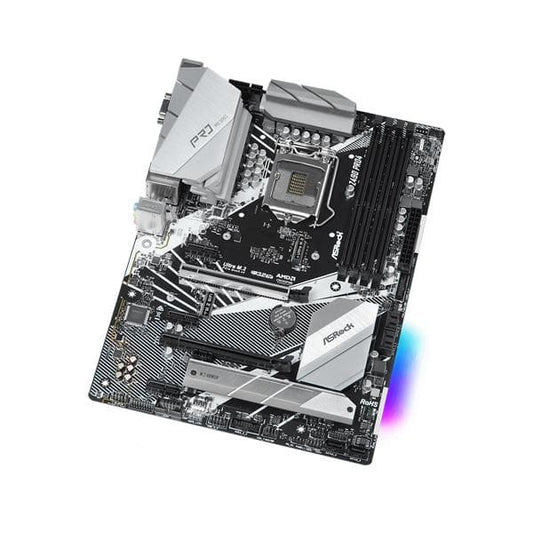

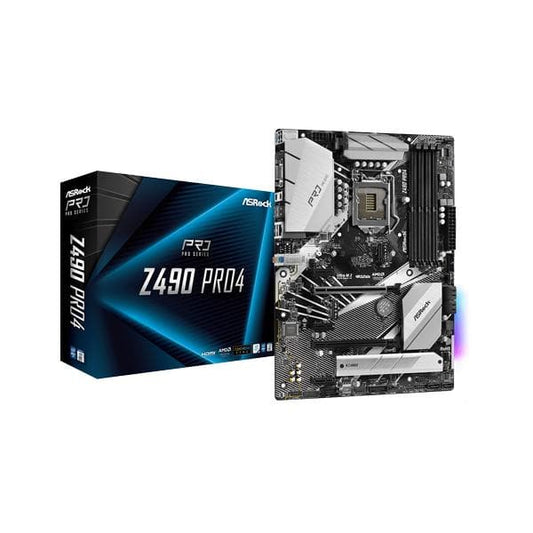

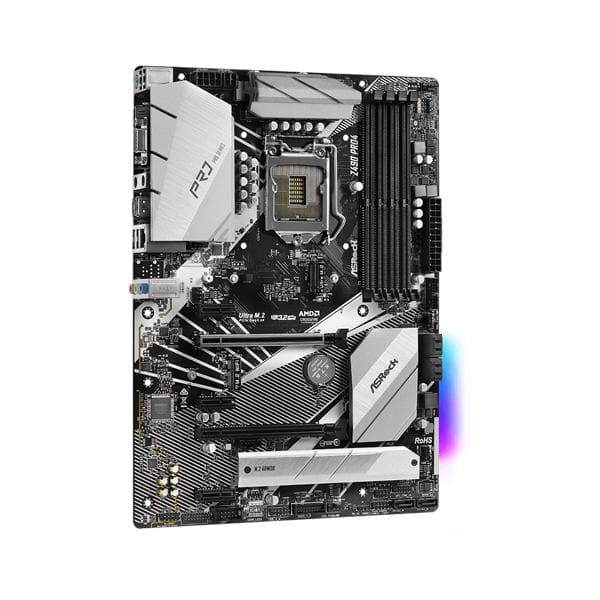

- ASROCK Z490 Pro4 DDR4 Intel Motherboard
Description
Feature of ASROCK Z490 Pro4 DDR4
The fantastic ASROCK Z490 Pro4 DDR4 Motherboard has maximum memory support of 128 GB, not only that but it also Supports Extreme Memory Profile (XMP) memory modules. The hardware monitors Asrock Z490 Pro4 Motherboard check temperature, Fan Tachometer, quiet fan control, voltage. Also has 10 Phase Digital VRM. Installation of Asrock Z490 Pro4 Motherboard is super easy as the package includes a quick installation guide for users. Asrock Z490 Pro4 Motherboard also has a rear panel I/O with ports for user convenience. Along with all this the amusing Asrock Z490 Pro4 Motherboard also comes with a complete warranty of three whole years!
- Supports 10th Gen Intel® Core™ processors (Socket 1200)
- 10 Power Phase Design
- Supports DDR4 4400MHz+ (OC)
- 2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi
- AMD Quad CrossFireX™ and CrossFireX™
- Graphics Output Options: HDMI, D-Sub
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.2 Gen2 (Rear Type-A+C), 6 USB 3.2 Gen1 (4 Front, 2 Rear)
- Intel® Gigabit LAN
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Base Frequency Boost (BFB) Technology
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
10 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Clever Access Memory
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
Heat Dissipating PCB Technology
Luxurious features extend to the onboard heat dissipating PCB points. Heat Dissipating PCB gives the motherboard a more mysterious touch and this design effectively takes the heat away from PCB and lower down the temperature up to 4.1 degrees!
RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.
Dual M.2 For SSD, Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.
PCI-E STEEL SLOT
The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.
Specifications of ASROCK Z490 Pro4 DDR4
Unique Feature |
ASRock USB 3.2 Gen2 - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
CPU |
Supports 10th Gen Intel® Core™ Processors (Socket 1200) - Digi Power design - 10 Power Phase design - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking |
Chipset | - Intel® Z490 |
Memory |
- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 4400+(OC)* / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 128GB** - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
BIOS |
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, PCH, VCCIO, VCCST, VCCSA Voltage Multi-adjustment |
Graphics |
- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD Blu-ray Disc - Dual graphics output: support HDMI and D-Sub ports by independent display controllers - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with HDMI 1.4 Port - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **VP9 10bit and VC-1 are for decode only. VP8 and VP9 encode are not supported by Windows® OS. |
Audio |
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
LAN |
- Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
Slots |
- 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)* - 3 x PCI Express 3.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)*Supports NVMe SSD as boot disks |
Storage |
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)***If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled. If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. If M2_2 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled.**Supports Intel® Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
Connector |
- 1 x COM Port Header - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)*Support in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. |

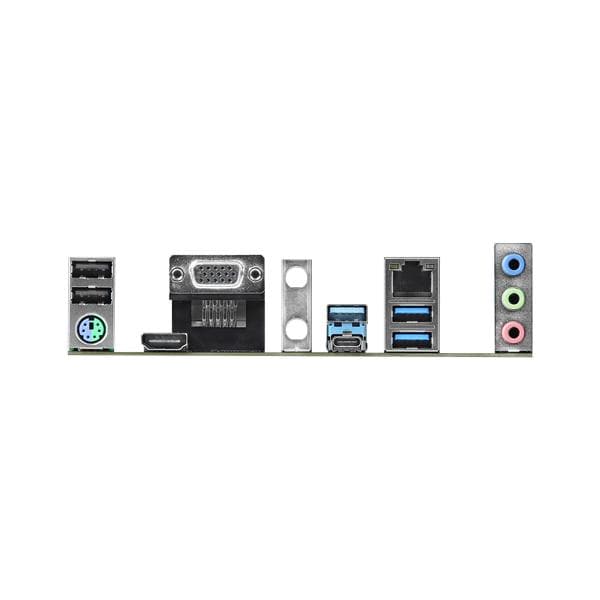

Rear Panel I/O |
- 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
Software and UEFI |
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer |
Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
Accessories |
- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
Hardware Monitor |
Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST, VCCIO |
Form Factor |
- ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm - Solid Capacitor design |
OS | Microsoft® Windows® 10 64-bit |
Certifications |
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
