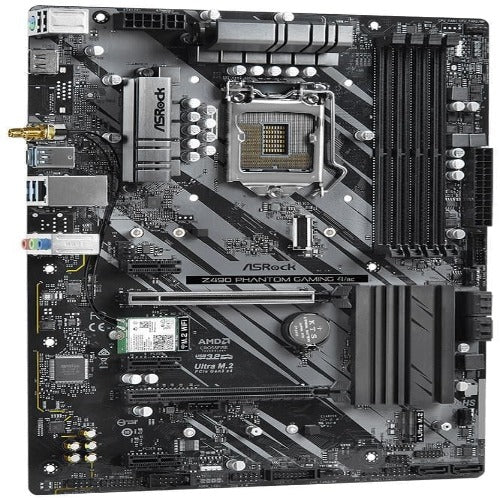

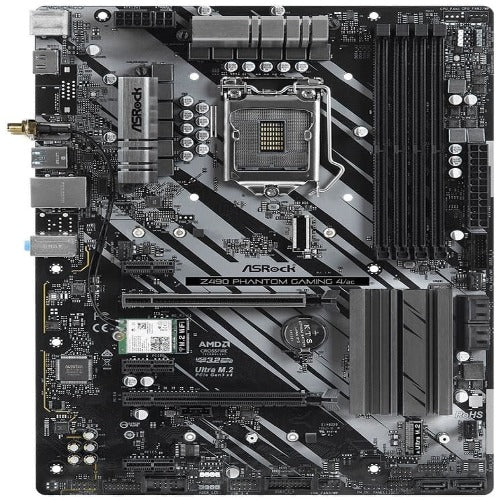

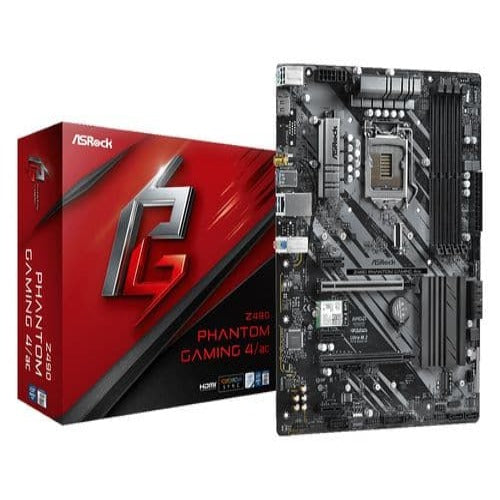

- ASROCK Z490 Phantom Gaming 4/Ac DDR4 Intel Motherboard
Description
Feature of ASRock Z490 Phantom Gaming 4/Ac DDR4
- Supports 10th Gen Intel® Core™ processors (Socket 1200)
- 10 Power Phase Design
- Supports DDR4 4400MHz+ (OC)
- 2 PCIe 3.0 x16, 3 PCIe 3.0 x1
- AMD Quad CrossFireX™ and CrossFireX™
- Graphics Output Options: HDMI
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.2 Gen2 (Rear Type-A+C), 6 USB 3.2 Gen1 (4Front, 2 Rear)
- Intel® Gigabit LAN
- Dual Band 802.11ac WiFi + BT 4.2 Module
- Nahimic Audio
- Base Frequency Boost (BFB) Technology
- 10 Power Phase Design
- Premium 50A Power Choke
- Heat Dissipating PCB Technology
- Blistering Fast Wireless Internet Connections
- 2T2R Intel® 802.11ac Wave 2 WiFi & BT 5.0
- Intel® LAN
- Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
- PCI-E STEEL SLOT
- Dual USB 3.1 Gen2 (Type-A + Type-C)
- Post Status Checker
- Water Pump Header
- Live Update & APP Shop
- Full Spike Protection
ASROCK Z490 Phantom Gaming 4/Ac DDR4 Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Base Frequency Boost (BFB) Technology
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 400 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately
10 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Clever Access Memory
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
Heat Dissipating PCB Technology
Luxurious features extend to the onboard heat dissipating PCB points. Heat Dissipating PCB gives the motherboard a more mysterious touch and this design effectively takes the heat away from PCB and lower down the temperature up to 4.1 degrees!
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v5.1.
PCI-E STEEL SLOT
The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.
Specifications of ASRock Z490 Phantom Gaming 4/Ac DDR4
| CPU | Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package |
| Chipset | Intel® Z490 Chipset |
| Memory |
4 x DDR4 DIMM sockets supporting up to 128 GB Supports DDR4 4266+(OC)* / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics Outputs | – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz |
| Multi-GPU | 2-Way AMD CrossFire™ technologies |
| PCI Slots |
– 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)* – 3 x PCI Express 3.0 x1 Slots |
| Storage |
– – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| Networking |
Intel® I219V Gigabit LAN 10/100/1000 Mb/s – Intel® 802.11ac WiFi Module – Supports Dual-Band (2.4/5 GHz) – Supports high speed wireless connections up to 433Mbps – Supports Bluetooth 5.0 + High speed class II |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) |
| Connectivity |
Rear – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection)) Internal – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Internal Ports |
– 1 x COM Port Header – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 2 x RGB LED Headers* – 2 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin)* – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x 4 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only) |
| Form Factor | – ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm |
