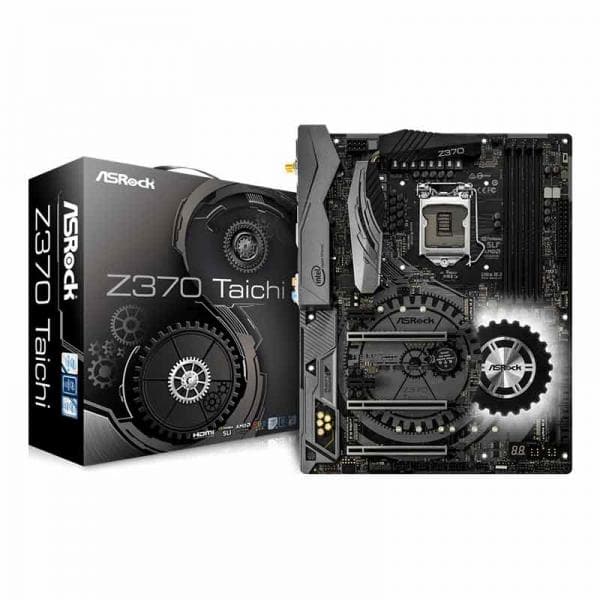

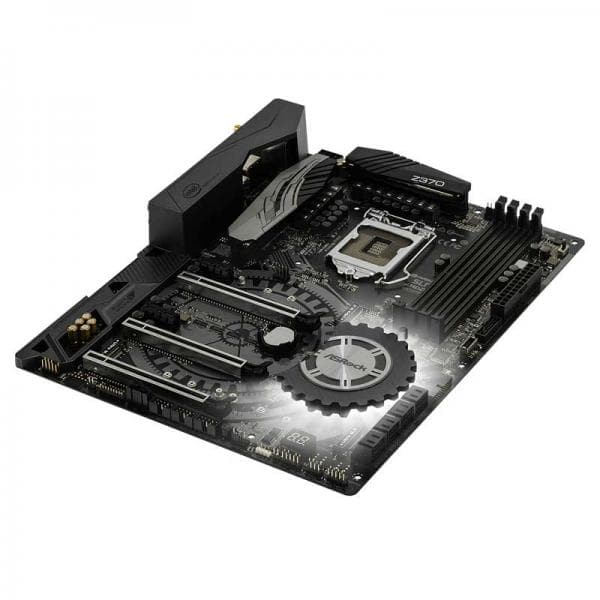

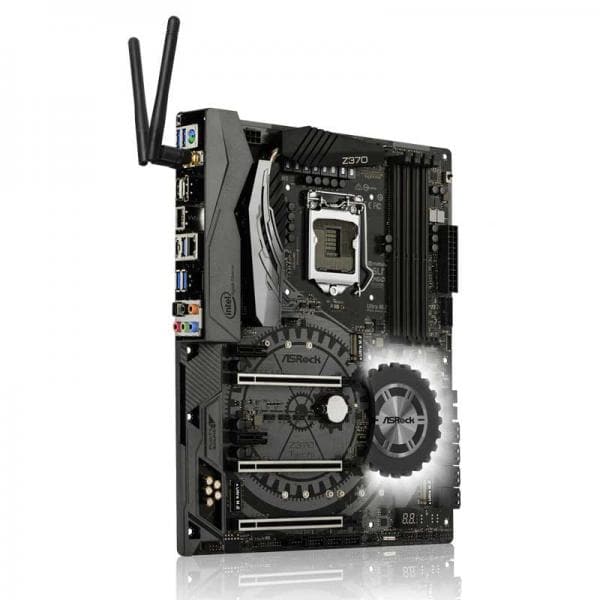

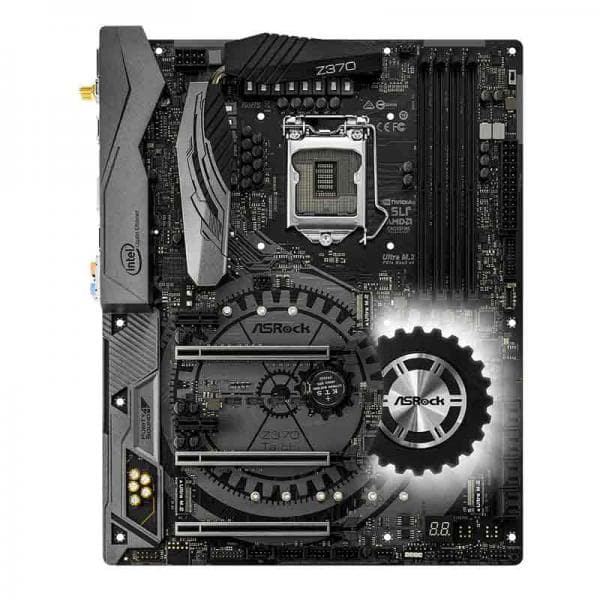

- ASROCK Z370 Taichi Wifi DDR4 Intel Motherboard
Description
Feature of ASRock Z370 Taichi WiFi DDR4
- Supports 8th Generation Intel® Core™ Processors (Socket 1151)
- Supports DDR4 4333 (OC)
- 3 PCIe 3.0 x16, 2 PCIe 3.0 x1
- NVIDIA® Quad SLI™, AMD 3-Way CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
- Supports Purity Sound™ 4 & DTS Connect
- 8 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 3 USB 3.1 Gen2 (1 Front Type-C, 1 Rear Type-C, 1 Rear Type-A)
- 8 USB 3.1 Gen1 (4 Front, 4 Rear)
- Dual Intel® Gigabit LAN
- Intel® 802.11ac WiFi BT 4.2
- ASRock RGB LED
- Hyper BCLK Engine II
- Intel® Optane™ Memory Ready
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready products are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR
ROCK-SOLID VRM
Built for 8th Generation Intel® Core™ Processors
The improved power phase design offers smooth power delivery to the more powerful 8th Generation Intel® Core™ Processors, providing unmatched overclocking capabilities, lower temperature for advanced gamers, and reinforced system stability for taking on all sorts of arduous computing tasks.
Hyper DDR4
UNBEATABLE MEMORY PERFORMANCE
ASROCK Z370 Taichi Wifi DDR4 technology unlocks the hidden performance of DDR4 memory modules, giving the overall performance a huge boost. Unlike traditional memory signal designs that are easily distorted, Hyper DDR4 uses an optimized trace design and the memory circuitry are ideally isolated, thus providing pure memory signals for compatibility, stability and performance.
RGB LED
Build your own colorful lighting system! RGB LED and header allows users to connect LED strip and create their unique PC style easily. The ASRock RGB LED utility can be downloaded directly or from an all-in-one utility
Specifications of ASRock Z370 Taichi WiFi DDR4
Unique Feature | ASRock USB 3.1 Gen2 |
- ASRock Front Panel Type C USB 3.1 Gen2 Header (10 Gb/s) | |
- ASRock Rear USB 3.1 Gen2 Type-A Port (10 Gb/s) | |
- ASRock Rear USB 3.1 Gen2 Type-C Port (10 Gb/s) | |
ASRock Super Alloy | |
- XXL Aluminum Alloy Heatsink | |
- Premium 60A Power Choke | |
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) | |
- Dual-Stack MOSFET (DSM) | |
- Combo Caps (Nichicon 12K Black Caps) | |
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) | |
- I/O Armor | |
- Matte Black PCB | |
- High Density Glass Fabric PCB | |
Intel® 802.11ac WiFi | |
ASRock Steel Slots | |
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) | |
ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
ASRock Live Update & APP Shop | |
CPU | Supports 8th Generation Intel® Core™ Processors (Socket 1151) |
- Digi Power design | |
- 12 Power Phase design | |
- Supports Intel® Turbo Boost 2.0 Technology | |
- Supports Intel® K-Series unlocked CPUs | |
- Supports ASRock BCLK Full-range Overclocking | |
- Supports ASRock Hyper BCLK Engine II | |
Chipset | - Intel® Z370 |
Memory | Dual Channel DDR4 Memory Technology |
- 4 x DDR4 DIMM Slots | |
- Supports DDR4 4333 (OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory | |
- Supports ECC UDIMM memory modules (operate in non-ECC mode) | |
- Max. capacity of system memory: 64GB** | |
- Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
- 15μ Gold Contact in DIMM Slots | |
BIOS | 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) |
- Supports Secure Backup UEFI Technology | |
- ACPI 6.0 Compliant wake up events | |
- SMBIOS 2.7 Support | |
- CPU Core/Cache, GT Core/Cache, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment | |
Graphics | Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics |
- DirectX 12 | |
- HWA Encode/Decode: VP9 8-bit, VP9 10-bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1 | |
- Max. shared memory 1024MB* | |
- Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers | |
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz | |
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz | |
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) | |
- Supports HDCP with HDMI and DisplayPort 1.2 Ports | |
- Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports | |
Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
- Premium Blu-ray Audio support | |
- Supports Surge Protection | |
- Supports Purity Sound™ 4 | |
- Nichicon Fine Gold Series Audio Caps | |
- 120dB SNR DAC with Differential Amplifier | |
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) | |
- Pure Power-In | |
- Direct Drive Technology | |
- PCB Isolate Shielding | |
- Impedance Sensing on Front Out port | |
- Individual PCB Layers for R/L Audio Channel | |
- Gold Audio Jacks | |
- 15μ Gold Audio Connector | |
- Supports DTS Connect | |
LAN | Gigabit LAN 10/100/1000 Mb/s |
- 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT | |
- Supports Wake-On-LAN | |
- Supports Lightning/ESD Protection | |
- Supports Dual LAN with Teaming* | |
- Supports Energy Efficient Ethernet 802.3az | |
- Supports PXE | |
Wireless LAN | Intel® 802.11ac WiFi Module |
- Supports IEEE 802.11a/b/g/n/ac | |
- Supports Dual-Band (2.4/5 GHz) | |
- Supports high speed wireless connections up to 433Mbps | |
- Supports Bluetooth 4.2 / 3.0 High speed class II | |
Slots | 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE5: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x4 (PCIE4) / x4 (PCIE5))* |
- 2 x PCI Express 3.0 x1 Slots (Flexible PCIe) | |
- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ | |
- Supports NVIDIA® Quad SLI™ and SLI™ | |
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) | |
- 15μ Gold Contact in VGA PCIe Slot (PCIE2) | |
Storage | 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug* |
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug | |
- 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** | |
- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** | |
Connector | 1 x TPM Header |
- 1 x Power LED and Speaker Header | |
- 1 x RGB LED Header* | |
- 1 x CPU Fan Connector (4-pin)** | |
- 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** | |
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) | |
- 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) | |
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector) | |
- 1 x Thunderbolt™ AIC Connector (5-pin) | |
- 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Intel® Z370) (Supports ESD Protection) | |
- 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) | |
- 1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM3142) | |
- 1 x Dr. Debug with LED | |
- 1 x XMP Switch | |
- 1 x BIOS B Select Jumper | |

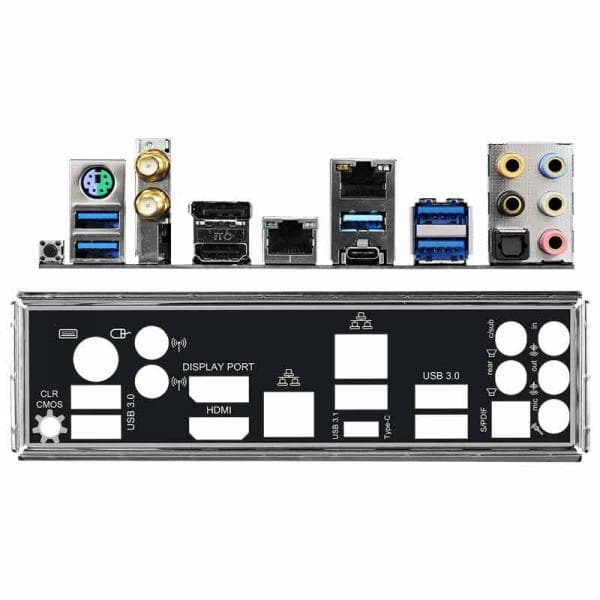

Rear Panel I/O | 2 x Antenna Ports |
- 1 x PS/2 Mouse/Keyboard Port | |
- 1 x HDMI Port | |
- 1 x DisplayPort 1.2 | |
- 1 x Optical SPDIF Out Port | |
- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection) | |
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection) | |
- 4 x USB 3.1 Gen1 Ports (Intel® Z370) (Supports ESD Protection) | |
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) | |
- 1 x Clear CMOS Button | |
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) | |
Software and UEFI | Software |
- ASRock A-Tuning | |
- ASRock RGB LED | |
- ASRock XFast LAN | |
UEFI | |
- ASRock EZ Mode | |
- ASRock Full HD UEFI | |
- ASRock My Favorites in UEFI | |
- ASRock Instant Flash | |
- ASRock Internet Flash | |
- ASRock Easy RAID Installer | |
Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
Accessories | Quick Installation Guide, Support CD, I/O Shield |
- 4 x SATA Data Cables | |
- 1 x ASRock SLI_HB_Bridge_2S Card | |
- 2 x ASRock WiFi 2.4/5 GHz Antennas | |
- 3 x Screws for M.2 Sockets | |
Hardware Monitor | Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans |
- Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans | |
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans | |
- Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans | |
- Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST | |
Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
OS | - Microsoft® Windows® 10 64-bit |
Certifications | FCC, CE |
- ErP/EuP ready (ErP/EuP ready power supply is required) | |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
