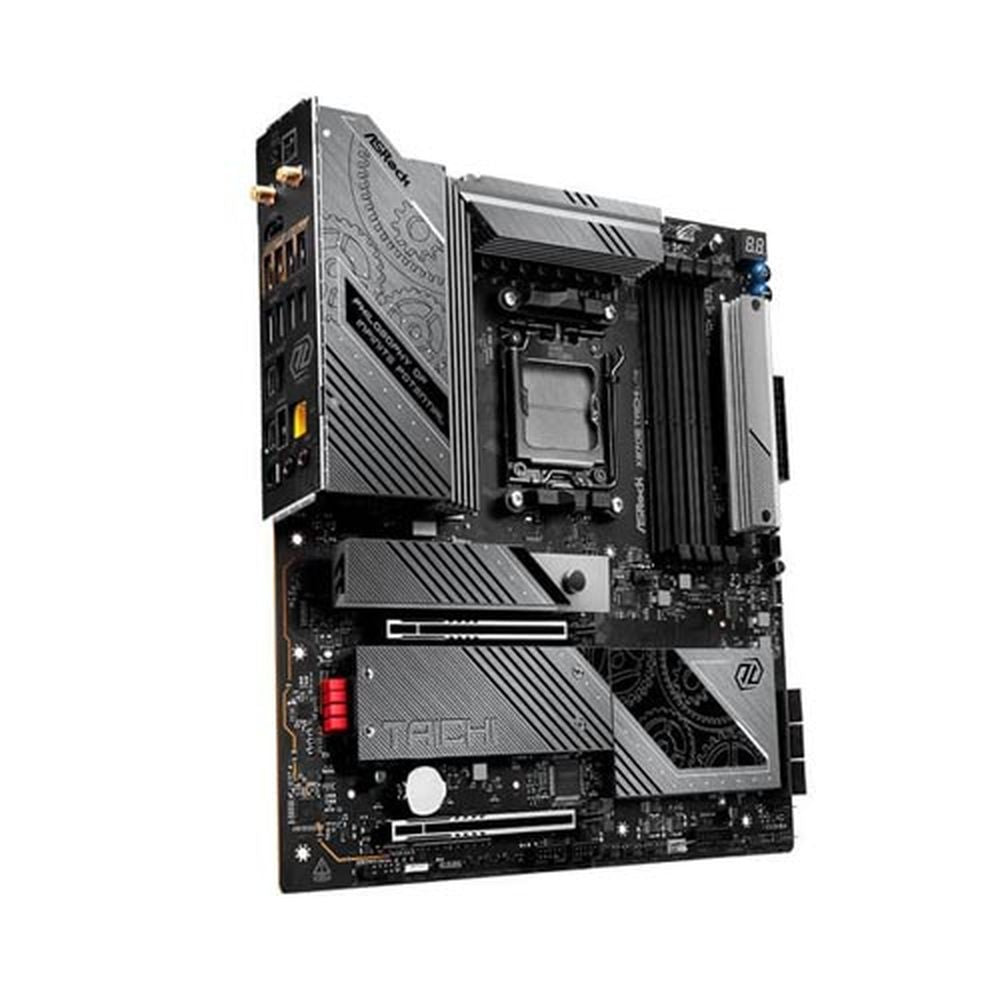

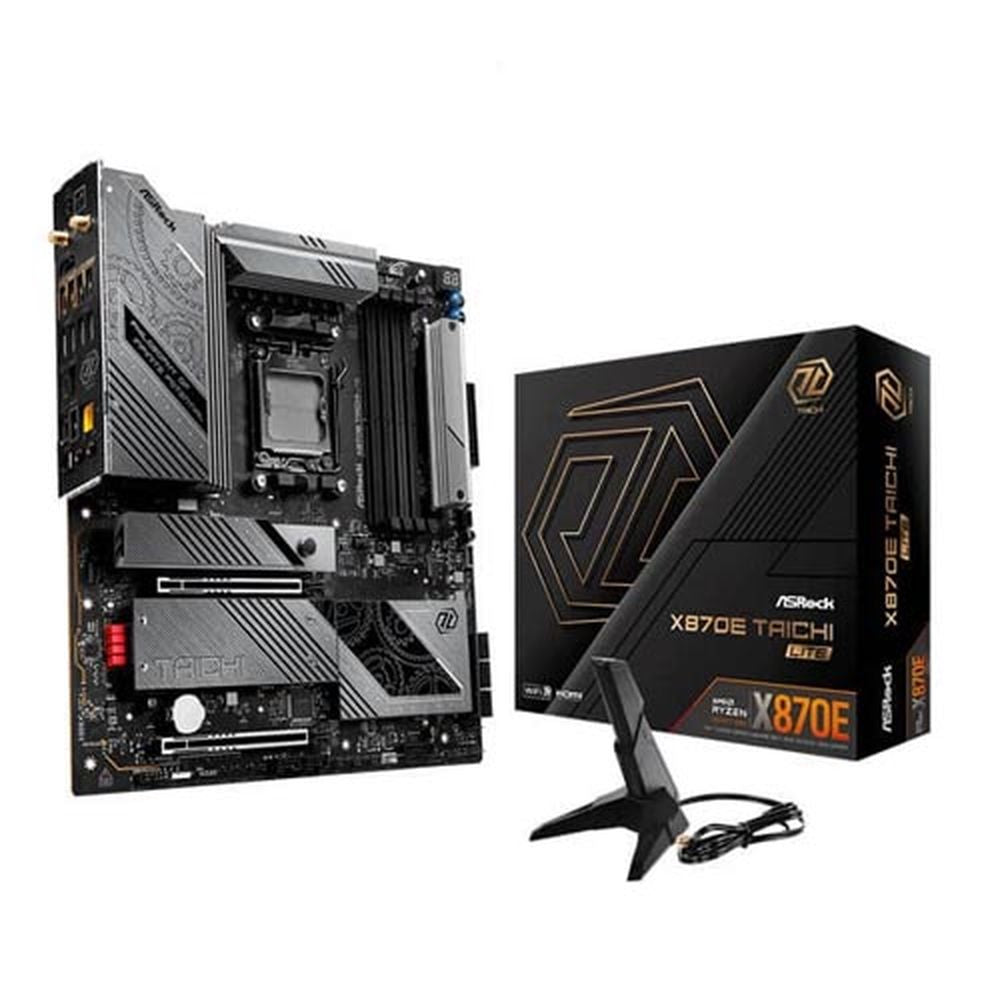

ASROCK X870E Taichi Lite Wifi DDR5 AMD Motherboard

Features of ASROCK X870E Taichi Lite Wifi DDR5 AMD Motherboard

The Taichi Lite series is simply brilliant, offering top-tier performance in a streamlined, functionality-focused design.

PHILOSOPHY OF INFINITE POTENTIAL

Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.

Exclusive 20K Cap with 1000uF Capacitance

The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:

●Higher Capacitance: Greater charge storage for better support under high loads.
●Lower Ripple: Reduced power output fluctuations, improving quality.
●More Stable Output Current: Stable power supply, minimizing voltage impacts.
●Better Performance & System Stability: Increased reliability and consistent performance.

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Wi-Fi 7

Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.

Enhanced USB4 Type-C

USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate.

• Supports AMD AM5 Socket Ryzen™ 9000, 8000 and 7000 Series Processors
• 24+2+1 Phase Power Design, 110A SPS
• 4 x DDR5 DIMMs
  Supports Dual Channel, up to 8200+ (OC)
• 2 PCIe 5.0 x16
• Graphics Output Options: 2 USB4 Type-C, 1 HDMI
• Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA Audio Caps, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4), 3 Hyper M.2 (PCIe Gen4x4),  6 SATA3

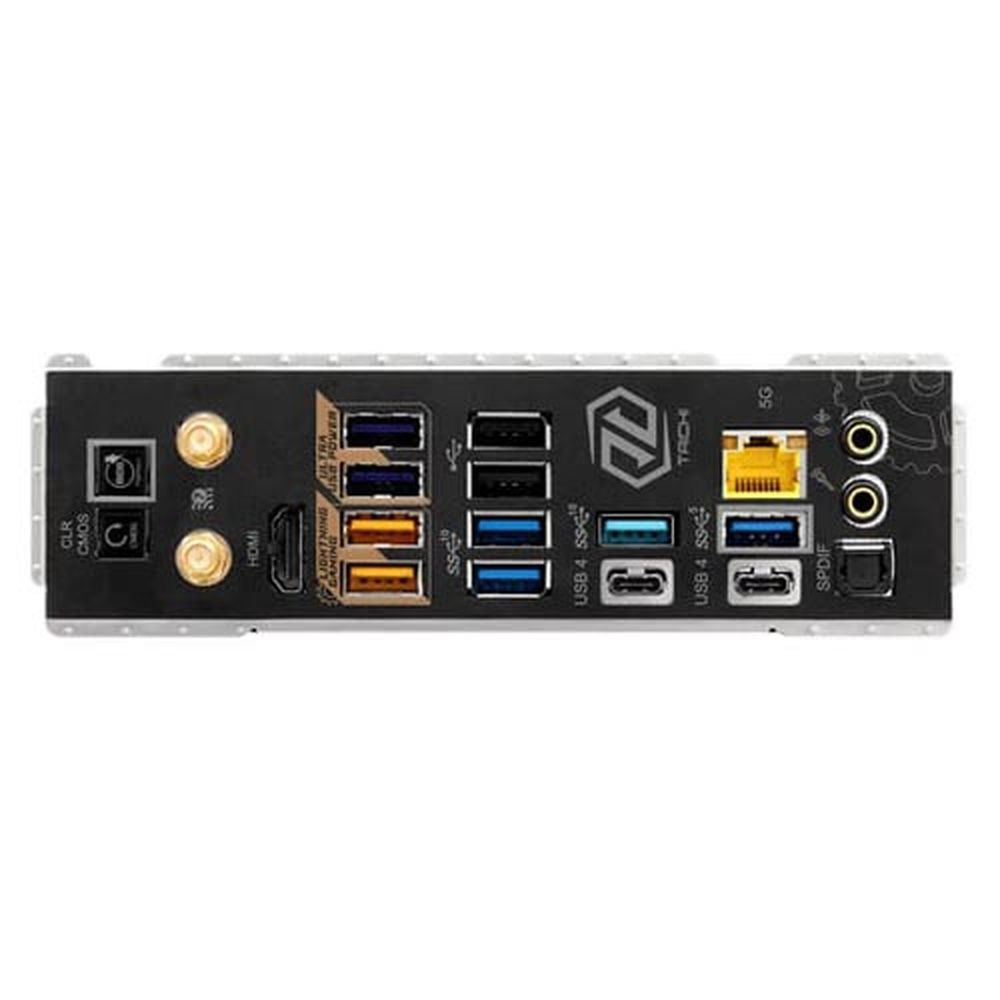

• 2 USB4 Type-C (Rear),1 USB 3.2 Gen2x2 Type-C (Front), 5 USB 3.2 Gen2 Type-A (Rear), 7 USB 3.2 Gen1 (3 Rear, 4 Front)
• 5G LAN
• 802.11be Wi-Fi 7 + Bluetooth
• Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink

Specification of ASROCK X870E Taichi Lite Wifi DDR5 AMD Motherboard
