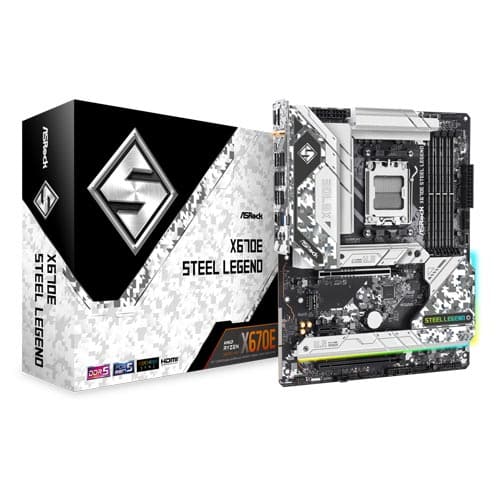

- ASROCK X670E Steel Legend DDR5 AMD Motherboard
Description
Feature of ASRock X670E Steel Legend DDR5
- Supports AMD Ryzen™ 7000 Series Processors
- 16+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs, supports up to 6600+(OC)
-
1 PCIe 5.0 x16,
1 PCIe 3.0 x16,
1 PCIe 3.0 x1 - Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
-
1 Blazing M.2(PCIe Gen5x4),
3 Hyper M.2 (PCIe Gen4x4),
4 SATA3 -
2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front),
1 USB 3.2 Gen2 Type-A (Rear),
10 USB 3.2 Gen1 (6 Rear, 4 Front) - Realtek 2.5G LAN, Realtek 1G LAN
- 802.11ax Wi-Fi 6E + Bluetooth
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Server Grade Low Loss PCB
The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.
DDR5 EXPO & XMP Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. ASROCK X670E Steel Legend are built with 8-Layer and premium low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7600MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Blazing OC Tuner
The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.
PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO.
Reinforced DIMM Slot
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the accessories to create their own unique lighting effects.
Specifications of ASRock X670E Steel Legend DDR5
| Brand | ASrock |
| Motherboard Chipset | AMD X670 |
| Motherboard Form Factor | ATX |
| Motherboard Socket | AM5 |
| RAM Type | DDR5 |
| Product Category | Motherboard |
| Warranty | 3 Years |
