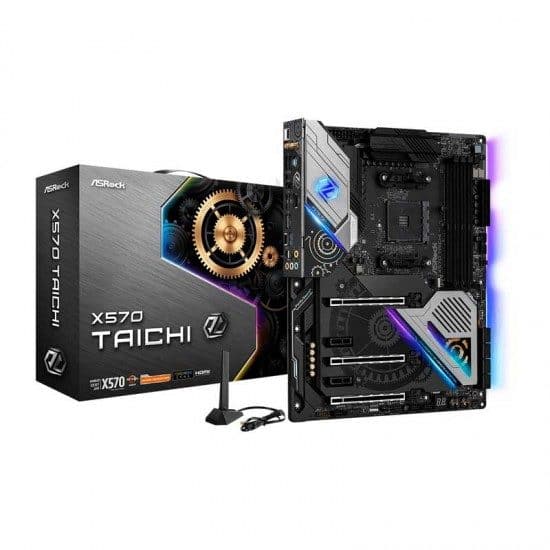

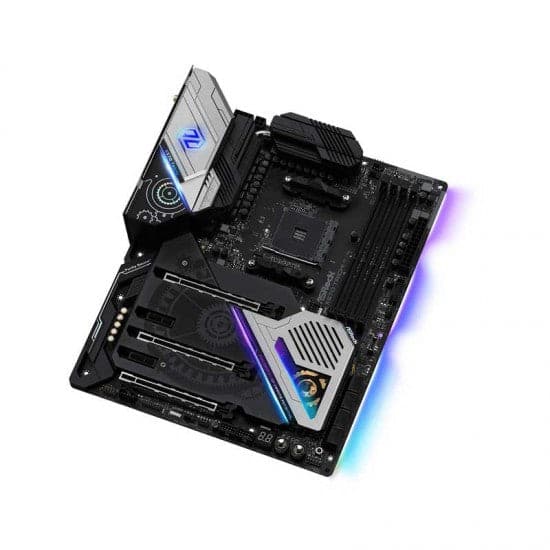

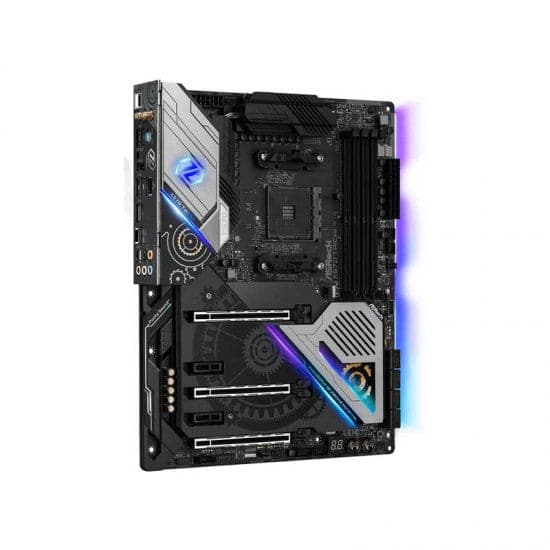

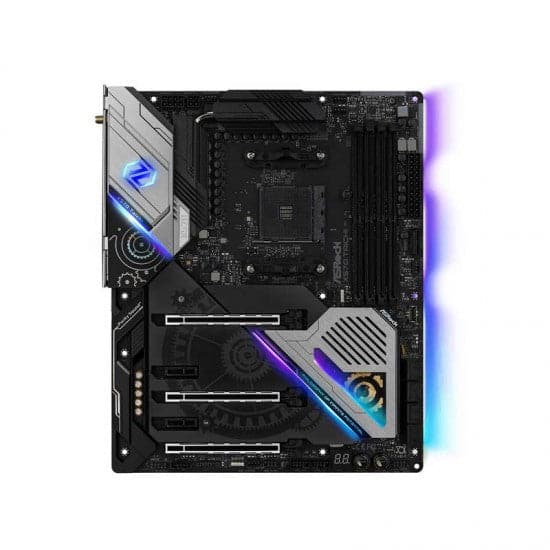

ASROCK X570 Taichi DDR4 AMD Motheboard

Rs. 24,699.00 Rs. 34,313.00

Discount: Rs. 9,614.00 (29%)

43 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Share

Estimated Delivery: 16 December,2024 - 20 December,2024

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Feature of ASRock X570 Taichi DDR4

The fantastic Asrock X570 TAICHI Motherboard has maximum memory support of 128 GB, not only that but it also Supports Extreme Memory Profile (XMP) memory modules. The hardware monitors of the Asrock X570 TAICHI Motherboard check temperature, Fan Tachometer, quiet fan control, voltage. Installation of Asrock X570 TAICHI Motherboard is super easy as the package includes a quick installation guide for users. The Asrock X570 TAICHI Motherboard also has a rear panel I/O with ports for user convenience. Along with all this the amusing Asrock X570 TAICHI Motherboard also comes with a complete warranty of three whole years!

Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0
Supports DDR4 4666+ (OC)
3 PCIe 4.0 x16, 2 PCIe 4.0 x1
NVIDIA® NVLink™, Quad SLI™, AMD 3-Way CrossFireX™
7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect
8 SATA3, 2 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 8 USB 3.2 Gen1 (2 Front, 6 Rear)
Intel® Gigabit LAN
ASRock Polychrome SYNC

Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock’s motherboard equipped with next generation Intel^® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

ECC Memory Support

ECC (Error-correcting code) is a method of detecting and correcting single-bit memory errors. It’s mission-critical to minimize errors in data especially for the server business and data centers. This motherboard is capable of supporting DDR4 ECC un-buffered memory modules that delivers server-grade performance and rock-solid durability for high-end computing systems, such as scientific or financial computers.

STEEL SLOT WITH NEW-GEN PCI EXPRESS 4.0

The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.

UNBEATABLE HEATSINK ARMOR WITH HYPER M.2 (GEN4 X4)

Forged with aluminum alloy heatsink top cover that effectively improves heat dissipation. Underneath is the next generation PCI Express 4.0 Hyper M.2 Socket, with twice the transfer speed of the previous 3rd Generation.

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly.

Specifications of ASRock X570 Taichi DDR4

Unique Feature	ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - 50A Dr.MOS - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Combo Caps (Nichicon 12K Black Caps) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB Intel® 802.11ax WiFi ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	- Supports AMD AM4 socket Ryzen™ 2000 and 3000 series processors* - Intersil Digital PWM - 14 Power Phase design - Capable of providing extra 300W for CPU - Supports ASRock Hyper BCLK Engine II*Please refer to CPU Support List on our website for more information.
Chipset	- AMD Premium X570
Memory	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 128GB** - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots*For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs.
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, Voltage Multi-adjustment
Graphics	- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.0 - Supports HDCP 2.2 with HDMI 2.0 Port - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port - Supports Microsoft® PlayReadyActual support may vary by CPU*The Max shared memory 16GB requires 32GB system memory installed.
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Supports Purity Sound™ 4 - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB isolate shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Supports DTS Connect
LAN	- Gigabit LAN 10/100/1000 Mb/s - GigaLAN Intel® I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Wireless LAN	- Intel® 802.11ax WiFi Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 2.4Gbps - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.0 + High speed class II - Supports MU-MIMO
Slots	AMD Ryzen series CPUs (Matisse) - 3 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3/PCIE5: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3); triple at x8 (PCIE1) / x8 (PCIE3) / x4 (PCIE5))AMD Ryzen series CPUs (Pinnacle Ridge) - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen4x4 (PCIE5))AMD Ryzen series CPUs (Picasso) - 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))* - 1 x PCI Express 4.0 x16 Slot (single at x4 (PCIE5))- 2 x PCI Express 4.0 x1 Slots - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™* - Supports NVIDIA® Quad SLI™ and SLI™* - Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards* - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1)Supports NVMe SSD as boot disks3-Way CrossFireX™ is only supported with Ryzen Series CPUs (Matisse and Pinnacle Ridge).**NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary. This feature is only supported with Ryzen Series CPUs (Matisse and Pinnacle Ridge).
Storage	- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)* - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)* - 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)**If M2_3 is occupied, PCIE5 slot will be disabled Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Support RAID 0/1/10
Connector	- 1 x Power LED and Speaker Header - 1 x AMD Fan LED Header* - 1 x RGB LED Header - 1 x Addressable LED Header* - 1 x CPU Fan Connector (4-pin)** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x AMD LED Fan USB Header - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED - 1 x Clear CMOS Button - 1 x SPI TPM Header****The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.Supports in total up to 12V/3A, 36W LED Strip*Supports in total up to 5V/3A, 15W LED StripThe CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.*The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.*The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. *****Please refer to the link for further information: https://asrock.com/mb/spec/product.asp?Model=TPM-SPI

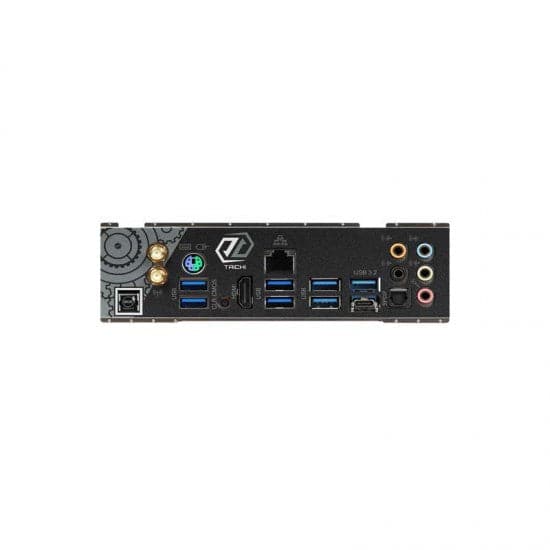

Rear Panel I/O	- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)*Ultra USB Power is supported on USB3_5_6 ports. ACPI wake-up function is not supported on USB3_5_6 ports.
Software and UEFI	Software - ASRock A-Tuning - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	- Quick Installation Guide, Support CD - 4 x SATA Data Cables - 1 x ASRock SLI_HB_Bridge_2S Card - 1 x ASRock WiFi 2.4/5 GHz Antenna - 1 x ASRock Screwdriver - 3 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets
Hardware Monitor	- Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
OS	- Microsoft® Windows® 10 64-bit
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty	3 Years
Note*	Price, feature and specifications are subject to change without notice
