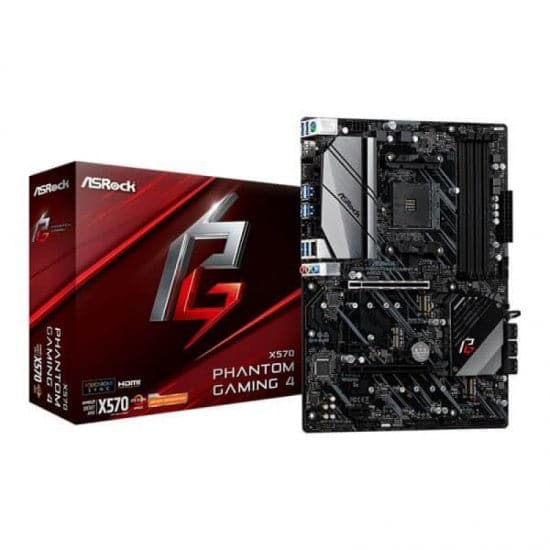

- ASROCK X570 Phantom Gaming 4 DDR4 AMD Motherboard
Description
Feature of ASRock X570 Phantom Gaming 4
Not only visual satisfaction is necessary but also audio! Get the best hypnotic sounds with 7.1 CH HD Audio to feel like a pro! ASRock X570 PHANTOM GAMING 4 is very reliable as it has gone through over 7000+ validation hours of industrial-level tests. ASRock X570 PHANTOM GAMING 4 supports Creative Sound Blaster Cinema 5, Quad SLI, AMD 4-Way CrossFireX. ASRock X570 PHANTOM GAMING 4 comes with Intel 2.5G LAN. For secure out-of-band and remote management provided by DMTF’s client management standard. ASRock X570 PHANTOM GAMING 4 also features ASRock Polychrome SYNC.
- Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
- 10 Power Phase Design
- Supports DDR4 4066+ (OC)
- 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
- AMD Quad CrossFireX™ and CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
- 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
- 2 USB 3.2 Gen2 (Rear Type-A), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
- Intel® Gigabit LAN
- ASRock Polychrome SYNC

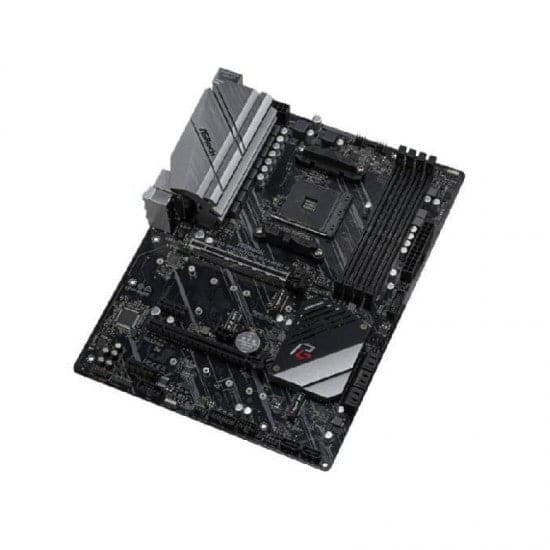

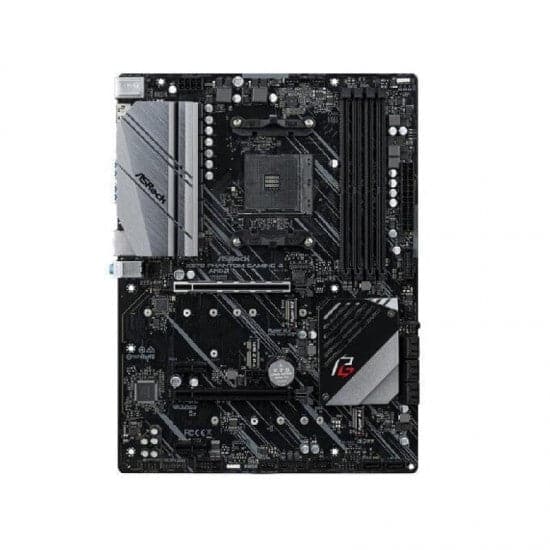

ASRock X570 Phantom Gaming 4 Motherboard
ASROCK M.2 interface which increases data transfer speeds up to 32Gb/s. The next-generation PCI Express 4.0 is capable of performing twice the speed compared to the previous 3rd generation. Asrock X570 Phantom Gaming 4 Motherboard has a High-Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts. ASRock X570 Phantom has next-generation PCI Express 4.0 M.2 SSDs which is capable of performing twice the speed compared to the previous 3rd generation. Asrock has Post Status Checker software which is a fast and easy way to identify the source of the problem. ASRock Full Spike Protection provides various technologies to prevent your motherboard’s components from being damaged from unexpected voltage spikes. X570 Phantom Gaming 4 Motherboard has ASRock Live Update & APP Shop software already installed for your convenience. Here you can get various apps and support software for users to download.
Specifications of ASRock X570 Phantom Gaming 4
| Gaming Armor | Memory |
| 15μ Gold Contact in DIMM Slots | |
| VGA Card | |
| 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| Internet | |
| Intel® LAN | |
| Cooling | |
| XXL Aluminum Alloy Heatsink | |
| Unique Feature | ASRock USB 3.2 Gen2 |
| ASRock USB 3.2 Gen2 Type-A Ports (10 Gb/s) | |
| ASRock Super Alloy | |
| XXL Aluminum Alloy Heatsink | |
| Premium 50A Power Choke | |
| Sapphire Black PCB | |
| High Density Glass Fabric PCB | |
| 2oz Copper PCB | |
| ASRock Steel Slot Gen4 | |
| ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) | |
| ASRock POST Status Checker (PSC) | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| ASRock Live Update & APP Shop | |
| CPU | Supports AMD AM4 socket Ryzen™ 2000 and 3000 series processors |
| Digi Power design | |
| 10 Power Phase design | |
| Chipset | AMD X570 |
| Memory | Dual Channel DDR4 Memory Technology |
| 4 x DDR4 DIMM Slots | |
| AMD Ryzen series CPUs (Matisse) support DDR4 4066+(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* | |
| AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* | |
| AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory* | |
| Max. capacity of system memory: 128GB** | |
| 15μ Gold Contact in DIMM Slots | |
| *For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs. | |
| Please refer to below table for AMD non-XMP memory frequency support. | |
| Ryzen Series CPUs (Matisse): | |
| Ryzen Series CPUs (Pinnacle Ridge): | |
| Ryzen Series CPUs (Picasso): | |
| SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2 | |
| DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label | |
| **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Supports “Plug and Play” | |
| ACPI 5.1 compliance wake up events | |
| Supports jumperfree | |
| SMBIOS 2.3 support | |
| CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, CPU Load-Line Calibration, CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment | |
| Graphics | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* |
| DirectX 12, Pixel Shader 5.0 | |
| Shared memory default 2GB. Max Shared memory supports up to 16GB.** | |
| Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers | |
| Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz | |
| Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz | |
| Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required) | |
| Supports HDR (High Dynamic Range) with HDMI 2.0 | |
| Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports | |
| Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports | |
| Supports Microsoft® PlayReady | |
| *Actual support may vary by CPU | |
| **The Max shared memory 16GB requires 32GB system memory installed. | |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) |
| Premium Blu-ray Audio support | |
| Supports Surge Protection | |
| ELNA Audio Caps | |
| PCB Isolate Shielding | |
| Individual PCB Layers for R/L Audio Channel | |
| LAN | Gigabit LAN 10/100/1000 Mb/s |
| Giga PHY Intel® I211AT | |
| Supports Wake-On-LAN | |
| Supports Lightning/ESD Protection | |
| Supports Energy Efficient Ethernet 802.3az | |
| Supports PXE | |
| Slots | AMD Ryzen series CPUs (Matisse) |
| 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))* | |
| AMD Ryzen series CPUs (Pinnacle Ridge) | |
| 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))* | |
| AMD Ryzen series CPUs (Picasso) | |
| 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE3))* | |
| 2 x PCI Express 4.0 x1 Slots | |
| Supports AMD Quad CrossFireX™ and CrossFireX™ | |
| 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module | |
| 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| *Supports NVMe SSD as boot disks | |
| Storage | 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
| 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)* | |
| 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)* | |
| *Supports NVMe SSD as boot disks | |
| Supports ASRock U.2 Kit | |
| Connector | 1 x COM Port Header |
| 1 x SPI TPM Header | |
| 1 x Power LED and Speaker Header | |
| 2 x RGB LED Headers* | |
| 1 x Addressable LED Header** | |
| 1 x CPU Fan Connector (4-pin)*** | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** | |
| 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** | |
| 1 x 24 pin ATX Power Connector | |
| 1 x 8 pin 12V Power Connector | |
| 1 x Front Panel Audio Connector | |
| 1 x AMD LED Fan USB Header | |
| 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only) | |
| 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) | |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
| *Support in total up to 12V/3A, 36W LED Strip | |
| **Supports in total up to 5V/3A, 15W LED Strip | |
| ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. | |

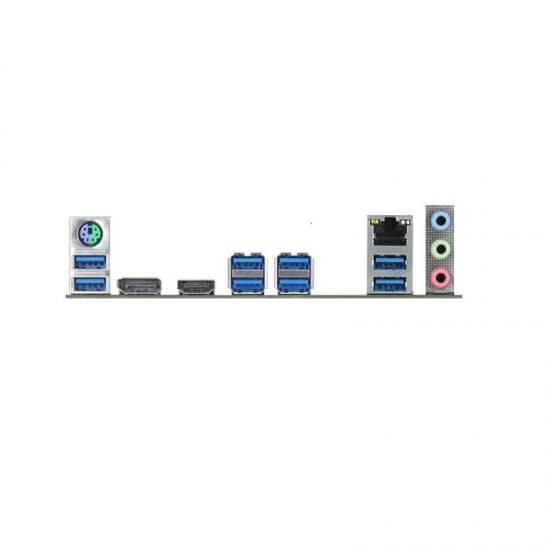

| Rear Panel I/O | 3 x Antenna Ports (on I/O Panel Shield) |
| 1 x PS/2 Mouse/Keyboard Port | |
| 1 x HDMI Port | |
| 1 x DisplayPort 1.2 | |
| 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection) | |
| 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
| 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | Software |
| ASRock Polychrome SYNC | |
| ASRock Key Master | |
| ASRock XFast LAN | |
| UEFI | |
| ASRock Full HD UEFI | |
| ASRock Instant Flash | |
| *These utilities can be downloaded from ASRock Live Update & APP Shop. | |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | Quick Installation Guide, Support CD, I/O Shield |
| 2 x SATA Data Cables | |
| 3 x Screws for M.2 Sockets | |
| Hardware Monitor | Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans |
| Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans | |
| Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans | |
| Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans | |
| Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, PREM VDDCR_SOC, +1.8V, VDDP | |
| Form Factor | ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm |
| Solid Capacitor design | |
| 2oz Copper PCB | |
| OS | Microsoft® Windows® 10 64-bit |
| Certifications | FCC, CE |
| ErP/EuP ready (ErP/EuP ready power supply is required) |
