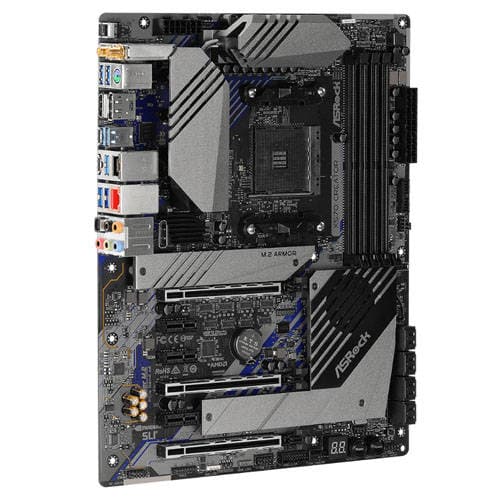

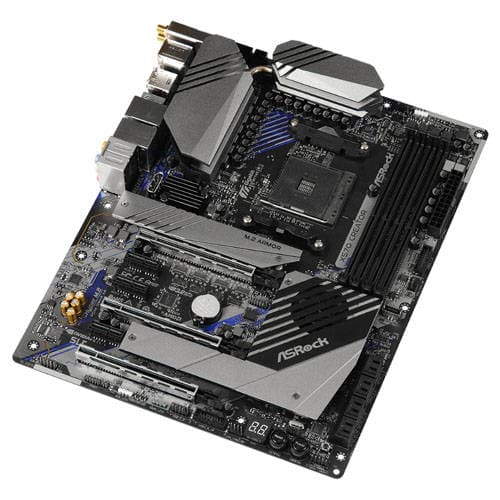

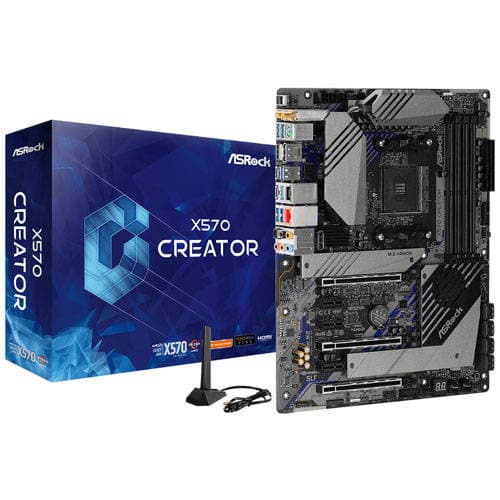

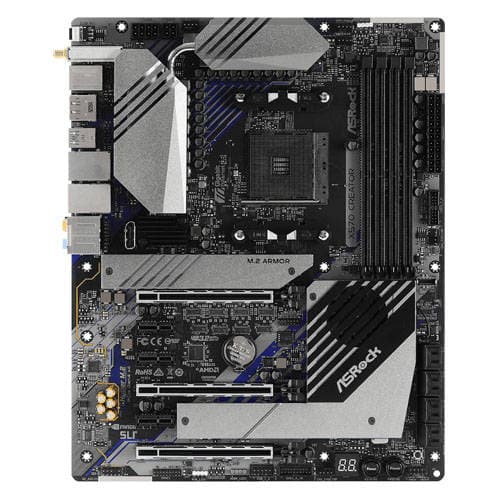

ASROCK X570 Creator DDR4 AMD Motherboard

Dr. MOS

IR3555 Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 60A continuous current for each phase, thus providing improved thermal result and superior performance.

EBR Fan

The longer lifespan EBR bearing fan were used to ensure the best durability. Compared with normal sleeve bearing fan, EBR bearing fan has lifespan up to 50,000 hours, equivalent to 5.7 years of working under full speed.

Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock’s motherboard comes equipped with next generation Intel Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate on both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

STEEL SLOT WITH NEW-GEN PCI EXPRESS 4.0

The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionarily added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.

Dual Hyper M.2 For SSD

With support for the next generation PCI Express 4.0 M.2 SSDs, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices including strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

* The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

• The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Front USB 3.2 Gen2 Type-C

Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

XXL Aluminum Alloy Heatsink

Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Premium Memory Alloy Choke

Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

Combo Caps

A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores

Nichicon 12K Black Caps

Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

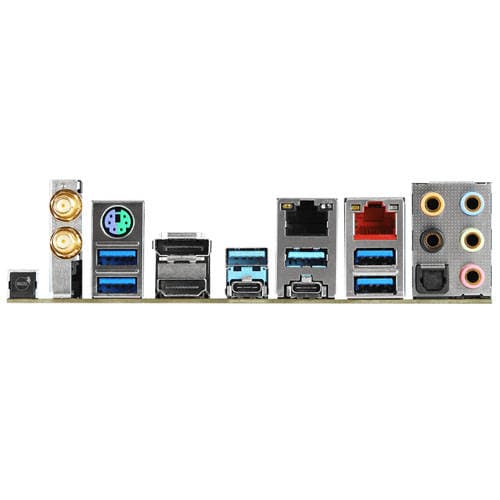

I/O Armor

A new designed protective cover helps protect all of the crucial parts near the motherboard’s rear I/O, so they won’t easily be damaged by static electricity.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges. The excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
