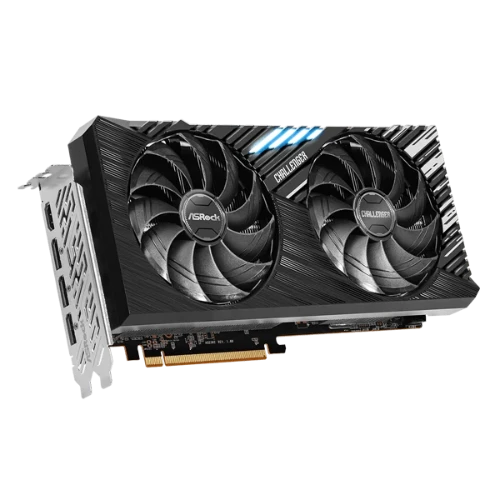

- ASROCK Radeon RX 7800 XT Challenger OC 16GB AMD Graphic Card
Description
Features of ASROCK RX 7800 XT Challenger OC 16GB AMD Graphic Card
Clock: GPU / Memory
- Boost Clock*: Up to 2475 MHz / 19.5 Gbps
- Game Clock**: 2169 MHz / 19.5 Gbps
Key Specification
- ASROCK RX 7800 XT Challenger OC 16GB GPU
- 16GB GDDR6 on 256-Bit Memory Bus
- 60 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
- 64MB AMD Infinity Cache™ technology
- Microsoft® DirectX® 12 Ultimate
- PCI® Express 4.0 Support
- 2 x 8-pin Power Connectors
- 3 x DisplayPort™ 2.1***, 1 x HDMI™ 2.1
Key Features
- Dual Fan Design
- Stylish Metal Backplate
- Striped Ring Fan
- Ultra-fit Heatpipe
- LED Indicator
- 0dB Silent Cooling
- Super Alloy Graphics Card
Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.

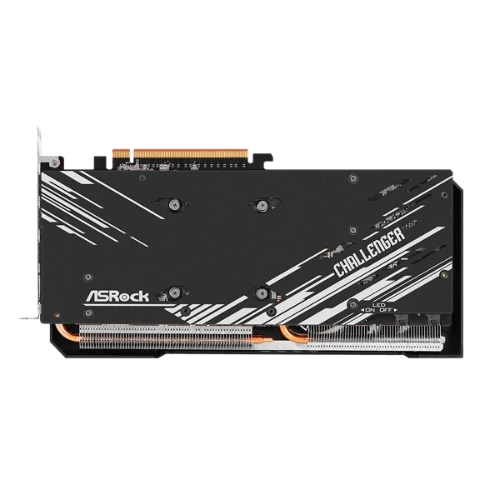

Stylish Metal Backplate Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphics card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Striped Ring Fan Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
0dB Silent Cooling Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

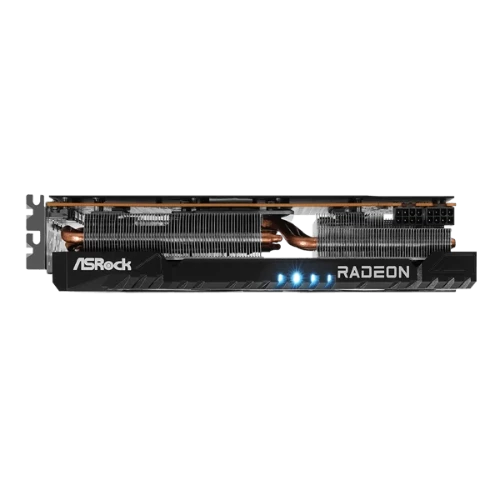

Ultra-fit Heatpipe Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
High-density Metal Welding Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Specifications of ASROCK RX 7800 XT Challenger OC 16GB AMD Graphic Card
| Graphics Engine | AMD Radeon™ RX 7800 XT Graphics |
| Bus Standard | PCI® Express4.0 x16 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | GDDR6 16GB |
| Engine Clock | Boost Clock up to: 2475 MHz |
| Game Clock: 2169 MHz | |
| Stream Processors | 3840 |
| Compute Units | 60 |
| Memory Clock | 19.5Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution: 7680×4320 |
| Interface | 1 x HDMI™ 2.1 (up to FRL 12Gbps) |
| 3 x DisplayPort™ 2.1 with DSC (up to UHBR3 13.5Gbps)* | |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 750W |
| Power Connector | 2 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 267 x 130 x 51mm |
| Net Weight | 985g |
