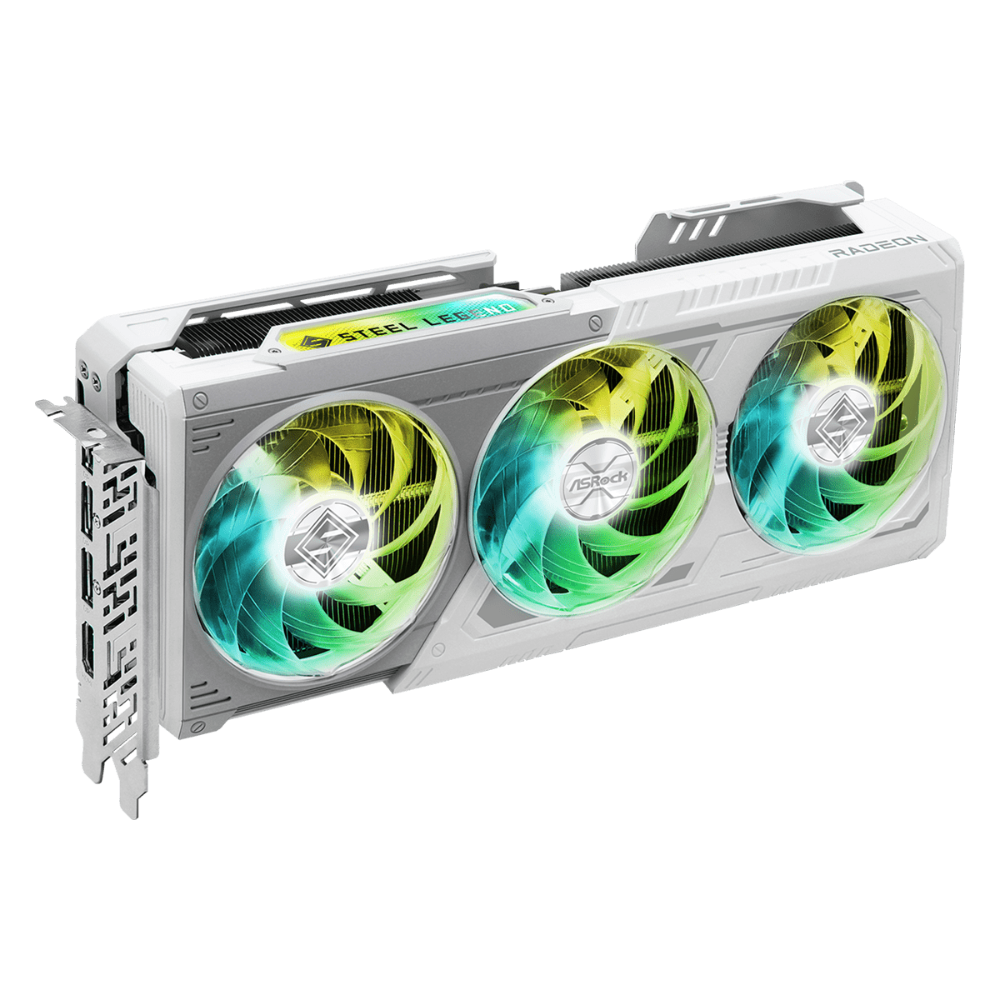

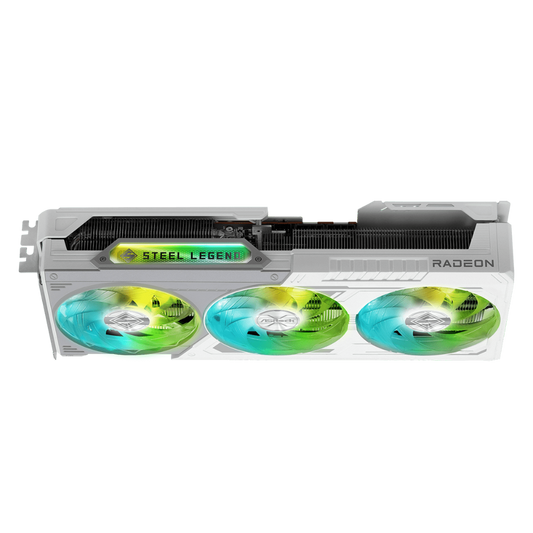

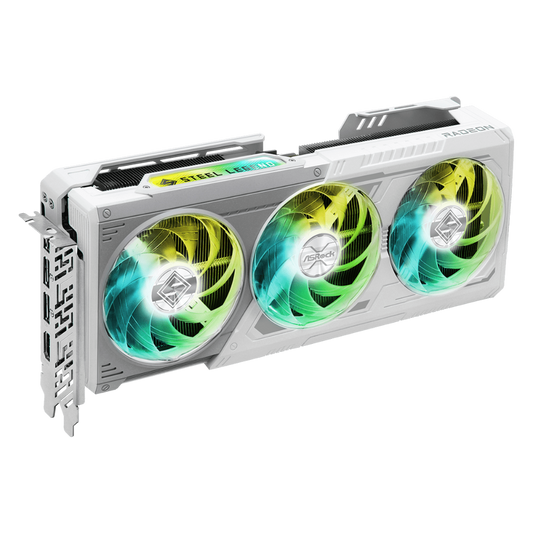

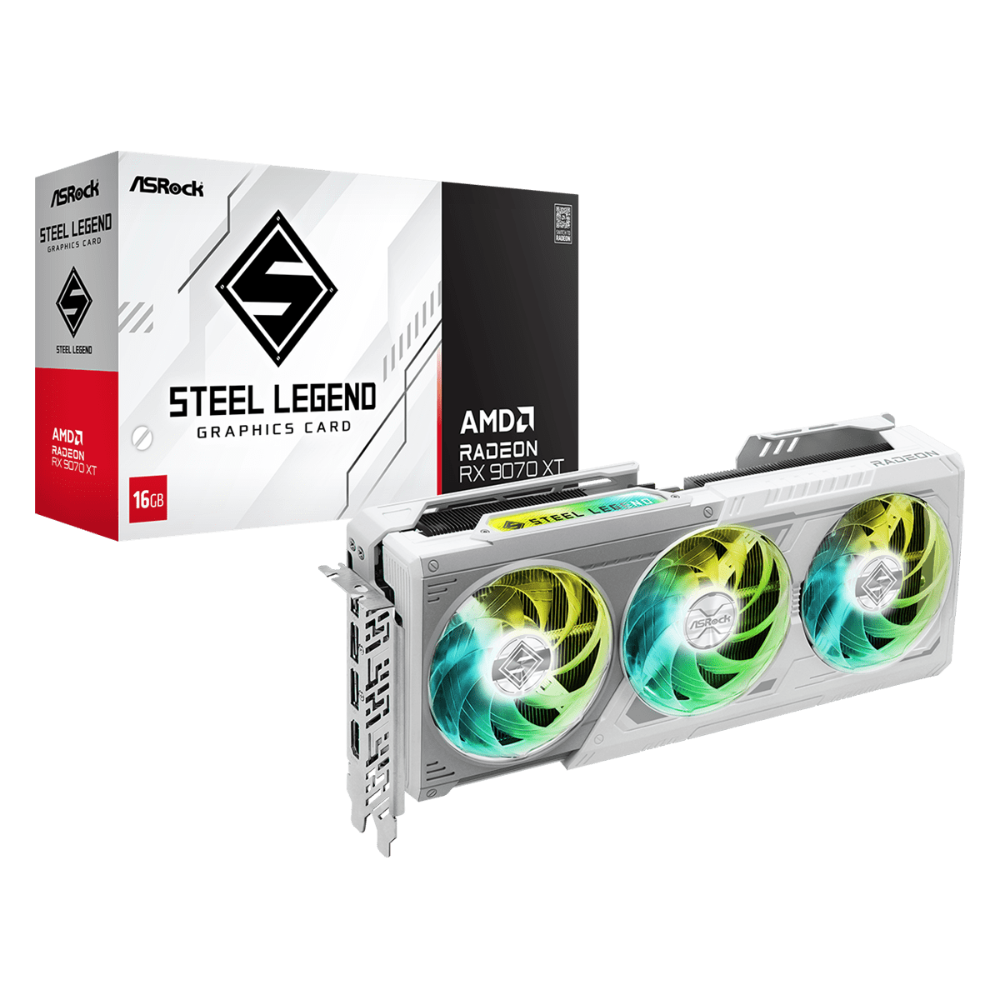

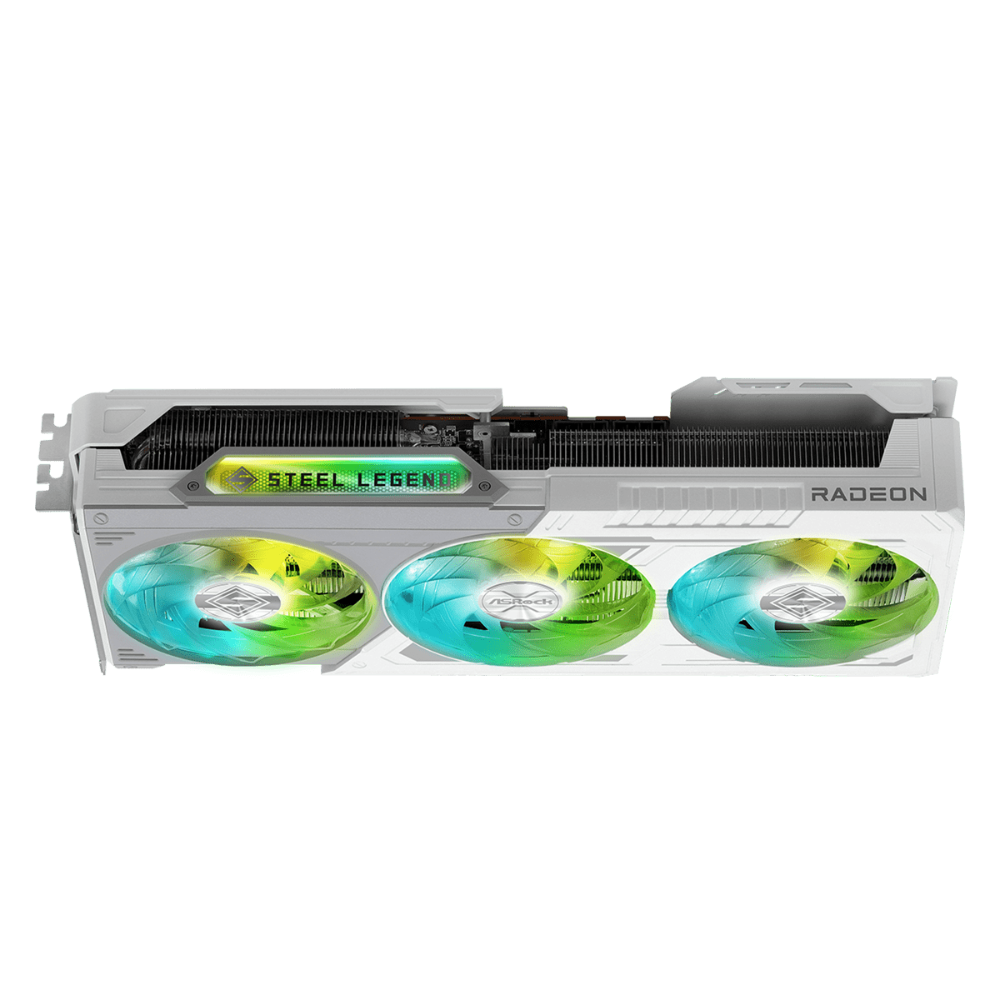

- ASROCK Radeon RX 9070 XT Steel Legend 16GB AMD Graphic Card
Description
Features of ASROCK Radeon RX 9070 XT Steel Legend 16GB AMD Graphic Card
Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED Switch
You can quickly and easily switch on/off the ARGB LEDs that are equipped with not only your graphics card but also the connected ARGB devices.
ARGB Header
With the ARGB Header, it can connect extra ARGB strips/devices to make the lighting effects more rich and vivid.

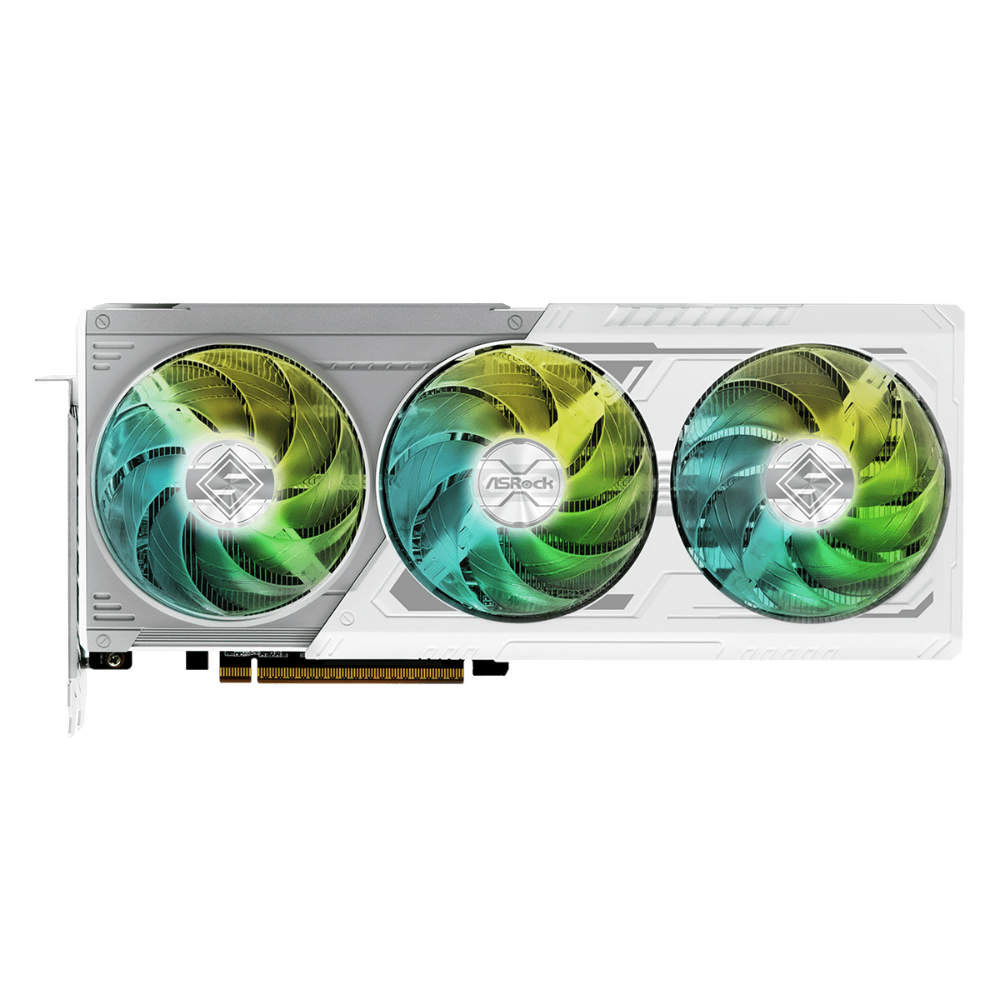

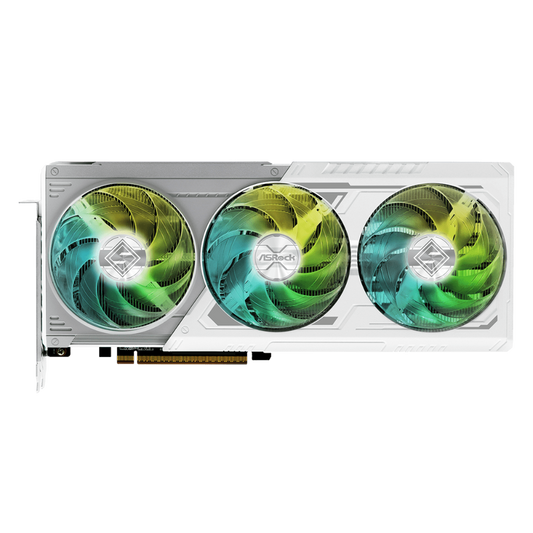

Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.

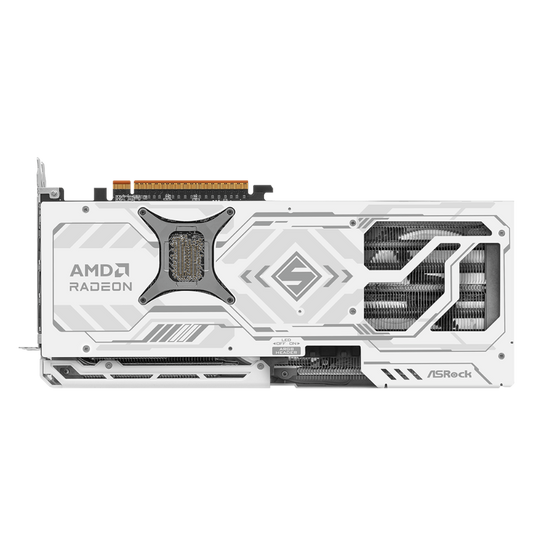

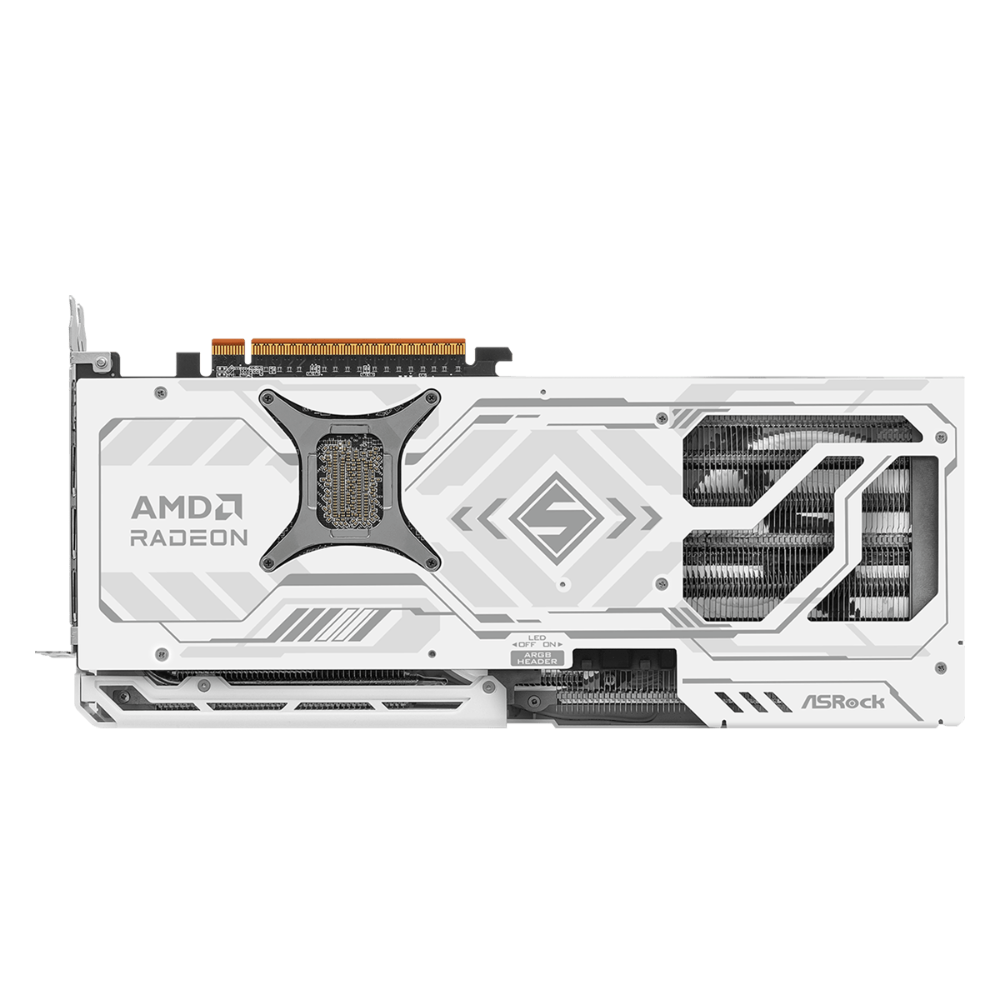

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Reinforced Metal Frame
Enhances the structure to prevent the PCB from being bent.
Striped Ring Fan
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
0dB Silent Cooling
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Air Deflecting Fin
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Specifications of ASROCK Radeon RX 9070 XT Steel Legend 16GB AMD Graphic Card
| Specification | Details |
| Graphics Engine | AMD Radeon™ RX 9070 XT |
| Bus Standard | PCI® Express 5.0 x16 |
| DirectX Support | 12 Ultimate |
| OpenGL Support | 4.6 |
| Memory Type | 16GB GDDR6 |
| Engine Clock | Boost Clock: Up to 2970 MHz Game Clock: 2400 MHz |
| Stream Processors | 4096 |
| Memory Clock | 20 Gbps |
| Memory Interface | 256-bit |
| Max Digital Resolution | 7680 x 4320 |
| Output Ports | 3 x DisplayPort™ 2.1a 1 x HDMI™ 2.1b |
| HDCP Support | Yes |
| Multi-View Support | 4 Displays |
| Recommended PSU | 800W |
| Power Connector | 2 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions (mm) | 298 (L) x 131 (W) x 58 (H) |
| Slot Size | 2.9-slot |
| Net Weight | 1155 g (~1.16 kg) |
