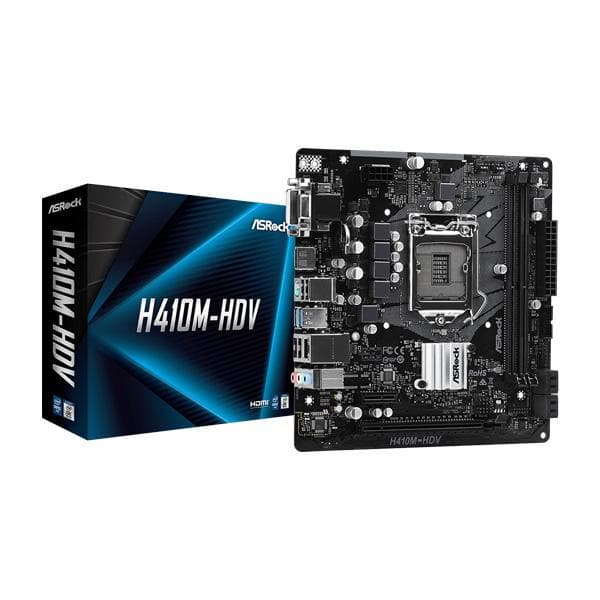

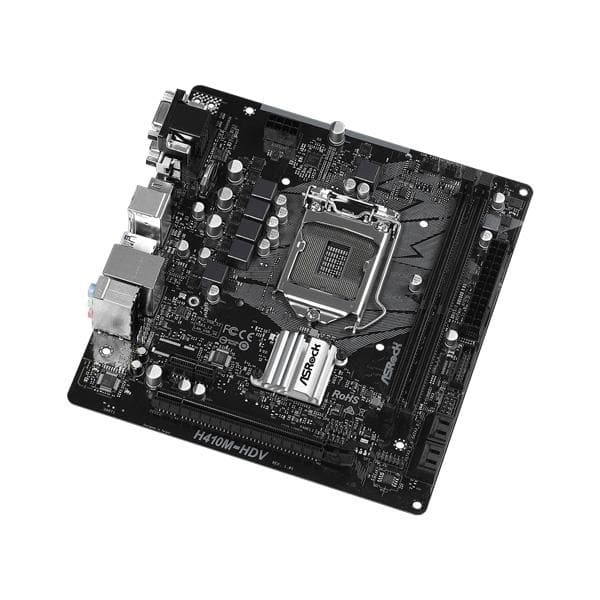

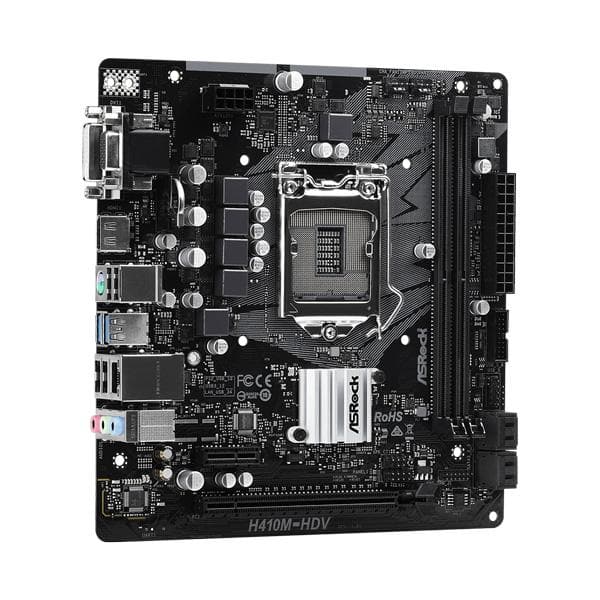

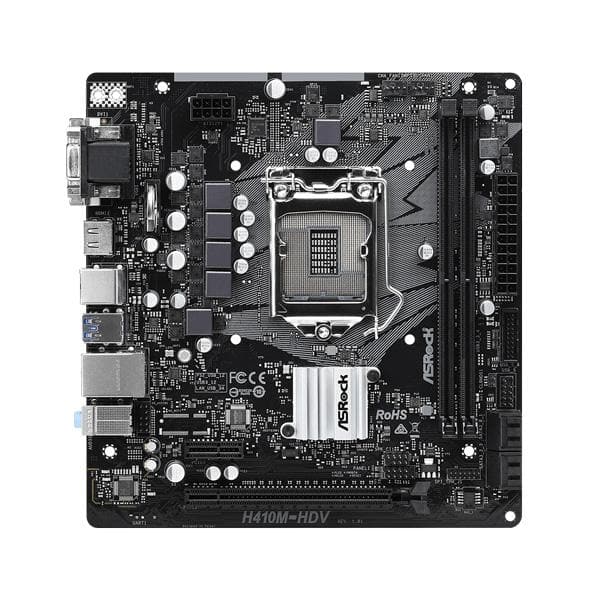

- ASROCK H410M-HDV DDR4 Intel Motherboard
Description
Feature of ASROCK H410M-HDV DDR4
- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- Supports DDR4 2933MHz
- 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options : HDMI, D-Sub, DVI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 SATA3
- 4 USB 3.2 Gen1 (2 Front, 2 Rear)
5 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Clever Access Memory
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASROCK H410M-HDV DDR4 Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Specifications of ASROCK H410M-HDV DDR4
| Unique Feature |
ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU |
- Supports 10th Gen Intel® Core™ Processors (Socket 1200) - Digi Power design - 5 Power Phase design - Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | - Intel® H410 |
| Memory |
- Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB** - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS |
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment |
| Graphics |
- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD Blu-ray Disc - Three graphics output options: D-Sub, DVI-D and HDMI*** - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. **VP9 10bit and VC-1 are for decode only. VP8 and VP9 encode are not supported by Windows® OS. ***Supports up to 2 displays simultaneously |
| Audio |
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection |
| LAN |
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - 1 x Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Slots |
- 1 x PCI Express 3.0 x16 Slot* - 1 x PCI Express 3.0 x1 Slot*Supports NVMe SSD as boot disks |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Connector |
- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |

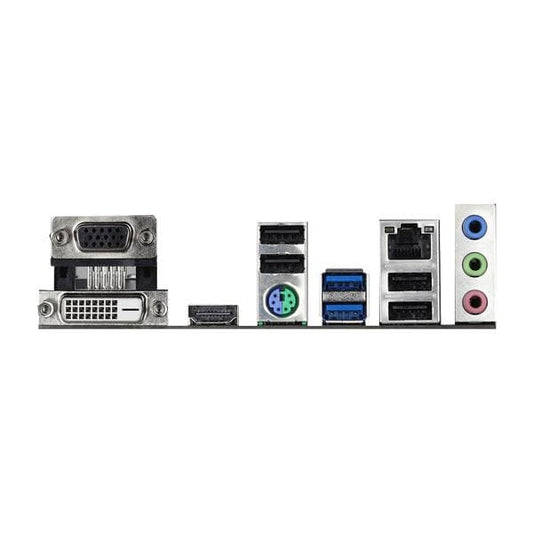

| Rear Panel I/O |
- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI |
Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories |
- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
| Hardware Monitor |
- Temperature Sensing: CPU, Chassis/Water Pump Fans - Fan Tachometer: CPU, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans - CASE OPEN detection - CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment |
| Form Factor |
- Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm - Solid Capacitor design |
| OS | - Microsoft® Windows® 10 64-bit |
| Certifications |
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
