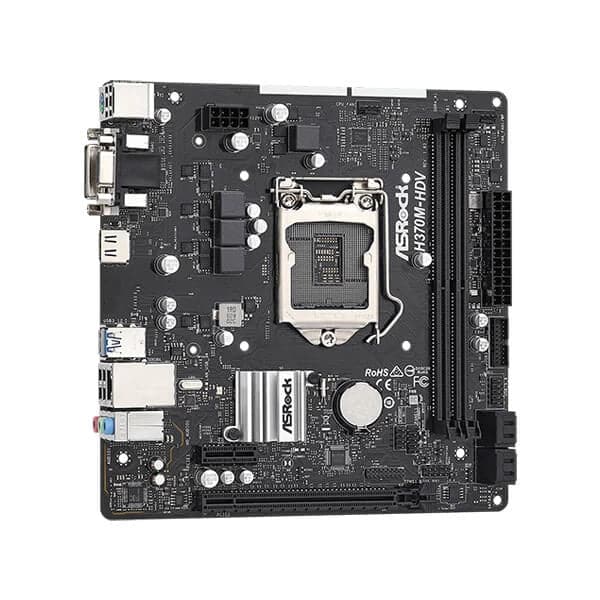

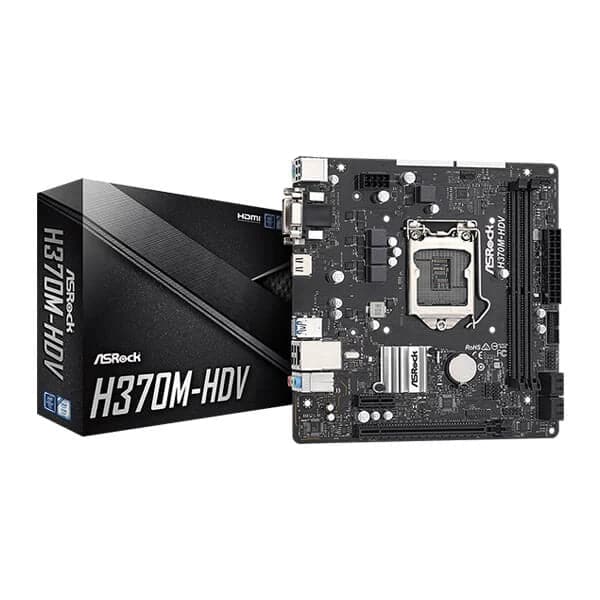

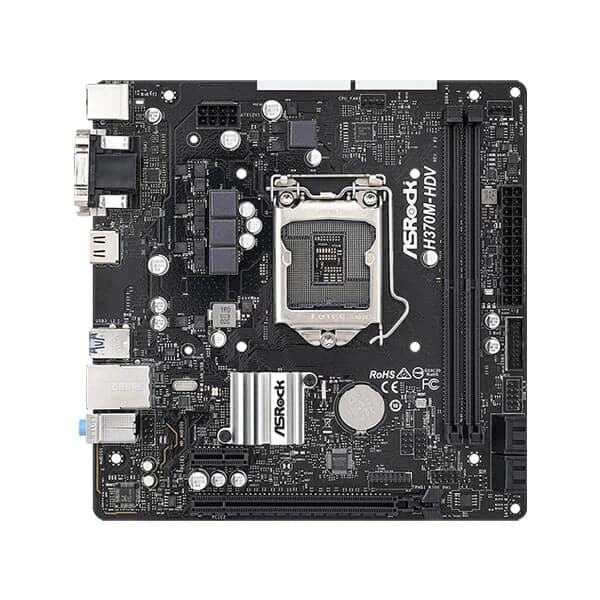

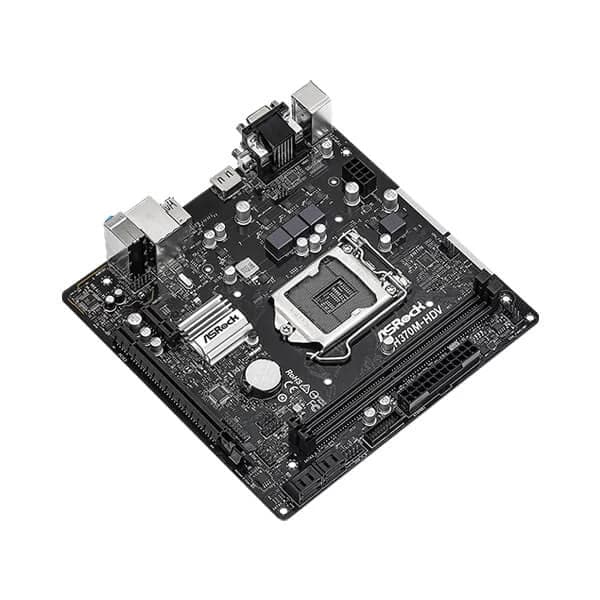

ASROCK H370M-HDV DDR4 Intel Motherboard

Feature of ASROCK H370M-HDV DDR4 Intel Motherboard

• Supports 9th and 8th Gen Intel® Core™ Processors (LGA1151)
• 4 Power Phase
• Supports DDR4 2666
• 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: HDMI, DVI-D, D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 4 USB 3.2 Gen1 Type-A (2 Rear, 2 Front),
• 6 USB 2.0 (4 Rear, 2 Front)
• Realtek Gigabit LAN
• Supports ASRock Auto Driver Installer

Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)

ASROCK H370M-HDV DDR4 PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

4 x USB3.2 Gen1

Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s. ASRock provides 4 x USB 3.2 Gen1 ports onboard allows you to have a stunning data transfer experience.

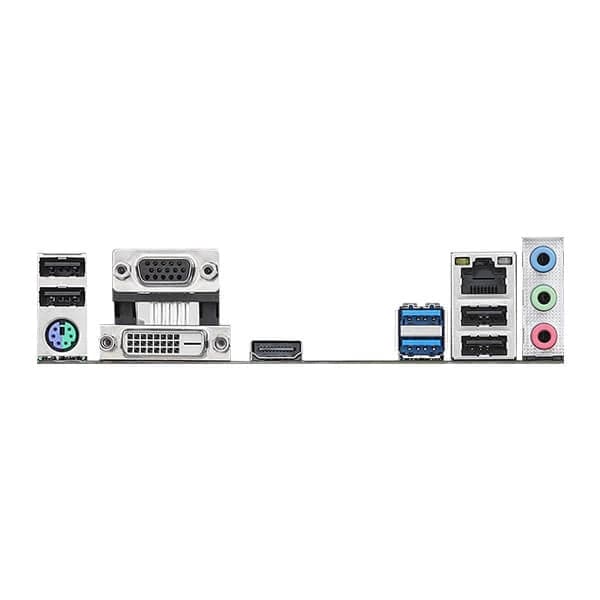

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Specifications of ASROCK H370M-HDV DDR4 Intel Motherboard
