- ASRock H110M HDV R3.0 Motherboard
Description

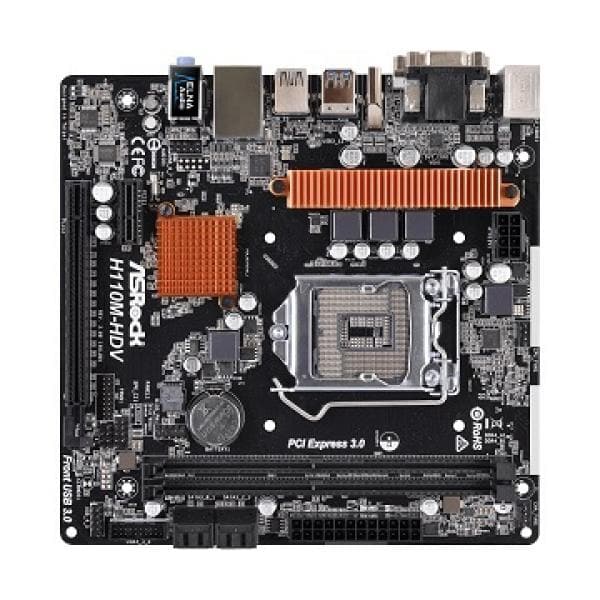

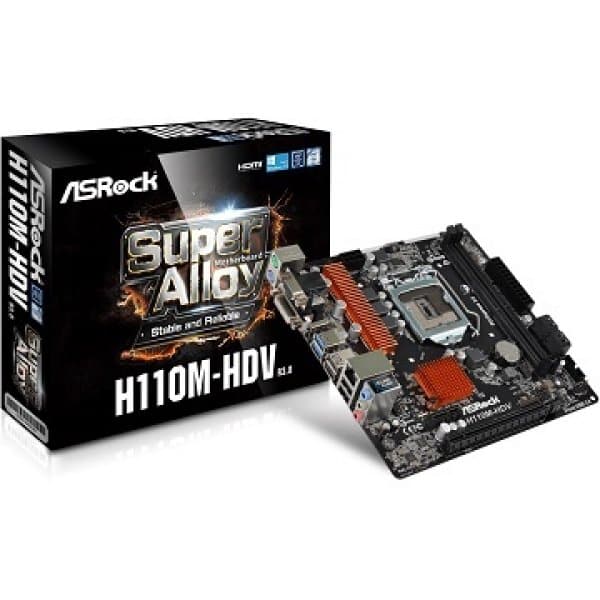

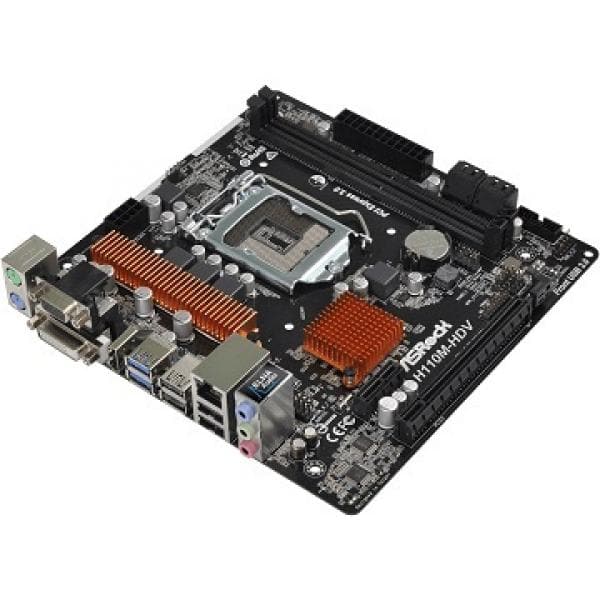

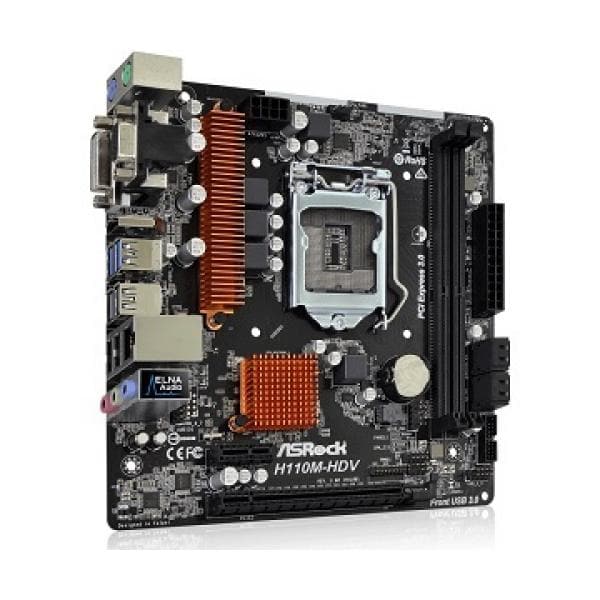

ASRock H110M HDV R3.0 Motherboard
Features:
- ASRock Super Alloy
- Supports 7th and 6th Generation Intel® Core™ Processors (Socket 1151)
- Supports DDR4 2133
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
- Graphics Output Options: DVI-D, D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3
- 4 USB 3.1 Gen1 (2 Front, 2 Rear)
- Supports Full Spike Protection, ASRock Live Update & APP Shop
SPECIFICATIONS:
Unique Feature | ASRock Super Alloy |
- High Density Glass Fabric PCB | |
ASRock Full Spike Protection | |
ASRock Live Update & APP Shop | |
CPU | Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151) |
- 4 Power Phase design | |
- Supports CPU up to 95W | |
- Supports Intel® Turbo Boost 2.0 Technology | |
Chipset | Intel® H110 |
Memory | Dual Channel DDR4 Memory Technology |
- 2 x DDR4 DIMM Slots | |
- Supports DDR4 2133 non-ECC, un-buffered memory | |
- Supports ECC UDIMM memory modules (operate in non-ECC mode) | |
- Max. capacity of system memory: 32GB* | |
- Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
BIOS | 64Mb AMI UEFI Legal BIOS with multilingual GUI support |
- ACPI 5.0 Compliant wake up events | |
- SMBIOS 2.7 Support | |
- DRAM, PCH 1.0V Voltage Multi-adjustment | |
Graphics | Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530/630 |
- Pixel Shader 5.0, DirectX 12 | |
- Max. shared memory 1024MB** | |
- Three graphics output options: D-Sub, DVI-D and HDMI* Supports up to 2 displays simultaneously | |
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz | |
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz | |
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz | |
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) | |
- Supports Accelerated Media Codecs: HEVC, VP8, VP9 | |
- Supports HDCP with DVI-D and HDMI Ports | |
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports | |
*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. | |
**The size of maximum shared memory may vary from different operating systems. | |
***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. | |
****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit. | |
Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* |
- Supports Surge Protection (ASRock Full Spike Protection) | |
- ELNA Audio Caps | |
LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
- Realtek RTL8111C/RTL8111H | |
- Supports Wake-On-LAN | |
- Supports Lightning/ESD Protection (ASRock Full Spike Protection) | |
- Supports LAN Cable Detection | |
- Supports PXE | |
Slots | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* |
- 1 x PCI Express 2.0 x1 Slot | |
Storage | 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
Connector | 1 x TPM Header |
- 1 x Chassis Intrusion and Speaker Header | |
- 1 x CPU Fan Connector (4-pin) | |
- 1 x Chassis Fan Connector (4-pin)* | |
- 1 x 24 pin ATX Power Connector | |
- 1 x 8 pin 12V Power Connector | |
- 1 x Front Panel Audio Connector | |
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) | |
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection)) | |

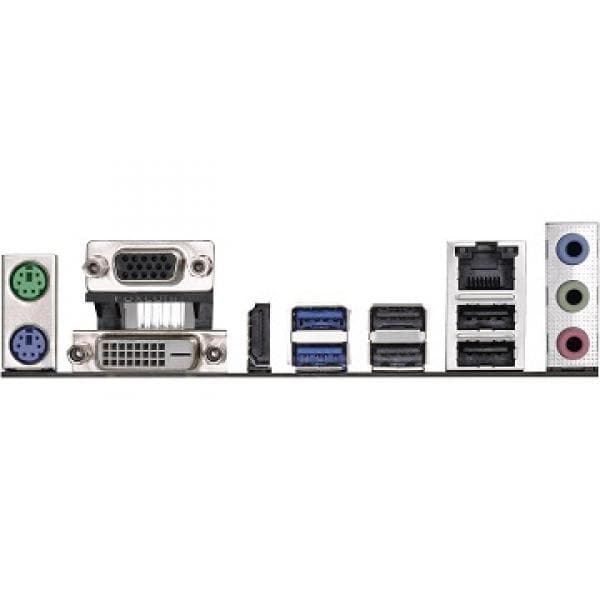

Rear Panel I/O | 1 x PS/2 Mouse Port |
- 1 x PS/2 Keyboard Port | |
- 1 x D-Sub Port | |
- 1 x DVI-D Port | |
- 1 x HDMI Port | |
- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))* | |
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection)) | |
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
- HD Audio Jacks: Line in / Front Speaker / Microphone | |
Software and UEFI | Software |
- ASRock Disk Health Report | |
- ASRock USB Key | |
- ASRock APP Charger | |
- ASRock XFast LAN | |
- ASRock XFast RAM | |
- ASRock Fast Boot (Fast Boot, Restart to UEFI) | |
UEFI | |
- ASRock EZ Mode | |
- ASRock My Favorites in UEFI | |
- ASRock Instant Flash | |
- ASRock Internet Flash | |
- ASRock Crashless BIOS | |
- ASRock OMG (Online Management Guard) | |
- ASRock UEFI Tech Service | |
- ASRock Easy Driver Installer | |
Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
Accessories | Quick Installation Guide, Support CD, I/O Shield |
- 2 x SATA Data Cables | |
Hardware Monitor | CPU/Chassis temperature sensing |
- CPU/Chassis Fan Tachometer | |
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) | |
- CPU/Chassis Fan multi-speed control | |
- CASE OPEN detection | |
- Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore | |
Form Factor | Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm |
- Solid Capacitor design | |
OS | - Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* |
Certifications | - FCC, CE |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
