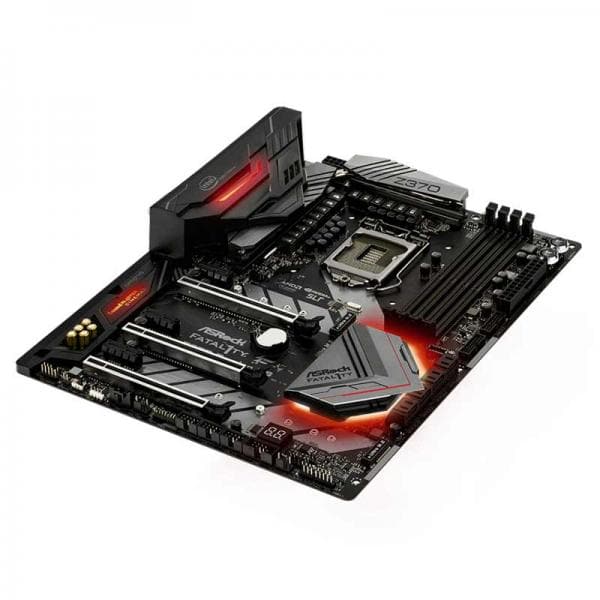

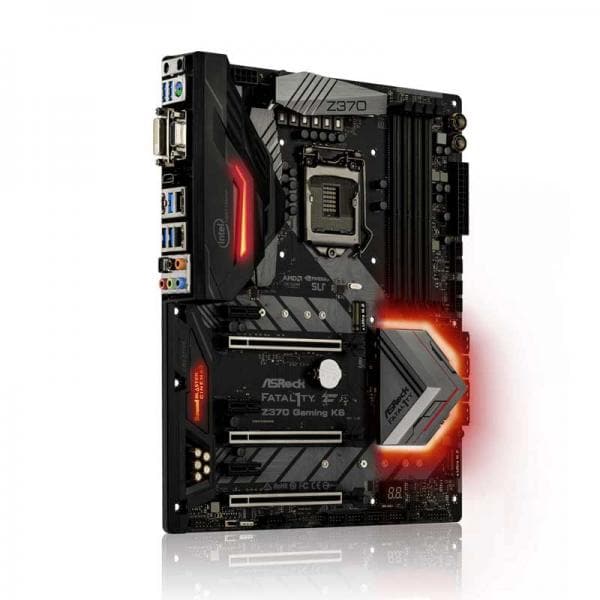

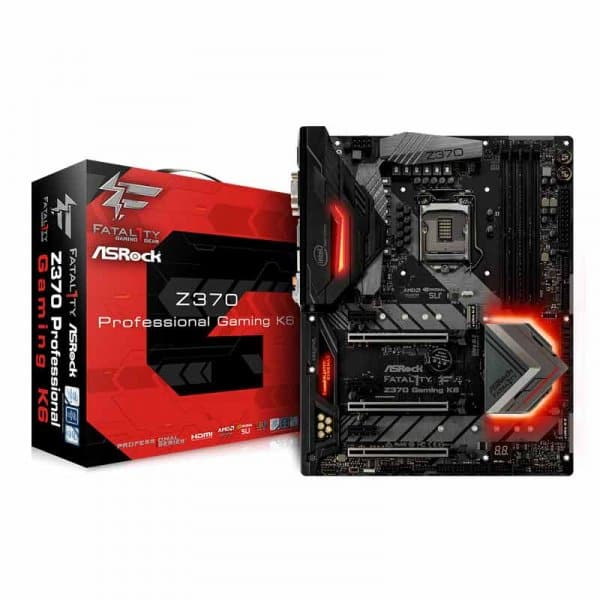

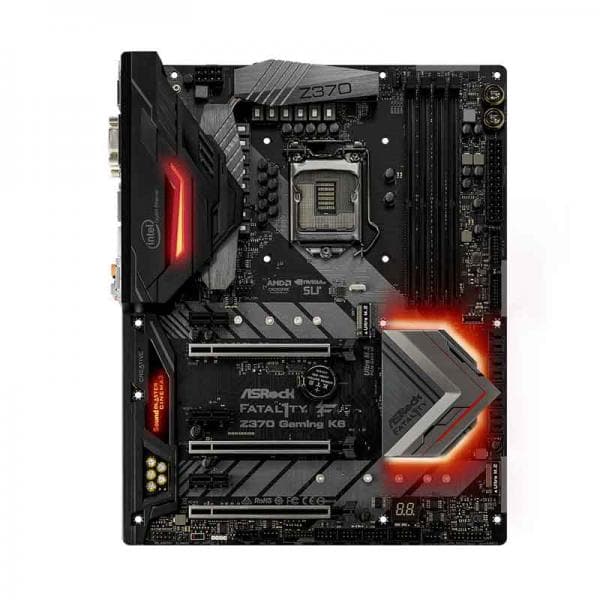

ASRock Fatal1ty Z370 Gaming K6 Motherboard

ASRock Fatal1ty Z370 Gaming K6 Motherboard

Features:

ASRock Fatal1ty Z370 Gaming K6 motherboards support 8th Generation Intel Processors(Socket1151).ASRock Fatal1ty Z370 Gaming K6 motherboard supports DDR4 4333+(OC).

The total memory capacity is 64GB which is more than enough for gaming. It has 3 PCIe 3.0 x16,3 PCIe 3.0 x1, 1 M.2 slot that you can enjoy smooth delivery of data across the system.

This gaming motherboard is the first in class to have NVIDIA Quad SLI and AMD 3-Way CrossFireX support in a single motherboard.

This motherboard has RGB LED and the header allows users to connect the LED strip and fulfill their RGB wish from ASRock Live Update & APP Shop. It has dual ultra M.2 for SSD.this M.2 slots are two of the world's fastest PCIe gen3 x4 Ultra M.2 slots that deliver up to 32 GB/s transfer speed. It also supports SATA3 6Gb/s M.2 modules.

Besides it supports Intel Optane memory technology and Intel optane storage technology that defines high performance and responsiveness. It has Hyper BCLK engine II which provides a wider range of frequencies and a more precise clock waveform. It has a Front USB 3.2 Gen1 type-c header which provides a 5 GBps transfer-rate. It also has a USB 3.1 Gen2 controller which delivers a 10 Gbps data transfer rate with stability. It comes with all graphic output options such as HDMI, DVI-D, D-sub. It has 7.1 CH HD Audio which supports Purity Sound 4 & Creative Sound Blaster Cinema 3.This motherboard has Dual Intel Gigabit LAN. In this motherboard, there is a total of 8 SATA3,2 ultra M.2.For connectivity 2 USB 3.1 Gen2 and 9 USB 3.1 Gen1 ensuring all device connectivity needs.in addition to all the features, it comes with Three years of warranty.

1. Gaming Armor

   Power

   - Hi-Density Power Connectors (24 pin and 8 pin)Memory

   - 15μ Gold Contact in DIMM SlotsVGA Card

   - 15μ Gold Contact in VGA PCIe Slot (PCIE2)Internet

   - Intel^® LANCooling

   - XXL Aluminum Alloy Heatsink- Heat Pipe DesignAudio

   - Creative Sound Blaster™ Cinema 3

2. Unique Feature

   ASRock USB 3.1 Gen2

   - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)- ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)ASRock Super Alloy

   - XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Dual-Stack MOSFET (DSM)- Combo Caps (Nichicon 12K Black Caps)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCBASRock Intel^® 4-Layer Memory POOL (Planes on Outer Layers) TechnologyASRock Steel SlotsASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop

3. CPU

   - Supports 8^th Generation Intel^® Core™ Processors (Socket 1151)

   - Digi Power design

   - 12 Power Phase design

   - Supports Intel^® Turbo Boost 2.0 Technology

   - Supports Intel^® K-Series unlocked CPUs

   - Supports ASRock BCLK Full-range Overclocking

   - Supports ASRock Hyper BCLK Engine II

4. Chipset

   - Intel^® Z370

5. Memory

   - Dual Channel DDR4 Memory Technology

   - 4 x DDR4 DIMM Slots

   - Supports DDR4 4333 (OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory

   - Supports ECC UDIMM memory modules (operate in non-ECC mode)

   - Max. capacity of system memory: 64GB**

   - Supports Intel^® Extreme Memory Profile (XMP) 2.0

   - 15μ Gold Contact in DIMM Slots

   *8th Gen Intel^® CPU supports DDR4 up to 2666.

   Please refer to Memory Support List on ASRock's website for more information.**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

6. BIOS

   - 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)

   - Supports Secure Backup UEFI Technology

   - ACPI 6.0 Compliant wake up events

   - SMBIOS 2.7 Support

   - CPU Core/Cache, GT Core/Cache, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment

7. Graphics

   - Supports Intel^® UHD Graphics Built-in Visuals : Intel^® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® UHD Graphics

   - DirectX 12

   - HWA Encode/Decode: VP9 8-bit, VP9 10-bit (Encode only), VP8, HEVC (MPEG-H Part2, h.265), AVC (MPEG4, h.264), MPEG2-Part2 (h.262), JPEG/MJPEG,VC-1

   - Max. shared memory 1024MB**

   - Three graphics output options: D-Sub, DVI-D and HDMI

   - Supports Triple Monitor

   - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz

   - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

   - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

   - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

   - Supports HDCP with DVI-D and HDMI Ports

   - Supports 4K Ultra HD (UHD) playback with HDMI Port

   *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

   **The size of maximum shared memory may vary from different operating systems.

8. Audio

   - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

   - Premium Blu-ray Audio support

   - Supports Surge Protection

   - Nichicon Fine Gold Series Audio Caps

   - 120dB SNR DAC with Differential Amplifier

   - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)

   - Pure Power-In

   - Direct Drive Technology

   - PCB Isolate Shielding

   - Impedance Sensing on Rear Out port

   - Individual PCB Layers for R/L Audio Channel

   - RGB LED

   - Gold Audio Jacks

   - 15μ Gold Audio Connector

   - Supports Creative Sound Blaster™ Cinema 3

9. LAN

   - Gigabit LAN 10/100/1000 Mb/s

   - 1 x Giga PHY Intel^® I219V, 1 x GigaLAN Intel^® I211AT

   - Supports Wake-On-LAN

   - Supports Lightning/ESD Protection

   - Supports Dual LAN with Teaming*

   - Supports Energy Efficient Ethernet 802.3az

   - Supports PXE

   *Teaming is supported on Windows^® 10 RS2 and above.

10. Slots

    - 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))*

    - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)

    - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™

    - Supports NVIDIA^® Quad SLI™ and SLI™

    - Supports NVIDIA^® NVLink™ with dual NVIDIA^® GeForce RTX series graphics cards**

    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

    - 15μ Gold Contact in VGA PCIe Slot (PCIE2)

    *Supports NVMe SSD as boot disks

    **NVIDIA^® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA^® if necessary.

11. Storage

    - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 15), NCQ, AHCI and Hot Plug*

    - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug

    - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.

    M2_2, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.**Supports Intel^® Optane™ Technology

    Supports NVMe SSD as boot disks

    Supports ASRock U.2 Kit

12. Connector

    - 1 x COM Port Header

    - 1 x TPM Header

    - 1 x Power LED and Speaker Header

    - 1 x RGB LED Header*

    - 1 x CPU Fan Connector (4-pin)**

    - 1 x CPU Optional/Water Pump Fan Connector (4-pin)***

    - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)

    - 1 x Chassis Optional/Water Pump Fan Connector (4-pin)****

    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

    - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

    - 1 x Thunderbolt™ AIC Connector (5-pin)

    - 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Intel^® Z370) (Supports ESD Protection)

    - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Intel^® Z370) (Supports ESD Protection)

    - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

    - 1 x Front Panel Type C USB 3.1 Gen1 Header (ASMedia ASM1074 hub)

    - 1 x Dr. Debug with LED

    - 1 x Power Button with LED

    - 1 x Reset Button with LED

    - 1 x XMP Switch

    *Supports in total up to 12V/3A, 36W LED Strip

    **The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

    ****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

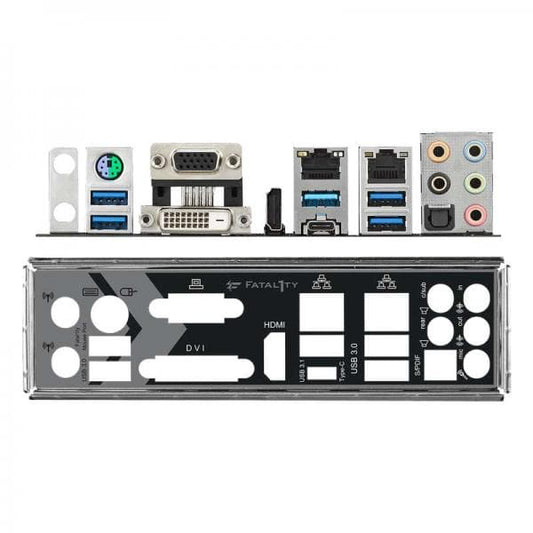

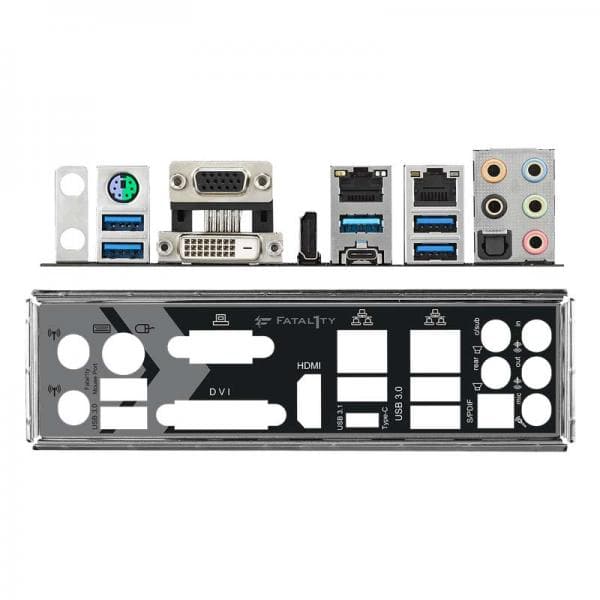

13. Rear Panel I/O

    - 2 x Antenna Ports

    - 1 x PS/2 Mouse/Keyboard Port

    - 1 x D-Sub Port

    - 1 x DVI-D Port

    - 1 x HDMI Port

    - 1 x Optical SPDIF Out Port

    - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)

    - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)

    - 4 x USB 3.1 Gen1 Ports (Intel^® Z370) (Supports ESD Protection)*

    - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)

    - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

    *1 x Fatal1ty Mouse Port (USB 3.1 Gen1) is included

    **Ultra USB Power is supported on USB3_34 ports.

    ACPI wake-up function is not supported on USB3_34 ports.

14. Software and UEFI

    Software

    - ASRock F-Stream- ASRock RGB LED- ASRock Key Master- ASRock XFast LANUEFI

    - ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.

15. Support CD

    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

16. Accessories

    - Quick Installation Guide, Support CD, I/O Shield

    - 4 x SATA Data Cables

    - 1 x ASRock SLI_HB_Bridge_2S Card

    - 3 x Screws for M.2 Sockets

17. Hardware Monitor

    - Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans

    - Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans

    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans

    - Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans

    - Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST

18. Form Factor

    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

19. OS

    - Microsoft^® Windows^® 10 64-bit

20. Certifications

    - FCC, CE

    - ErP/EuP ready (ErP/EuP ready power supply is required)
