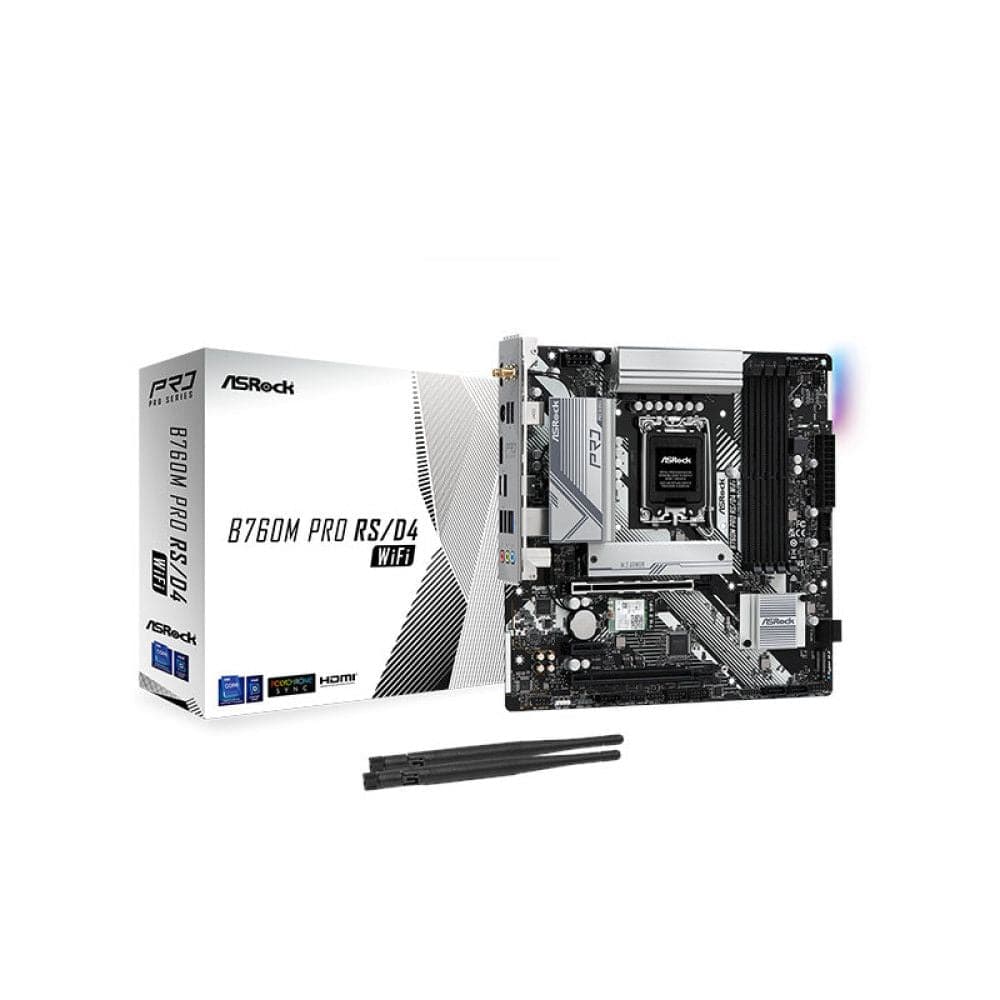

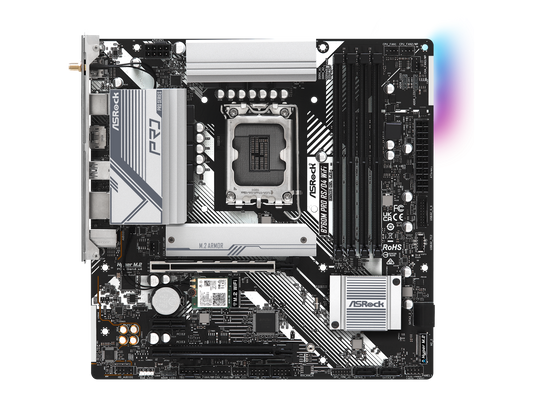

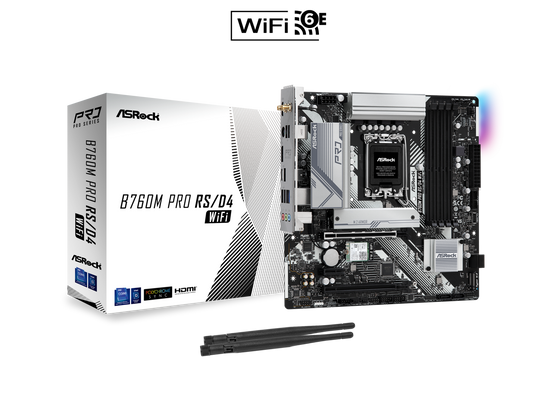

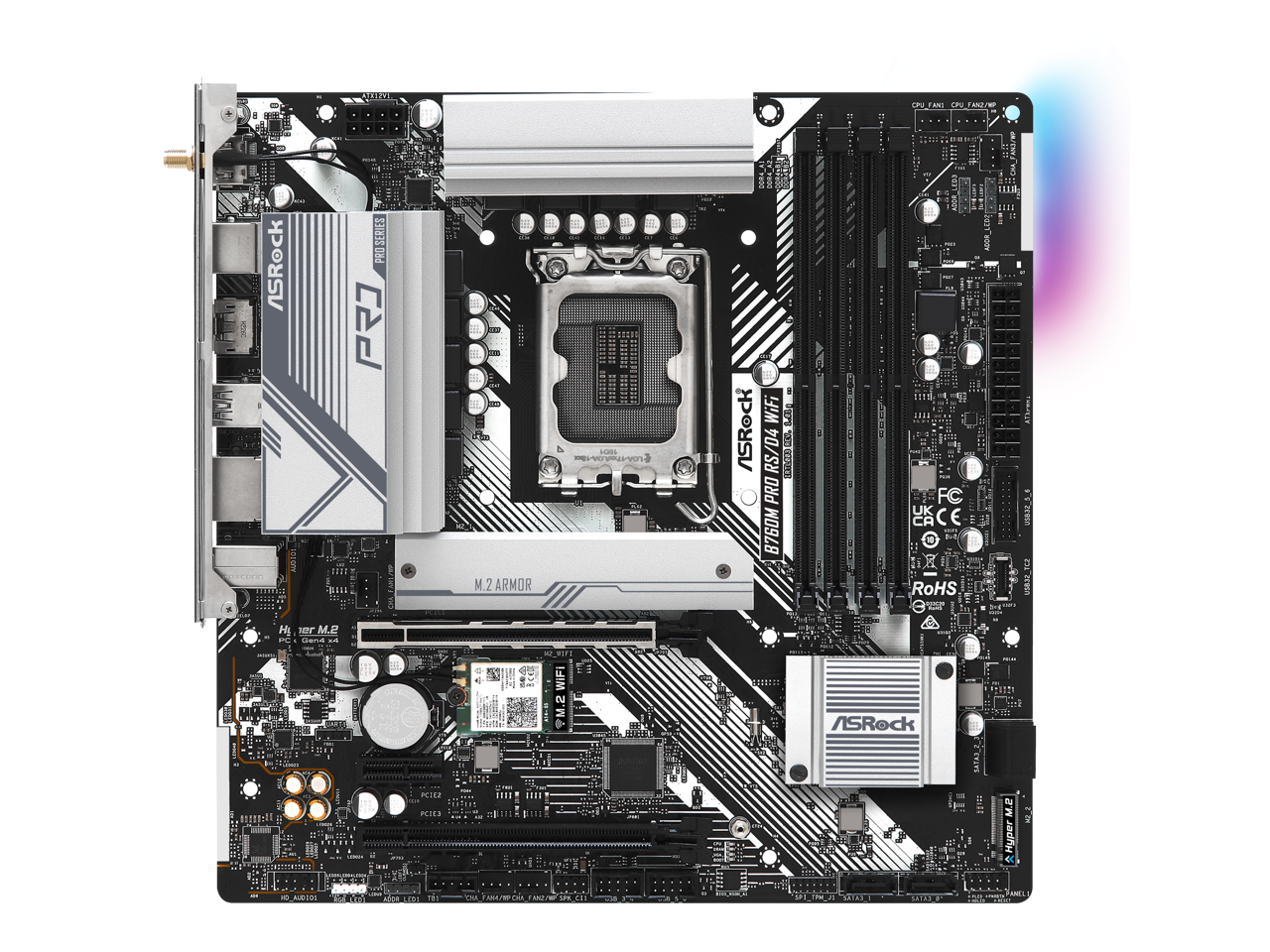

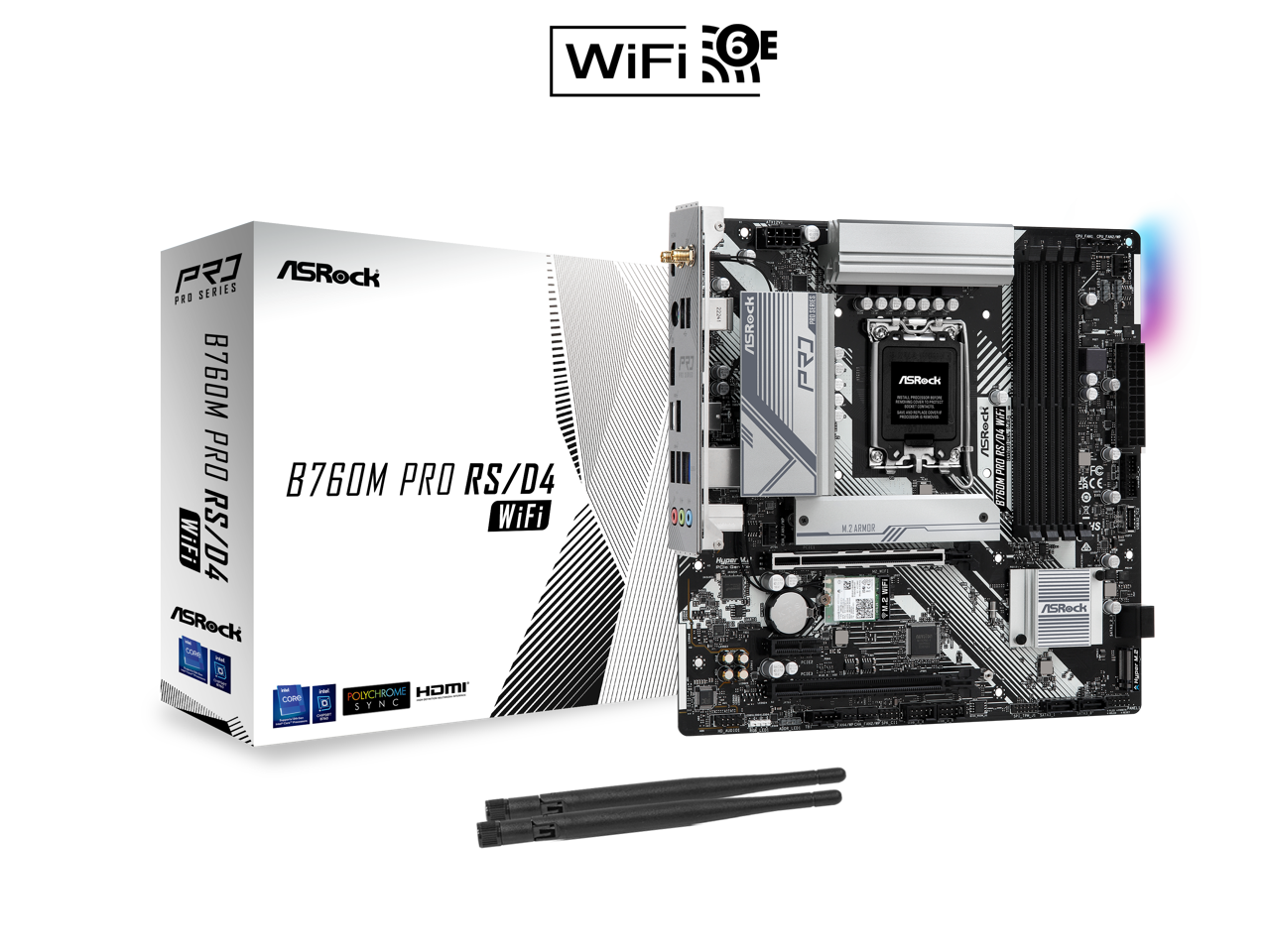

- ASROCK B760M Pro RS/D4 Wifi DDR4 Intel Motherboard
Description
Features :
- Supports 13th Gen & 12th Gen Intel® Core Processors (LGA1700)
- Supports DDR4 5333MHz (OC)
- Vcore with Dr.MOS design, delivering smoother and neater power to the CPU
- The LAN driver has already prepacked in BIOS ROM, simply follow the instructions and install all necessary drivers automatically right after installing the operation system
- USB 3.2 Gen1 Type-C that delivers up to 5Gbps data transfer rate
- Better and faster internet traffic with lower latency
- Fitting chassis perfectly without any mechanical issue
- Enjoy the faster connectivity experience for gaming, file transfers and backups
Specifications :
Unique Feature | Rock-Solid Durability |
- 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT | |
- Pre-Installed I/O Shield | |
- ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology | |
Ultrafast Connectivity | |
- 2.5G LAN, | |
802.11ax Wi-Fi 6EModule | |
EZ Update | |
- ASRock Auto Driver Installer | |
EZ Troubleshooter | |
CPU | - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) |
- Supports Intel® Hybrid Technology | |
- Supports Intel® Turbo Boost Max 3.0 Technology | |
- Supports Intel® Thermal Velocity Boost (TVB) | |
- Supports Intel® Adaptive Boost Technology (ABT) | |
Chipset | - Intel® B760 |
Memory | - Dual Channel DDR4 Memory Technology |
- 4 x DDR4 DIMM Slots | |
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* | |
- Supports ECC UDIMM memory modules (operate in non-ECC mode) | |
- Max. capacity of system memory: 128GB | |
- Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. | |
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. | |
2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. | |
2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively. | |
BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
Graphics | - Intel® Xe Graphics Architecture (Gen 12) |
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz | |
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz | |
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. | |
Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
- Nahimic Audio | |
LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
- Dragon RTL8125BG | |
- Supports Dragon 2.5G LAN Software | |
- Smart Auto Adjust Bandwidth Control | |
- Visual User Friendly UI | |
- Visual Network Usage Statistics | |
- Optimized Default Setting for Game, Browser, and Streaming Modes | |
- User Customized Priority Control | |
Wireless LAN | - 802.11ax Wi-Fi 6E Module |
- Supports IEEE 802.11a/b/g/n/ac/ax | |
- Supports Dual-Band 2x2 with extended 6GHz band support* | |
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology | |
- Supports Bluetooth 5.3 + High speed class II | |
- Supports MU-MIMO | |
*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. | |
A 6GHz compatible router is required for 6E functionality. | |
Slots | CPU: |
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode | |
* Chipset: | |
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* | |
- 1 x PCIe 4.0 x1 Slot (PCIE2)* | |
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) | |
* Supports NVMe SSD as boot disks | |
- Supports AMD CrossFire™ | |
Storage | CPU: |
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
Chipset: | |
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
- 4 x SATA3 6.0 Gb/s Connectors | |
*Supports Intel® Volume Management Device (VMD) | |
Supports NVMe SSD as boot disks | |
RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB | - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) |
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) | |
- 6 x USB 2.0 (2 Rear, 4 Front) | |
* All USB ports support ESD Protection | |
Connector | - 1 x SPI TPM Header |
- 1 x Chassis Intrusion and Speaker Header | |
- 1 x RGB LED Header* | |
- 3 x Addressable LED Headers** | |
- 1 x CPU Fan Connector (4-pin)*** | |
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
- 1 x 24 pin ATX Power Connector | |
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
- 1 x Front Panel Audio Connector | |
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) | |
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
- 1 x Front Panel Type C USB 3.2 Gen1 Header | |
*Supports in total up to 12V/3A, 36W LED Strip | |
**Support in total up to 5V/3A, 15W LED Strip | |
***CPU_FAN1 supports the fan power up to 1A (12W). | |
****CPU_FAN2/WP supports the fan power up to 2A (24W). | |
*****CHA_FAN1~4/WP support the fan power up to 2A (24W). | |
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. | |

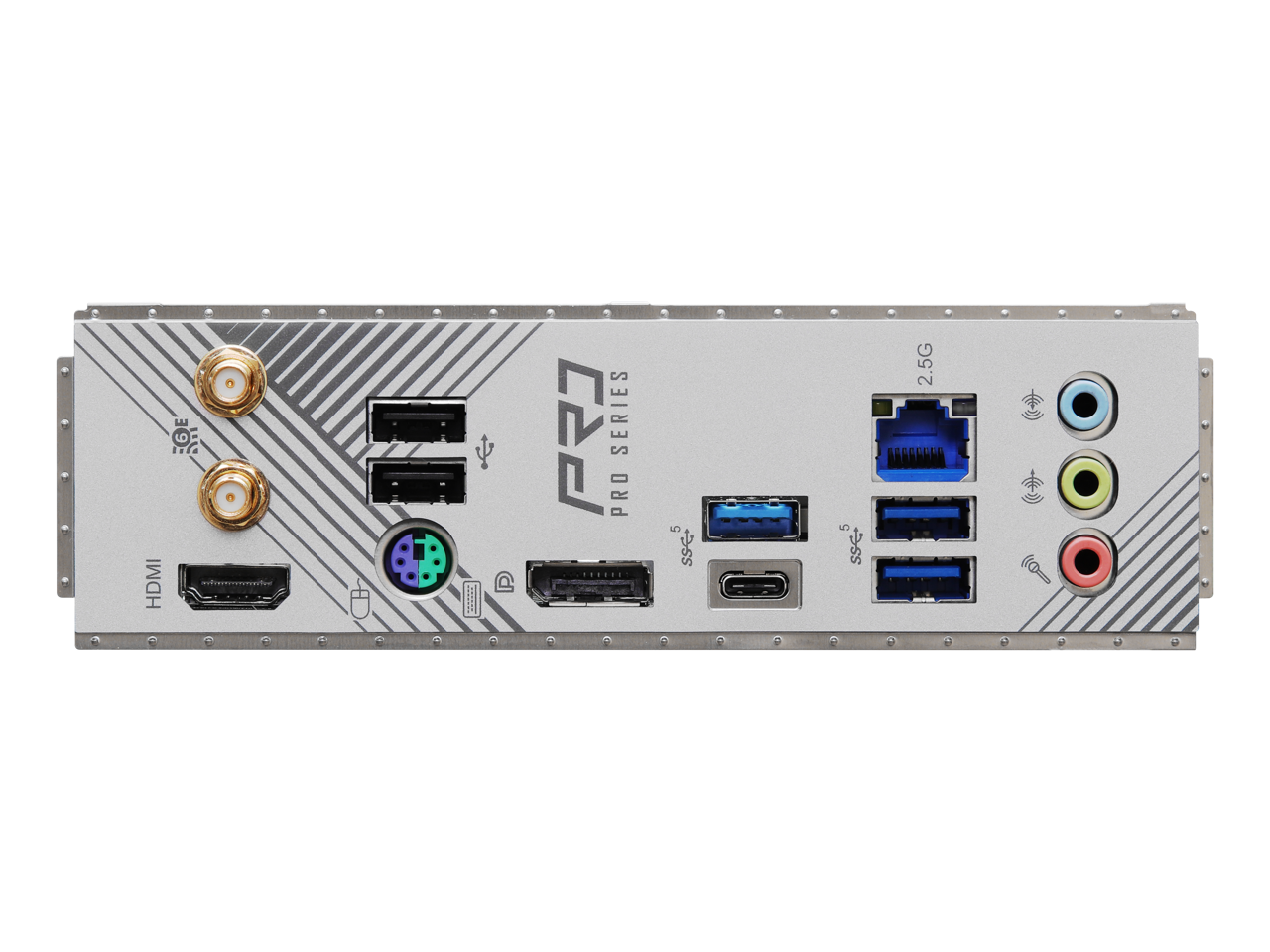

Rear Panel I/O | - 2 x Antenna Ports |
- 1 x PS/2 Mouse/Keyboard Port | |
- 1 x HDMI Port | |
- 1 x DisplayPort 1.4 | |
- 1 x USB 3.2 Gen1 Type-C Port | |
- 3 x USB 3.2 Gen1 Type-A Ports | |
- 2 x USB 2.0 Ports | |
- 1 x RJ-45 LAN Port | |
- HD Audio Jacks: Line in / Front Speaker / Microphone | |
Software and UEFI | Software |
- ASRock Motherboard Utility (A-Tuning) | |
- ASRock Dragon 2.5G LAN Software | |
- ASRock Polychrome SYNC* | |
UEFI | |
- ASRock EZ Mode | |
- ASRock Full HD UEFI | |
- ASRock My Favorites in UEFI | |
- ASRock Auto Driver Installer | |
- ASRock Instant Flash | |
- ASRock Easy RAID Installer | |
*These utilities can be downloaded from ASRock Live Update & APP Shop. | |
Accessories | - 1 x User Manual |
- 2 x SATA Data Cables | |
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas | |
- 2 x Screws for M.2 Sockets | |
- 1 x Standoff for M.2 Socket | |
Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
*Windows® 10 only supports version 21H2 or later | |
Certifications | - FCC, CE |
- ErP/EuP ready (ErP/EuP ready power supply is required) |
