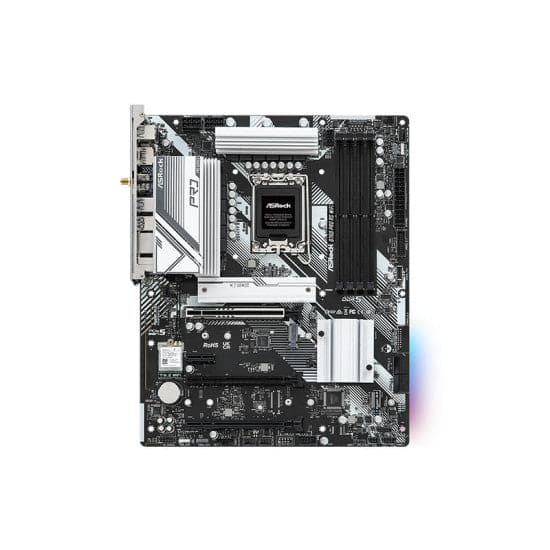

- ASROCK B760 Pro RS Wifi DDR5 Intel Motherboard
Monsoon Sale Offer
Description
Features of ASROCK B760 Pro RS Wifi DDR5 Intel Motherboard
- ASROCK B760 Pro RS Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 10+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR5 7200MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16,
- 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, DisplayPort, eDP
- Realtek ALC897 7.1 CH HD Audio Codec,
- Nahimic Audio
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
- 1 M.2 (PCIe Gen4x2)
- 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
- 1 USB 3.2 Gen2 Type-A (Rear),
- 6 USB 3.2 Gen1 (4 Rear, 2 Front),
- 4 USB 2.0 (2 Rear, 2 Front
- Dragon 2.5G LAN,
- 802.11ax Wi-Fi 6E + Bluetooth
- Supports ASRock Auto Driver Installer
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
Specifications of ASROCK B760 Pro RS Wifi DDR5 Intel Motherboard
Unique Feature |
Superb Productivity
PCIe Gen5 (Graphics) Dual Channel DDR5 Rock-Solid Durability 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT Pre-Installed I/O Shield Ultrafast Connectivity 2.5G LAN, 802.11ax Wi-Fi 6EModule EZ Update ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker |
CPU |
Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) |
Chipset | Intel® B760 |
Memory |
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* Max. capacity of system memory: 192GB Supports Intel® Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. |
BIOS |
128Mb AMI UEFI Legal BIOS with GUI support
|
Graphics |
Intel® Xe Graphics Architecture (Gen 12)
1 x eDP 1.4, supports max. resolution up to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio |
LAN |
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control |
Slots |
CPU:
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode* 1 x PCIe 3.0 x1 Slot (PCIE2)* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) Supports AMD CrossFire™ *Supports NVMe SSD as boot disks |
Wireless LAN |
802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2x2 with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 + High speed class II Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality. |
Storage |
CPU:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks |
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
USB |
2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
1 x USB 3.2 Gen2 Type-A (Rear) 6 x USB 3.2 Gen1 (4 Rear, 2 Front) 4 x USB 2.0 (2 Rear, 2 Front) * All USB ports support ESD Protection |
Connector |
1 x eDP Signal Connector
1 x SPI TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) *Support in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP supports the fan power up to 2A (24W). *****CHA_FAN1~5/WP support the fan power up to 2A (24W). |

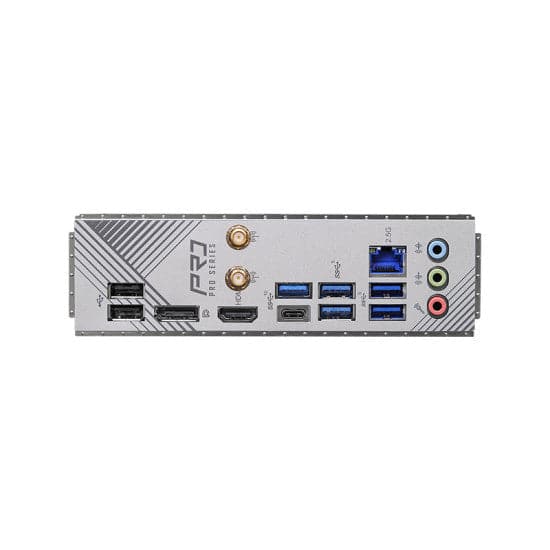

Rear Panel I/O |
2 x Antenna Ports
1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
Software and UEFI |
Software
ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. |

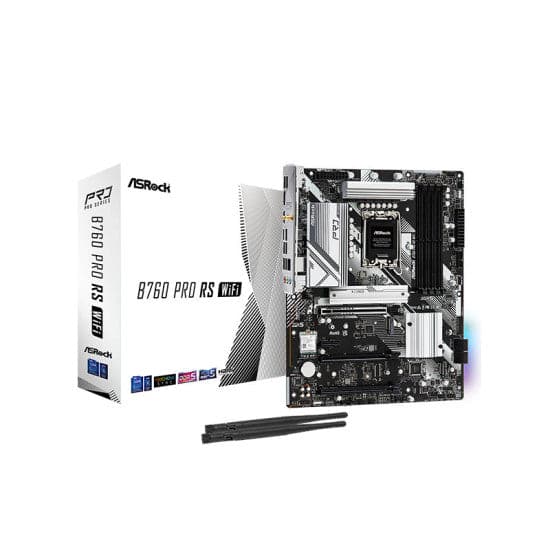

Accessories |
1 x User Manual
2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 3 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket |
Form Factor |
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
|
OS |
Microsoft® Windows® 10 64-bit / 11 64-bit
|
Certifications |
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required) |
Warranty | 3 Years |
Note* |
Price, feature and specifications are subject to change without notice.
|
