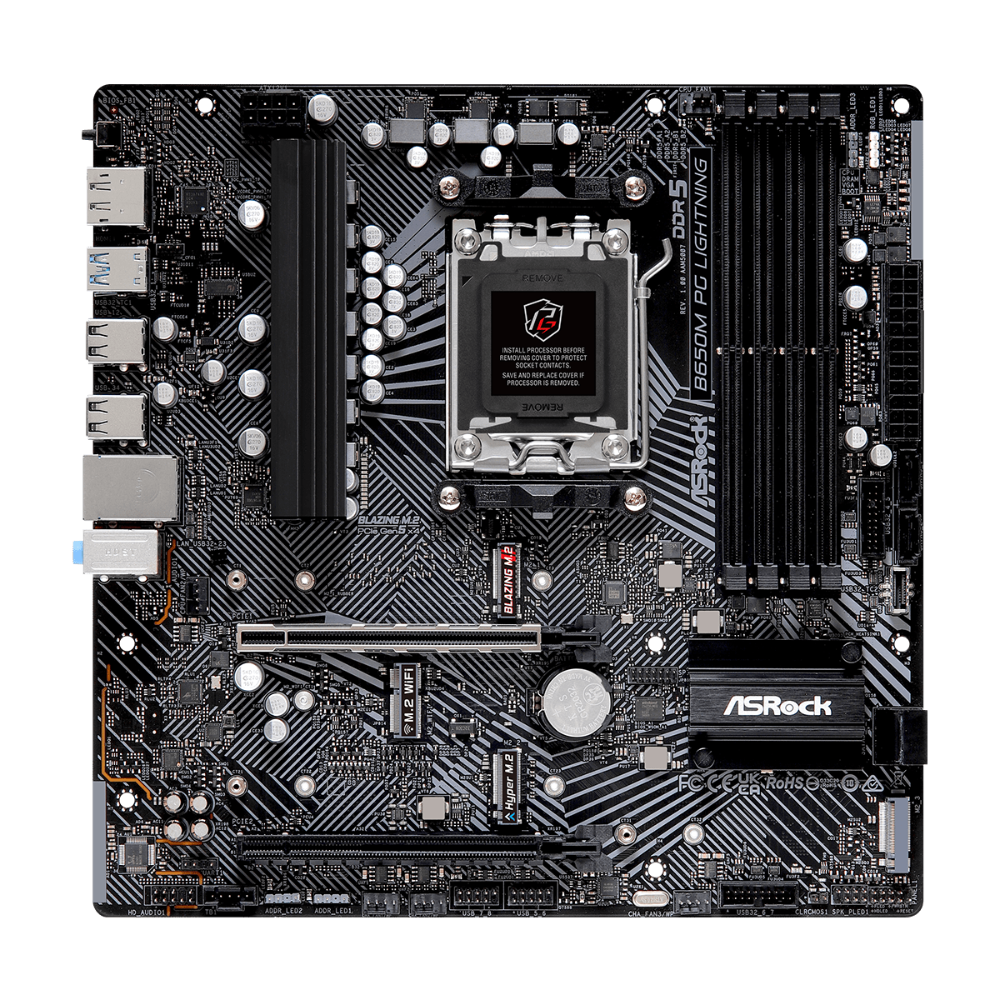

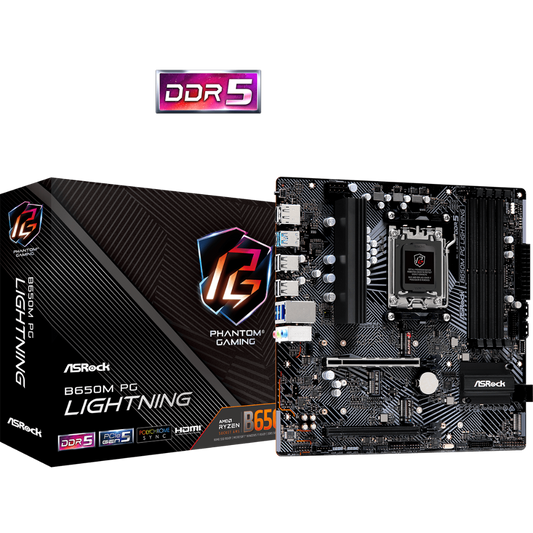

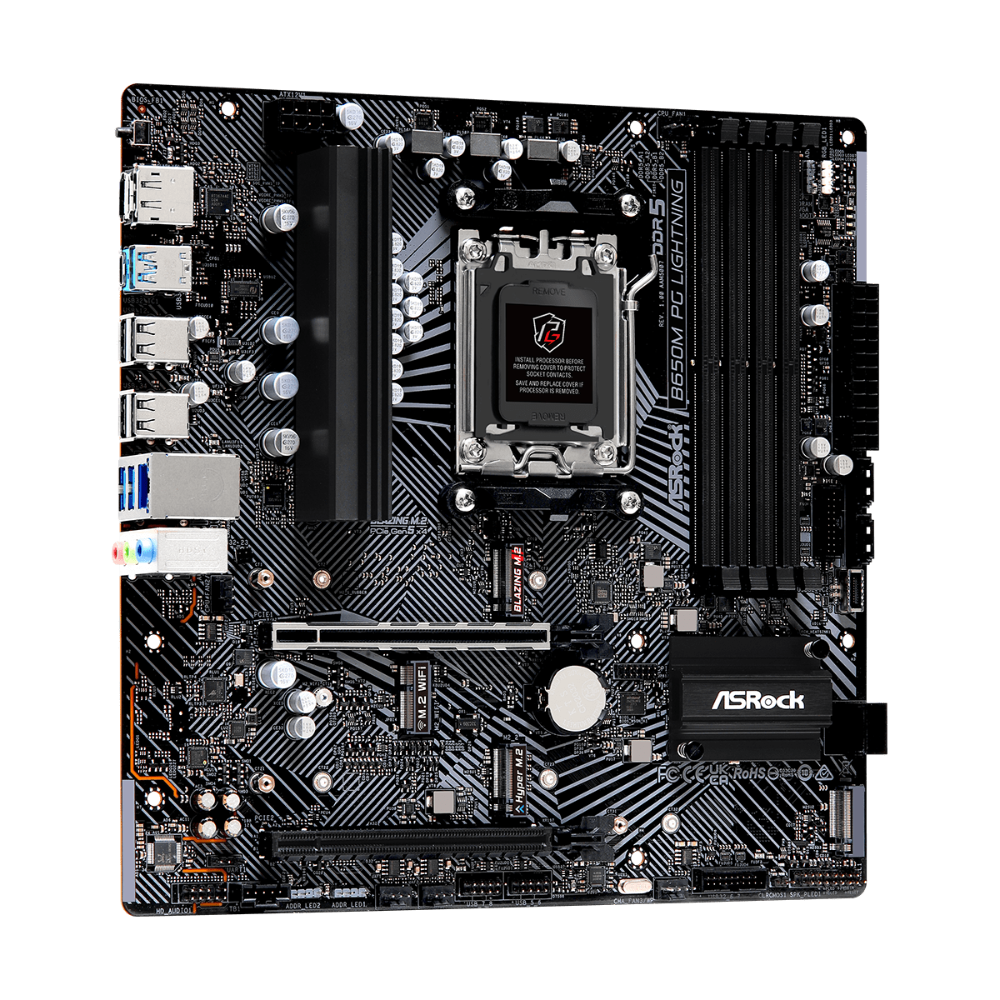

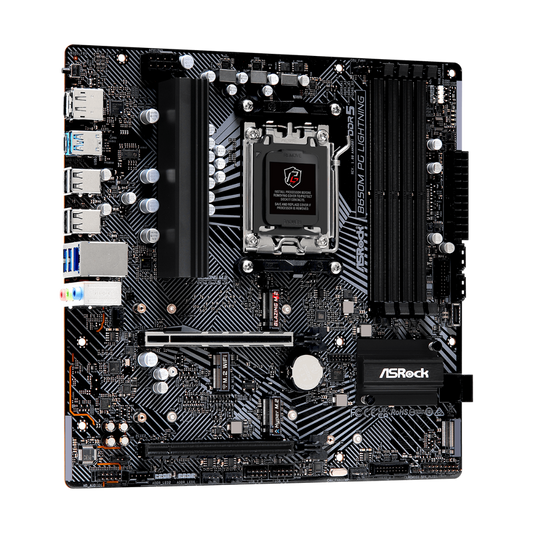

- ASROCK B650M PG Lightning DDR5 AMD Motherboard
Description
Features of ASROCK B650M PG Lightning DDR5 AMD Motherboard
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
DDR5 EXPO & XMP Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 6-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6000MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO.
Reinforced Steel Slot
[PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
Extra anchor points
Stronger latch
Ensure signal stability
Make sure heavy graphics cards to be well-installed.
Extra anchor points
Stronger latch
Ensure signal stability
Make sure heavy graphics cards to be well-installed.
Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer
●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Phantom Gaming 2.5 Gb/s LAN
The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.
Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
Specifications of ASROCK B650M PG Lightning DDR5 AMD Motherboard
*Wi-Fi module is not included.
Specifications of ASROCK B650M PG Lightning DDR5 AMD Motherboard
| Model | B650M PG Lightning |
| Unique Feature | Superb ProductivityPCIe Gen5 (M.2) Dual Channel DDR5 Rock-Solid Durability 6+2+1 Power Phase, 50A Dr.MOS Ultrafast Connectivity 2.5G LAN EZ Update BIOS Flashback Button ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker |
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. |
| Chipset | AMD B650 |
| Memory | Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) Max. capacity of system memory: 256GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Phantom Gaming LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control |
| Slots | CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* Chipset: 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Supports AMD CrossFire™ 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Storage | CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB | 1 x USB 3.2 Gen2 Type-C (Rear) 1 x USB 3.2 Gen2 Type-A (Rear) 1 x USB 3.2 Gen1 Type-C (Front) 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) 8 x USB 2.0 (4 Rear, 4 Front) |
| Connector | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header |

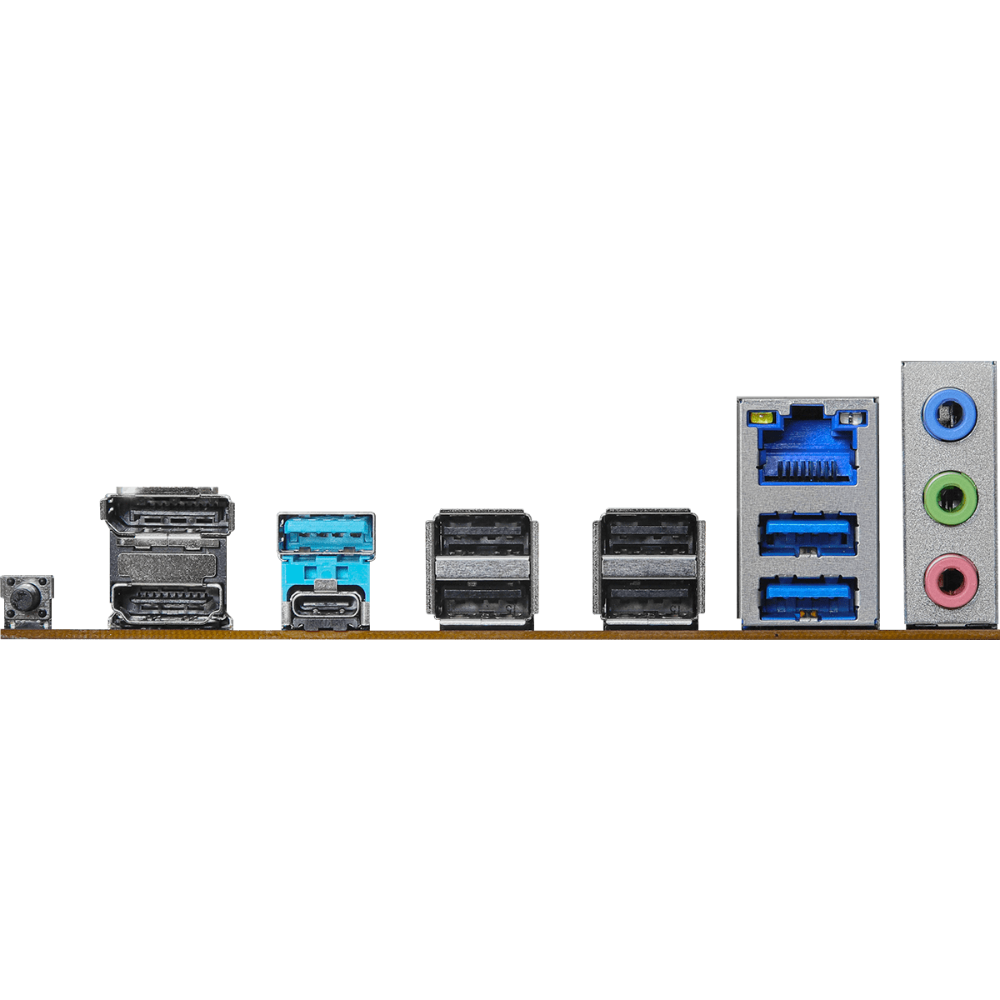

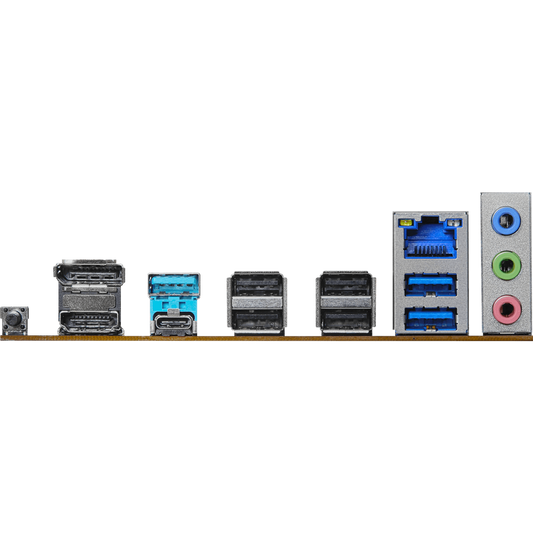

| Rear Panel I/O | 2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 2 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software ASRock Motherboard Utility (Phantom Gaming Tuning) ASRock Phantom Gaming LAN Software ASRock Polychrome SYNC UEFI ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash |
| Accessories | 1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 4 x Screws for M.2 Sockets |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purposes only |
