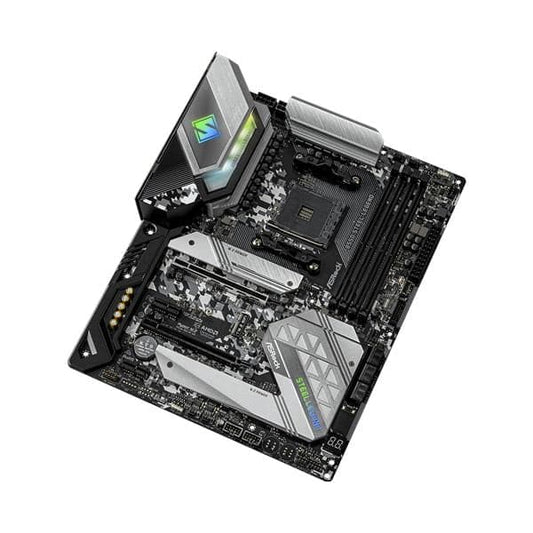

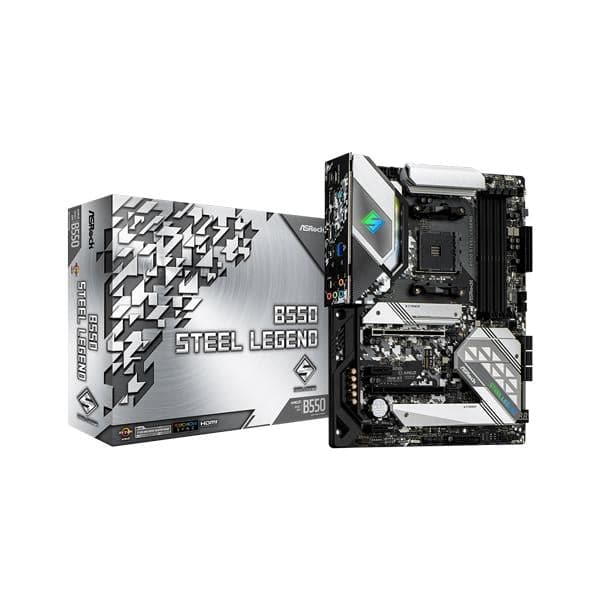

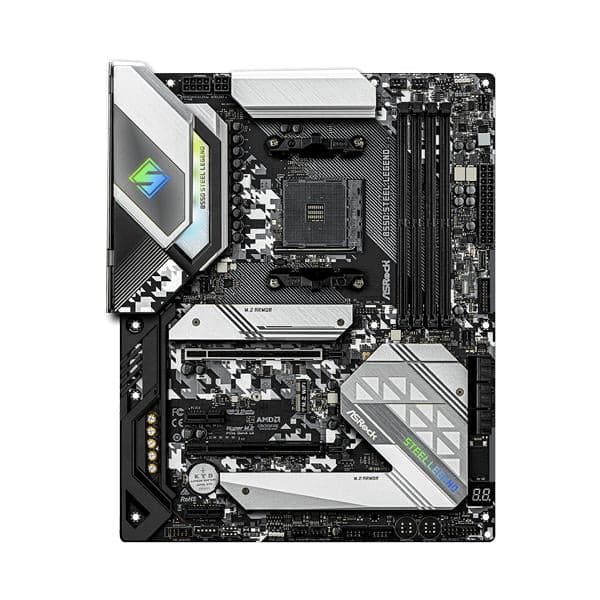

ASROCK B550 Steel Legend DDR4 AMD Motherboard

Features of ASROCK B550 Steel Legend DDR4 AMD Motherboard

1. Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
2. 14 Power Phase Design, Digi Power, Dr. MOS
3. Supports DDR4 4733 (OC)
4. 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
5. Graphics Output Options: HDMI, DisplayPort
6. AMD CrossFireX™
7. 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
8. 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
9. 2 USB 3.2 Gen2 (Rear Type A C), 5 USB 3.2 Gen1 (2 Front, 2 Rear, 1 Front Type-C)
10. Dragon 2.5G LAN


STEEL FOREVER

Get Endless Performance Possibilities with Steel Style

Unbeatable Heatsink Armor

Forged with aluminum alloy heatsinnk top cover that effectively improves heat dissipation. Underneath its solid strong cover lie two gaming required M.2 Key M sockets for high speed SSDs.

Dual M.2 Sockets for SSD

Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Hi-Density Power Connector

Reduces 23% power loss and decreases the connector’s temperature by 22 degrees Celsius.
8+4 12V Power Connectors
24-pin ATX Power Connector

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

AMD SMART ACCESS MEMORY

Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

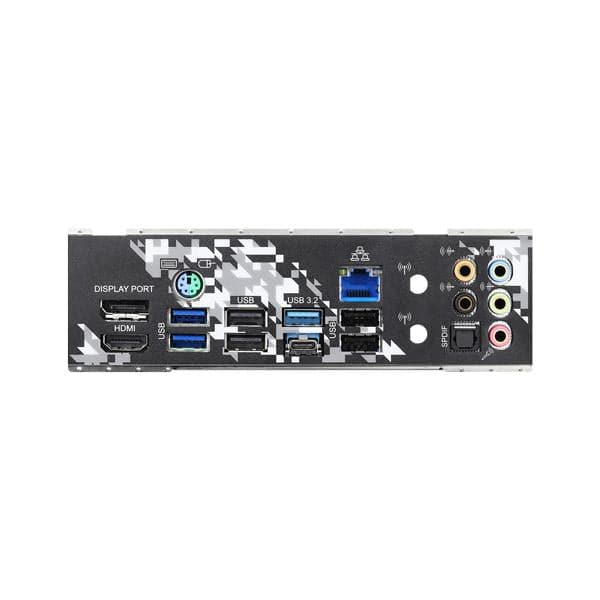

Flexible Integrated I/O Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

AMD StoreMI Technology

A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.

Gold Audio Jacks

Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission!

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop

Rule your own lightning way with ASROCK B550 Steel Legend DDR4 AMD Motherboard

Specifications of ASROCK B550 Steel Legend DDR4 AMD Motherboard
