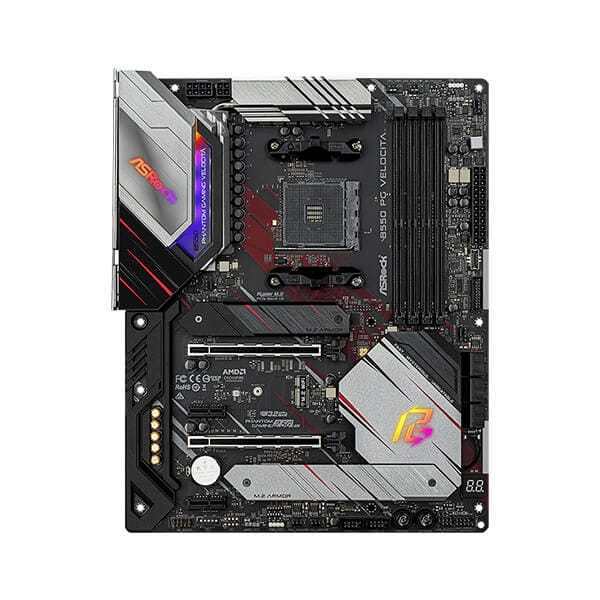

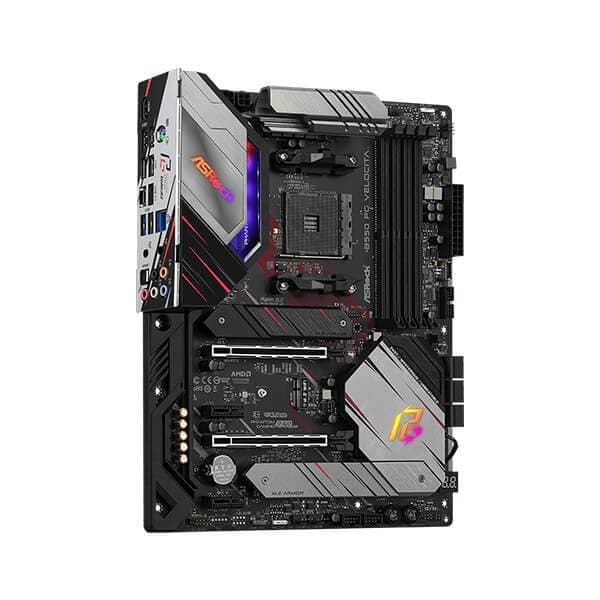

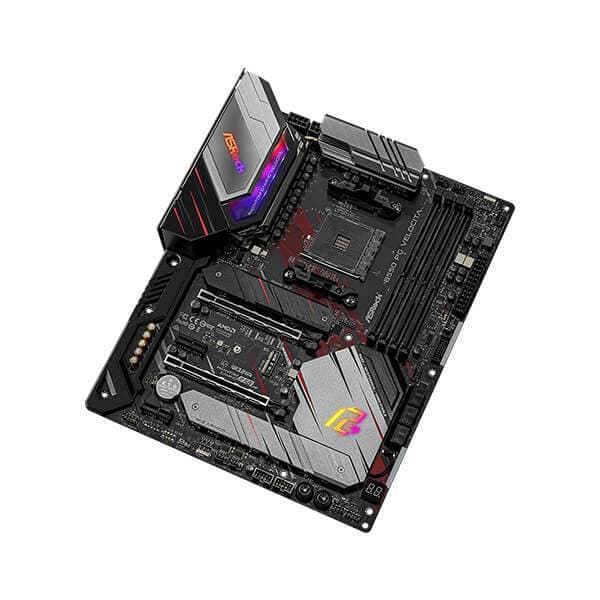

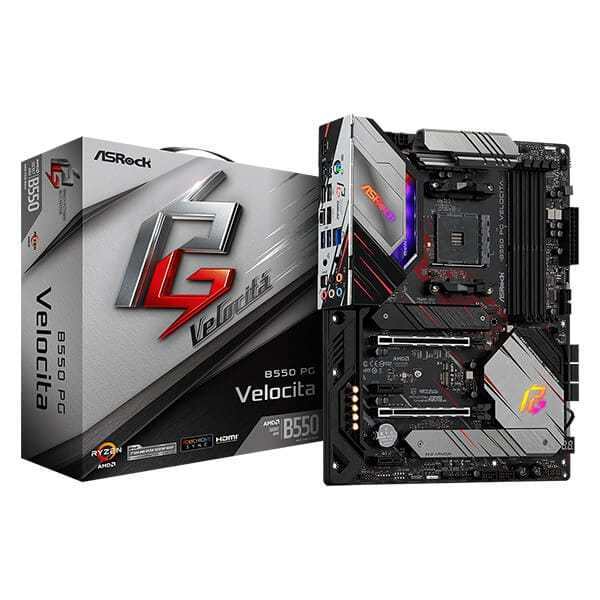

ASROCK B550 PG Velocita DDR4 AMD Motherboard

ASROCK B550 PG Velocita DDR4 AMD Motherboard

Out of stock

Rs. 18,994.00 Rs. 27,990.00

Discount: Rs. 8,996.00 (33%)

37 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: 25 November,2024 - 29 November,2024

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Features of ASROCK B550 PG Velocita DDR4 AMD Motherboard

ASRock B550 PG VELOCITA comes with Phantom Gaming 2.5G LAN. For secure out-of-band and remote management provided by DMTF’s client management standard. ASRock B550 PG VELOCITA is very reliable as it has gone through over 7000+ validation hours of industrial-level tests.

Supports 3^rd Gen AMD AM4 Ryzaen™ / Future AMD Ryzen™ Processors
14 Power Phase Design, Digi Power, Dr. MOS
Supports DDR4 4733+ (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
Graphics Output Options: HDMI
AMD CrossFireX.
7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 4 USB 3.2 Gen1 (2 Front, 2 Rear)
Phantom Gaming 2.5G LAN

Unbeatable Heatsink Armor

Forged with aluminum alloy heatsinnk top cover that effectively improves heat dissipation. Underneath its solid strong cover lie two gaming required M.2 Key M sockets for high speed SSDs.

Dual M.2 Sockets for SSD

Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Dr. MOS

Dr. MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Hi-Density Power Connector

Reduces 23% power loss and decreases the connector’s temperature by 22 degrees Celsius.
8+4 12V Power Connectors
24-pin ATX Power Connector

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Phantom Gaming 2.5 Gb/s LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Specifications of ASROCK B550 PG Velocita DDR4 AMD Motherboard

Gaming Armor	Power
	– Hi-Density Power Connectors (24 pin, 8 pin and 4 pin)
	Memory
	– 15μ Gold Contact in DIMM Slots
	VGA Card
	– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
	Internet
	– 2.5G LAN
	Cooling
	– XXL Aluminum Alloy Heatsink
	– Heat Pipe Design
	Audio
	– Nahimic Audio

Unique Feature	ASRock USB 3.2 Gen2
	– ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s)
	– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
	– ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
	ASRock Super Alloy
	– XXL Aluminum Alloy Heatsink
	– Premium 60A Power Choke
	– 50A Dr.MOS
	– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
	– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
	– I/O Armor
	– Matte Black PCB
	– High Density Glass Fabric PCB
	– 2oz Copper PCB
	ASRock Phantom Gaming 2.5G LAN
	ASRock Steel Slot Gen4
	ASRock Full Coverage M.2 Heatsink
	ASRock Hyper M.2 (PCIe Gen4x4)
	ASRock Ultra USB Power
	ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
	ASRock Live Update & APP Shop

CPU	– Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*
	– Digi Power design
	– 14 Power Phase design

	*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.

Chipset	– AMD B550

Memory	– Dual Channel DDR4 Memory Technology
	– 4 x DDR4 DIMM Slots
	– AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	– AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	– Max. capacity of system memory: 128GB**
	– Supports Extreme Memory Profile (XMP) memory modules
	– 15μ Gold Contact in DIMM Slots*

	*Ryzen Series CPUs (Matisse):


	Ryzen Series APUs (Renoir):


	SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2
	DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

	**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS	– 256Mb AMI UEFI Legal BIOS with GUI support
	– Supports “Plug and Play”
	– ACPI 5.1 compliance wake up events
	– Supports jumperfree
	– SMBIOS 2.3 support
	– CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment

Graphics	– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
	– DirectX 12, Pixel Shader 5.0
	– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
	– Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
	– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
	– Supports HDR (High Dynamic Range) with HDMI 2.1
	– Supports HDCP 2.3 with HDMI 2.1 Port
	– Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
	– Supports Microsoft® PlayReady

	*Actual support may vary by CPU

	**The Max shared memory 16GB requires 32GB system memory installed.

Audio	– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
	– Premium Blu-ray Audio support
	– Supports Surge Protection
	– 120dB SNR DAC with Differential Amplifier
	– NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
	– Pure Power-In
	– Direct Drive Technology
	– PCB Isolate Shielding
	– Impedance Sensing on Rear Out port
	– Individual PCB Layers for R/L Audio Channel
	– Gold Audio Jacks
	– 15μ Gold Audio Connector
	– Nahimic Audio

LAN	– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
	– Dragon RTL8125BG
	– Supports Phantom Gaming LAN Software
	– Smart Auto Adjust Bandwidth Control
	– Visual User Friendly UI
	– Visual Network Usage Statistics
	– Optimized Default Setting for Game, Browser, and Streaming Modes
	– User Customized Priority Control
	– Supports Wake-On-LAN
	– Supports Lightning/ESD Protection
	– Supports Energy Efficient Ethernet 802.3az
	– Supports PXE

Slots	AMD Ryzen series CPUs (Matisse)
	– 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
	AMD Ryzen series APUs (Renoir)
	– 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*
	– 2 x PCI Express 3.0 x1 Slots
	– Supports AMD Quad CrossFireX™ and CrossFireX™
	– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
	– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

	*Supports NVMe SSD as boot disks

Storage	– 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
	– 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)**
	– 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**

	*M2_2 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.

	**Supports NVMe SSD as boot disks
	Supports ASRock U.2 Kit

Connector	– 1 x SPI TPM Header
	– 1 x Power LED and Speaker Header
	– 2 x RGB LED Headers*
	– 2 x Addressable LED Headers**
	– 1 x CPU Fan Connector (4-pin)***
	– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
	– 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
	– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
	– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
	– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
	– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
	– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
	– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
	– 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
	– 1 x Dr. Debug with LED
	– 1 x Power Button with LED
	– 1 x Reset Button with LED

	*Support in total up to 12V/3A, 36W LED Strip

	**Support in total up to 5V/3A, 15W LED Strip

	***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

	****CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power.

	*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
	CPU_FAN2/WP_3A, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.

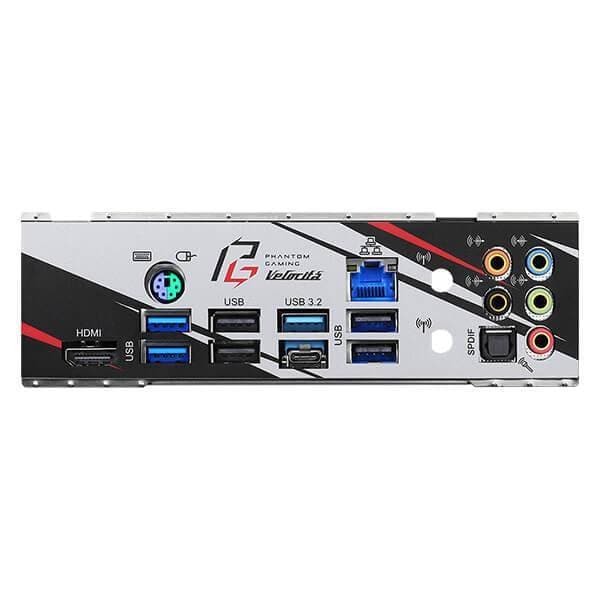

Rear Panel I/O	– 2 x Antenna Mounting Points
	– 1 x PS/2 Mouse/Keyboard Port
	– 1 x HDMI Port
	– 1 x Optical SPDIF Out Port
	– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
	– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
	– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
	– 4 x USB 2.0 Ports (Supports ESD Protection)*
	– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
	– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

	*Ultra USB Power is supported on USB_34 ports.
	ACPI wake-up function is not supported on USB_34 ports.

Software and UEFI	Software
	– ASRock Motherboard Utility (Phantom Gaming Tuning)
	– ASRock Phantom Gaming LAN Software
	– ASRock Polychrome SYNC
	– ASRock Key Master*
	UEFI
	– ASRock Full HD UEFI
	– ASRock Instant Flash

	*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD	– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories	– Quick Installation Guide, Support CD
	– 4 x SATA Data Cables
	– 3 x Screws for M.2 Sockets
	– 2 x Standoffs for M.2 Sockets

Hardware Monitor	– Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
	– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
	– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
	– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
	– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, CPU VDD 1.8V

Form Factor	– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
	– 2oz Copper PCB

OS	– Microsoft® Windows® 10 64-bit

Certifications	– FCC, CE
	– ErP/EuP ready (ErP/EuP ready power supply is required)
