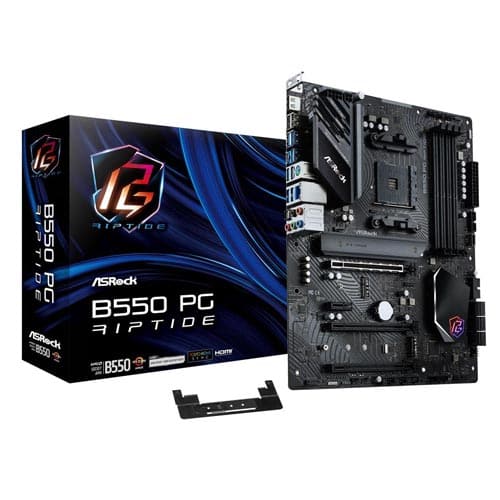

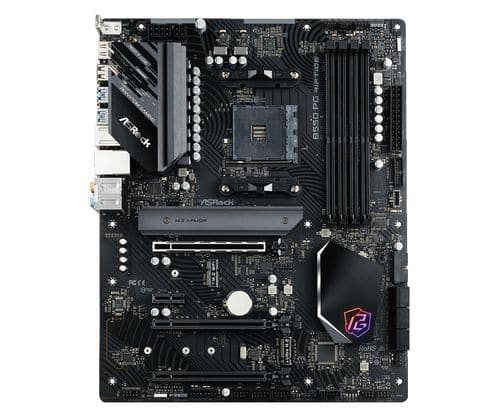

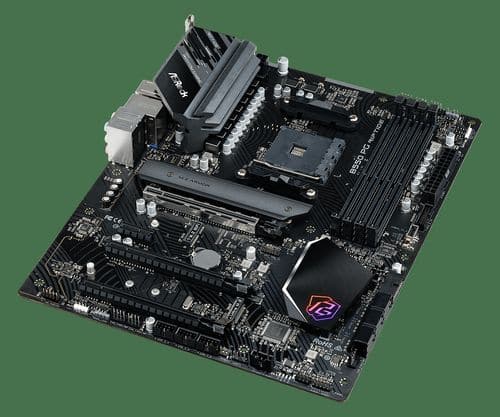

ASROCK B550 PG Riptide DDR4 AMD Motherboard

Out of stock

Rs. 12,894.00 Rs. 17,561.00

Discount: Rs. 4,667.00 (27%)

23 people are viewing this right now

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: 25 November,2024 - 29 November,2024

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Features of ASROCK B550 PG Riptide DDR4 AMD Motherboard

Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.

Dr. MOS

Dr. MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Killer™ Ethernet E3100

The Killer E3100 2.5 Gbps Ethernet controller is designed specically for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

Intel^® Killer™ Prioritization Engine

The Intel^® Killer™ Prioritization Engine detects and optimally prioritizes over 1,000 different games, apps, and websites to deliver amazing online experiences, ensuring you get your lowest in-game latencies by prioritizing your gaming traffic above everything else.

PCIe 4.0 High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Lightning Gaming Ports (Patent Pending)

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

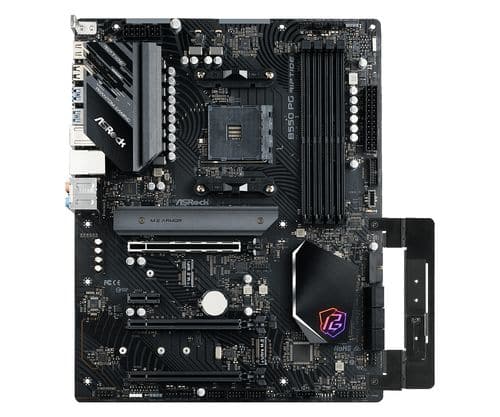

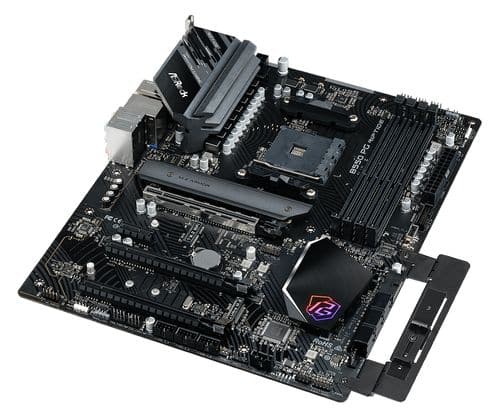

ASRock Graphics Card Holder (Patent Pending)

Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Front USB 3.2 Gen2 Type-C

Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Thunderbolt 4 AIC Header

Thunderbolt 4 is no longer limited to certain chipset; ASRock skillfully implement the Thunderbolt 4 technology supporting Hot-Plug onto AMD motherboards. All you need is a Thunderbolt 4 AIC card!

Maximum three TB devices and one TB Monitor can be detected in one TB4 port. (Double in two ports)

USB Keyboard / Mouse on TB4 port cannot wake up the system from S3/S4.

TB monitor might not light up if “Above 4GB Decoding” option is disabled.

Does not support Thunderbolt graphics card box with AMD graphics card.

Only supports Cezanne, Vermeer, Matisse, Renoir processors.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Post Status Checker

An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
10 Phase, Digi Power, Dr. MOS
Supports DDR4 4933+ (OC)*
1 PCIe 4.0 x16 Slot, 2 PCIe 3.0 x16 Slots, 1 PCIe 3.0 x1 Slot
1 M.2 Key-E for WiFi
Graphics Outputs: HDMI
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
1 Ultra M.2 (PCIe Gen3 x4 & SATA3)**
3 USB 3.2 Gen2 (Front Type-C, Rear Type-A+C)
10 USB 3.2 Gen1 (4 Front, 6 Rear), 8 USB 2.0 (6 Front, 2 Rear)
Killer E3100G 2.5G LAN
*Actual support may vary by CPU.
**If M2_2 is occupied by a PCIE-type M.2 device, SATA3_5_6 will be disabled

Rule your own lightning way with ASROCK B550 PG Riptide DDR4 AMD Motherboard

Specifications of ASROCK B550 PG Riptide DDR4 AMD Motherboard

Unique Feature	ASRock USB 3.2 Gen2
	- ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s)
	- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
	- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
	ASRock Super Alloy
	- XXL Aluminum Alloy Heatsink
	- Premium 60A Power Choke
	- 50A Dr.MOS
	- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
	- Matte Black PCB
	- High Density Glass Fabric PCB
	- 2oz Copper PCB
	Killer 2.5G LAN
	ASRock Lightning Gaming Port
	ASRock Steel Slot Gen4
	ASRock Full Coverage M.2 Heatsink
	ASRock Hyper M.2 (PCIe Gen4x4)
	ASRock POST Status Checker (PSC)
	ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
	ASRock Live Update & APP Shop
CPU	- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
	- Digi Power design
	- 10 Power Phase design

	*Not compatible with AMD Athlon™ Processors.
Chipset	AMD B550
Memory	- Dual Channel DDR4 Memory Technology
	- 4 x DDR4 DIMM Slots
	- AMD Ryzen series CPUs (Vermeer) support DDR4 4933+(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	- AMD Ryzen series CPUs (Matisse) support DDR4 4933+(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	- AMD Ryzen series APUs (Cezanne) support DDR4 4933+(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	- AMD Ryzen series APUs (Renoir) support DDR4 4933+(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
	- AMD Ryzen series APUs (Picasso) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
	- Max. capacity of system memory: 128GB**
	- Supports Extreme Memory Profile (XMP) memory modules
	- 15μ Gold Contact in DIMM Slots
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
	- Supports "Plug and Play"
	- ACPI 5.1 compliance wake up events
	- Supports jumperfree
	- SMBIOS 2.3 support
	- CPU, VDDCR_SOC, DRAM, VPPM, +1.8V Voltage Multi-adjustment
Graphics	- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
	- DirectX 12, Pixel Shader 5.0
	- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
	- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
	- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
	- Supports HDR (High Dynamic Range) with HDMI 2.1
	- Supports HDCP 2.3 with HDMI 2.1 Port***
	- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
	- Supports Microsoft® PlayReady
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
	- Supports Surge Protection
	- Gold Audio Jacks
	- Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
	- 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)
	- Supports Killer LAN Software
	- Supports Wake-On-LAN
	- Supports Lightning/ESD Protection
	- Supports Energy Efficient Ethernet 802.3az
	- Supports PXE
Slots	AMD Ryzen series CPUs (Vermeer and Matisse)
	- 3 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode; PCIE4: Gen3 x1 mode)*
	AMD Ryzen series APUs (Cezanne and Renoir)
	- 3 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode; PCIE4: Gen3 x1 mode)*
	AMD Ryzen series APUs (Picasso)
	- 3 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode; PCIE4: Gen3 x1 mode)*

	- 1 x PCI Express 3.0 x1 Slot
	- Supports AMD Quad CrossFireX™ and CrossFireX™
	- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
	- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage	- 6 x SATA3 6.0 Gb/s Connectors
	- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)*
	- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
RAID	- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
	- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Connector	- 1 x SPI TPM Header
	- 1 x Power LED and Speaker Header
	- 2 x RGB LED Headers*
	- 2 x Addressable LED Headers**
	- 1 x CPU Fan Connector (4-pin)***
	- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
	- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
	- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
	- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
	- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
	- 1 x Front Panel Audio Connector
	- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card only)
	- 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Supports ESD Protection)
	- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
	- 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)

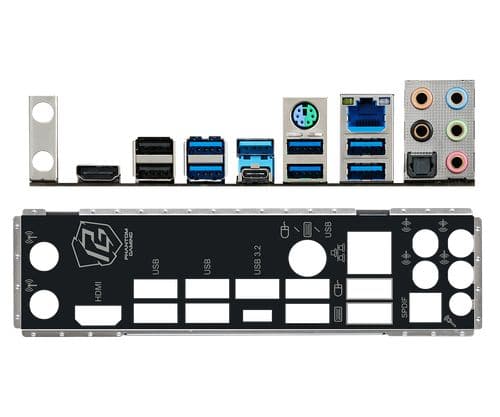

Rear Panel I/O	- 1 x Antenna Bracket
	- 1 x PS/2 Mouse/Keyboard Port
	- 1 x HDMI Port
	- 1 x Optical SPDIF Out Port
	- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)*
	- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)*
	- 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)**
	- 2 x USB 2.0 Ports (Supports ESD Protection)
	- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
	- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Software and UEFI	Software
	- ASRock Motherboard Utility (Phantom Gaming Tuning)
	- ASRock Killer LAN Software
	- ASRock Polychrome SYNC*
	UEFI
	- ASRock Full HD UEFI
	- ASRock Instant Flash
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	- Quick Installation Guide, Support CD, I/O Shield
	- 2 x SATA Data Cables
	- 1 x Graphics Card Holder
	- 3 x Screws for M.2 Sockets
	- 1 x Standoff for M.2 Socket
Hardware Monitor	- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
	- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
	- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
	- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, CPU VDD 1.8V
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
	- Solid Capacitor design
	- 2oz Copper PCB
OS	- Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications	- FCC, CE
	- ErP/EuP ready (ErP/EuP ready power supply is required)
	- CEC Tier II ready
