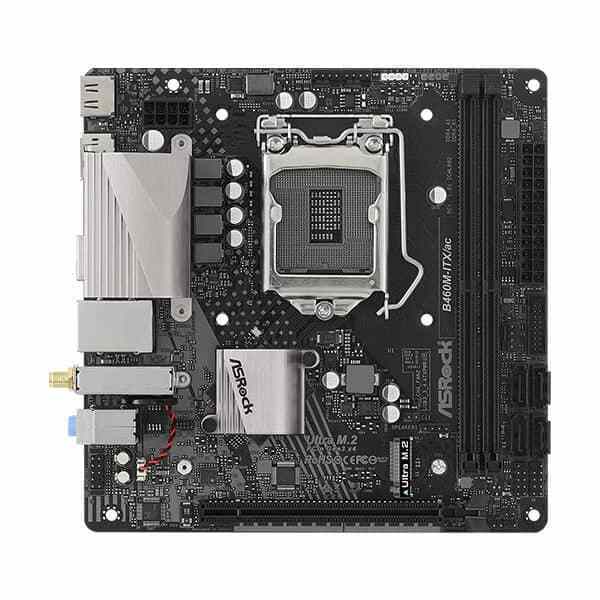

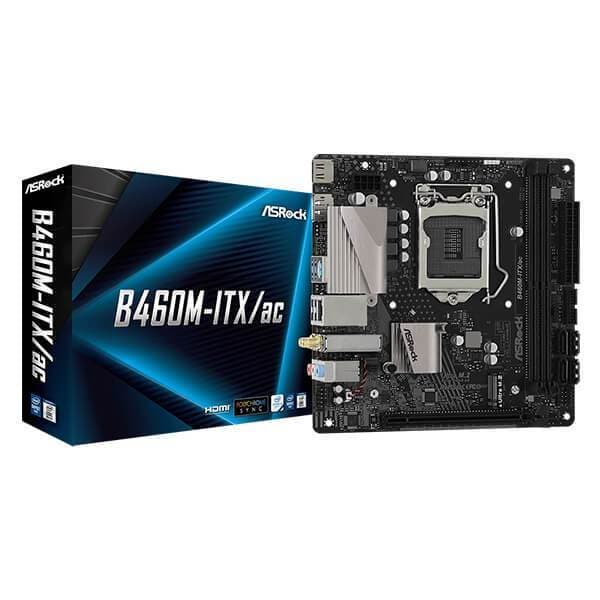

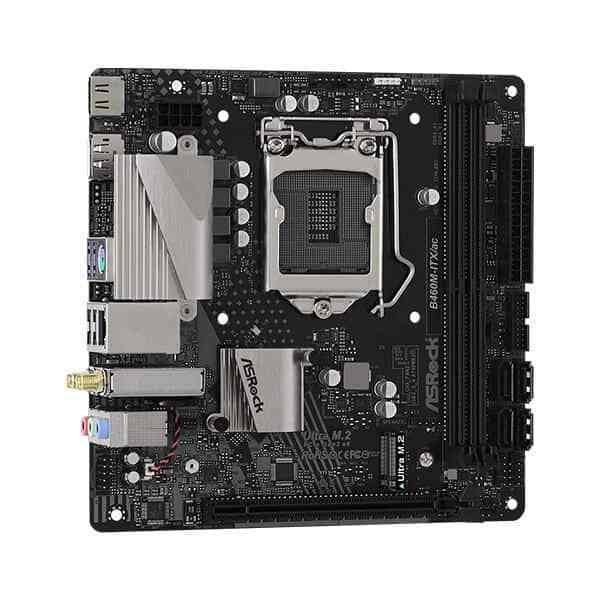

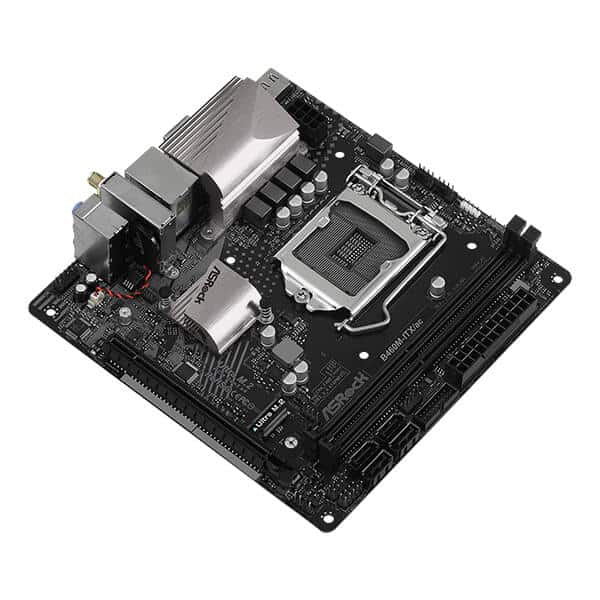

- ASROCK B460M-ITX/AC DDR4 Intel Motherboard
Description
Features of ASROCK B460M-ITX/AC DDR4 Intel Motherboard
- Dr. MOS
- Premium 60A Power Choke
- Variety CPU Coolers Support
- Dual Band 802.11ac WiFi
- Intel® LAN
- Ultra M.2 32 Gb/s (PCIe Gen3 x4)
- Intel® Optane™ Memory Ready
- Water Pump Header
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Variety CPU Coolers Support
ASRock engineers took enormous effort to make the CPU backplate area big enough to accommodate the wide variety of CPU coolers.
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That’s why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Ultra M.2 32 Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Rule your own lightning way with ASROCK B460M-ITX/AC DDR4 Intel Motherboard
Specifications of ASROCK B460M-ITX/AC DDR4 Intel Motherboard
| DDR memory | 2 slots DDR4 2933 MHz, max 64 GbSupports Intel® Extreme Memory Profile (XMP) |
| Graphical interface | 1 x PCI Express 3.0 (x16) |
| SATA Revision 3.0 | 4 x SATA3 6.0 Gb / s |
| SATA Express | - |
| M.2 Slot | x1 |
| Main power connectors | 1 x 24 pin ATX |
| Additional food | 1 x 8 pin 12V |
| FAN | 1 x CPU Fan Connector1 x CPU / Water Pump Fan Connector1 x Chassis / Water Pump Fan Connectors |
| Monitor outputs | HDMI, DisplayPort |
| LAN Ethernet port | x1 |
| Connectors | - 1 x Chassis Penetration Connector- 1 x RGB LED Connector- 1 x Controllable LED Connector- 1 x CPU FanConnector (4-pin)- 1 x Chassis Fan Connector (4-pin) - 1 x Fan Connector chassis / water pump (4-pin)- 1 x 24-pin ATX power connector- 1 x 8-pin 12V power connector- 1 x Audio output to the front of the case- 1 x USB 2.0 (supports up to two USB 2.0)- 1 x USB 3.2 Gen1 (Supports up to two USB 3.2 Gen1) |
| Rear I / O Panel | - 2 x Antenna connectors- 1 x PS / 2 keyboard and mouse port- 1 x HDMI- 1 x DisplayPort 1.4- 4 x USB 3.2 Gen1 (ESD protection)- 1 x RJ-45 LAN with LEDs (ACT / LINK LED and SPEED)- HD Audio Connectors: Line In / Front Speakers / Microphone |
| Product on the manufacturer's website | Look |
| Audio codec | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)- Surge Protection |
| LAN card | Intel I219V |
| Wi-Fi adapter | Wi-Fi 5 (802.11ac) |
| RAID support | 0/1/5/10 |
