- ARCTIC Freezer 4U-M Single Tower CPU Air Cooler
Description

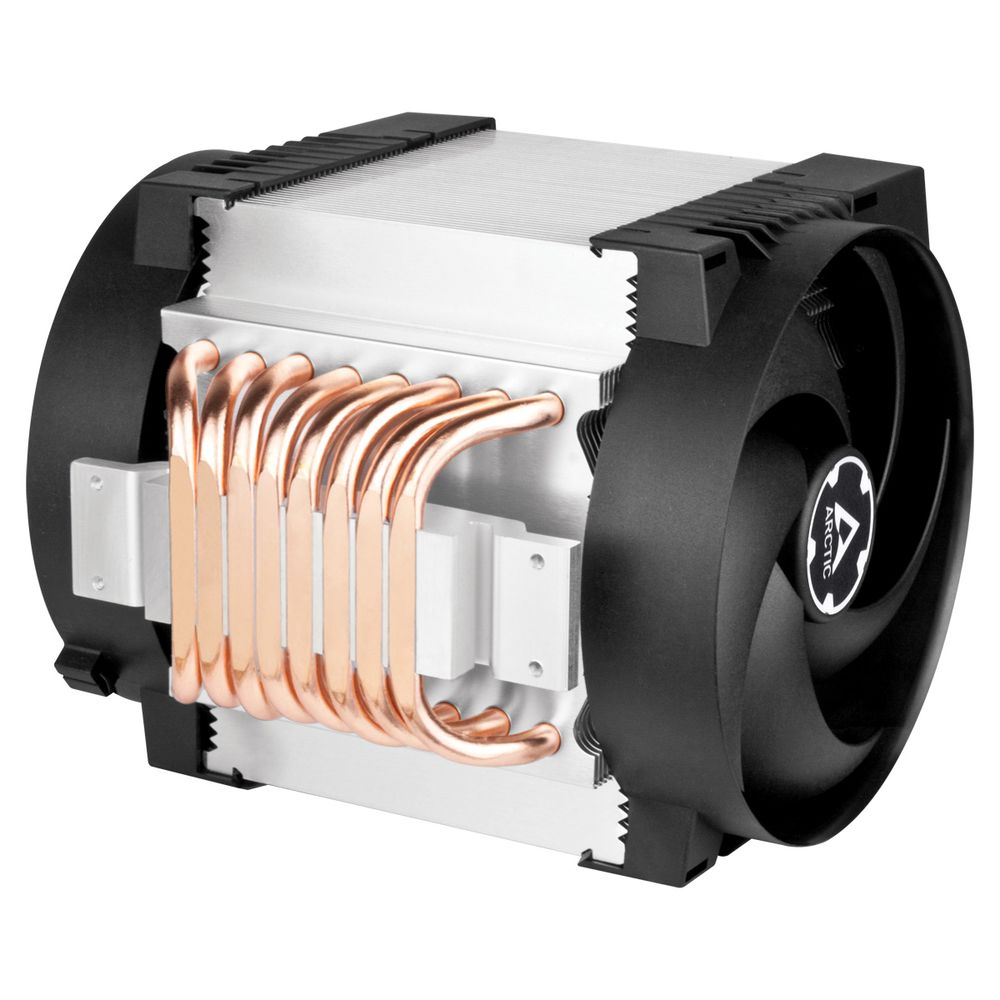

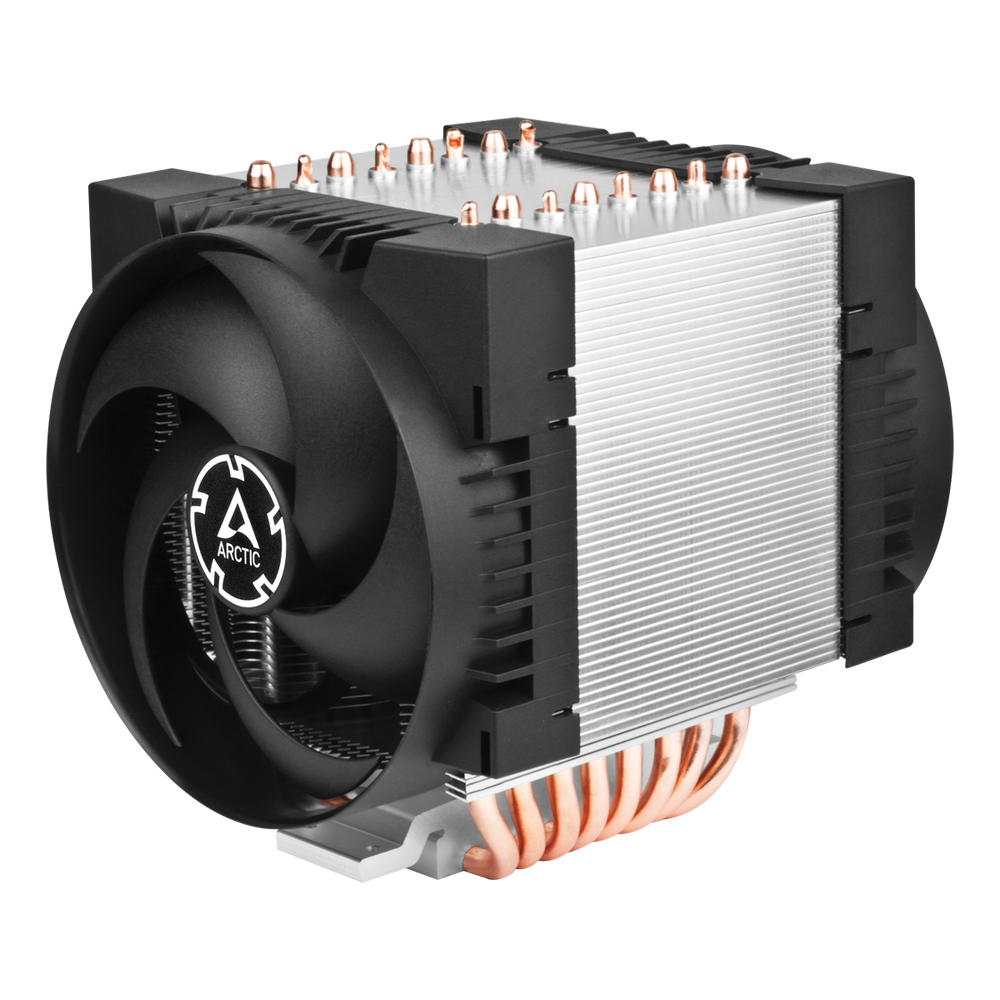

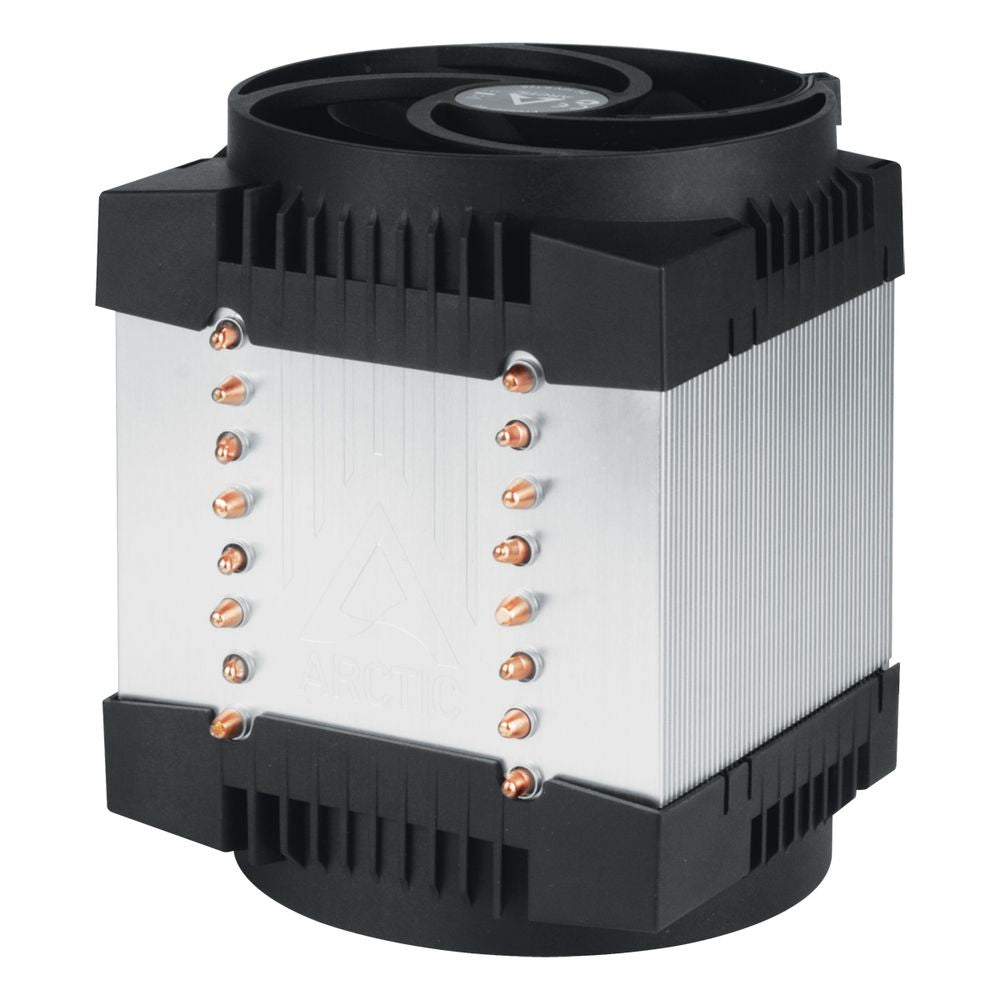

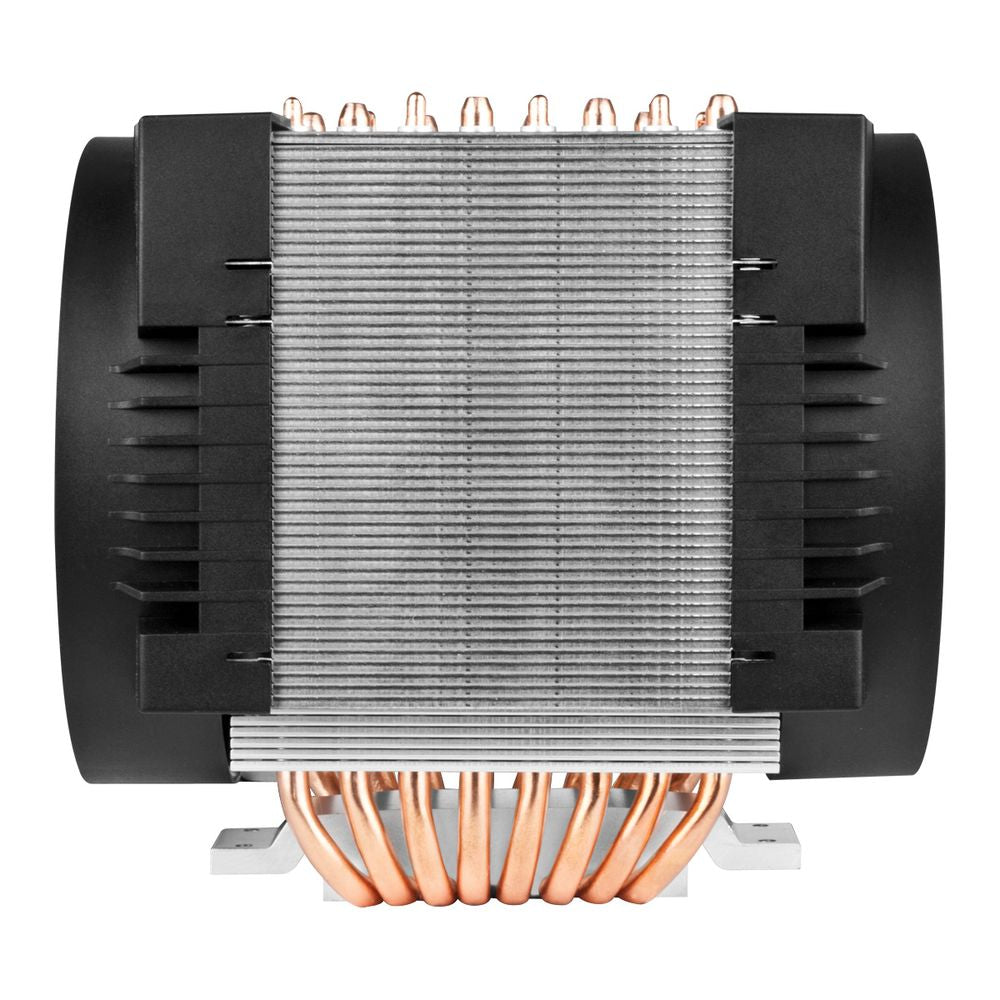

Features of ARCTIC Freezer 4U-M Single Tower CPU Air Cooler
Versatile Multi-Compatible Server Cooler
The Freezer 4U-M stands as a multi-compatible server cooler, boasting an expansive contact surface and an enhanced mounting mechanism. It now offers compatibility with a wide range of Intel and AMD server processors, including Intel's LGA 4189 and LGA 4677, as well as AMD's SP6, sTR5, SP3, TR4, sTRX4, and sWRX8 sockets. Remarkably, despite its impressive cooling capabilities, the Freezer 4U consumes a mere 2.88 watts, ensuring exceptional efficiency in cooling even the most powerful processors with up to 96 cores and a TDP of up to 350 watts.
RAM Compatibility and Clearance
The ARCTIC Freezer 4U-M offers a spacious 53 mm of RAM clearance, allowing for the use of memory sticks with moderate heatsinks. This clearance allows efficient airflow and enables compatibility with different RAM variants
Compact Design and Dual Socket Compatibility
With an optimised installation height of only 145 mm, it fits into both classic 4U server racks and most consumer 4U cases available on the market. The Freezer 4U features a compact design with dimensions of just 156 x 124 mm. This also makes it suitable for dual-socket motherboards. To adjust the airflow direction if required, the fans can be easily swapped over.
Powerful Fans in Push-Pull Configuration
The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-M's high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.
Designed for continuous operation
Both fans of the Freezer 4U-M are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.
Premium Thermal Paste Included
The Freezer 4U-M comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.
Specifications of ARCTIC Freezer 4U-M Single Tower CPU Air Cooler
Compatibillity: | AMD: SP6, SP3, sTR5, TR4, sTRX4, SWRX8 Intel: LGA4189, LGA4677 |
Warranty: | 6 Years |
Server Rack Unit: | 4U & up |
Operating Ambient Temperature: | 0—40 °C |
Fan: | 120 mm PWM Fans x2 |
Thermal Compound: | ARCTIC MX-6 0,8 g Syringe incl. |

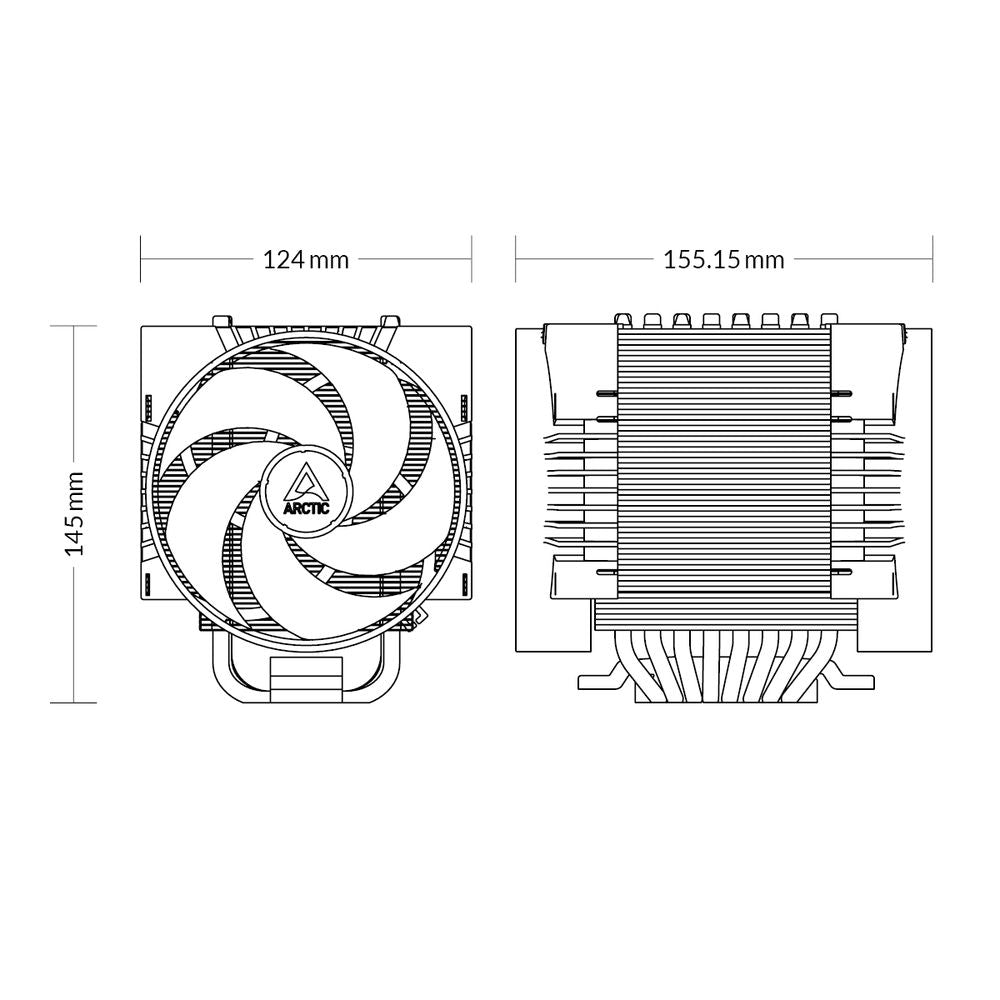

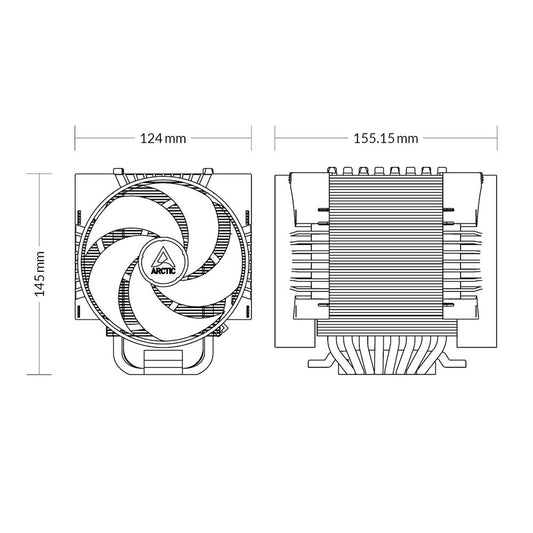

Dimensions: | 124 mm (L) x 156 mm (W) x 145 (H) mm |
Weight: | 1275 g |
Heat Pipe: | Direct Touch, Ø 6 mm x 8 |
Number of Fins: | 57 |
Fin Material: | Aluminium |
Fan Speed: | 400 - 2300 rpm PWM Controlled |
Connector: | 4-Pin Plug |
Cable Length: | 200 mm |
Bearing: | Double Ball Bearing |
Noise Level: | 40 dBA |
Current | Voltage: | 0,12 A | 12 V DC |
Startup Voltage: | 8 V DC |
Reviews ( 0 )
Frequently asked questions
1. What is the radiator size of the ARCTIC Freezer 4U-M?
The ARCTIC Freezer 4U-M is an air cooler and therefore does not have a radiator, as would be true of liquid coolers. Rather, it has a heatsink made of metal fins to extract the heat from the CPU. The height, width, and depth of the heatsink are key to finding before purchase. These measurements can be found on the ARCTIC website or in online stores. Measuring the size guarantees the cooler will fit within your PC case and won't get in the way of other components such as RAM or cables. Check always before purchasing.
2. What is the TDP of ARCTIC Freezer 4U-M?
The ARCTIC Freezer 4U-M TDP is the amount of heat it can pull from the CPU. This is crucial when selecting a cooler. If your CPU generates more heat than the cooler, it can lead to overheating. The TDP of the cooler must be as large or even larger than that of your CPU. The larger the TDP, the cooler it is. You can check this on the ARCTIC website or online retailers. With the correct TDP, overheating is prevented and your system is stabilized.
3. Is ARCTIC Freezer 4U-M good enough?
The ARCTIC Freezer 4U-M is sufficient for the majority of users, particularly mid-range CPU owners or those requiring gentle overclocking. Its single tower structure provides it with good cooling and can accommodate most components fairly well. It will handle CPUs with a TDP to its cooling capacity. That being said, if you do have a pricey CPU or overclock heavily, you may need something more powerful, such as a liquid or dual tower cooler. Always refer to your CPU requirements to figure out that this cooler will be appropriate for your configuration.
4. How big is ARCTIC Freezer 4U-M?
The size of the ARCTIC Freezer 4U-M must be inspected before a buy to guarantee the cooler will fit inside your case. The cooler's size, height, width, and depth are listed in the product specs. The checking of these numbers guarantees that the cooler will not block RAM or your case's side panel. The height is particularly crucial as it will normally determine whether or not the cooler will fit. Always measure your case and available space thoroughly prior to purchasing so that you are not faced with installation issues.
5. Is ARCTIC Freezer 4U-M PWM or DC?
The ARCTIC Freezer 4U-M is fitted with a PWM fan, i.e., Pulse Width Modulation. PWM fans are superior to DC fans since they allow you to change the speed in accordance with the temperature of your CPU. If the CPU is not that hot, the fan operates quietly and slowly. As the CPU heats up, the fan operates at a higher speed to cool down the CPU. PWM fans offer greater control and performance. Always verify the product description to ascertain the type of fan before making a purchase.
6. Is the ARCTIC Freezer 4U-M Single Tower or Dual Tower?
The ARCTIC Freezer 4U-M is a single tower air cooler, that is, one heatsink tower with metal fins. Dual tower coolers supply two towers and provide better cooling but consume additional space. Single tower coolers such as the Freezer 4U-M consume less space and are easier to accommodate in most instances. They provide additional space for RAM and other elements as well. This renders single tower coolers as an ideal selection for most people seeking both sufficient cooling and convenience when it comes to compatibility within their system.
7. Does the ARCTIC Freezer 4U-M come with thermal paste?
Yes, the ARCTIC Freezer 4U-M typically includes thermal paste pre-applied to the bottom of the cooler. This is fantastic because you don't have to purchase paste or apply it yourself. Thermal paste enables better heat transfer from the CPU to the cooler. Most users will be content with the pre-applied paste, but some users, like gamers or PC enthusiasts, will want to apply their own high-performance thermal paste for even better cooling. Always check the product description before buying.
8. Is ARCTIC Freezer 4U-M quiet?
The ARCTIC Freezer 4U-M is quiet. Its heatsink and fan are quieting in design. But how silent it is will be based on factors such as fan speed, room temperature, and what kind of load your CPU is handling. When performing light tasks, the fan is silent. But when gaming or performing heavy loads, the CPU heats up, and the fan will spin faster and be louder. Consider how loud you are willing to accept and what you need your computer for.
9. What is the RPM of ARCTIC Freezer 4U-M fan?
The ARCTIC Freezer 4U-M fan operates at varying speeds, in the form of RPM (rotations per minute). The minimum and maximum speed is something you will be able to discover within the product specifications. The fan speed also varies based on how hot the CPU gets. Higher speeds provide greater cooling but at a loud noise, while lower speeds are less noisy but cool less. The speed of the fan is adjusted automatically by the computer, in accordance with what the CPU needs at any specific moment.
10. How many watts can an ARCTIC Freezer 4U-M handle?
The cooling capability of the ARCTIC Freezer 4U-M is defined by its TDP, which indicates the amount of heat it can transfer away from the CPU. Check this in the product description. You should choose a cooler comparable to or larger than your CPU's TDP. Otherwise, your CPU will be overheated. TDP matching ensures the cooler has the ability to dissipate your CPU's heat. Always find out your CPU's TDP before purchasing to ensure the cooler will perform best and safeguard your system.
