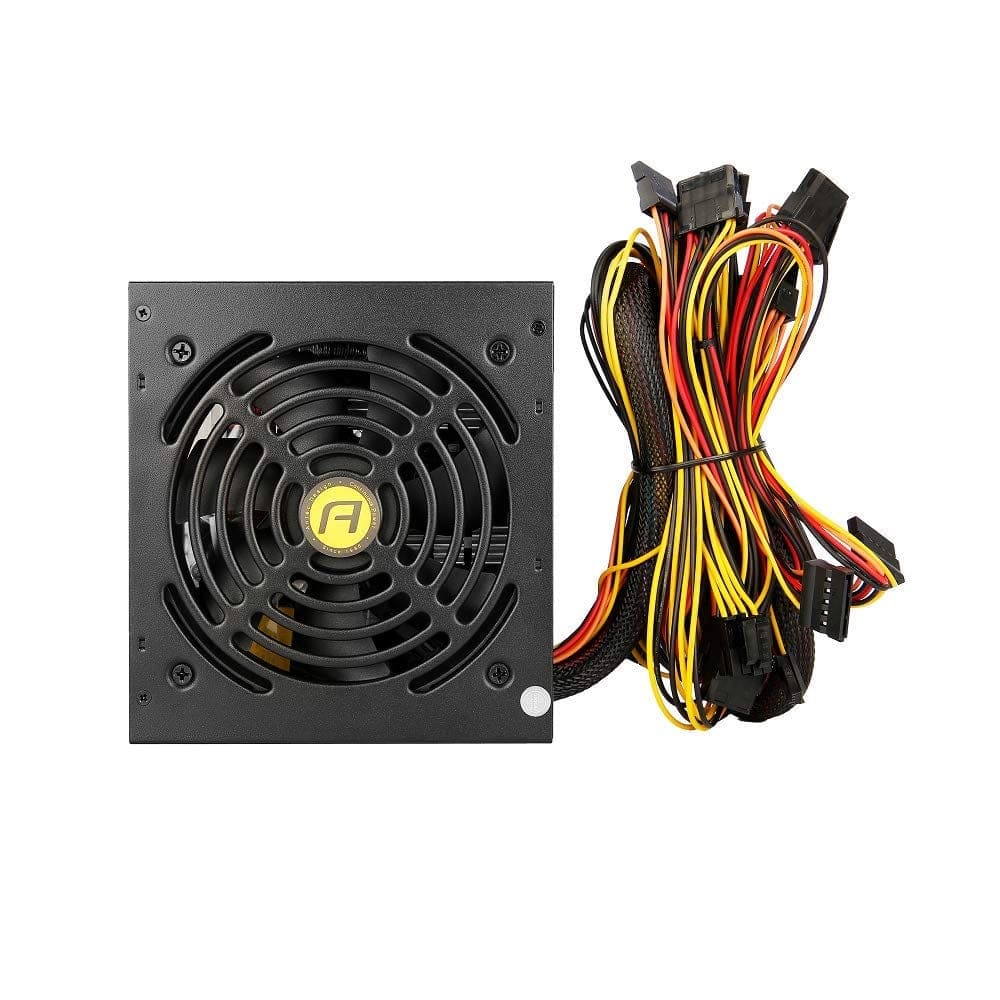

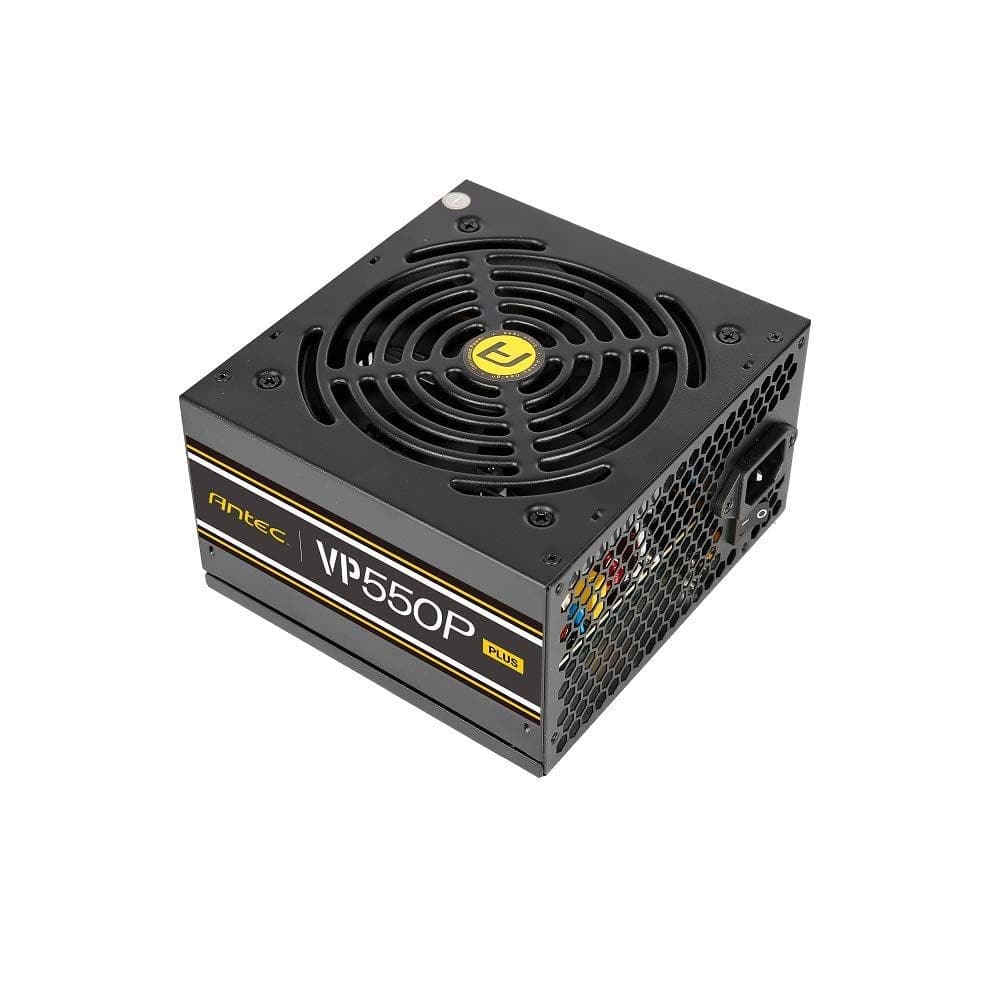

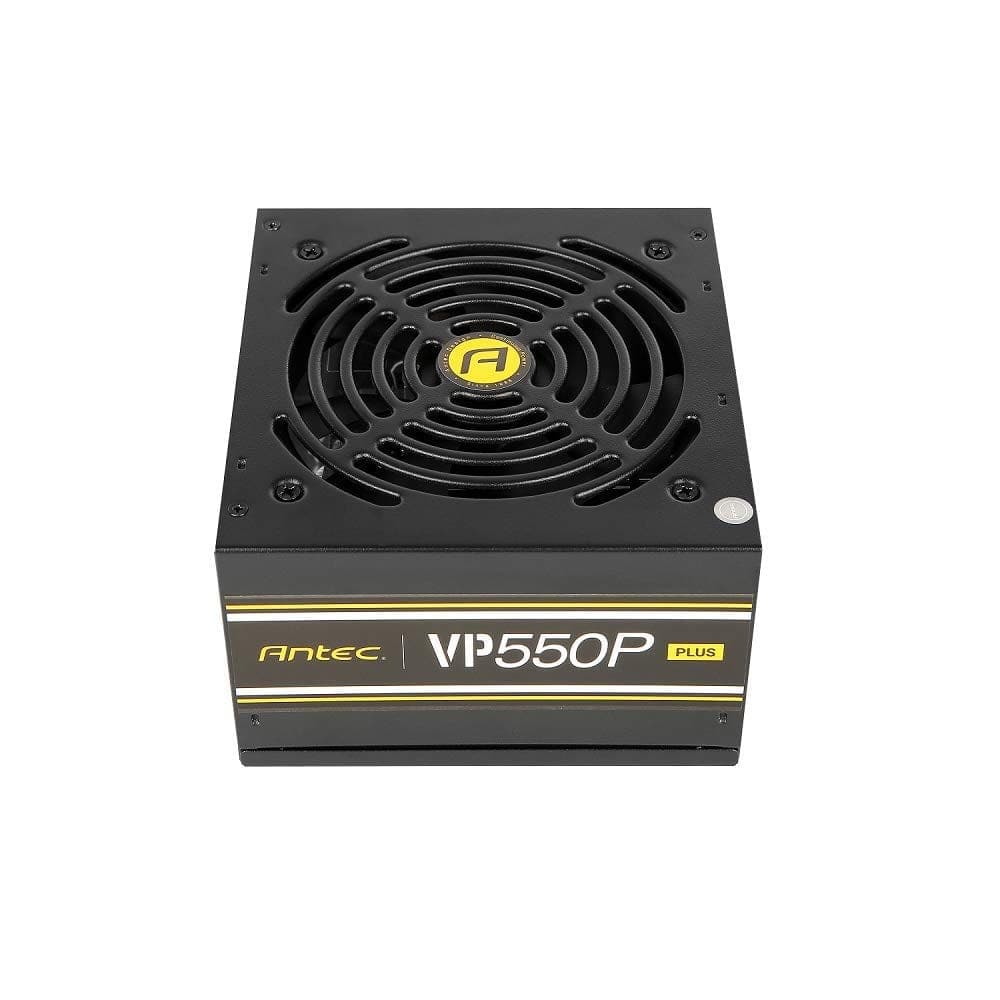

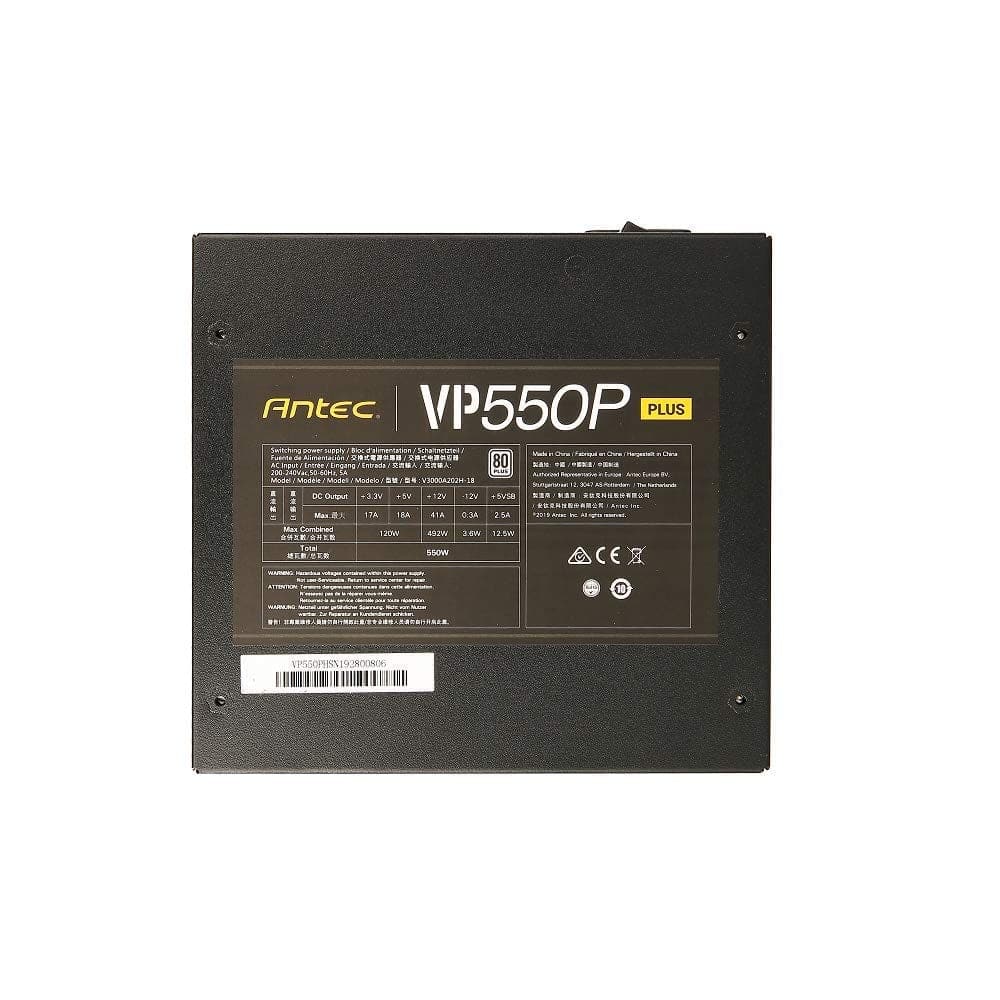

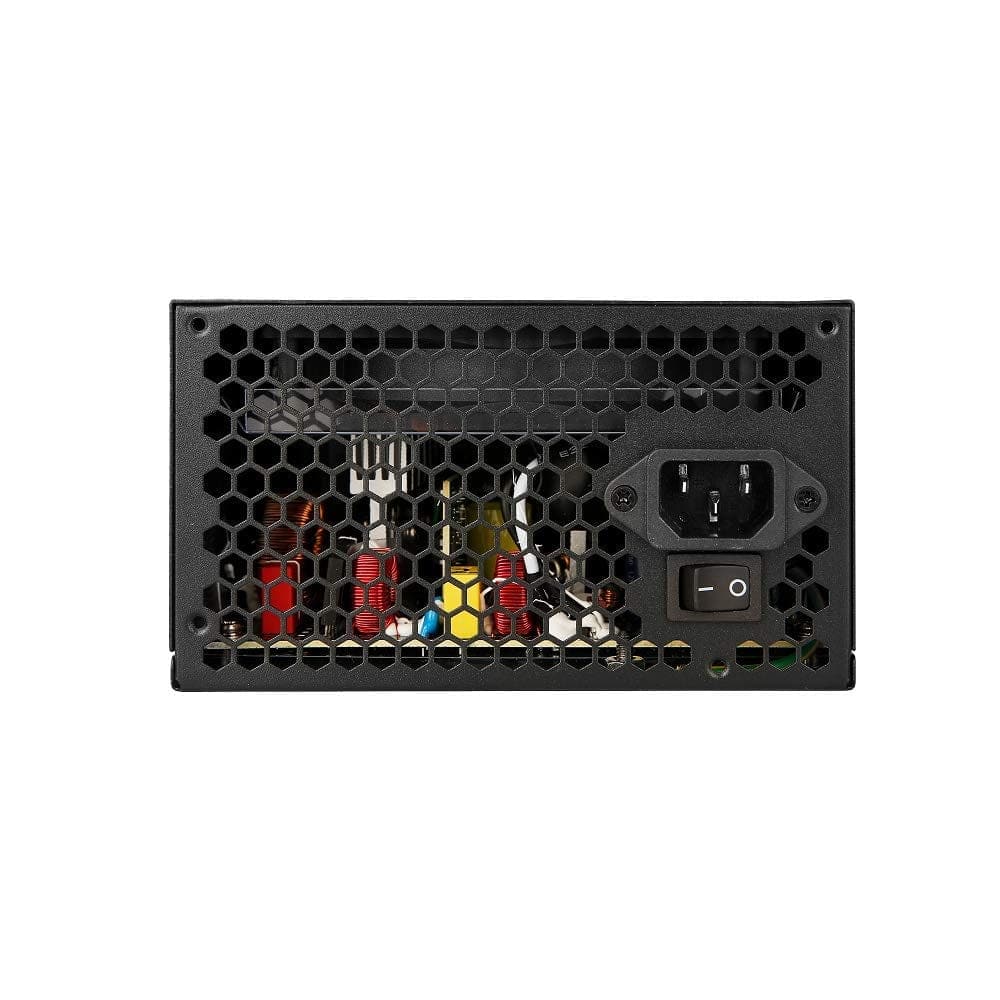

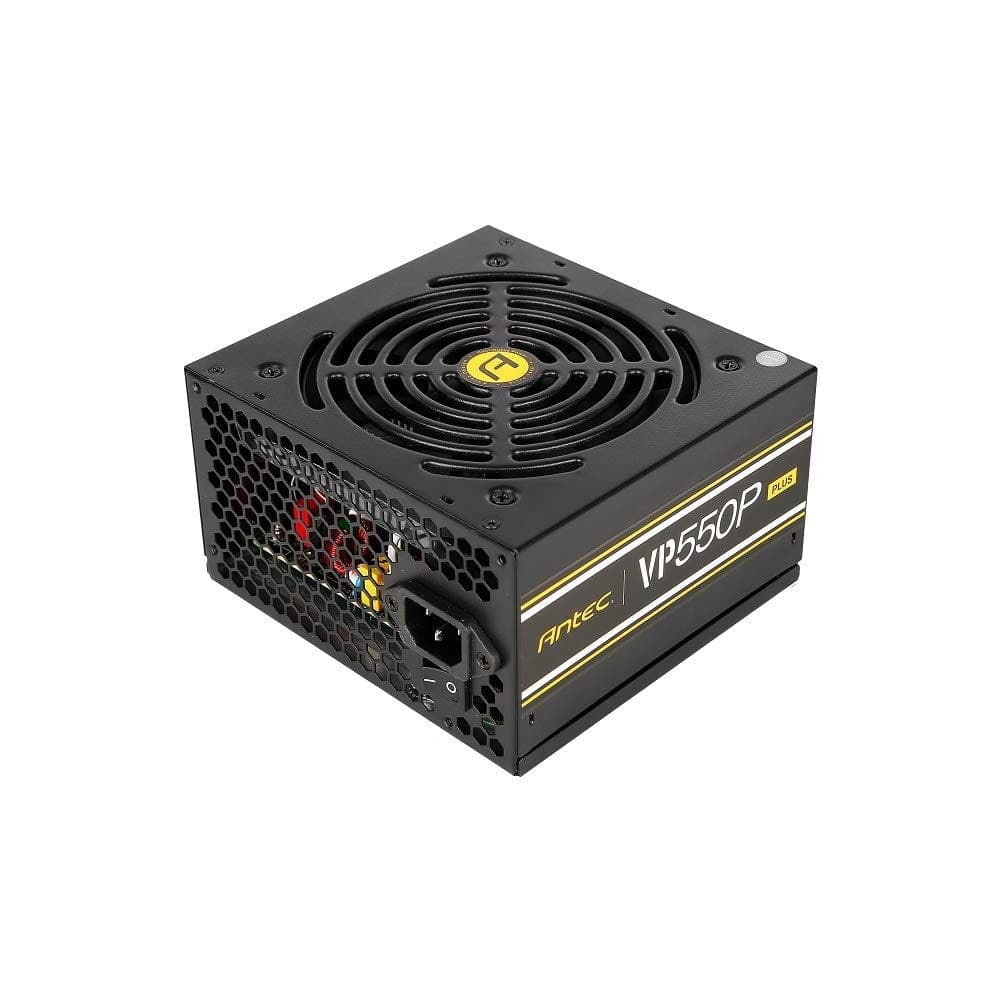

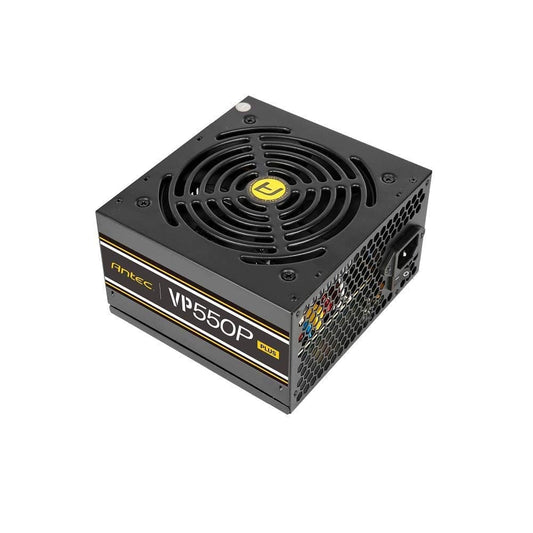

- ANTEC VP550P Plus 550W 80+ White Non Modular ATX Power Supply
Description
Features of ANTEC VP550P Plus
The new generation of Antec Power Supply is crafted for quality, performance and incredible value.This entry-level solution is rated from 500W to 700W, saving energy through its high efficiency of up to 85% efficient and is 80 PLUS® 230V Standard certified.
- Continuous Power - Guaranteed Continuous Power from Antec
- 80 PLUS® 230V Standard Certified - Up to 85% efficient, to reduce your electricity bill
- AQ3 - Antec Quality 3 year warranty
- 120mm Silent Fan
- Thermal Manager - An advanced low voltage fan control for optimal heat & noise management
- CircuitShield™ - Full suite of industrial grade protections: OVP/SCP/OPP/NLO
- Multi PCI-E - 2 PCI-E connectors for multiple GPU support
Delivering up to 85% efficiency,
the VP P PLUS 550W Power Supply series utilizes active PFC, and provides efficiency during max and low loads—living up to the performance standards that we are known for.
3 Year Warranty:
We stand by the quality and safety of the VP_P PLUS Power Supplies, offering a 3-year parts and labor warranty and unlimited access to our incomparable technical support and customer service.
120 mm Silent Fan
The 120 mm Silent Fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of operation.
Features a Thermal Manager, an advanced low voltage fan control for optimal heat & noise management and will allow your PSU to stay at an optimal temperature.
Single 12V Rail Design
VP_P PLUS series is equipped with strong single +12V rail.
The higher-ranking performance with high load capabilities
ensures maximum CPU & GPU compatibility.
Get the best 80 Plus White psu power supply price from us today!
Specifications of ANTEC VP550P Plus
| Model | VP550P PLUS |
| Modular | Non-Modular |
| Dimension (W x L x H) | 140(D)*150(W)*86(H) |
| Warranty | 3 years |
| Input Voltage | 200-240 VAC ±10% |
| Input Current | 5A |
| Input Frequency Range | 50-60Hz |
| PFC | Active PFC (>0.9 typical) |
| Power Good Signal | 100-500ms |
| Efficiency | 85% Typically |
| Protection | OVP/SCP/OPP/NLO |
| Output Capacity | 550W |
| Regulatory | TUV/CB/CE/KC |
| Fan | 120mm Silent Fan |
| Certifications | 80 Plus |
|
Connector
|
1 x MB 24(20 4) Pin |
| 1 x 8(4 4) Pin EPS 12V | |
| 2 x 8(6 2) Pin PCI-E | |
| 7 x SATA | |
| 2 x Molex | |
| 1 x FDD | |
| Net Weight | 1.71 Kgs |
| Gross Weight | 2.10 Kgs |
|
UPC#
|
0-761345-11670-1 VP550P Plus EC |
| 0-761345-11671-8 VP550P Plus GB | |
| 0-761345-11533-9 VP550P Plus AU |
