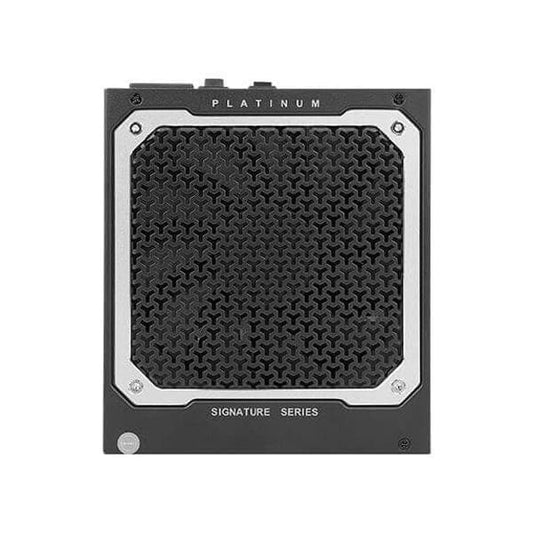

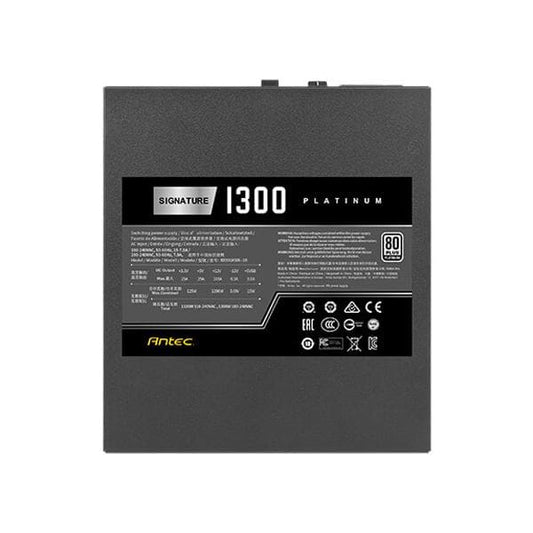

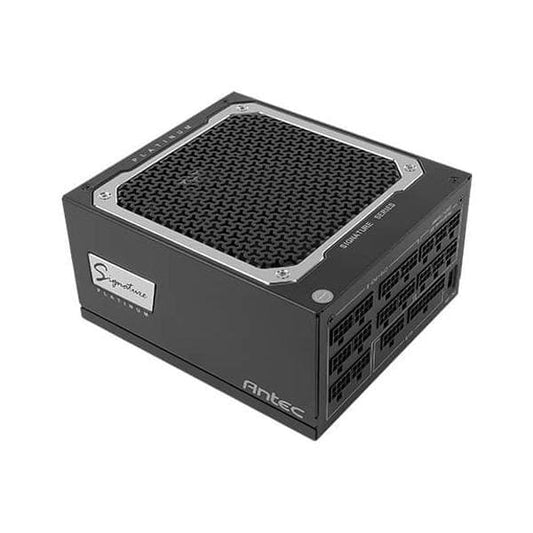

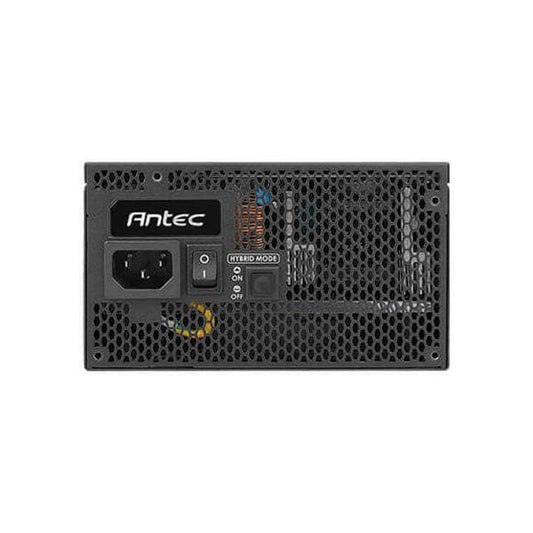

- ANTEC Signature 1300 1300W 80+ Platinum Fully Modular ATX 2.0 Power Supply
Description
Features of ANTEC Signature 1300
Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the ANTEC 1300w Power Supply Series boasts unparalleled stability and 80 PLUS® Platinum-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.
- FDB 135mm Silent Fan
- Zero RPM Mode
- 100% Top-Grade Japanese Capacitors
- Phase Wave Design
- OC Link Feature
- 10-year Warranty
- Full Modular Cable Management
FDB 135mm Silent Fan
Featuring whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability and longevity.
Zero RPM Mode
The Zero RPM fan mode further ensures a longer-lasting and quieter system by using thermal sensors to activate the fan only when you need it.
100% Top-Grade Japanese Capacitors
Achieve unprecedented tight voltage regulation & low ripple
& noise to maximize your system’s performance.
PhaseWavetm Design
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.
OC Link Feature
Allows 2 Signature PSUs to work in tandem to power the most demanding systems.
10-year Warranty
Antec Power Supply pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.

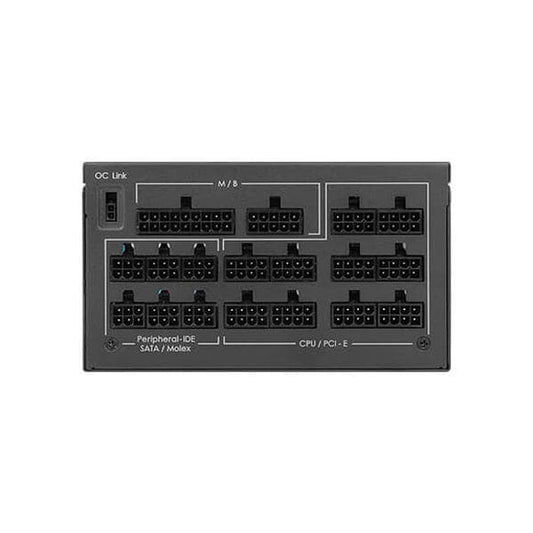

Full Modular Cable Management
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
Get the best 80 Plus Platinum pc power supply price from us today!
Specifications of ANTEC Signature 1300
Model | Signature 1300 Platinum |
Type | ATX |
Modular | Fully |
Dimension (W x L x H) | 150 x 170 x 86mm |
Input Voltage | 100-240 |
Input Current | 15A ~ 7.5A |
Input Frequency Range | 47Hz ~ 63Hz |
PFC |
APFC PFC at half / full load: >0.95 at AC 110v 60Hz(typical) >0.90 at AC 230v 50Hz(typical) |
Power Good Signal | 100 ~ 500mS |
Efficiency |
At 20% / 50% / 100% load AC 115V internal, the power efficiency should be at least 90% / 92% / 89%. |
Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
Output Capacity | 1300W |
Operation Temperature | 0 ~ 40°C |
Regulatory | CB, CE, FCC, BSMI, TUV, cTUVus, 3C, KC, RCM |
Fan | 135 x 135 x 25(mm) FDB Silent Fan |
Certifications | 80 Plus Platinum |
Connector |
1 x MB 24(20+4) Pin 2 x 8(4+4) Pin EPS 12V 12 x 8(6+2) Pin PCI-E 14 x SATA 5 x Molex 1 x FDD |
Warranty | 10 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
