Description

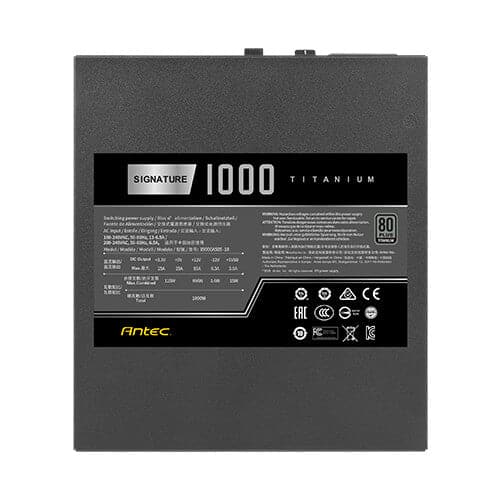

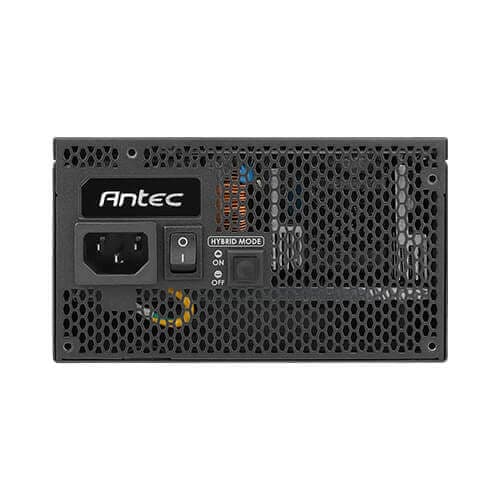

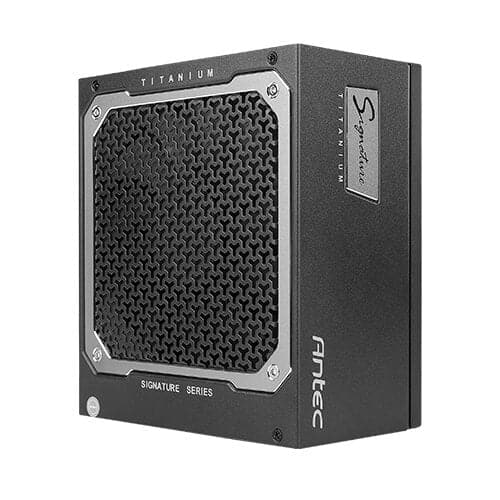

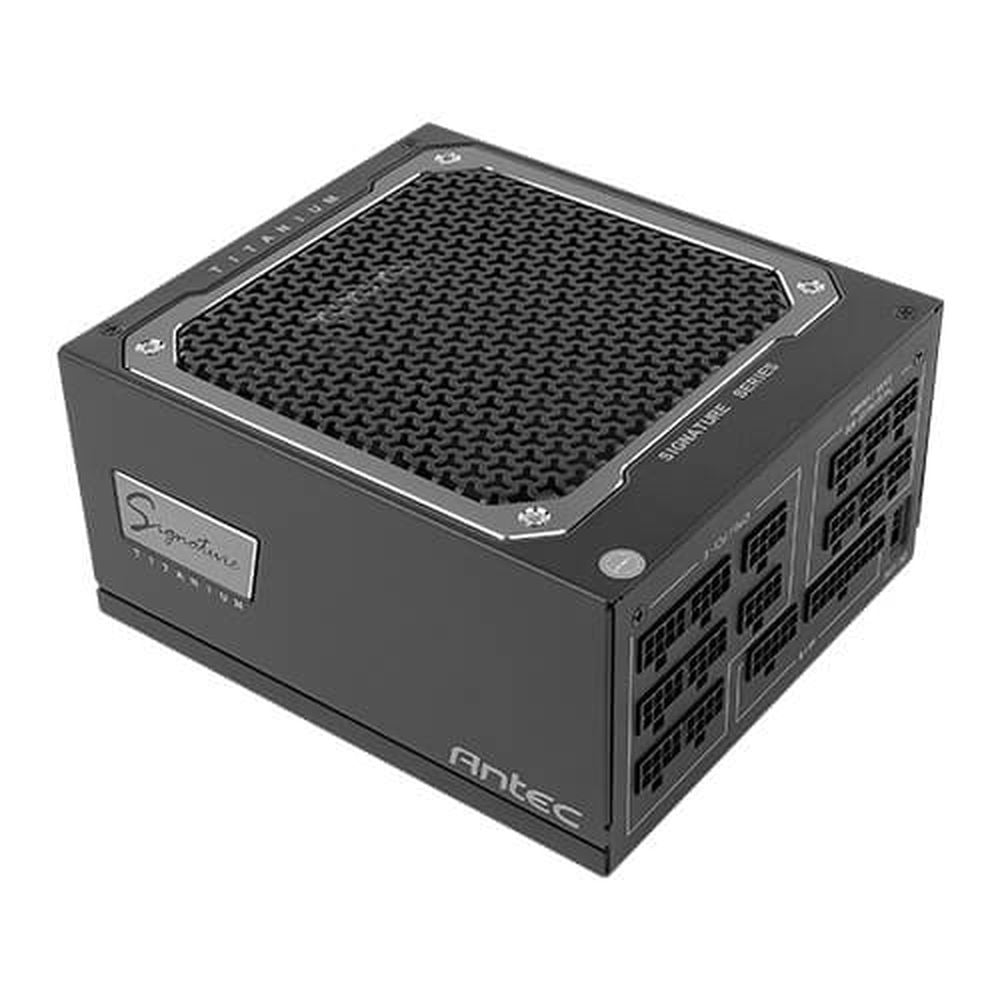

Antec Signature ST1000 GB Titanium Fully Modular PSU (1000 Watt)
Features:
- FDB 135mm Silent Fan
- Zero RPM Mode
- 100% Top-Grade Japanese Capacitors
- PhaseWavetm Design

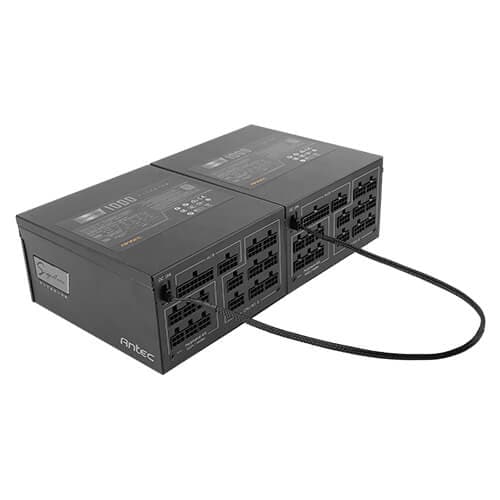

- OC Linktm Feature
- 10-year Warranty
Specifications:
| Model | X9000A505-18 |
| Type | ATX |
| Modular | Fully |
| Dimension (W x L x H) | 150 x 170 x 86mm |
| Warranty | 10 years |
| Input Voltage | 100-240 |
| Input Current | 13A ~ 6.5A |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC |
APFC PFC at half / full load: >0.95 at AC 110v 60Hz(typical) >0.90 at AC 230v 50Hz(typical) |
| Power Good Signal | 100 ~ 500mS |
| Efficiency |
At 10% / 20% / 50% / 100% load AC 115V internal, the power efficiency should be at least 90% / 92% / 94% / 90%. |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 1000W |
| Operation Temperature | 0 ~ 40°C |
| Regulatory |
cTUVus / TUV / CB FCC / BSMI / 3C / KC / RCM |
| Fan | 135 x 135 x 25(mm) FDB Silent Fan |
| Certifications | 80 Plus Titanium |
|
Connector
|
1 x MB 24(20 + 4) Pin |
| 2 x 8(4 + 4) Pin EPS 12V | |
| 8 x 8(6 + 2) Pin PCI-E | |
| 16 x SATA | |
| 5 x Molex | |
| 1 x FDD | |
| UPC# |
0-761345-11710-4 ST1000 0-761345-11711-1 ST1000 AU 0-761345-11712-8 ST1000 EC 0-761345-11713-5 ST1000 GB 0-761345-11714-2 ST1000 JP |
| Net Weight | 2.11 Kgs |
| Gross Weight | 3.94 Kgs |
