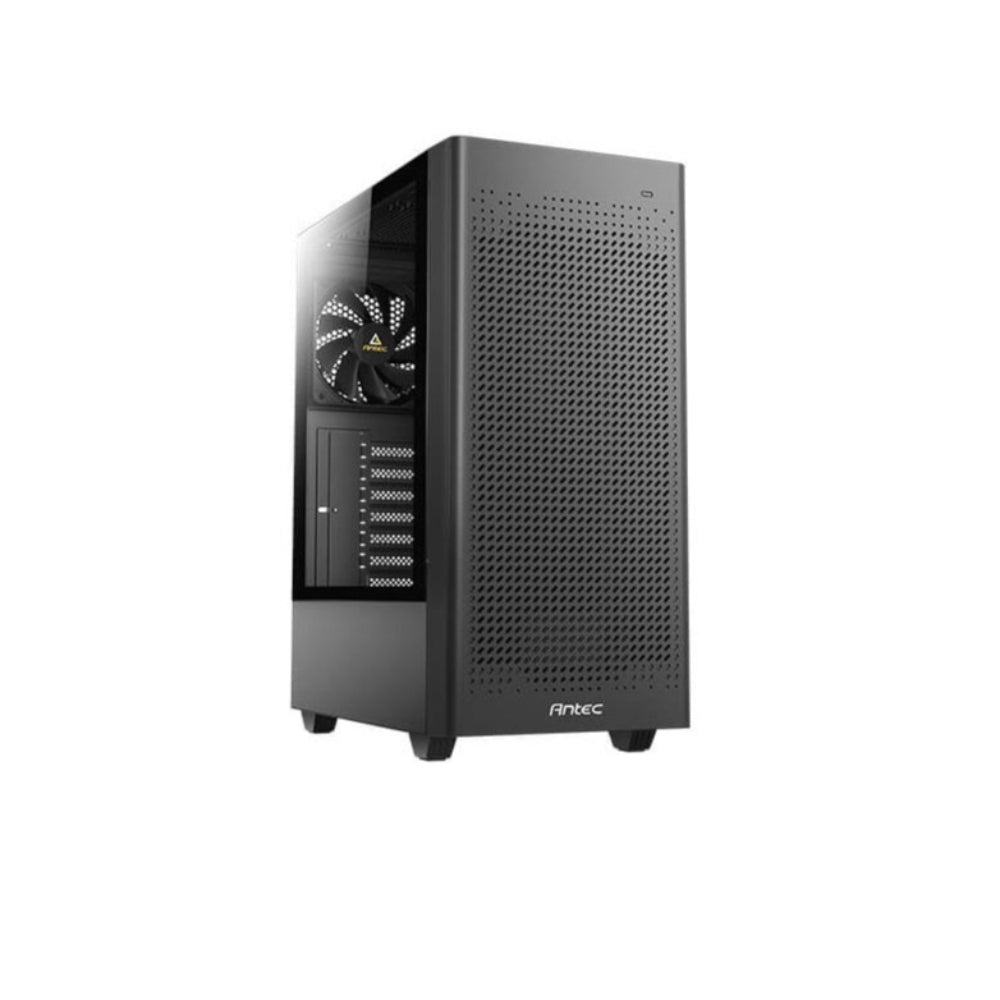

- ANTEC NX 501 ATX Mid Tower Cabinet ( Black )
Description
Feature of ANTEC NX 501 ATX Mid Tower Cabinet
Unique Design & Powerful Heat Dissipation
The NX501 features a unique design and excellent cooling performance. The half-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 4 x 120mm fans can be installed simultaneously
Sleek Design with Massive Air Intake
The sleek and elegant exterior design provides ample airflow to your system for maximum cooling while ensuring minimal dust intake.
Powerful Cooling
Supports a 360mm (Length ≤ 397mm) Radiator at the front
Powerful Fan Compatibility
Supports 3 x 120mm fans at the front.
High-Airflow Mesh Front Panel
Massive air intake at the front provides ample airflow.
Pre-installed 1 x 120mm fan
I/O Panel
Power, Reset, USB3.0 x 1, USB2.0 x 2 ,
MIC x 1, HD-AUDIO x 1
MIC x 1, HD-AUDIO x 1
Neat Build within Reach
20mm space for cable management
ensures your PC build looks neat.
ensures your PC build looks neat.
Tempered Glass Side Panel
Showcase your personalized hardware and custom water-cooling system.
- Motherboard support ATX, Micro-ATX, ITX
- CPU cooler max height≤ 155 mm
- GPU max length≤ 300 mm (with front fan) ≤ 325 mm(without front fan)
- 2.5″2
-
3.5”/2.5” Drive Mounts2/3 (with HDD cage)
2/2 (without HDD cage)≤ 210 mm - Power Supply max length≤ 165 mm (with HDD) ≤ 325 mm (without HDD)
Unlimited Performance
Max. GPU Length : ≤ 325mm (Fans are installed at the exterior)
Removable HDD Drive Cage
The HDD drive cage is removable to increase PSU installation space. With the drive cage installed, the PSU compartment can accommodate PSUs up to 165mm in length. With the drive cage removed, the PSU compartment can accommodate PSUs up to 325mm in length.
Dimensions
381 x 200 x 450 mm (DWH)
Specifications of ANTEC NX 501 ATX Mid Tower Cabinet
| Dimensions | 381 x 200 x 450 mm (DWH) |
| Form Factor | Mid Tower |
| Materials | Steel + Plastic |
| Mainboard Support | ATX, Micro-ATX, ITX |
| Front Access & Controls | Power, Reset, USB 3.0 x 1, USB 2.0 x 2, MIC x 1, HD-AUDIO x 1 |
| Side Panel | Tempered Glass Side Panel |
| Drive Bays | 3.5" / 2.5": 2/3 (with HDD cage), 2/2 (without HDD cage); 2.5": 2 |
| Expansion Slots | 7 |
| Fan Support | Front: 3 x 120mm / 2 x 140mm; Rear: 1 x 120mm |
| Included Fan(s) | 1 x 120mm fan in rear |
| Radiator Support | Front: 120 / 140 / 240 / 280 / 360mm (Length ≤397mm); Rear: 120mm |
| Clearance | Max GPU Length: ≤ 300mm (with front fan) / ≤ 325mm (without front fan); Max CPU Cooler Height: ≤ 155mm; Max PSU Length: ≤ 165mm (with HDD) / ≤ 325mm (without HDD) |
| Dust Filter | Top / Bottom |
| Net Weight | 3.75 Kgs |
| Gross Weight | 4.6 Kgs |
