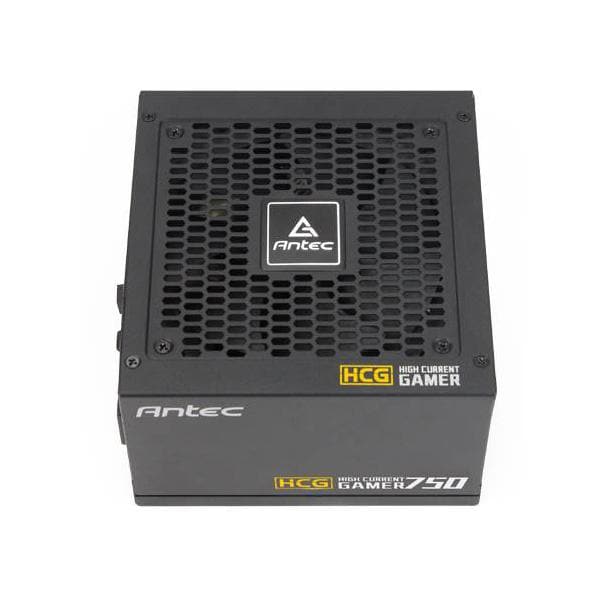

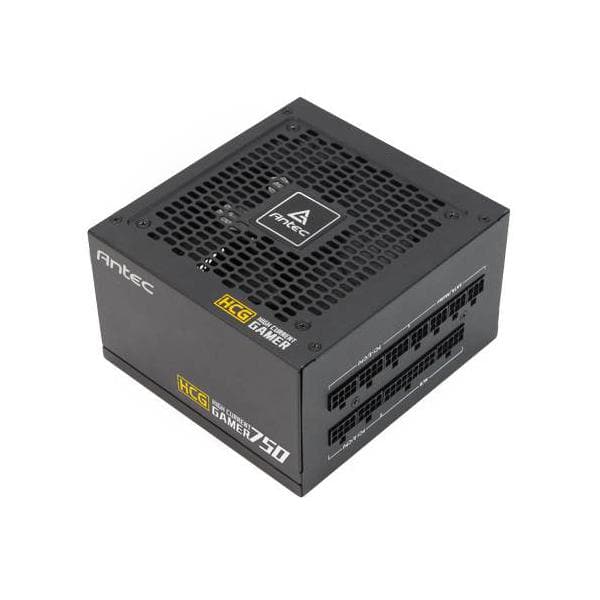

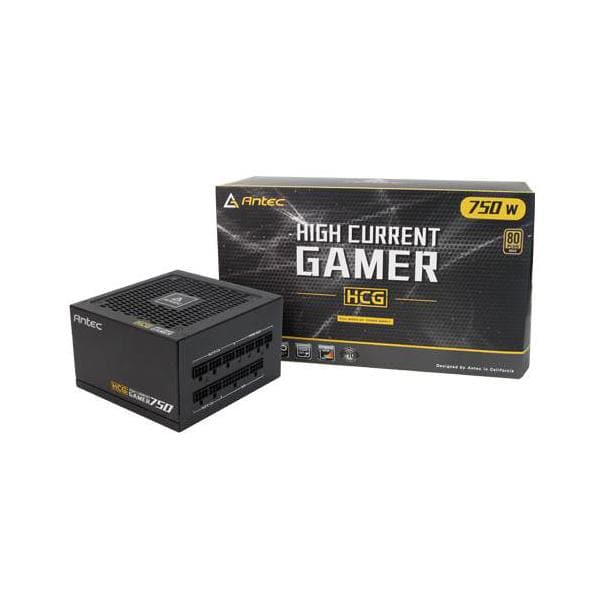

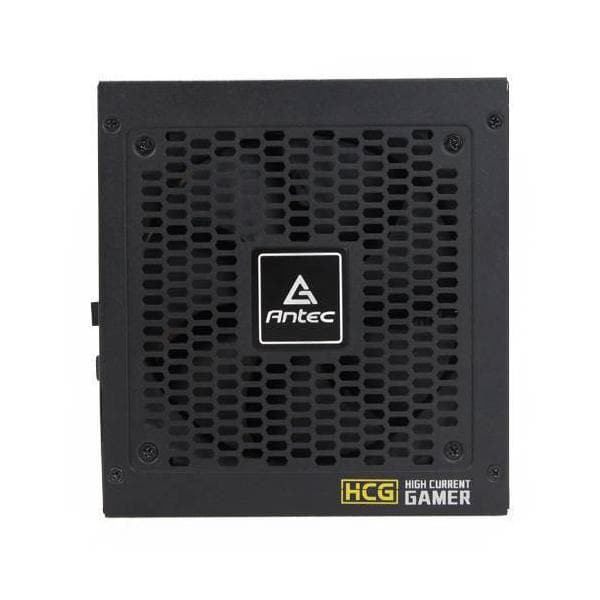

- ANTEC HCG750 750W 80+ Gold Fully Modular ATX 2.0 Power Supply
Description
Features of ANTEC HCG750
The latest generation of Antec Power Supply offer unparalleled stability and 80 PLUS® Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC. Advanced thermal control with the Zero RPM mode enables optimal balance between silence and cooling, and a quiet 120 mm fluid dynamic bearing fan completes the package. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment.
If loads of power, high-level engineering and extreme efficiency are what you’re after, the High Current Gamer Gold series is the winner.
High-performance Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.
PhaseWave™ Design - synchronous rectification based on a DC-DC topology.
A server-class full-bridge LLC design.
- Guaranteed of 750W Power Supply and Continuous Power from Antec
- 100% Modular Improves airflow and reduces clutter
- 80 PLUS® GOLD certified－Up to 92% efficient, to reduce your electricity bill
- Phase Wave™ Design－A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
- Antec Quality 10-year warranty and lifetime global 24/7 support
- 120mm FDB Silence－Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
- Zero RPM Manager－An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99%+12V - Output for maximum CPU & GPU support
- CircuitShield™－Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
- 28(18+10) pin MBU socket - For possible future MBU connectors
- ATX12V 2.4－Engineered according to the newest PSU guideline and compatible with the latest CPU generation
120mm
FDB FAN
The whisper-quiet, fluid-dynamic bearing fan provides high airflow with the durability and longevity that is a signature of Antec quality.
Get the best 80 Plus Gold pc power supply price from us today!
Specifications of ANTEC HCG750
| Model | HCG750 Gold |
| Type | ATX 12V 2.4 |
| Modular | Fully Modular |
| Dimension (W x L x H) | 140(L)*150(W)*86(H) mm |
| Input Voltage | 100-240 VAC ±10% |
| Input Current | 10A-5A |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC (>0.9 typical) |
| Power Good Signal | 100-500ms |
| Efficiency | 92% Typically |
| Protection | OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO |
| Output Capacity | 750W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC |
| Fan | 120mm FDB Fan |
| Certifications | 80 Plus Gold |
| Connector |
1 x MB 24(20+4) Pin 2 x 8(4+4) Pin EPS 12V 4 x 8(6+2) Pin PCI-E 8 x SATA 3 x Molex 1 x FDD |
| Net Weight | 2.11Kg |
| Gross Weight | 3.42Kg |
| Warranty | 10 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
