- ANTEC HCG750 750W 80 + Bronze Fully Modular ATX 2.0 Power Supply
Description
Features of ANTEC HCG750
The latest generation of ANTEC HCG Bronze power supplies delivers unparalleled stability and 80 PLUS® Bronze-certified efficiency, with 100% Japanese capacitors and fully-modular cable management and a quiet 135 mm Double Ball Bearing fan completes the package.
The CircuitShield™ suite of industrial -grade protections ensures that the power delivered to your system is safe and reliable in any environment.
- Dimension: 165(L)*150(W)*86(H)
- Guaranteed 750W Continuous Power from Antec

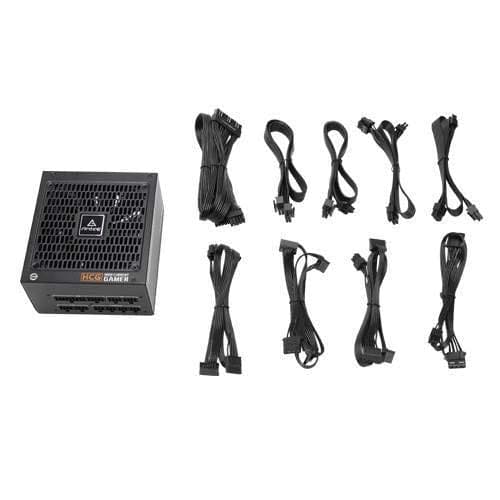

- 100% Modular-Improves airflow and reduces clutter
- DC-DC-Based on a DC-DC topology
- 80 PLUS® Bronze certified-Up to 89% efficient, to reduce your electricity bill
- Antec Quality 5-year warranty and lifetime global 24/7 support
- 135mm DBB Fan-Whisper-quiet high-quality double ball bearing fan with long lifetime
- 99% 12V - Output for maximum CPU &s; GPU support
- CircuitShield™-Full suite of industrial grade protections: OCP, OVP, SCP, OPP, OTP, SIP, NLO
- 100% Japanese capacitors achieve unprecedented tight voltage regulation &s; low ripple &s; noise to maximize your system’s performance
- 28(18 10) pin MBU socket - For possible future MBU connectors
- ATX12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation

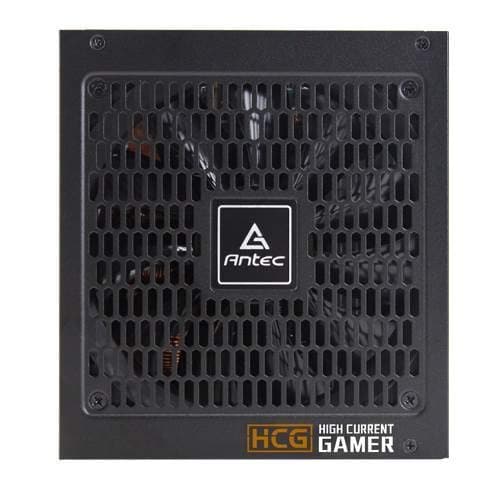

135mm
DBB FAN
The 135 mm Double Ball Bearing (DBB) Fan is ideal for quiet computing and is designed for longer life,
guaranteeing hours of operation.
Specifications of ANTEC HCG750
Model | HCG750 Bronze |
Type | ATX 12V 2.4 |
Modular | Fully Modular |
Dimension (W x L x H) | 165(L)*150(W)*86(H) |
Warranty | 5 years |
Input Voltage | 100-240 VAC ±10% |
Input Current | 12A-6A |
Input Frequency Range | 50Hz-60Hz |
PFC | Active PFC (>0.9 typical) |
Power Good Signal | 100-500ms |
Efficiency | 89% Typically |
Protection | OCP/OVP/SCP/OPP/OTP/SIP/NLO |
Output Capacity | 750W |
Operation Temperature | 0~40°C |
Regulatory | cTUVus/TUV/CB/RCM/CE/EAC/FCC |
Fan | 135mm DBB Fan |
Certifications | 80 Plus Bronze |

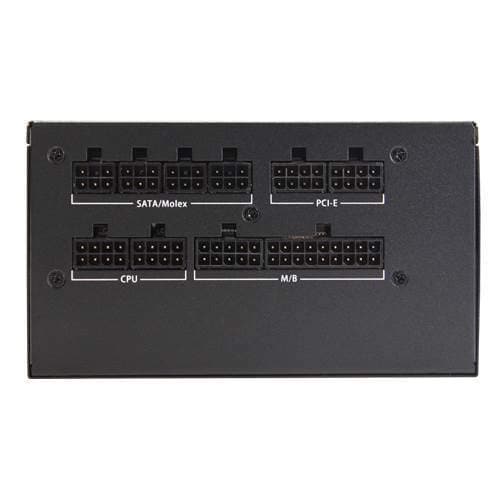

Connector
|
1 x MB 24(20 4) Pin |
2 x 8(4 4) Pin EPS 12V | |
4 x 8(6 2) Pin PCI-E | |
9 x SATA | |
4 x Molex | |
1 x FDD | |
Net Weight | 1.62 kgs |
Gross Weight | 2.78 kgs |
UPC#
|
0-761345-11540-7 HCG750 Bronze |
0-761345-11542-1 HCG750 Bronze AU | |
0-761345-11541-4 HCG750 Bronze CN | |
0-761345-11543-8 HCG750 Bronze EC | |
0-761345-11544-5 HCG750 Bronze GB | |
0-761345-11545-2 HCG750 Bronze JP |
