- ANTEC HCG 1000W Extreme 80+ Gold Fully Modular ATX 2.0 Power Supply
Description
Features of ANTEC HCG 1000W Extreme
Engineered to meet the power demands of high-end systems, the ANTEC HCG Extreme power supply series boasts unparalleled stability and 80 PLUS® Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC.
- Guaranteed 1000W Power Supply of Continuous Power from Antec
- 100% Modular－Improves airflow and reduces clutter
- 80 PLUS® GOLD certified－Up to 92% efficient, to reduce your electricity bill
- PhaseWave™ Design－A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
- 16 pin Socket－Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
- Antec Quality 10-year warranty and lifetime global 24/7 support
- 135mm FDB Silence－Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
- Zero RPM Manager－An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99%+12V - Output for maximum CPU & GPU support
- CircuitShield™－Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
- 28(18+10) pin MBU socket - For possible future MBU connectors
- ATX12V 2.4－Engineered according to the newest PSU guideline and compatible with the latest CPU generation
- HCG Extreme delivers non-stop industrial class performance for high-end computer systems at up to 50°C ambient.
100% Japanese Capacitors:
Using 100% high-performance Japanese capacitors, the HCG Extreme Gold series ensures the tightest DC stability and regulation, for reliability that you and your system can count on.
PhaseWave™ Design:
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.
Server-grade 50°C Temperature Rating:
HCG Extreme delivers non-stop industrial class performance for high-end computer systems at up to 50°C ambient.
135mm
FDB FAN
Antec Power Supply 135 mm fluid-dynamic bearing(FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.
PowerCache™
An extra capacitor located at the ends of 12V cables store power, preventing brownouts from sudden demand spikes.
Get the best 80 Plus Gold pc power supply price from us today!
Specifications of ANTEC HCG 1000W Extreme
| Model | HCG1000 Extreme |
| Type | ATX 12V 2.4 |
| Modular | Fully Modular |
| Dimension (W x L x H) | 160(L) x 150(W) x 86(H) |
| Input Voltage | 100-240 VAC ±10% |
| Input Current | 13A-6.5A |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC (>0.9 typical) |
| Power Good Signal | 100-500ms |
| Efficiency | 92% Typically |
| Protection | OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO |
| Output Capacity | 1000W |
| Operation Temperature | 0~50°C |
| Regulatory | cTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC/KR |
| Fan | 135mm FDB Fan |
| Certifications | 80 Plus Gold |
|

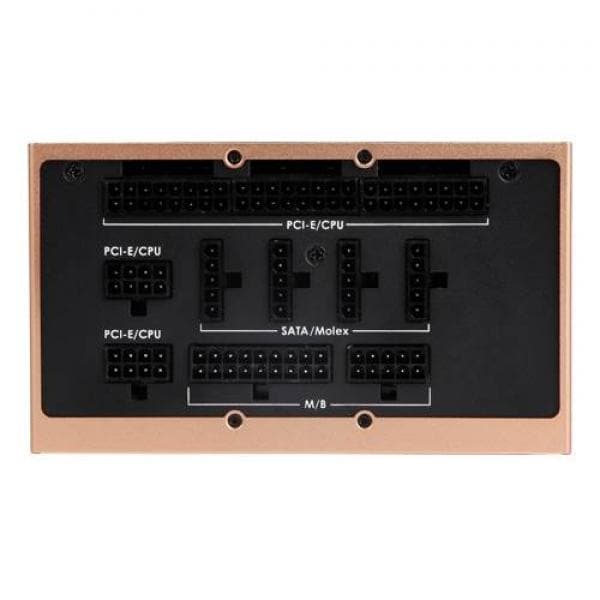

Connector
|
1 x MB 24(20 4) Pin |
| 2 x 8(4 4) Pin EPS 12V | |
| 8 x 8(6 2) Pin PCI-E | |
| 12 x SATA | |
| 6 x Molex | |
| 1 x FDD | |
| Net Weight | 1.66 Kgs |
| Gross Weight | 3.40 Kgs |
| Warranty | 10 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
