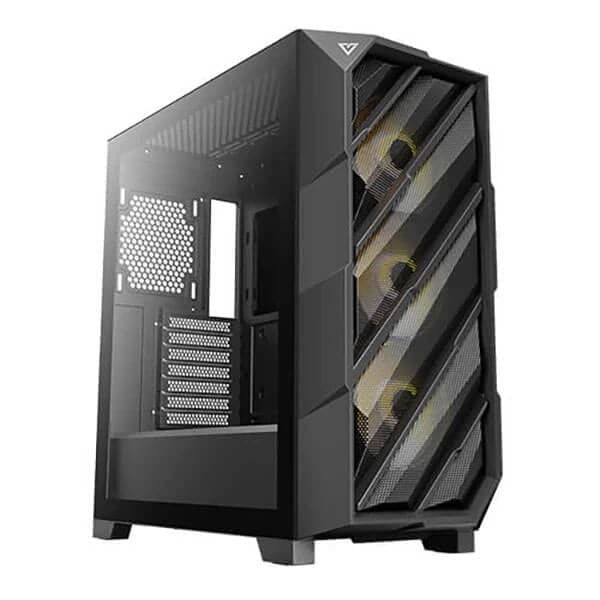

- ANTEC DP503 Mesh ARGB EATX Mid Tower Cabinet (Black)
Description
Features of ANTEC DP503 Mesh ARGB EATX Mid Tower Cabinet (Black)
UNLIMITED CONFIGURATION OPTIONS
Maximum Expansion Potential
The ANTEC DP503 gaming case features an extensive interior and powerful compatibility. 2 x 360mm can be installed in the front & on the top simultaneously.

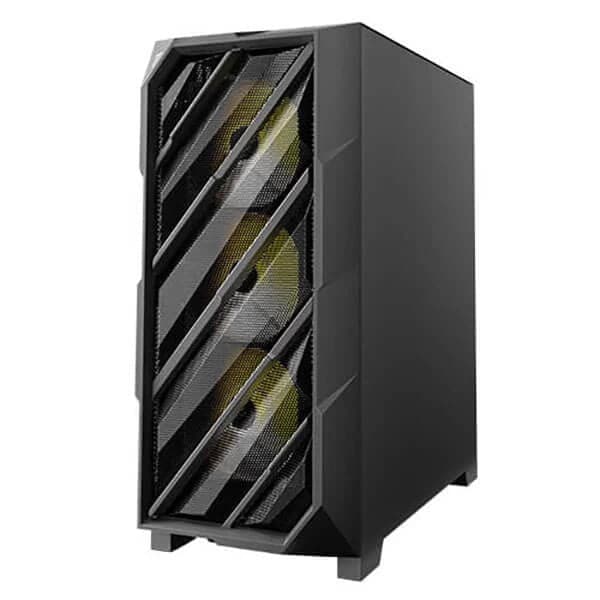

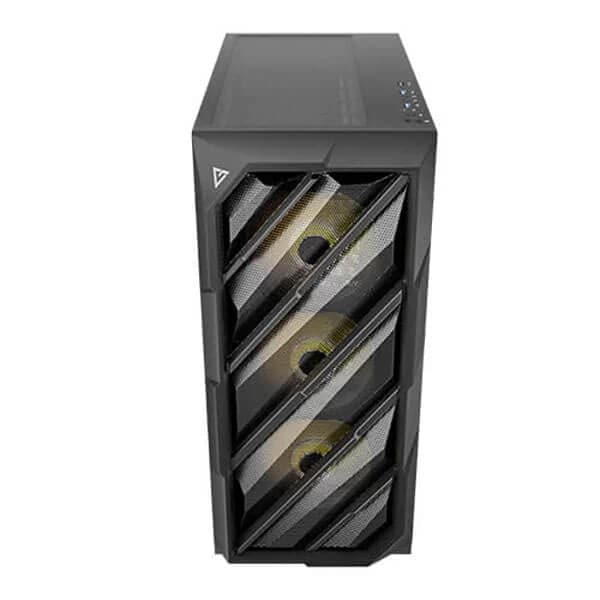

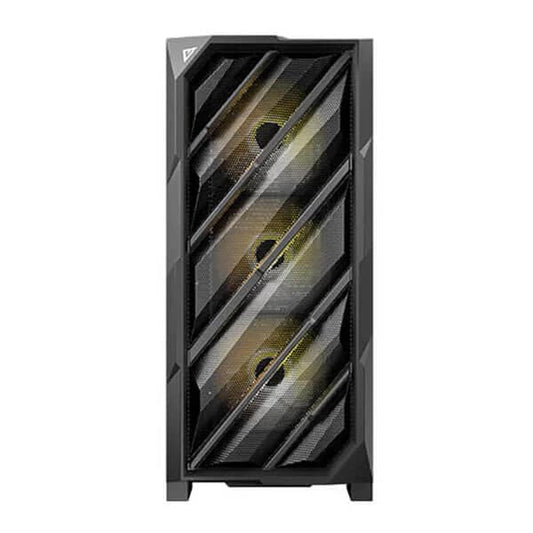

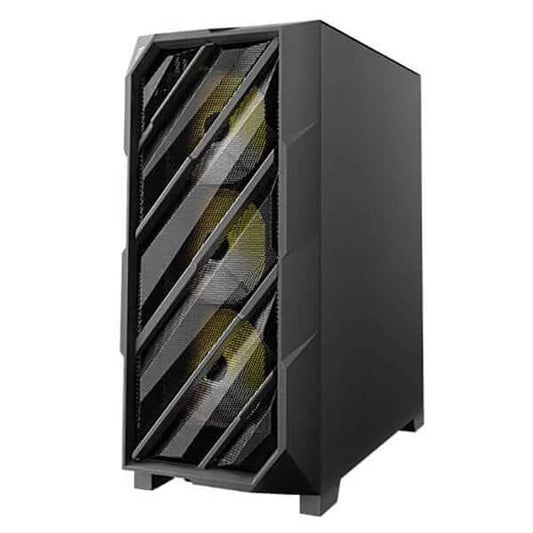

HIGH-AIRFLOW Mesh Front Panel
Comes with a mesh front panel, along with ventilation on the top, at the bottom and in the PSU chamber, which will accelerate the airflow circulation and enhance the cooling performance.
- Massive Mesh Front Panel with Slanted Bar Design.
- The Magnetic Dust Filter on the Top.
- Pull-Out Dust Filter at the Bottom.
Three addressable RGB fans Included
Pre-installed at the front for efficient airflow and customizable RGB lighting.
ARGB & PWM CONTROL HUB
The control hub supports up to 6 fans and 6 LED device. Connect it to your motherboard for 16.8 million possible colors.

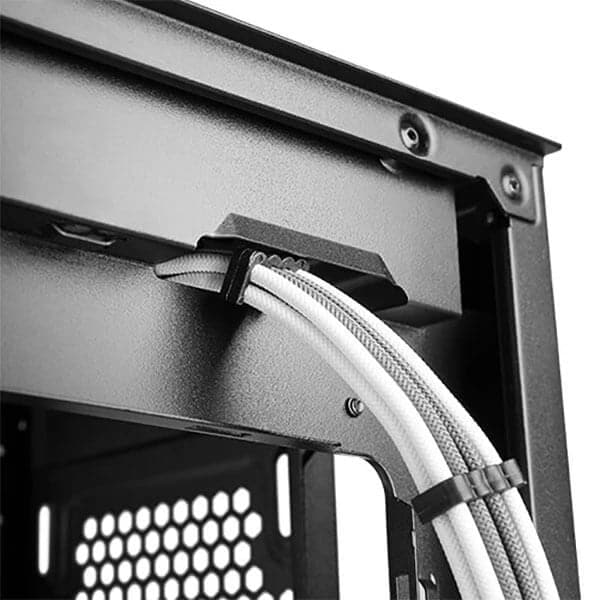

Building a clean PC is Within easy Reach

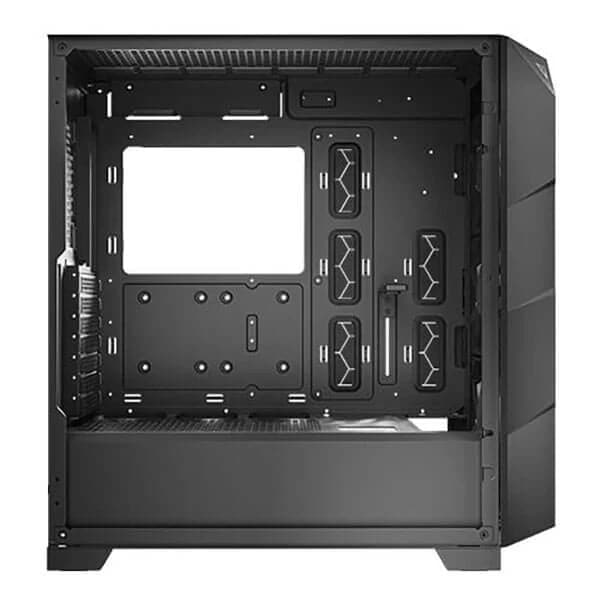

Well-designed cable routing makes wiring easy and simple, with a spacious 23mm of space for cables.

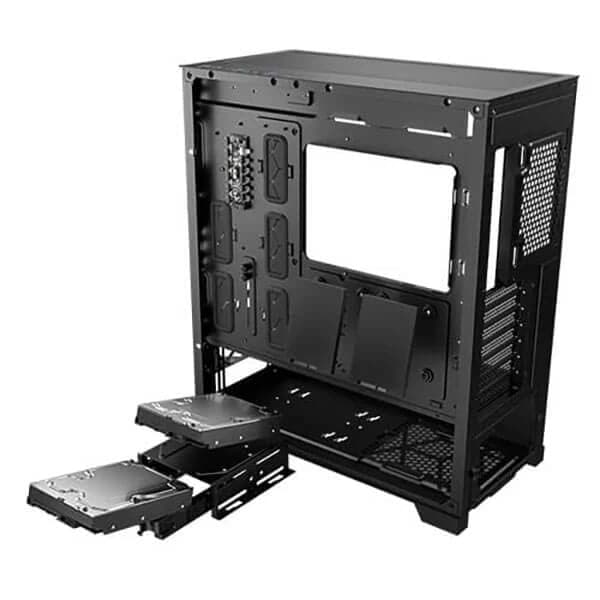

Easy installation Fits Up To 4 Drive Devices
- Snap-in 2.5" drive device for easy mounting.
- Removable hard drive cage.
- Tool-free 3.5" drive tray
9 fans simultaneously
3 x 120mm ARGB fans and a 360 mm radiator can be installed simultaneously in the front interior for better cooling performance.
Specifications of ANTEC DP503 Mesh ARGB EATX Mid Tower Cabinet (Black)
Model | DP503 |
Color | Black |
Dimensions | 483 x 220 x 492 mm (DWH) |
Form Factor | Mid Tower |
Materials | Steel, Plastic |
Mainboard Support | E-ATX, ATX, Micro-ATX, ITX |

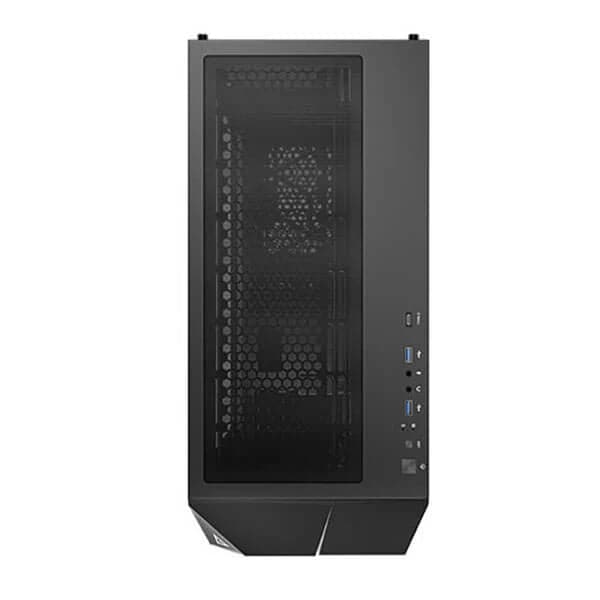

Front Access & Controls | Power, LED control button, USB 3.0 x 2, TYPE-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1 |
Side Panel | 4mm Tempered Glass |
Drive Bays | |
Expansion Slots | 7 |
3.5" / 2.5" | 2 / 2 |
2.5" | 2 |
Fan | |
Front | 120mm x 3 / 140mm x 3 / 185mm x 2 |
Top | 120mm x 3 / 140mm x 2 |
Power Supply Shroud | 120mm x 2 |
Rear | 120mm x 1 |
Included Fan(s) | 120mm ARGB fans in front x 3 |
Radiator Support | |
Front | 120 / 140 / 240 / 280 / 360mm |
Top | 120 / 140 / 240 / 280 / 360mm |
Rear | 120mm |
Clearance | |
Max GPU Length | ≤ 375mm |
Max CPU Cooler Height | ≤ 170mm |
Max PSU Length |
≤ 205mm(with HDD) ≤ 410mm(without HDD) |
Cable Routing Space | ≤ 23mm |
Accessories | |
Fan & LED Control Hub | Yes |
GPU Holder | Yes |
Cable Routing Grommets | Yes, 8 pcs |
Fixed Cable Ties | Yes, 3 pcs |
Captive Thumb Screws | Yes (Side panels, GPU Holder, PSU Brace) |
Miscellaneous | |
Dust Filter | Top / Bottom |
Net Weight | 7.88kg |
Gross Weight | 9.11kg |
Warranty | 2 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
