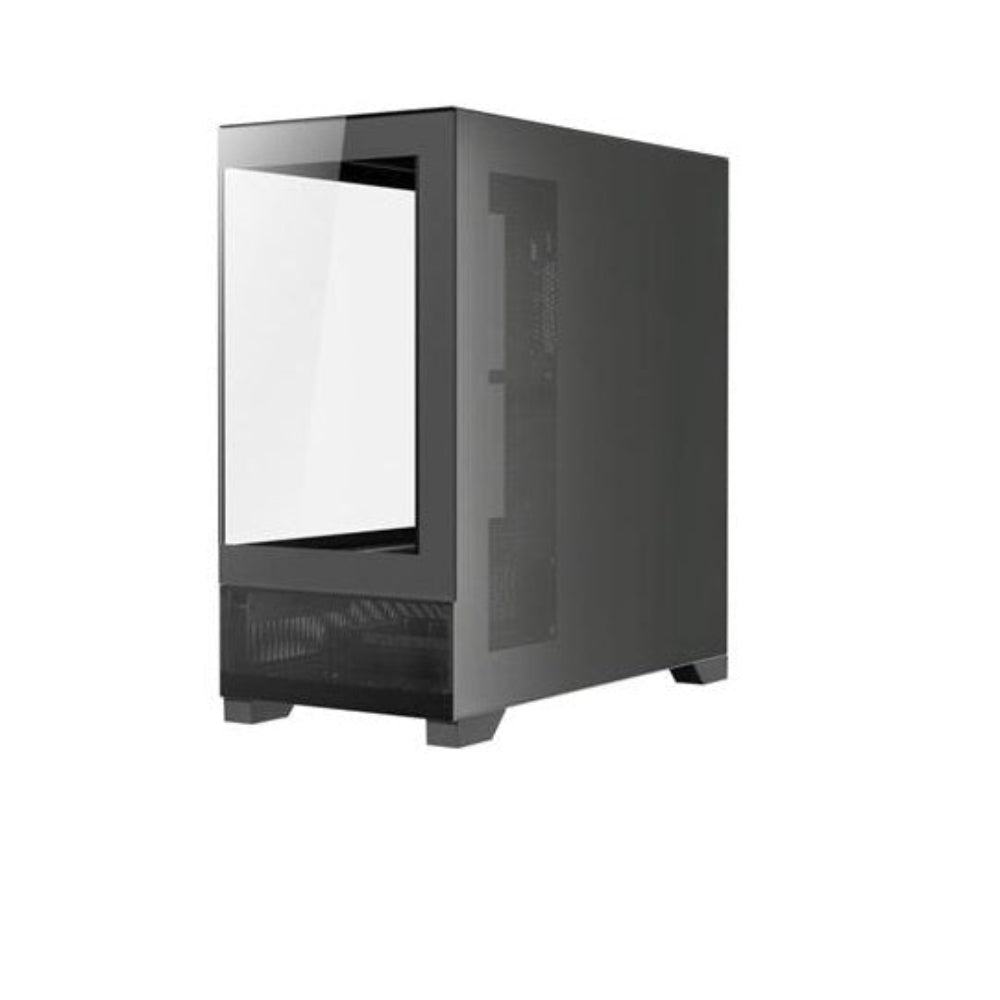

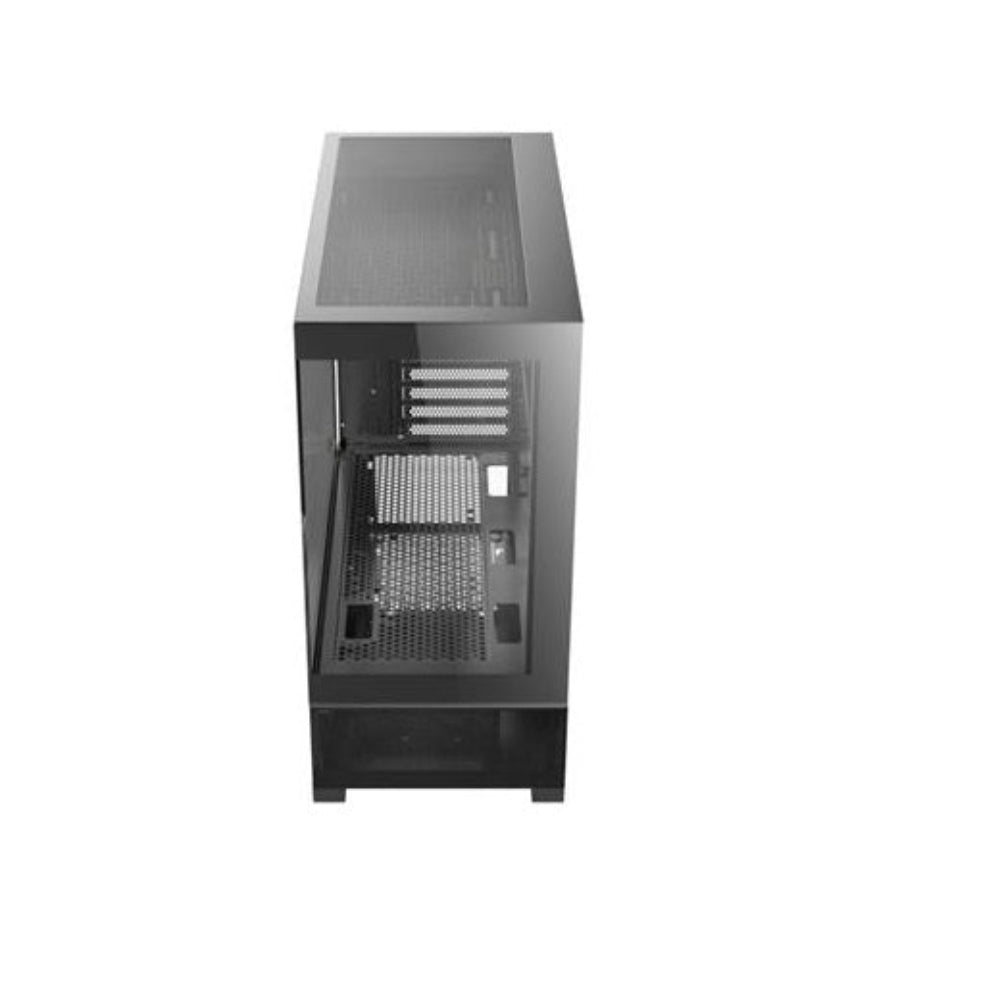

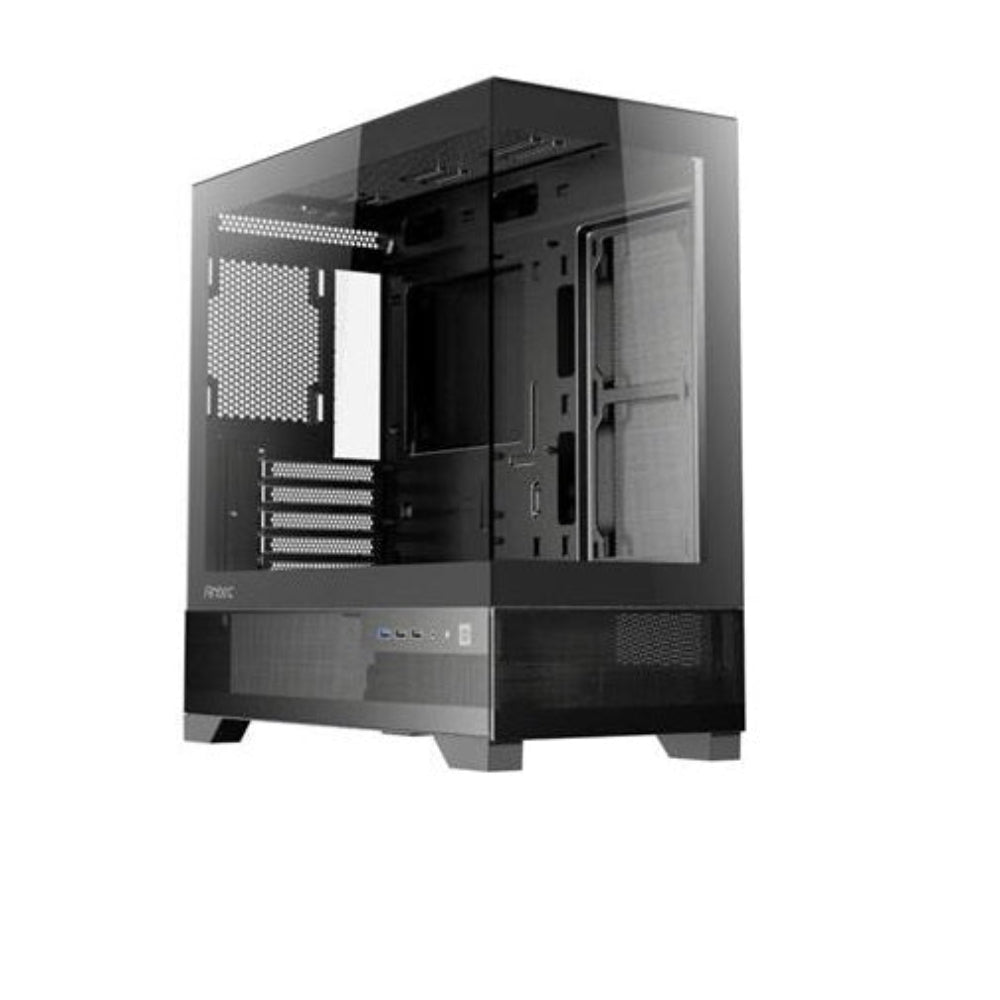

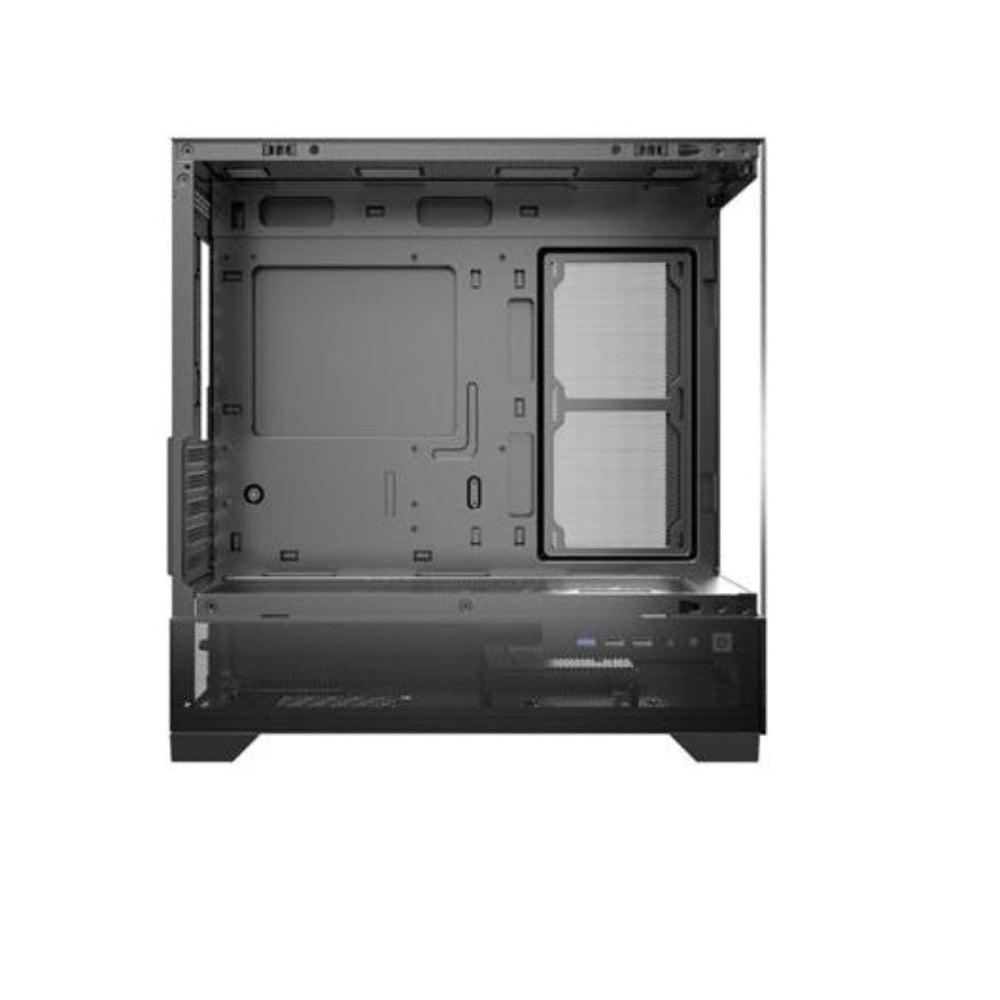

- ANTEC CX500M Basic ATX Mini Tower Cabinet ( Black )
Description
Features of ANTEC CX500M Basic ATX Mini Tower Cabinet ( Black )
Introducing the Antec CX500M Basic Gaming Chassis, which is designed for gamers who want both style and performance. Its panoramic design provides a sleek, transparent appearance that highlights your hardware beautifully. The tool-free glass side and front panels feature a clip design for easy and safe installation, while the bottom mesh exterior improves cooling efficiency and prevents heat buildup. The CX500M Basic allows for up to 9 fans and a 360mm water cooling radiator on top, ensuring rapid heat dissipation and optimal performance.
The CX500M Basic has a 5-slot PCIe design that improves graphics card compatibility and provides more cooling space, reducing the risk of overheating. Additional features include a removable hard drive cage, magnetic top and bottom dust filters for clean air intake, and a Type-C 3.2 Gen 2 port for fast data transfer. It includes two 120mm reverse blade fans on the sides and one 120mm fan in the back, which are pre-connected for easy setup. Enhance your gaming experience with the Antec CX500M Basic Gaming Chassis.
- Panoramic 270° design for a transparent and sleek look.
- Tool-free glass side and front panels with a clip design for easy and safe installation.
- Vertical airflow supports up to 9 fans, speeding up heat dissipation.
- Includes a Type-C 3.2 Gen 2 port for high-speed data transfer.
- Top and Bottom Magnetic Dust Filters
Specifications of ANTEC CX500M Basic ATX Mini Tower Cabinet ( Black )
Brand | Antec |
Series | CX Series |
Model | CX500M Basic (0-761345-10112-7) |
Physical Details | |
Colour | Black |
Materials | Aluminium |
Steel | |
Tempered Glass | |
Side Panel | 4mm Tempered Glass (front, side), partial mesh (right side) |
Front I/O | 1x USB 5Gbps Type-A Port (Front Panel) |
2x USB 2.0 Type-A Ports (Front Panel) | |
1x 3.5mm Combination Audio Jack (Front Panel) | |
Motherboard Support | Micro-ATX, Mini-ITX |
Expansion Slots | 5x Vertical PCI Slots |
Drive Bays | 1x 2.5″/3.5″ Combo Drive Bay (Removable) |
1x 3.5″ Drive Bay (Removable) | |
1x 2.5″ Drive Bay (Behind motherboard tray) | |
PSU Support | ATX |
Dimensions | 436 x 446 x 210mm (D x H x W) |
Weight | 5.9kg |
Pre-Installed Fans | |
Side | N/A |
Bottom | N/A |
Rear | N/A |
Fan Support | |
Top | 3x 120mm or 2x 140mm fans |
Side | 2x 120mm fans |
PSU Shroud | 3x 120mm fans |
Rear | 1x 120mm fan |
Radiator Support | |
Top | 120, 140, 240, 280, 360mm support |
Side | N/A |
PSU Shroud | N/A |
Rear | N/A |
Clearance | |
Motherboard Tray Width | N/A |
CPU Cooler Height Limitation | Up to 165mm |
GPU Length Limitation | Up to 415mm |
PSU Length Limitation | Up to 210mm with HDD cage |
Up to 270mm without HDD cage | |
Cable Management | Yes, 23mm depth behind motherboard tray |
General | |
Dust Filters | Yes, top & bottom removable |
Chassis Lighting | N/A |
Warranty Information | |
Warranty | 1 Year Warranty |
