- ANT VALUE H610MAD4-N DDR4 Intel Motherboard
Description
Features of ANT VALUE H610MAD4-N DDR4 Intel Motherboard
Ant Value H610MAD4-N motherboard is designed to support LGA 1700 socket-based Intel CPUs and supports for DDR4 memory modules rated at speeds of up to 3200MHz
The Ant Value H610MAD4-N motherboard is your gateway to seamless and high-performance computing. This motherboard is specifically engineered to support the latest LGA 1700 socket-based Intel CPUs, ensuring you have the power you need for all your computing tasks.With support for DDR4 memory rated at up to a blazing 3200MHz and a maximum capacity of 64GB, you can count on lightning-fast data access and efficient multitasking. What sets the H610MAD4-N apart is its M.2 PCIe Gen3.0x4 slot, which opens the door to lightning-fast storage with NVMe and SATA SSD support
Whether you're a gamer, content creator, or a professional seeking reliable and powerful computing, the Ant Value H610MAD4-N motherboard is your solution for a smoother, more responsive, and feature-rich system. Elevate your computing experience with this motherboard's exceptional performance and versatility.
LGA 1700 CPU Support:
The Ant Value H610MAD4-N motherboard is designed to support LGA 1700 socket-based Intel CPUs. This ensures compatibility with the latest generation of Intel processors, enabling you to build a powerful and up-to-date system.
DDR4 Memory Support:
This motherboard offers support for DDR4 memory modules rated at speeds of up to 3200MHz. With a total memory capacity of up to 64GB, you can enjoy fast and efficient multitasking, smooth performance in applications, and seamless gaming experiences.
High-Speed Storage:
The motherboard features an M.2 PCIe Gen3.0x4 slot, which is compatible with NVMe and SATA SSDs. This allows for lightning-fast data transfer speeds, quick boot times, and reduced loading times for your operating system and applications, enhancing overall system responsiveness.
Expansion and Connectivity:
The Ant Value H610MAD4-N motherboard comes equipped with multiple expansion slots and ports, ensuring versatility in your system configuration. It provides options for connecting various peripherals, such as graphics cards, additional storage devices, and more, to meet your specific needs.
Reliable and Cost-Effective:
As part of the "Value" series, this motherboard is designed to offer a balance between performance and affordability. It provides a solid foundation for a budget-friendly build without compromising on essential features, making it an ideal choice for those looking for reliable performance within a reasonable budget.
Specification of ANT VALUE H610MAD4-N DDR4 Intel Motherboard
Model | H610MAD4 |
Processor Support | Intel Socket 1700 Support intel 12/13th core i3/i5/i7/i9 Pentium/ Celeron Processors |
Chipset | Intel H610 |
Memory Support | 2xDDR4 UDIMM Slot 3200MHz,Up to 64GB |
LAN | 1x RTL8111H 10/100/1000 Mbps Ethernet Support Wake On LAN |
Audio | 1x Realtek ALC897 high fidelity audio controller |
Storage | 3 x SATA 3.0 Port 6Gb/s 1 X M.2 SSD Support 2242/2280 NVMe/SATA SSD |
USB | 2*USB 3.2 GEN2 Port 2*USB 3.2 GEN1 Port 5*USB 2.0 Port |

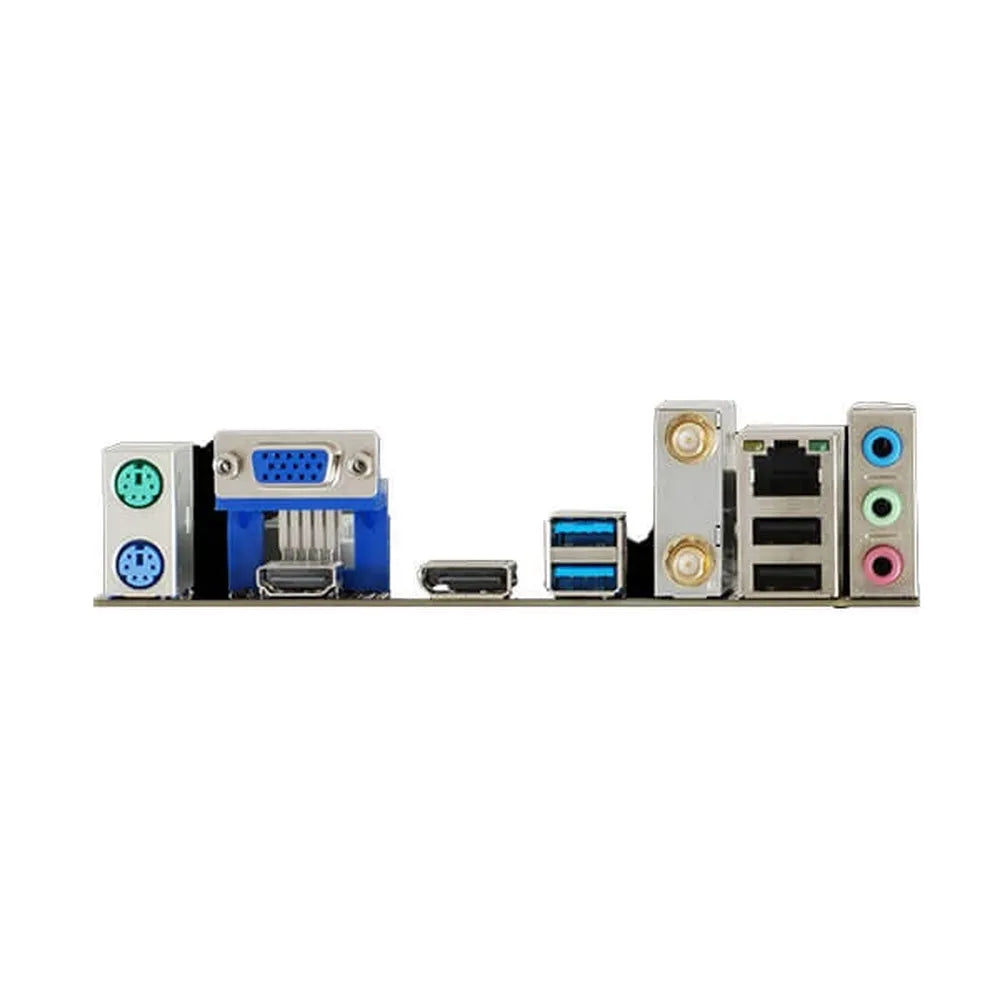

Back Panel | 1X M.2 WIFI slot 2x USB 3.2 Gen 2x1 Type-A port 1x RJ 45 port 2x USB 2.0 port 1x Audio jack 1x KB port 1x DP Ports 1x VGA port 1x HDMI port |
On Board Connectors | 1x Pinheader(for 2 USB 3.0) 1x Pinheader(for 2 USB 2.0) |
Slots | 1x PCI Express x16 Gen 4.0 Slot 1x PCI Express x1 Gen 3.0 Slot |
Form Factor | Micro-ATX (220mm x 175mm) |
Mounting | 6 Mounting Holes |
In the Box | 1x Motherboard 1x SATA Cable (optional) 1x I/O Plate 1x User Manual 1x Driver CD |
Warranty | 2 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
