ANT ESPORTS 690 Air ARGB ATX Mid Tower Cabinet (White)

ANT ESPORTS 690 Air ARGB ATX Mid Tower Cabinet (White)

Product Dispatch within 24-96 Hours

Guaranteed Dispatch in 24-48 Hours
Product is in stock in our Head Office Warehouse and will be dispatched within 24-48 hours.

Guaranteed Dispatch in 24-96 Hours
Product is in stock in Branch offices/Warehouses and will be dispatched within 24-96 hours.

Out of Stock
Product is out of stock. Product is an existing current model but stock arrival status unknown.

Pre Order
Product expected anytime soon within 2 days to 2 weeks. Book your product. Full refund if not available within 2 Weeks.

Rs. 7,225.00 Rs. 10,299.00

Discount: Rs. 3,074.00 (30%)

33 people are viewing this right now

Hurry Up! Only 1 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: 16 April,2025 - 20 April,2025

Availability: In Stock Unavailable

Description
Reviews ( 0 )

Features of Ant Esports 690 Air ARGB

Multiple Radiator Mounts –

For enthusiast-grade cooling dual 360-millimetre radiators are supported on the top and front panel while a single 240mm is supported on the side to keep the most extreme systems cool.

Large Storage Options –

With Dual 2.5” SSD mounts and dual 3.5” HDD mounts the Ant Esports 690 Air pc cabinet case is ideal to build any gaming or production system.

Movable Disk Bracket –

The HDD cage under the PSU shroud is movable and can be slid towards the front to make space for long PSUs and increase it to 220mm if needed.

Spacious Interiors –

Ant Esports Cabinet the spacious interior fits up to an E-ATX motherboard configuration. Support for up to a 390mm graphics card, a 175mm CPU cooler, and up to a 220mm PSU in length provides room for upgrades.

Four Dust Filters –

With magnetic dust filters in the front, side, and top along with a pull tray one on the PSU, the 690 Air facilitates high airflow while filtering out dust particles.

The 690 Air not only supports a massive 360mm radiator on top for a thermally perfect build but also has space for a 240mm radiator on the side so one can choose the amount of their choice and even install multiple radiators at the same time if needed. In terms of storage, the case supports two dedicated 2.5” SSD mounts one dedicated 3.5” HDD drive, and one swappable SSD or HDD mount totaling four storage drive mounts. The case comes with a dual SSD and a single HDD mount along with one swappable mount for SSD/HDD to provide enough storage for your gaming or production PCs.

For enthusiast-grade systems or cooling setups, the Ant Esports 690 Air supports up to dual 360mm radiators in the front and on top while the side 240mm radiator mount not only lets one opt for custom loop cooling but even uses graphics cards with AIO coolers is now possible. CPU Air Cooler clearance of up to 175mm ensures installation of massive air coolers with ease and the 220mm PSU clearance under the PSU shroud makes the 690 Air gaming cabinet the perfect gaming case to build power-hungry systems in.

Specifications of Ant Esports 690 Air ARGB

Model	690-AIR-WHITE
Color	White
Dimensions	Chassis Size: 421 x 221 x 470 mm Packing Size: 572 x 322 x 575 mm
Motherboard Type	E-ATX, ATX Cabinet, Micro-ATX, Mini ITX
Drive Bays	3.5 Inch: x 2 2.5 Inch: x 2 5.25 Inch: Non
Fan Support	Front: 120/140 mm x 3 Top: 120mm x 3/ 140mm x 2 Bottom: 120mm x 2 Rear: 120mm x 1 Side: 120mm x 2
Liquid Cooling Support(Maximum)	Front: 120/240/280/360 mm Rear: 120mm Top: 120/240/280/360 mm
Pre-Installed Fans Pre-Installed Fans	Front: x 3 ARGB Fans
Compatibility(Maximum)	VGA Card Length: 390mm CPU Cooler Height: 175m
I/O Panel	2x USB 3.0, 1x Audio In, 1x Mic, LED Control Button
Expansion Slots	7
Warranty	1 Year
Note	*** Features, Price, Specifications are subject to change without notice.

Frequently asked questions

1. What is the price of ANT ESPORTS 690 Air ARGB?

For the latest and most up-to-date price of the ANT ESPORTS 690 Air ARGB, visit the product page at www.EliteHubs.com. Prices change with offers and stock availability. EliteHubs changes prices frequently to be competitive, making sure the customer gets the best price. Look at the website for the updated price and available promotions or discounts.

2. What is the maximum length of a ANT ESPORTS 690 Air ARGB GPU?

The ANT ESPORTS 690 Air ARGB provides room for GPUs with a maximum length of approximately 340mm. This accommodates most of the newest graphics cards as well as a number of high-end designs. Be sure, however, to check your actual size of GPU and take into account front radiator mounting because this occasionally detracts from the computation. Always double-check the case specs with your chosen GPU size so there will be no compatibility issues.

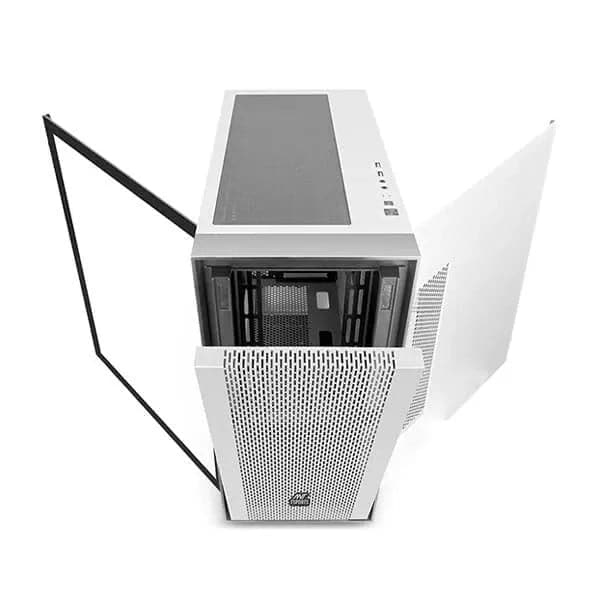

3. How to remove ANT ESPORTS 690 Air ARGB front panel?

Front panel removal of ANT ESPORTS 690 Air ARGB normally comes down to a simple pull-off. Find the bottom of the front panel, and there should be a slight dent or gap present there. Pull the panel outwards away from the case body gently but firmly. The panel is usually secured by plastic clips, and therefore a firm and even pull is needed so as not to damage anything. Reassembling the panel again is done by aligning the clips and pushing it in until it snaps into place tightly.

4. Is the ANT ESPORTS 690 Air an ARGB?

Yes, the ANT ESPORTS 690 Air ARGB is built with addressable RGB (ARGB) lighting. This is achieved in such a manner that individual discrete LEDs on the fans and potentially other onboard lighting features are individually programmable. This leads to a great degree of personalization of lighting effects and color schemes. ARGB lighting enables a richer, more interactive graphics display than standard RGB lighting, where all of the LEDs tend to be turned on and off collectively. "ARGB" in the name clearly specifies this capability.

5. Does the ANT ESPORTS 690 Air ARGB come with fans?

Yes, the ANT ESPORTS 690 Air ARGB case typically ships pre-installed with a quantity of ARGB fans.

The quantity and quality of fans may be slightly different for a particular model and retailer combination. It typically includes a package of 120mm or 140mm ARGB fans installed in top-tier airflow locations. These fans are pre-installed to provide cooling and light aesthetics, providing a plug-and-play option for those who want to display their build in colorful light.

6. Does ANT ESPORTS 690 Air ARGB have good airflow?

Yes, the ANT ESPORTS 690 Air ARGB is built with emphasis on good airflow. The case has a mesh front panel, allowing free air intake. This design, combined with optimally positioned fan mounts and pre-installed fans, provides effective cooling to your components. The open construction and space for two fans and radiators provide effective heat dissipation, making it ideal for high-end setups. The emphasis on airflow is a major aspect of this case.

7. Which ANT ESPORTS 690 Air ARGB is best?

There is no "best" particular version of the ANT ESPORTS 690 Air ARGB, but builds which may be appropriate for varied requirements. The white color build is the best because it is tidy. The best build to have is up to your personal requirements. Think whether you want additional fans, or will be watercooling the build. It is wise to take into consideration available fan build and I/O panel features. Check the individual retailer descriptions to determine if a model comes with other included features.

8. Is a ANT ESPORTS 690 Air ARGB case good?

Yes, the ANT ESPORTS 690 Air ARGB case is a good choice overall, particularly for budget-conscious shoppers. It is a balance of good airflow, ARGB lighting, and ease of use. The mesh front panel and generous fan support help with proper cooling, and the ARGB lighting provides that touch of class. It accommodates normal ATX motherboards and GPUs, making it a suitable overall pick. It is a suitable pick for mid range pc builds.

9. Are ANT ESPORTS 690 Air ARGB fans quiet?

The ANT ESPORTS 690 Air ARGB fans' noise level can be variable. Though they are made to deliver sufficient airflow, their noise is dependent on variables like fan RPM and system load. In regular operation, they should be very quiet. They are generally audible when operating at higher RPMs. Through software fan control or the settings on the motherboard to manage fan speed, a compromise between noise and cooling might be found. "Quiet" is relative.
