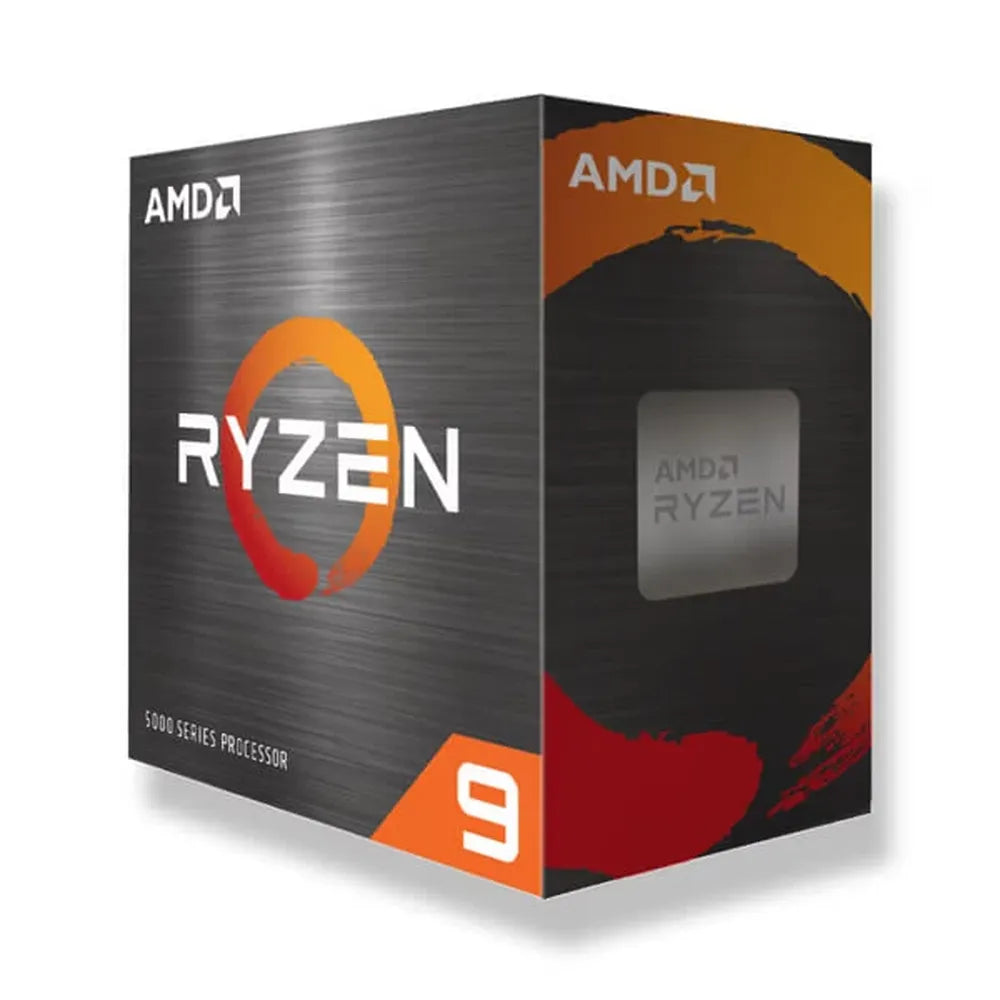

- AMD Ryzen 9 5900XT 5th Generation Processor ( 3.3 GHz / 16 Cores / 32 Threads )
Description
Features of AMD Ryzen 9 5900XT 5th Generation Processor
Power up your computing experience with the AMD Ryzen 9 5900XT 3.3 GHz 16-Core AM4 Processor, which features 16 cores and 32 threads to help quickly load and multitask demanding applications.
Designed for socket AM4 motherboards using the powerful Zen 3 architecture, the 7nm 5th generation Ryzen processor offers significantly improved performance compared to its predecessor. With a base clock speed of 3.3 GHz and a max boost clock speed of 4.8 GHz in addition to 64MB of L3 Cache, the Ryzen 9 5900XT is built to deliver the power needed to smoothly handle tasks ranging from content creation to immersive gaming experiences. You can boost performance further by overclocking this unlocked processor. Other features include support for PCIe Gen 4 technology and 3200 MHz DDR4 RAM with compatible motherboards.
This processor has a 105W TDP (Thermal Design Power) and does not include a cooling solution. Please note that it does not have an integrated GPU, so a dedicated graphics card is required.
Precision Boost 2
AMD Ryzen processors monitor the system’s energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.
Precision Boost Overdrive
Precision Boost Overdrive technology takes advantage of your compatible motherboard’s design to boost clock speeds higher and for longer periods of time. It also allows you overclock the processor at the touch of a button.
AMD StoreMI Technology
AMD StoreMI technology helps to improve load times and overall system performance by combining solid-state drives and mechanical hard drives into a single hybrid storage drive. Frequently used files and programs are cached onto the fast SSD while other files are stored on the high-capacity HDD.
AMD Ryzen VR Ready Premium
Ryzen VR Ready Premium processors are designed to meet or exceed the recommended specifications from the top HMD manufacturers, including Oculus Rift, HTC Vive, and Windows Mixed Reality for smooth performance.
AMD Ryzen Master Utility Personalized Performance
The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and DDR4 memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine tune your favorite applications.
System Monitoring
Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.
Specifications of AMD Ryzen 9 5900XT 5th Generation Processor
Name | AMD Ryzen™ 9 5900XT |
Family | Ryzen |
Series | Ryzen 5000 Series |
Form Factor | Boxed Processor , Desktops |
Market Segment | Enthusiast Desktop |
Consumer Use | Yes |
Commercial Use | No |
Regional Availability | Global |
Former Codename | Vermeer |
Architecture | Zen 3 |
# of CPU Cores | 16 |
Multithreading (SMT) | Yes |
# of Threads | 32 |
Max. Boost Clock | Up to 4.8 GHz |
Base Clock | 3.3 GHz |
L1 Cache | 1024 KB |
L2 Cache | 8 MB |
L3 Cache | 64 MB |
Default TDP | 105W |
Processor Technology for CPU Cores | TSMC 7nm FinFET |
Processor Technology for I/O Die | 12nm (Globalfoundries) |
CPU Compute Die (CCD) Size | 74mm² |
I/O Die (IOD) Size | 125mm² |
Package Die Count | 3 |
Unlocked for Overclocking | Yes |
CPU Socket | AM4 |
Supporting Chipsets | X570 , B550 , A520 , X470 , B450 |
CPU Boost Technology | Precision Boost 2 |
Instruction Set | x86-64 |
Supported Extensions | AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
Thermal Solution (PIB) | Not Included |
Max. Operating Temperature (Tjmax) | 90°C |
*OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
Connectivity | |
Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
Native USB 2.0 (480Mbps) Ports | 0 |
Native SATA Ports | 2 |
PCI Express® Version | PCIe® 4.0 |
Native PCIe® Lanes (Total/Usable) | 24 , 20 |
Additional Usable PCIe Lanes from Motherboard |
amd_x570 16x Gen 4 amd_x470 2x Gen 3, 8x Gen 2 |
NVMe Support | Boot , RAID0 , RAID1 , RAID10 |
System Memory Type | DDR4 |
Memory Channels | 2 |
Max. Memory | 128 GB |
System Memory Subtype | UDIMM |
Max Memory Speed |
2x1R DDR4-3200 2x1R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 |
ECC Support | Yes (Requires mobo support) |
Graphics Capabilities | |
Graphics Model | Discrete Graphics Card Required |
Key Features | |
Supported Technologies | AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
