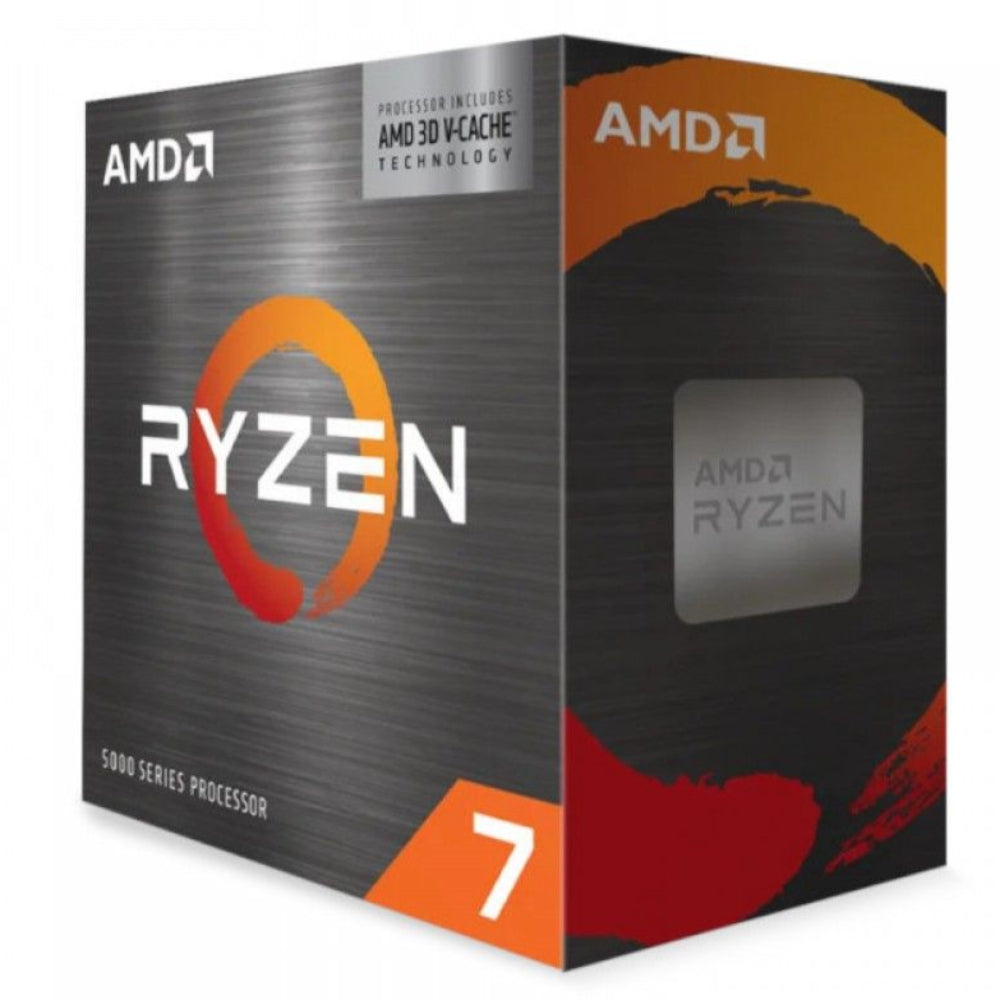

- AMD Ryzen 7 5800X3D 7th Generation Processor ( 4.5 GHz / 8 Cores / 16 Threads )
Description
Feature of AMD Ryzen 7 5800X3D 7th Generation Processor
AMD Ryzen 7 5800X3D 3.4 GHz Eight-Core AM4 Processor in your computer build. Featuring a unique AMD 3D V-Cache vertical design, this eight-core, 16 thread processor includes 96MB of L3 cache while still allowing the CPU to fit socket AM4 motherboards. Combined with the powerful Zen 3 7nm architecture, with a base clock speed of 3.4 GHz and a max boost clock speed of 4.5 GHz, this processor is designed to enhance 1080p video game performance by up to 15% with high graphical settings. Other features include support for PCIe 4.0 technology and 3200 MHz DDR4 RAM with compatible motherboards. This Ryzen Processors has a 105W TDP (Thermal Design Power) and does not include a cooling solution. Please note that it does not have an integrated GPU, so a dedicated graphics card is required.
Precision Boost 2
AMD 5000 Series Processors monitor the system's energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.
AMD StoreMI Technology
AMD StoreMI technology helps to improve load times and overall system performance by combining solid-state drives and mechanical hard drives into a single hybrid storage drive. Frequently used files and programs are cached onto the fast SSD while other files are stored on the high-capacity HDD.
AMD Ryzen VR Ready Premium
Ryzen VR Ready Premium processors are designed to meet or exceed the recommended specifications from the top HMD manufacturers, including Oculus Rift, HTC Vive, and Windows Mixed Reality for smooth performance.
AMD Ryzen Master Utility
Personalized Performance
The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and DDR4 memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine tune your favorite applications.
System Monitoring
Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.
Specifications of AMD Ryzen 7 5800X3D 7th Generation Processor
| General Specifications | |
| Platform | Desktop |
| Market Segment | Enthusiast Desktop |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 7 Desktop Processors |
| Commercial Use | No |
| Consumer Use | Yes |
| Former Codename | "Vermeer" |
| Architecture | "Zen 3" |
| # of CPU Cores | 8 |
| Multithreading (SMT) | Yes |
| # of Threads | 16 |
| Max. Boost Clock | Up to 4.5GHz |
| Base Clock | 3.4GHz |
| L1 Cache | 512KB |
| L2 Cache | 4MB |
| L3 Cache | 96MB |
| Default TDP | 105W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| Processor Technology for I/O Die | 12nm (Globalfoundries) |
| CPU Compute Die (CCD) Size | 74mm² |
| I/O Die (IOD) Size | 125mm² |
| Package Die Count | 1 |
| CPU Socket | AM4 |
| Socket Count | 1P |
| Supporting Chipsets |
X570 X470 B550 B450 A520 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not included |
| Max. Operating Temperature (Tjmax) | 90°C |
| *OS Support |
Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
| Connectivity | |
| USB Type-C® Support | Yes |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 0 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe 4.0 |
| Native PCIe® Lanes (Total/Usable) | 24/20 |
| Additional Usable PCIe Lanes from Motherboard |
AMD X570 16x Gen 4 AMD X470 2x Gen 3 AMD X470 8x Gen 2 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| Max. Memory | 128GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed |
2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Integrated Graphics | No |
| Graphics Model | Discrete Graphics Card Required |
| Key Features | |
| Supported Technologies |
Windows® 11 Gaming AMD StoreMI Technology AMD "Zen 3" Core Architecture AMD Ryzen™ VR-Ready Premium |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
