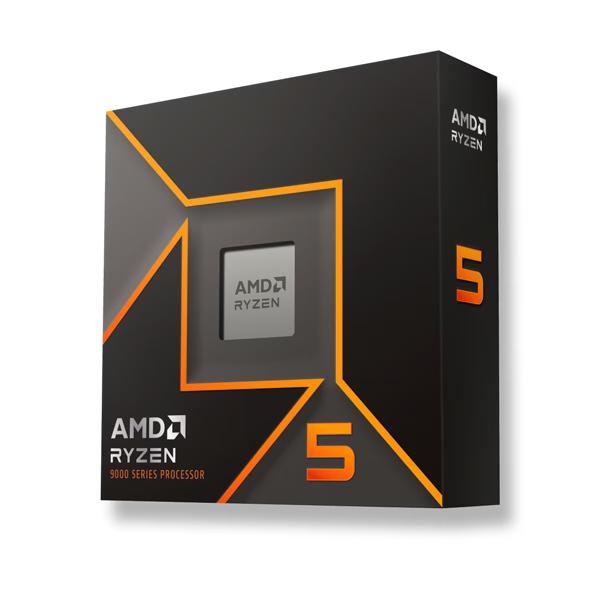

- AMD RYZEN 5 9600X 9th Generation Processor (5.4 GHz / 6 Cores / 12 Threads)
Description
Features of AMD RYZEN 5 9600X
Precision Boost 2
AMD Ryzen processors monitor the system’s energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.
Precision Boost Overdrive
Precision Boost Overdrive technology takes advantage of your compatible motherboard’s design to boost clock speeds higher and for longer periods of time. It also allows you overclock the processor at the touch of a button.
AMD Ryzen Master Utility
Personalized Performance
System Monitoring
Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.
AMD Ryzen 9000 Series processors
The Trusted AI-Ready Processors for the World’s Highest-Performing PCs
Introducing the new AMD Ryzen 9000 Series processors for desktop PCs, the world’s most advanced and powerful option for enthusiasts. It doesn’t matter if you’re working hard or gaming hard, the amd ryzen 5 is an absolute powerhouse. High-performance “Zen 5” core technology from AMD is your key to game-changing performance you can trust.
Next-Level Power, Next-Level Gaming
Shatter any obstacle that stands between you and victory with the raw power and performance of AMD 9000 Series Processor. Our “Zen 5” core technology evolves with your needs, so you can go big today and tomorrow. With up to 16 cores and 32 threads, our proven platform makes your high-performance gaming possibilities limitless.
Upgradable for Years to Come
Invest in a platform that grows with your needs over time.
Your PC platform can be an investment, or a liability. AMD is the only processor manufacturer that has committed to years of future support for the cutting-edge Socket AM5 platform, so you will be able to upgrade to new processors we haven’t even announced yet.
AI-Ready, Destined for Greatness
the full potential of your PC with AI-ready AMD Ryzen™ processors. Bring the speed of gaming to every element of your rig with built-in AI acceleration and enhanced AI capabilities for productivity and content creation. Want to supercharge AI enhancements? Pair the Ryzen™ 9000 Series processors with Radeon™ RX 7000 Series graphics cards to experience the ultimate performance.
Professional-Grade Productivity
Rebel against underwhelming performance. AMD Ryzen™ 9000 Series processors give you the strength to level up and provide an insane experience for gaming, streaming, creating, and all the worlds you want to master. With features like AMD EXPO technology one-touch memory overclocking, you can game with the ultra-high performance available on a PC and go for more glory.
The future of gaming is yours with the cutting-edge PC that can grow with you. The AMD Ryzen™ 9000 Series processors are future-ready with lightning fast DDR5 memory speeds and astonishing bandwidth with PCIe® 5.0. What’s more, only AMD promises years of upgradability so you can make the most of your AM5 platform. Buckle up, because with AMD Ryzen™ processors, you’re in for non-stop victory.
Specifications of AMD RYZEN 5 9600X
| Model | AMD Ryzen 5 9600X |
| MOdel No | 100-100001405WOF |
| Series | Ryzen 9000 Series |
| Form Factor | Desktops , Boxed Processor |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | Granite Ridge AM5 |
| Architecture | Zen 5 |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 5.4 GHz |
| Base Clock | 3.9 GHz |
| L1 Cache | 480 KB |
| L2 Cache | 6 MB |
| L3 Cache | 32 MB |
| Default TDP | 65W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Premium air cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes (Total/Usable) | 28 , 24 |
| Additional Usable PCIe Lanes from Motherboard | X870E 8x Gen4 X870 4x Gen4 X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID5 , RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 192 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Graphics Model | AMD Radeon Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Key Features | |
| Supported Technologies | AMD EXPO Technology , AMD Ryzen Technologies |
| Warranty | 3 Years |
| Note | *** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice. |
