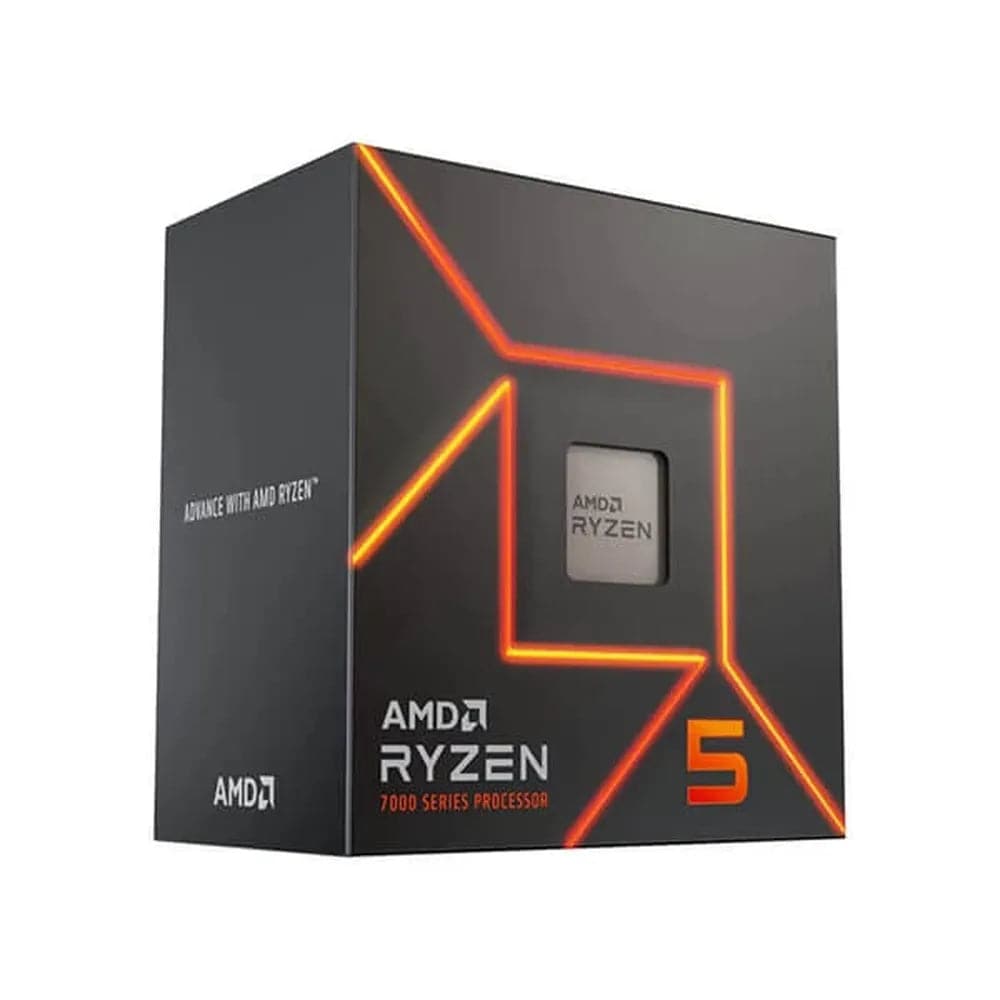

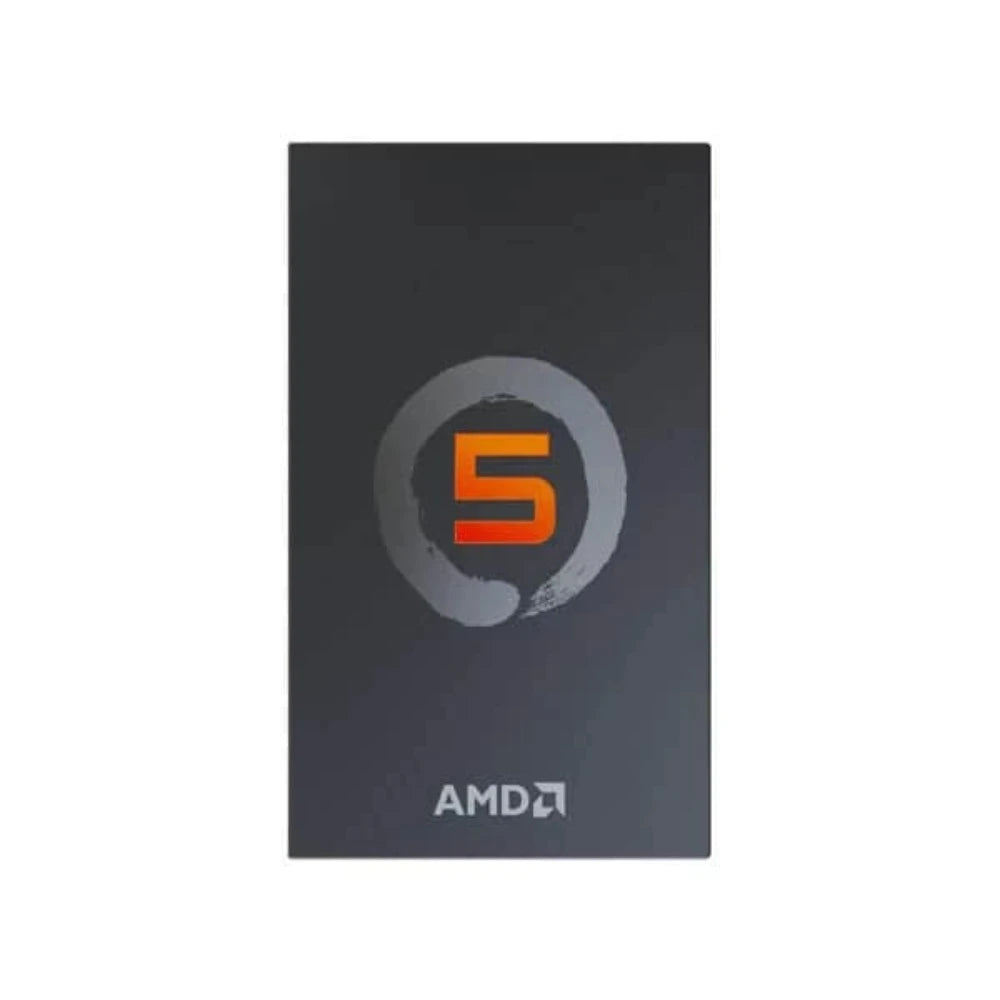

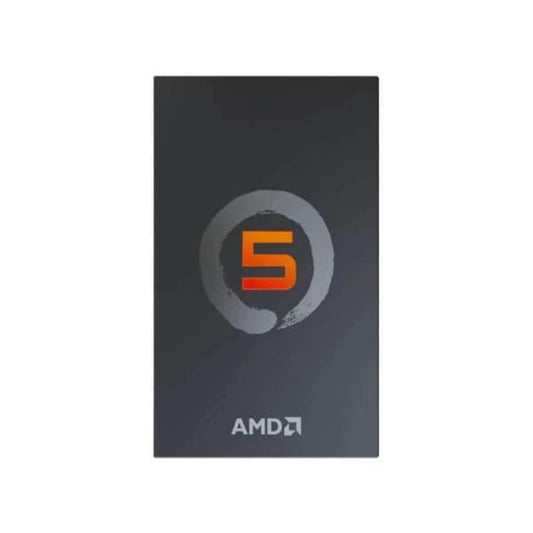

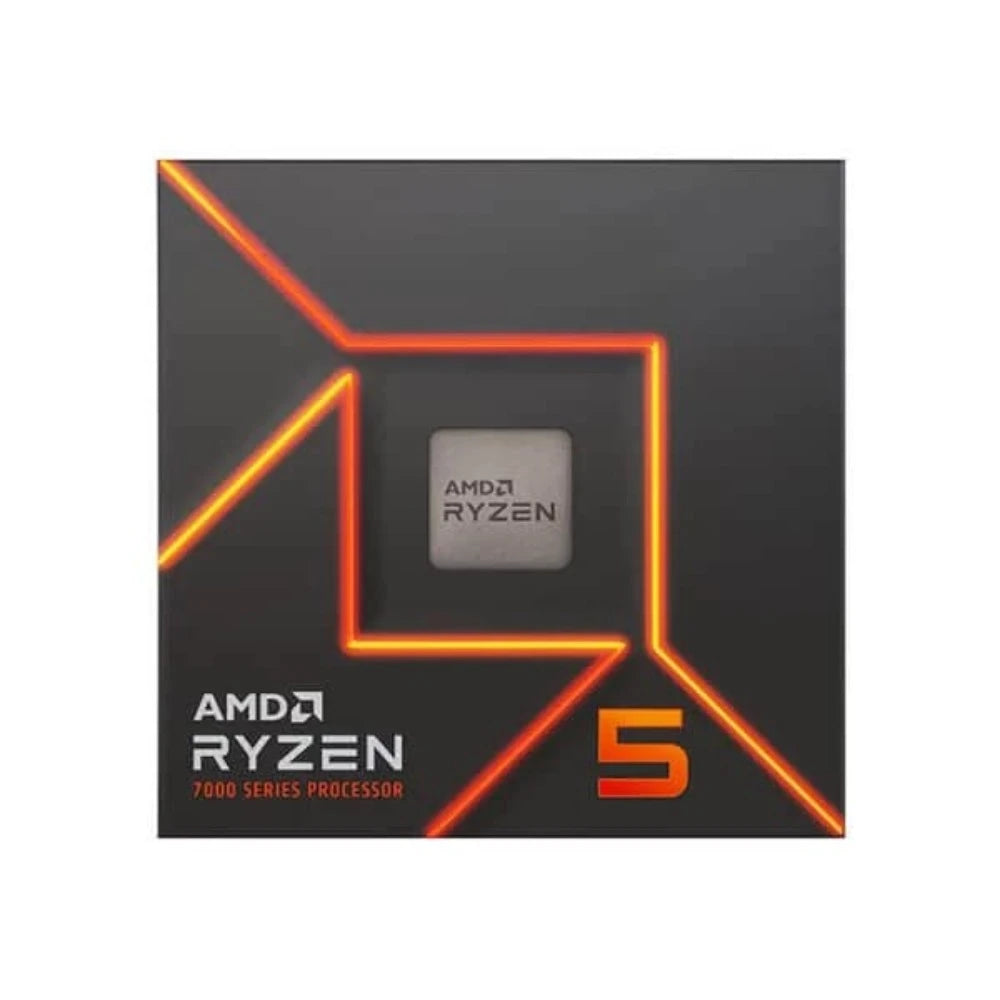

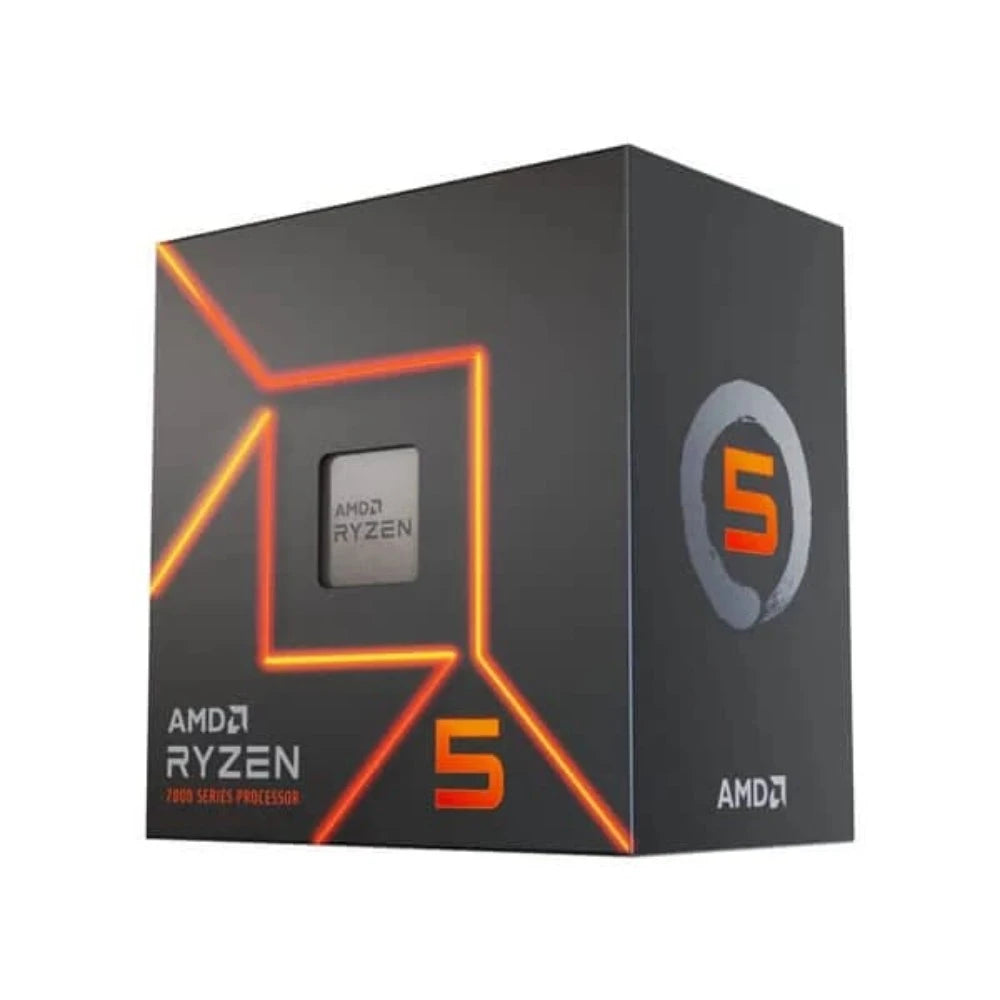

- AMD Ryzen 5 7600 7th Generation Processor ( 5.1 GHz / 6 Cores / 12 Threads )
Description
Features of AMD Ryzen 5 7600 7th Generation Processor ( 5.1 GHz / 6 Cores / 12 Threads )
AMD Ryzen 5 7600 Series with Radeon Graphics Desktop Processor this Processor Belongs to Raphael Former.
It has 6 Cores and 12 Threads, Max boost clock 5.1GHz
It supports AM5 Socket
- AMD Ryzen 5 7600
- Processor family: AMD Ryzen™ 5, Processor socket: Socket AM5, Processor lithography: 5 nm
- Memory channels: Dual-channel, Memory types supported by processor: DDR5-SDRAM, Memory clock speeds supported by processor: 3600,5200 MHz
- On-board graphics card model: AMD Radeon Graphics, On-board graphics card base frequency: 400 MHz, On-board graphics card dynamic frequency (max): 2200 MHz
- Market segment: Desktop, Compatible operating systems: Windows 11 – 64-Bit Edition Windows 10 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit
Specifications of AMD Ryzen 5 7600 7th Generation Processor ( 5.1 GHz / 6 Cores / 12 Threads )
Model | RYZEN-5-7600 |
General Specifications | |
Platform | Desktop |
Product Family | AMD Ryzen™ Processors |
Market Segment | Enthusiast Desktop |
Product Line | AMD Ryzen™ 5 Processors |
AMD PRO Technologies | No |
Consumer Use | Yes |
Regional Availability | Global |
Former Codename | "Raphael AM5" |
Architecture | "Zen 4" |
Multithreading (SMT) | Yes |
# of CPU Cores | 6 |
# of Threads | 12 |
Max. Boost Clock | Up to 5.1GHz |
Base Clock | 3.8GHz |
L1 Cache | 384KB |
L2 Cache | 6MB |
L3 Cache | 32MB |
Default TDP | 65W |
Processor Technology for CPU Cores | TSMC 5nm FinFET |
Processor Technology for I/O Die | TSMC 6nm FinFET |
CPU Compute Die (CCD) Size | 71mm² |
I/O Die (IOD) Size | 122mm² |
Package Die Count | 2 |
Unlocked for Overclocking | Yes |
AMD EXPO™ Memory Overclocking Technology | Yes |
Precision Boost Overdrive | Yes |
Curve Optimizer Voltage Offsets | Yes |
AMD Ryzen™ Master Support | Yes |
CPU Socket | AM5 |
Supporting Chipsets |
X670E X670 B650E B650 |
CPU Boost Technology | Precision Boost 2 |
Instruction Set | x86-64 |
Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Thermal Solution (PIB) | AMD Wraith Stealth |
Max. Operating Temperature (Tjmax) | 95°C |
*OS Support |
Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
Connectivity | |
USB Type-C® Support | Yes |
Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
Native USB 2.0 (480Mbps) Ports | 1 |
Native SATA Ports | 0 |
PCI Express® Version | PCIe® 5.0 |
Native PCIe® Lanes (Total/Usable) | 28/24 |
Additional Usable PCIe Lanes from Motherboard |
AMD X670E 12x Gen4 AMD X670 12x Gen4 AMD B650E 8x Gen4 AMD B650 8x Gen4 |
NVMe Support | Boot, RAID0, RAID1, RAID10 |
System Memory Type | DDR5 |
Memory Channels | 2 |
Max. Memory | 128GB |
System Memory Subtype | UDIMM |
Max Memory Speed |
2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600 |
ECC Support | Yes (Requires mobo support) |
Graphics Capabilities | |
Integrated Graphics | Yes |
Graphics Model | AMD Radeon™ Graphics |
Graphics Core Count | 2 |
Graphics Frequency | 2200 MHz |
GPU Base | 400 MHz |
USB Type-C® DisplayPort™ Alternate Mode | Yes |
Key Features | |
Supported Technologies |
AMD EXPO™ Technology AMD Ryzen™ Technologies |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
