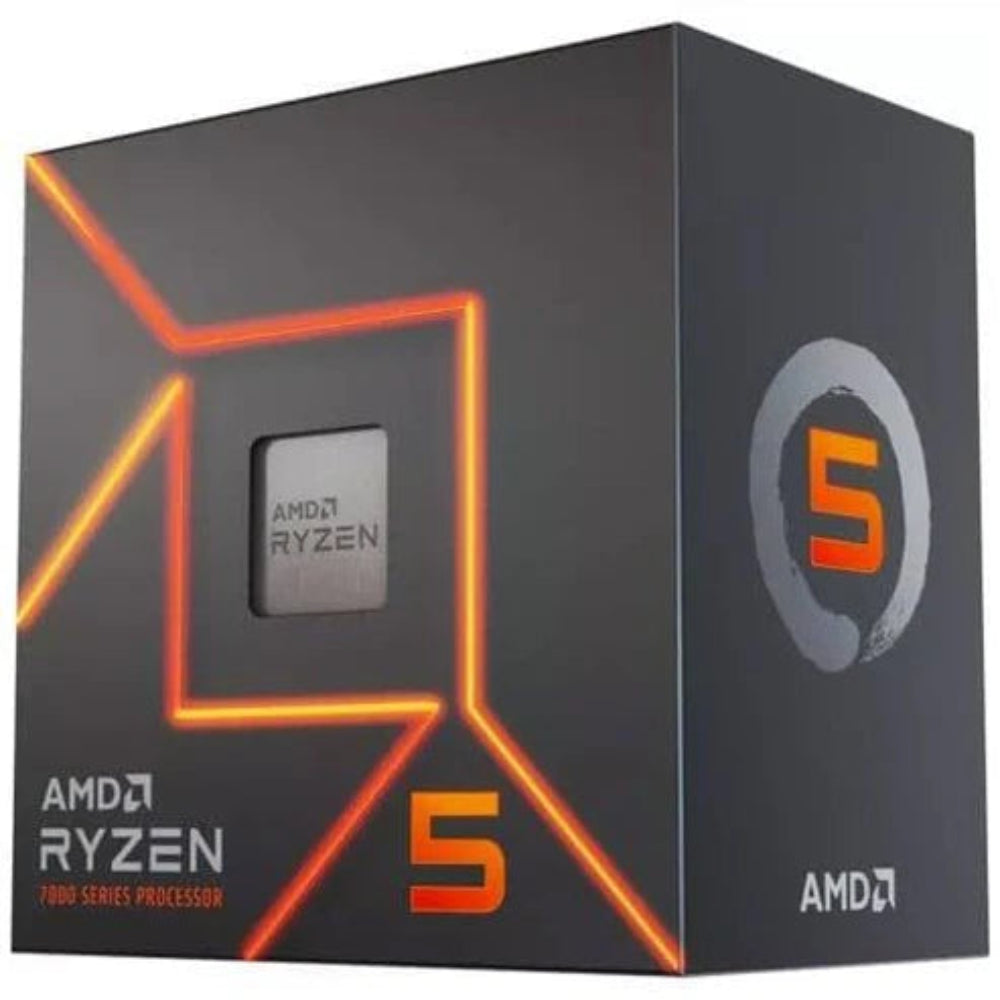

- AMD Ryzen 5 7500F 7th Generation Processor ( 5 GHz / 6 Cores / 12 Threads )
Description
Features of AMD Ryzen 5 7500F 7th Generation Processor ( 5 GHz / 6 Cores / 12 Threads )
- The AMD Ryzen 5 7500F is a powerful desktop processor with 6 cores and 12 threads, built on the Zen 4 architecture using a 5nm process.
- It has a high Max. Boost Clock of up to 5 GHz and a Base Clock of 3.7 GHz, with a TDP of 65W, making it an efficient choice for enthusiast desktop users.
- The processor is unlocked for overclocking, supporting technologies like AMD EXPO for memory overclocking, Precision Boost Overdrive, and Curve Optimizer Voltage Offsets to maximize performance.
- It features substantial cache memory with 32 MB of L3 Cache, 6 MB of L2 Cache, and 384 KB of L1 Cache, which helps to improve performance in various applications.
- This CPU requires a discrete graphics card and is compatible with the AM5 socket and a range of chipsets including X670E, X670, B650E, B650, and A620.
Specifications of AMD Ryzen 5 7500F 7th Generation Processor ( 5 GHz / 6 Cores / 12 Threads )
| Model | 100-100000597BOX |
| Name | AMD Ryzen™ 5 7500F |
| Family | Ryzen |
| Series | Ryzen 7000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Raphael AM5 |
| Processor Architecture | Zen 4 |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 5 GHz |
| Base Clock | 3.7 GHz |
| L1 Cache | 384 KB |
| L2 Cache | 6 MB |
| L3 Cache | 32 MB |
| Default TDP | 65W |
| Processor Technology for CPU Cores | TSMC 5nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71mm² |
| I/O Die (IOD) Size | 122mm² |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) | AMD Wraith Stealth |
| Thermal Solution (MPK) | AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 95°C |
| Launch Date | 07/22/2023 |
| OS Support | Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native USB 3.2 Gen 1 (5Gbps) | 0 |
| Native USB 2.0 (480Mbps) | 1 |
| Native SATA Ports | 0 |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 28, 24 |
| Additional Usable PCIe Lanes from Motherboard | X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4 A620 4x Gen3 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max Memory | 128GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Compatibilities | |
| Graphics Model | Discrete Graphics Card Required |
| Key Features | |
| Supported Technologies | AMD EXPO™ Technology , AMD Ryzen™ Technologies |
| Warranty | 2 Years |
| Note** | **Price, Specifications & Features are subject to change without notice |
