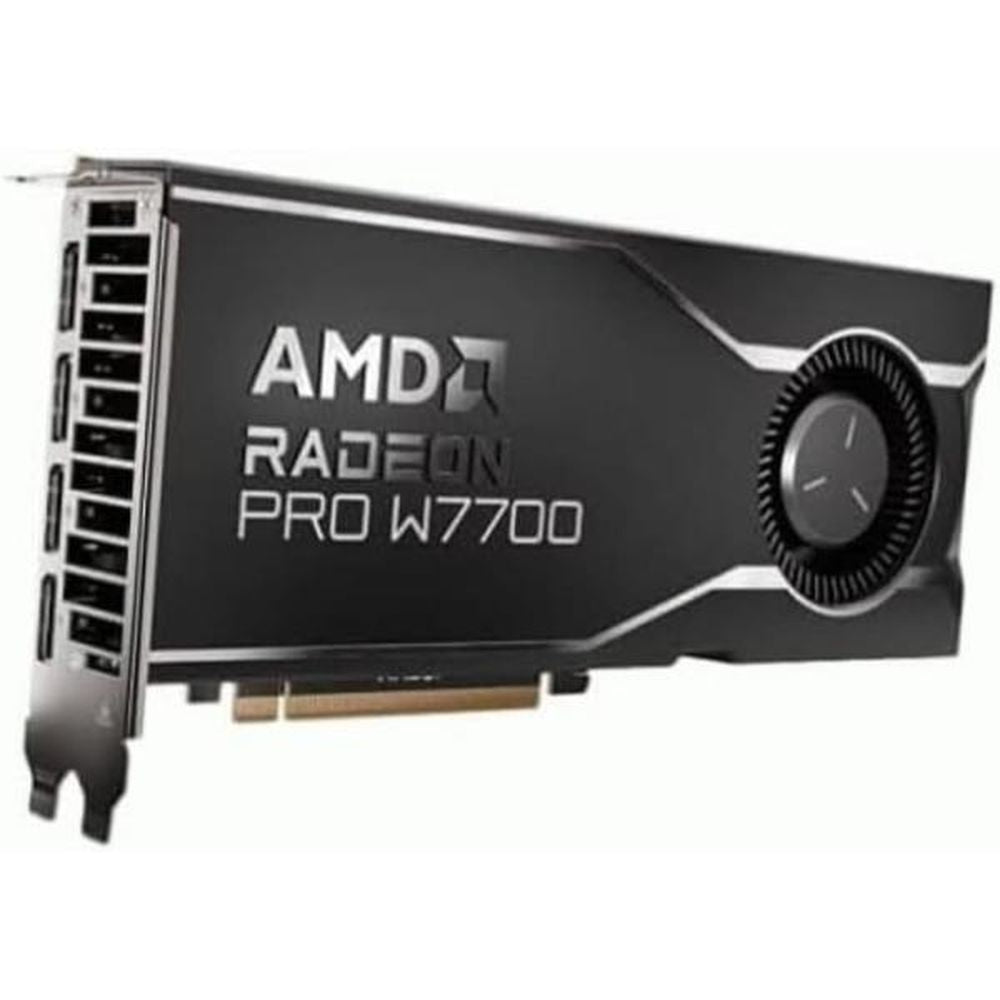

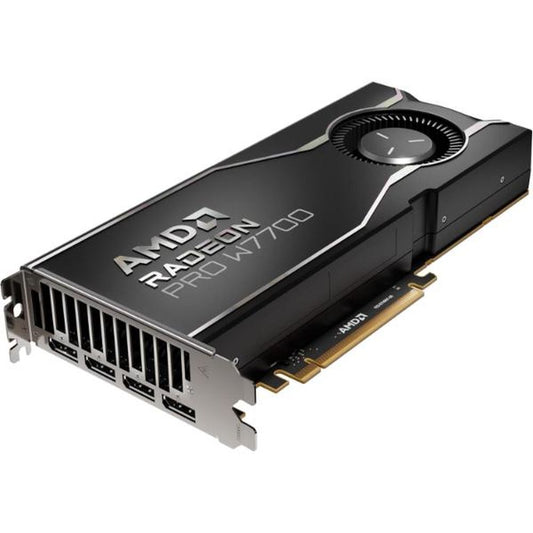

- AMD Radeon Pro W7700 16GB Professional Graphic Card
Description
Features of AMD Radeon Pro W7700 16GB Professional Graphic Card
Now featuring an advanced chipset design and RDNA 3 architecture, the AMD Radeon Pro W7700 Professional Graphics Card provides real-world multi-tasking performance and high-power efficiency. The W7700 was designed for professionals to create and work high-polygon count models seamlessly, deliver optimal image fidelity and color accuracy, and run graphics and compute-based applications concurrently without disruption to workflows. The GPU features 16GB of GDDR6 VRAM and a 256-bit memory interface, offering improved performance and power efficiency over the previous RDNA-based generation.

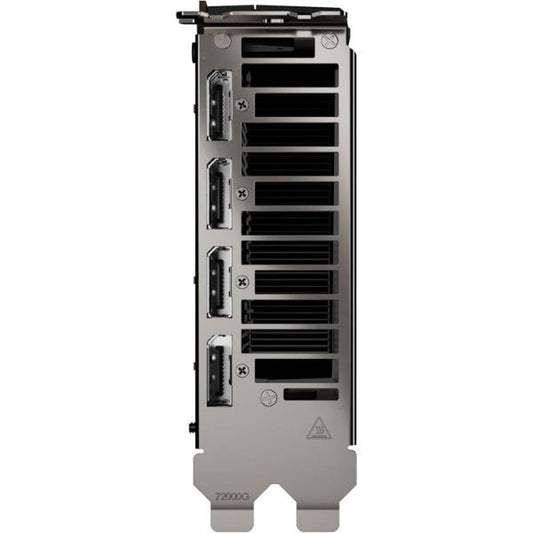

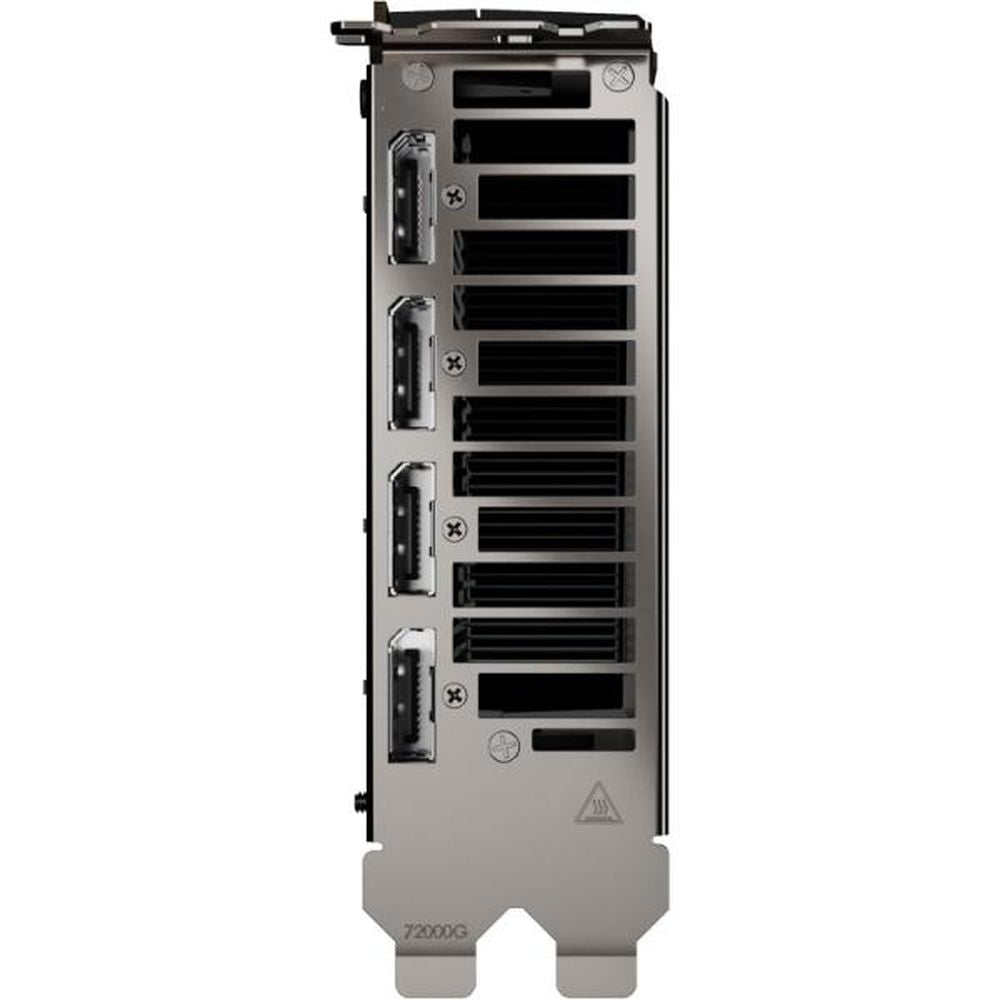

The front panel of the card features four DisplayPort 2.1 outputs. DisplayPort 2.1 technology with UHBR 20 offers up to 80 Gb/s of display link bandwidth (77.37 Gb/s without overhead) and enables 4K or 8K on next-gen displays. For cooling, AMD implemented a blower-style fan cooler. The W7700 has a dual-slot design.
RDNA 3 Architecture
Featuring an advanced chiplet design, compute units, and second-generation AMD Infinity Cache technology, AMD RDNA 3 architecture delivers up to 50% more raytracing performance per compute watt than the previous-generation AMD RDNA 2 architecture. AMD RDNA 3 architecture also features optimizations for AEC, D&M, and M&E workflows for rendering, video editing, and multi-tasking.
Advanced Chiplet Design
Now with a chiplet design, the W7700 provides higher performance and greater power efficiency than the previous generation. It includes the 5nm Graphics Compute Die (GCD) that provides the core GPU functionality. It also includes 6nm Memory Cache Die (MCD), each with second-generation AMD Infinity Cache technology.
Dedicated AI Acceleration and 2nd-Gen Raytracing
New AI instructions and increased AI throughput deliver over twice the performance of the previous AMD RDNA 2 architecture, while second-generation raytracing technology delivers significantly higher performance than the previous generation.
AMD Radiance Display Engine
This GPU supports the highest resolutions and over 68 billion colors and offers support for higher refresh rate displays compared to AMD RDNA 2 architecture. Display outputs support next-generation displays and multi-monitor configuration options, creating an ultra-immersive visual environment.
DisplayPort 2.1 Support
This graphics card supports DisplayPort 2.1 technology with UHBR 20, offering up to 80 Gb/s of display link bandwidth (77.4 Gb/s without overhead) and enabling 4K or 8K at high refresh rates on next-gen displays.
AV1 Encode/Decode
Dual encode/decode media engines unlock multi-media experiences with full AV1 encode/decode support designed for high resolutions, wide color gamut, and high-dynamic range enhancements.
Exceptional Workstation Performance
The AMD Radeon PRO W7700 complements the AMD Ryzen Threadripper PRO processors (sold separately) by providing the horsepower necessary to handle demanding creative, production, and visualization workloads quickly and efficiently. AMD Radeon PRO Series workstation graphics and Ryzen Threadripper PRO processors provide optimal performance, reliability, and stability to power mission-critical professional applications.
Optimized Driver Performance
All AMD Radeon PRO workstation graphics are supported by AMD Software: PRO Edition, which provides a modern and intuitive user interface. Radeon PRO Image Boost renders visuals higher than a display's native resolution to optimize image quality and resolution, while Radeon PRO Viewport Boost dynamically adjusts viewport resolution, boosting framerates and navigation performance in select applications.
Certified for Leading Professional Applications
AMD works with leading professional software application vendors on a comprehensive application certification program, and to ensure AMD Radeon PRO graphics cards are built for demanding 24/7 environments and tested to meet exceptional standards, delivering the ideal balance of performance and stability. The list of certified applications can be found on the official AMD website.
Specifications of AMD Radeon Pro W7700 16GB Professional Graphic Card
| Name | AMD Radeon™ PRO W7700 |
| Family | Radeon Pro |
| Series | Radeon PRO W7000 Series |
| Form Factor | Workstations |
| GPU Architecture | AMD RDNA™ 3 |
| Hardware Raytracing | Yes |
| Lithography | TSMC 5nm GCD 6nm MCD |
| Ray Accelerators | 48 |
| AI Accelerators | 96 |
| Compute Units | 48 |
| Peak Half Precision (FP16) Performance | 56.54 TFLOPs |
| Peak Single Precision Matrix (FP32) Performance | 28.3 TFLOPs |
| Transistor Count | 28.1 Billion |
| OS Support | Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , Linux x86 64-Bit |
| External Power Connectors | 1 x 8 Pin |
| Total Board Power (TBP) | 190W Peak |
| Minimum PSU Recommendation | 650W |
| Dedicated Memory Size | 16GB |
| Dedicated Memory Type | GDDR6 |
| AMD Infinity Cache Technology | 64MB |
| Memory Interface | 256 Bit |
| Peak Memory Bandwidth | 576 GB/s |
| Memory ECC Support | Yes |
| GPU Form Factor | PCIe® Add-in Card |
| Bus Type | PCIe® 4.0 x16 (3.0 Backward Compatible) |
| Cooling | Active |
| Display Port | 4x DisplayPort™ 2.1 (UHBR 13.5) |
| Display Configurations | 4x 4096 x 2160 (4K DCI) @ 120Hz with DSC, 2x 6144 x 3456 (6K) 12-bit HDR @ 60Hz Uncompressed, 1x 7680 x 4320 (8K) 12-bit HDR @ 60Hz Uncompressed, 1x 12288 x 6912 (12K) @ 120Hz with DSC |
| HDR Support | Yes |
| 8K Support | Yes |
| 10K Support | Yes |
| 12K Support | Yes |
| Board Height | Full Height |
| Board Length | 9.5″ (241 mm) |
| Board Width | Double Slot |
| Supported Rendering Formats | 1x Encode & Decode (AV1) , 2x Decode (H265∕HEVC，H264) , 2x Encode (H265∕HEVC，H264) |
| Supported Technologies | AMD Viewport Boost , AMD Remote Workstation , AMD Radeon™ Media Engine , AMD Software PRO Edition , AMD Radeon™ VR Ready Creator , AMD Radeon™ ProRender |
| 10-bit Display Color Output | Yes |
| 12-bit Display Color Output | Yes |
| 3D Stereo Support | Yes |
| DirectX® | 12.0 Ultimate |
| OpenGL® | 4.6 |
| OpenCL™ | 2.1 |
| Vulkan® | 1.3 |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
