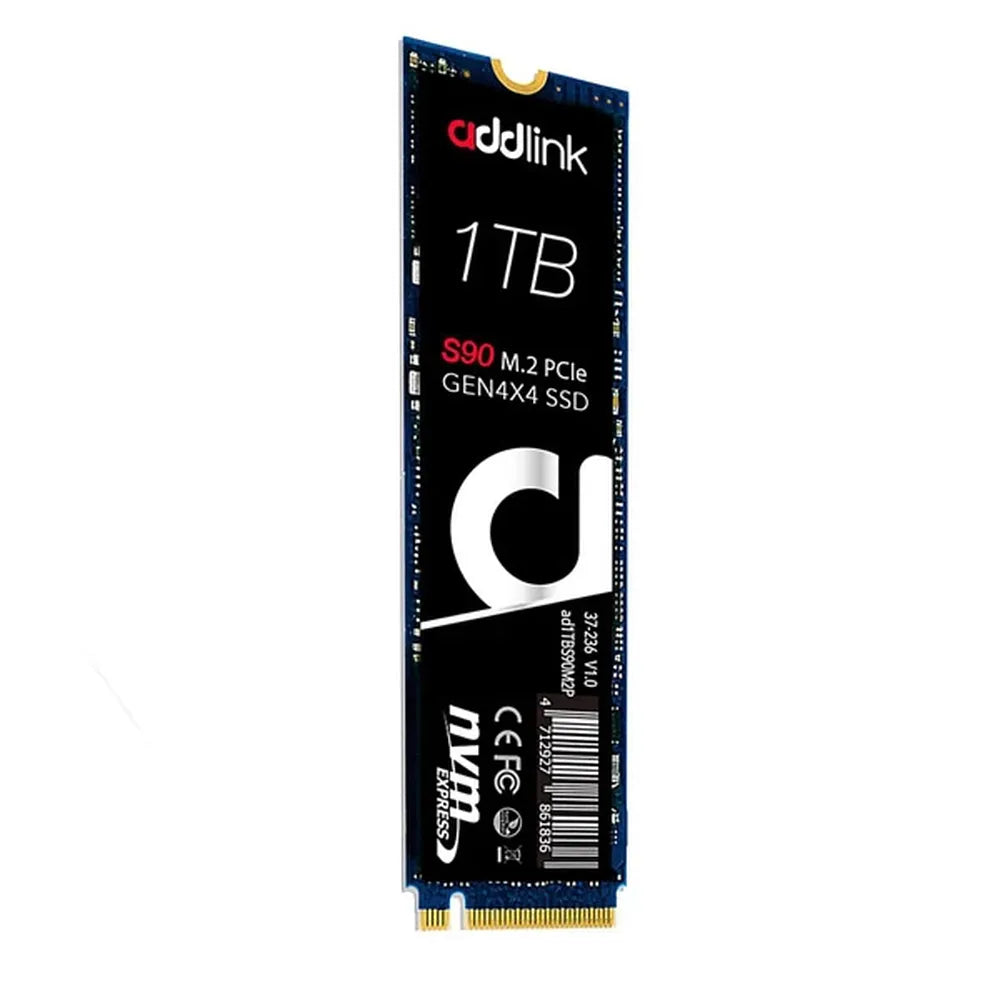

- ADDLINK S90 1TB M.2 NVME Gen4 Internal Solid State Drive ( SSD )
Description
Feature of ADDLINK S90 1TB M.2 NVME Gen4
ADDLINK S90 GEN4x4 NVMe SSD provides extreme storage performance, using Gen4 PCIe technology to achieve blazing fast sequential read speeds of up to 5000MB/s. The S90 delivers incredible storage performance, delivering up to 10X the sequential read/write speeds vs SATA SSDs.
The S90 provides an ideal mix of performance, endurance, and value to keep your drive performing at its best for years, with outstanding longevity up to 1,800TB Written.
- Exceptional PCIe Gen 4 Read up to 5000 MB/s; Write up to 4400 MB/s
- Random Read/Write speed of up to 750K/700K IOPS
- S90 is equipped with SLC caching and DRAM cache buffer
Exceptional performance
Powered by the latest 3D NAND technology and NVMe PCIe Gen4 x 4 interface, with four lanes used for transmitting and receiving data simultaneously, resulting in compelling performance of Read/Write up to 5000/4400MB/s and random Read/Write 750K/700K IOPS.*Performance may vary based on system hardware, configuration and other factors
Higher reliability and endurance
Engineered with a RAID engine and LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality flash chips, and engineered dynamic thermal throttling mechanism, the S90 insures superior endurance and stability for intense applications.
M.2 2280 Form Factor, Ready for RYZEN
Easily fits directly into the latest AMD X570 chipset motherboard; In order to get the full benefit of PCIe 4.0 speed AMD’s 3rd generation of Ryzen CPU is required.
Specifications of ADDLINK S90 1TB M.2 NVME Gen4
| Model | AD1TBS90M2P |
| Capacity | 1TB |
| NAND Flash | 3D TLC |
| DRAM Cache | External DDR4 Cache x 2 |
| Dimensions | 80(L)x22(W)x3.5(Max.H) mm, 8.2g |
| Interface | NVMe 1.3 PCIe GEN4x4 |
| Form Factor | M.2 2280 |
| Seq. Read/Write (MB/s) | 5000/4400 |
| 4K Random Read/Write (IOPS) | 750K/700K |
| Operating Temp. | 0°C ~ 70°C |
| Storage Temp. | -40°C ~ 85°C |
| MTBF | 1.8Million hours |
| Endurance | 1800 TBW |
| Support Functions | TRIMM DEVSLP, Garbage Collection, ECC, S.M.A.R.T, SLC Caching, Wear Leveling, Bad Block management, Over-Provision, RAID Protection |
| Operating System | Microsoft Windows 7 (additional driver required) Microsoft Windows 8 (additional driver required) Microsoft Windows 10, Linux Kernel 2.6.31 or later |
| Important Info | Please make sure that your computer has a M.2 slot. Backwards compatible with PCIe 3.0 platforms |
| Warranty | 5 Years or 1800 TBW |
| Note | *** Features, Price, Specifications are subject to change without notice. |
