Fractal Design Define 7 Compact TG Dark Tint FD-C-DEF7C-02

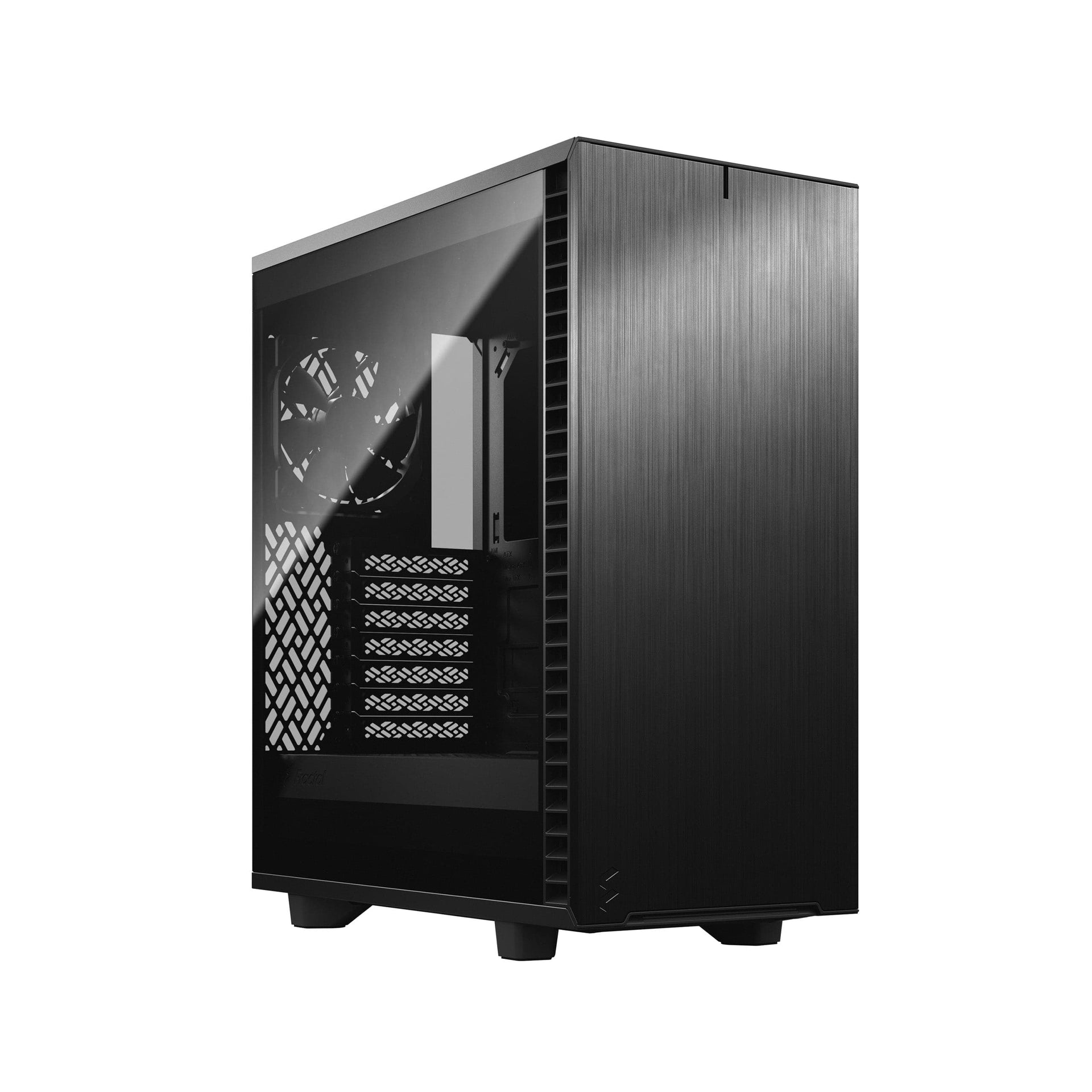

A cleaner look
Brushed aluminum front and interchangeable side panels give a very clean look.
Compact yet spacious
The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.
- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation.
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look.
- Top panel effortlessly swaps from solid steel to filtered ventilation.
- Install up to 7 x 120 mm or 4 x 140 mm fans, and radiators up to 360 mm.
- 1 x 120 mm and 1 x 140 mm Dynamic X2 fans included.
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support.
Robust front I/O
Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps.

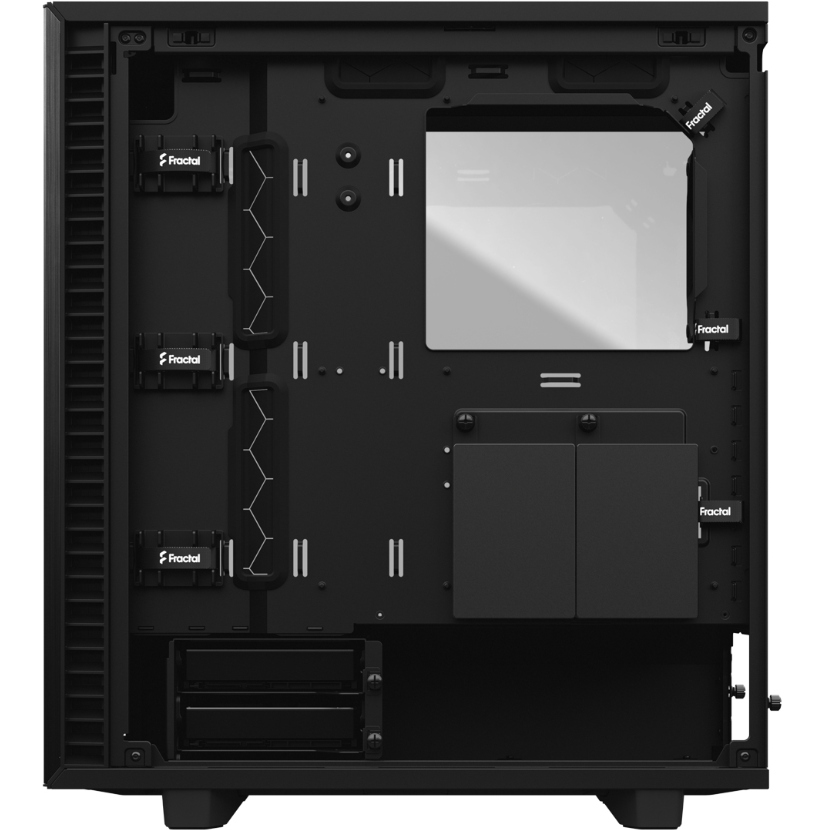

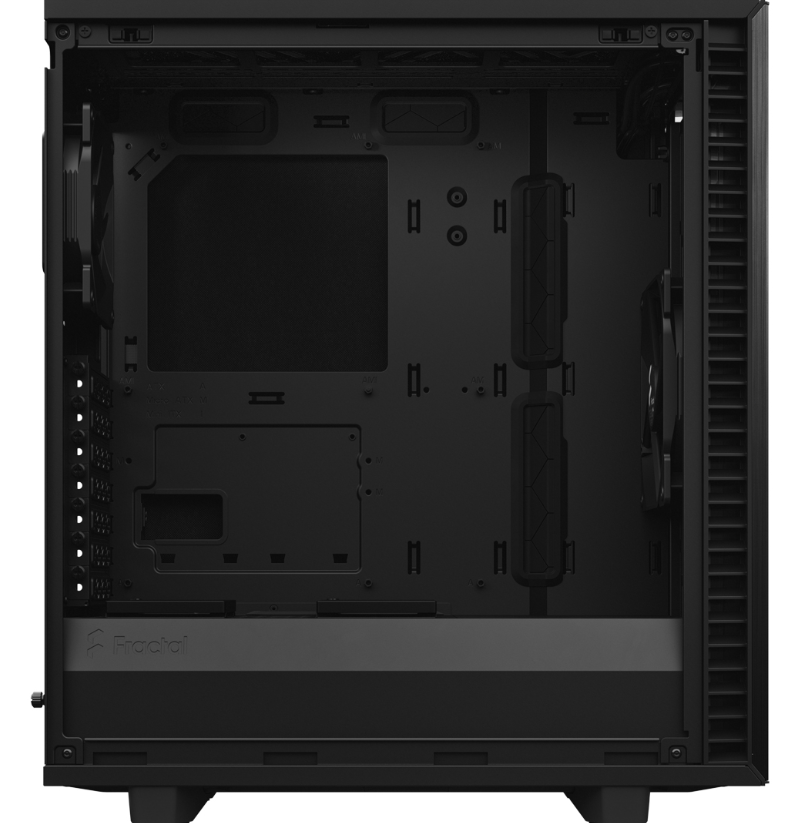

Remove the entire top to build and route with zero hindrance.
You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate.
More in store
A pair of SSDs are easily mounted straight on the PSU shroud.
Front, top and base
Easy-to-clean high airflow nylon filters.
|3.5″/2.5″ drive mounts||2|
|Dedicated 2.5″ drive mounts||2 trays included, 4 positions total|
|Power supply type||ATX|
|Front interface||1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button|
|Total fan mounts||7 x 120 or 4 x 140 mm and 2 x 120 mm|
|Front fan||3 x 120 or 2 x 140 mm, (1 x dynamic X2 GP-14 included)|
|Top fan||2 x 120 or 2 x 140 mm|
|Rear fan||1 x 120mm, (1 x dynamic X2 GP-12 included)|
|Bottom fan||1 x 120 mm (requires removal of HDD cage)|
|Dust filters||Top, 2 x front, full length bottom|
|Front radiator||Up to 360/280 mm (max 145 mm width)|
|Top radiator||Up to 240 mm|
|Bottom radiator||120 mm (requires remove of HDD cage)|
|PSU max length||200mm (with HDD cage and front fan)|
|GPU max length||341 mm (360 mm without front fan)|
|CPU cooler max height||169 mm|
|Cable routing space||17-28 mm|
|Case dimensions (L x W x H)||427 x 210 x 474 mm|
|Cabinet Form Factor|
|Cabinet Side Panel Type|
|Cabinet Radiator Support|
