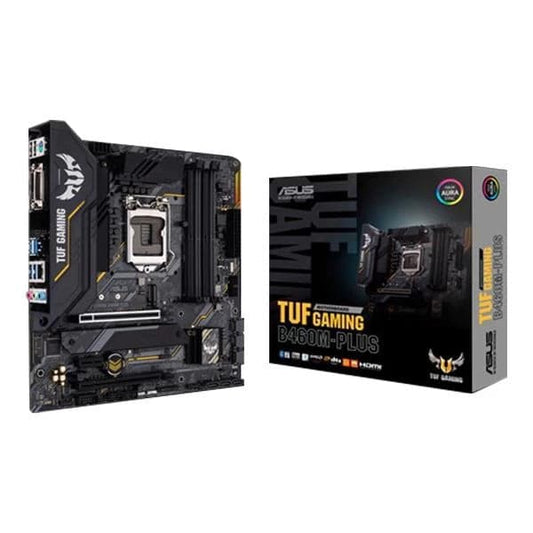

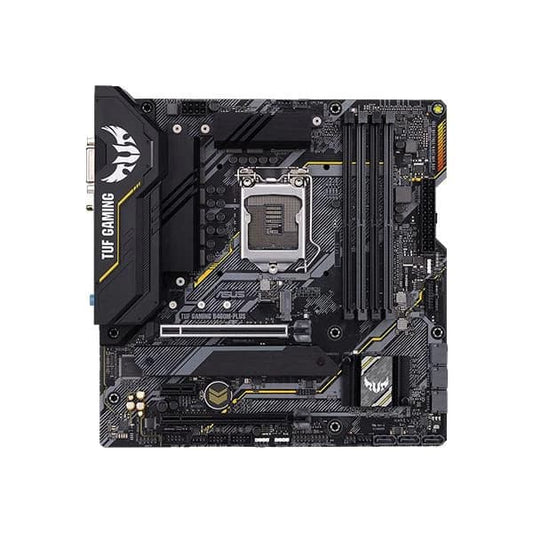

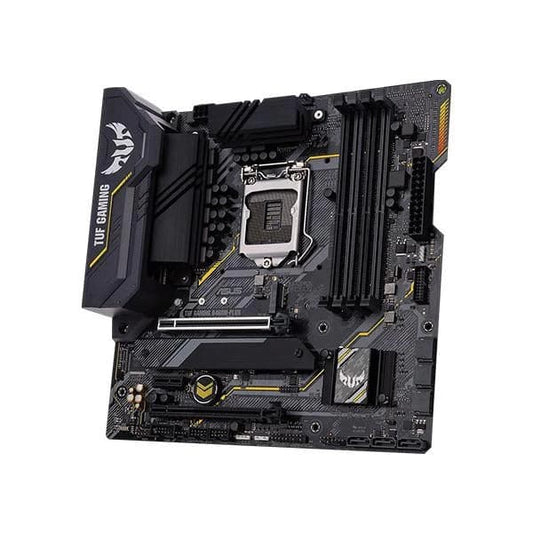

ASUS TUF GAMING B460M-PLUS Motherboard
₹10,350.00
ASUS TUF GAMING B460M-PLUS provides full support to the 10th Gen Intel Core / Pentium Celeron processor for LGA 1200 socket. Also comes with DisplayPort, SATA 6Gbps, USB 3.2 Gen 1 port, dual M.2, 8 power stages, HDMI and Aura Sync RGB Lighting.
- Now get maximum durability with military-grade TUF components, Digi+ VRM for maximum durability and 6+1+1 power stages. Helps to enhance power solutions.
- Worried about heating and frying up your components? ASUS TUF GAMING B460M-PLUS gives the optimum performance and keeps the temperature low at the same time with the help of VRM heatsink, PCH heatsink and M.2 heatsink. This helps to dash out non-stop work along with high performance.
- No need to worry about lag anymore as the B460M-PLUS comes with TUF LANGuard and Turbo LAN technology. Also, the Intel Ethernet Connection I219-V helps to do lag-free gaming.
- Hear more footsteps with Realtek S1200A codec. 108 dB SNR for stereo line out and 103 dB SNR for line in. One of the best audio quality you can find.
Out of stock
Description
ASUS TUF GAMING B460M-PLUS Motherboard
Now light up your PC with aura sync RGB lighting. Easily synchronize LED effects across various compatible PC components. Also comes with RGB strips.
Features :
- Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
- Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem
Specifications :
CPU | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0* *Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset | Intel® B460 |
Memory | 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
Graphic | Integrated Graphics Processor 1 x DisplayPort 1.4 * 1 x HDMI 1.4b 1 x DVI-D *Graphics specifications may vary between CPU types. |
Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
Expansion Slots | Intel® 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel® B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 |
Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready *2 |
LAN | Intel® I219-V 1Gb Ethernet |
Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC * – Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – Exclusive DTS Custom for GAMING Headsets. – Audio cover – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
USB Ports | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
Software Features | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ – EZ update AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
ASUS Special Features | ASUS TUF PROTECTION – ASUS DIGI+ VRM – ASUS Enhanced DRAM Overcurrent Protection – ASUS ESD Guards – TUF LANGuard – ASUS Overvoltage Protection – SafeSlot Core+ – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink – Aluminum heatsink design AURA Sync – Standard RGB header(s) – Addressable Gen 2 RGB header(s) |

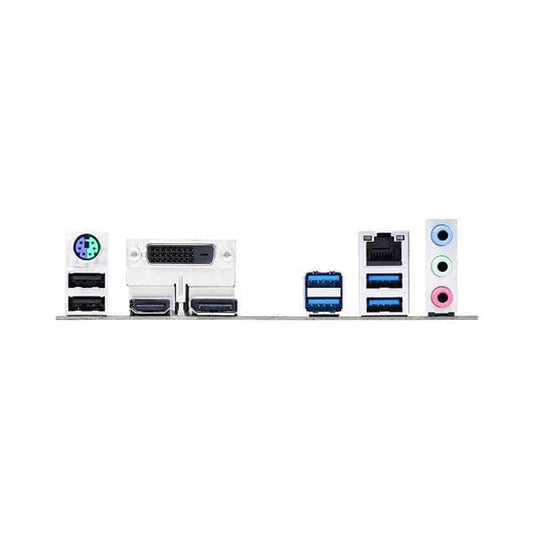

Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s) |
Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PXE |
Operating System | Windows® 10 64-bit |
Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
Warranty | 3 Years |
Note | *1 M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled. *2 Only the M.2_2 socket can support Intel® Optane™ Memory Ready.***Features, Price and Specifications are subject to change without notice. |
Additional information
Weight | 0.898 kg |
---|---|
Dimensions | 31.29 × 32.48 × 11.76 cm |
Brand | |
Motherboard Chipset | |
Motherboard Form Factor | |
Motherboard Platform |
